Crystallizer, 2,000 Gallon, Alloy, 6' X 8', Agit, Coil, (2) #C735206

Crystallizer, 2,000 Gallon, Alloy, 6' X 8', Agit, Coil, (2) #C735206

Available quantity: 2

Modesto, CA

orCall +1 (415) 467-3400

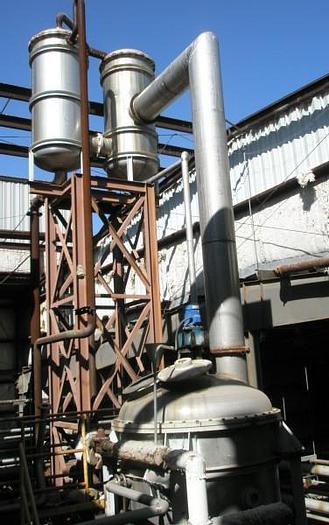

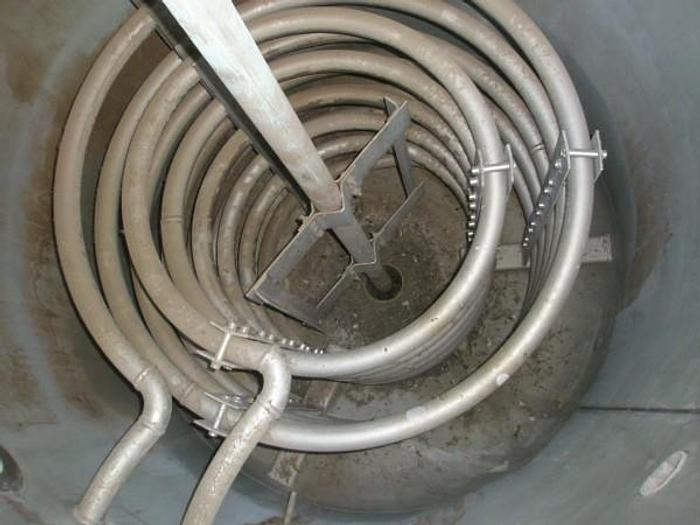

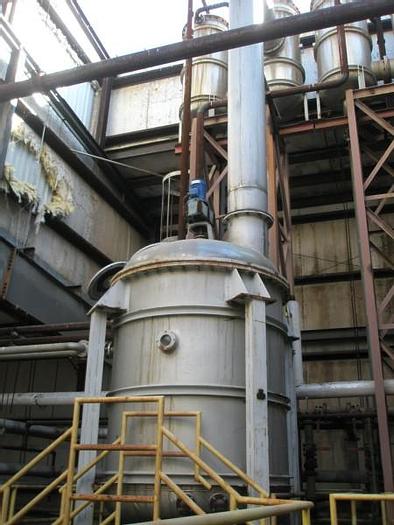

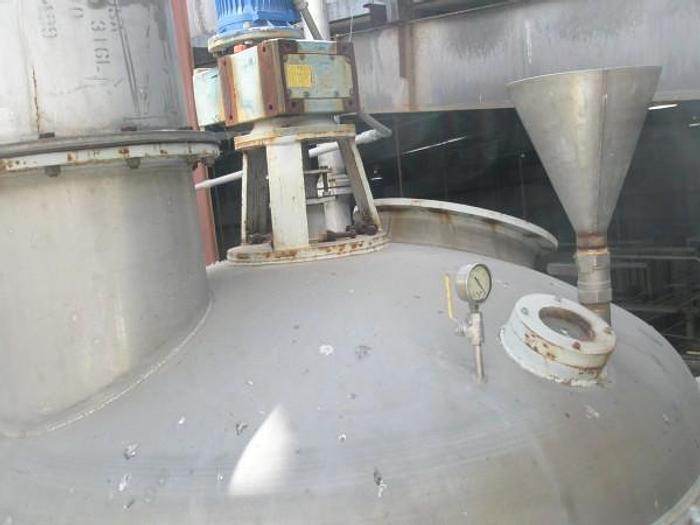

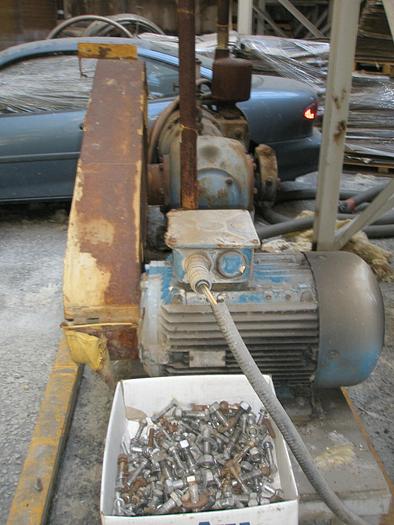

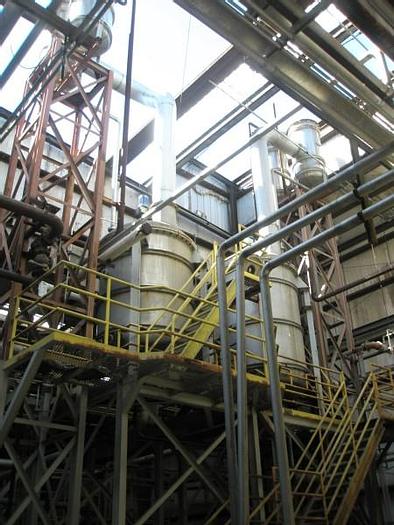

(2) Crystallizer systems, designed for crystallization of tartaric acid, batch-type, 2,000 gallons per 4-6 hours. Complete with crystallizer body constructed of sanicro 28 alloy, rated for full vacuum internal, measures 6' diameter X 8' straight side, dished top & bottom, (2) sets of internal coils, center top agitation with paddle agitator, driven by approximately 2 HP motor thru gear box, 6" center bottom outlet, 2" feed inlet with manual valve, 18" top manway & 16" top vent, each have a steam jet vacuum ejector. Gases escape through vent opening to (2) elevated evaporator bodies measuring approximately 36" diameter X 6' high each. Second body introduces water through plates to create suction and condense gases. Also includes vacuum pump. Still installed and appear to be in good condition. Llizer was 15-18% tartaric acid. Slurry coming out at end of process was 65-70% tartaric acid. By adjusting the amount of time of evaporation you can use lower or higher initial concentrations.


Stock NumberC735206
Measurements36" diameter X 6' high (2)
BasisEach, As Is, Where Is
