Kettle, 150 Gallon, Stainless Steel, Electrically Heated, Sweep Agitation, Chocolate Melter, #5991658
Kettle, 150 Gallon, Stainless Steel, Electrically Heated, Sweep Agitation, Chocolate Melter, #5991658
Location:Brisbane, CA
Available quantity:1
Description

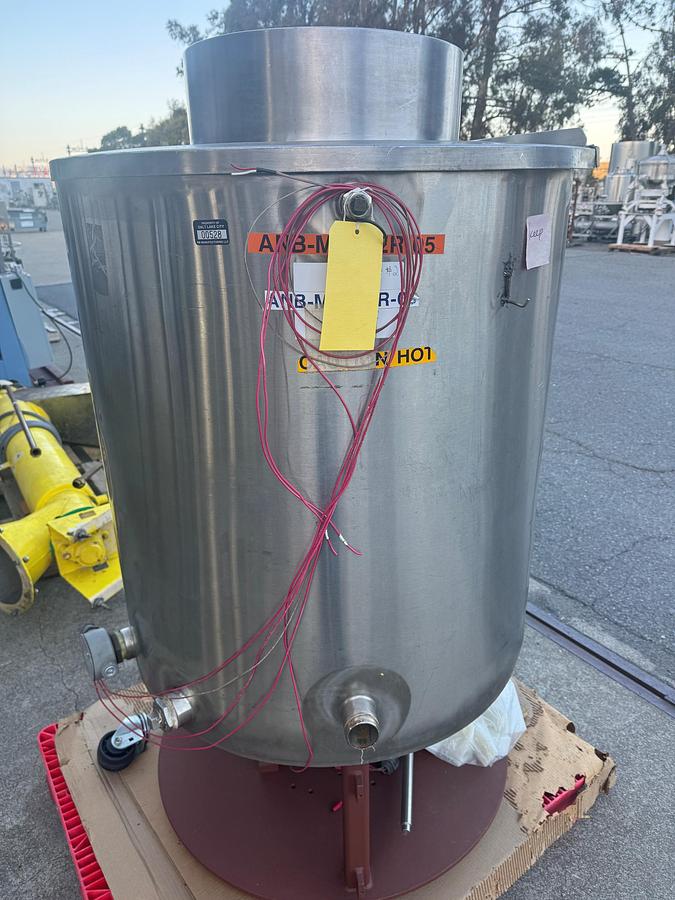

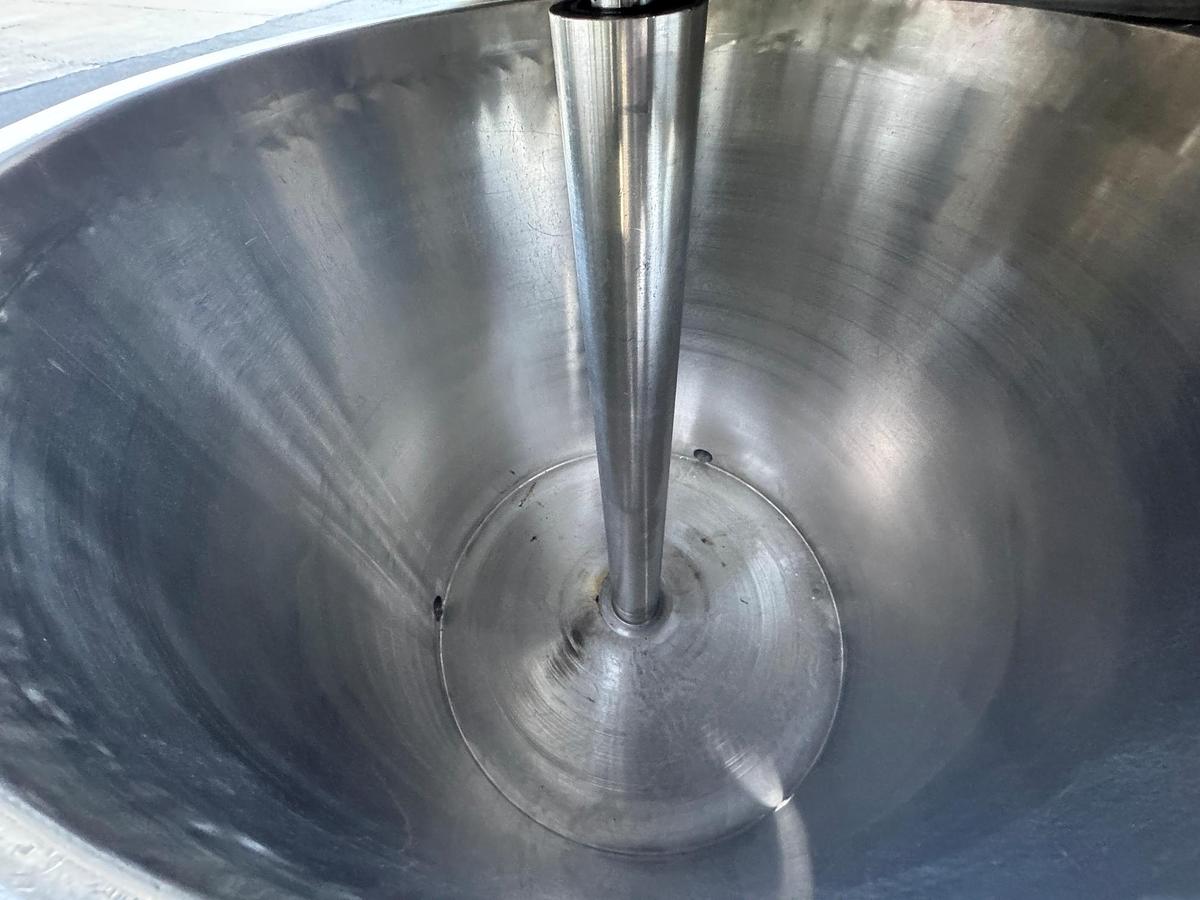

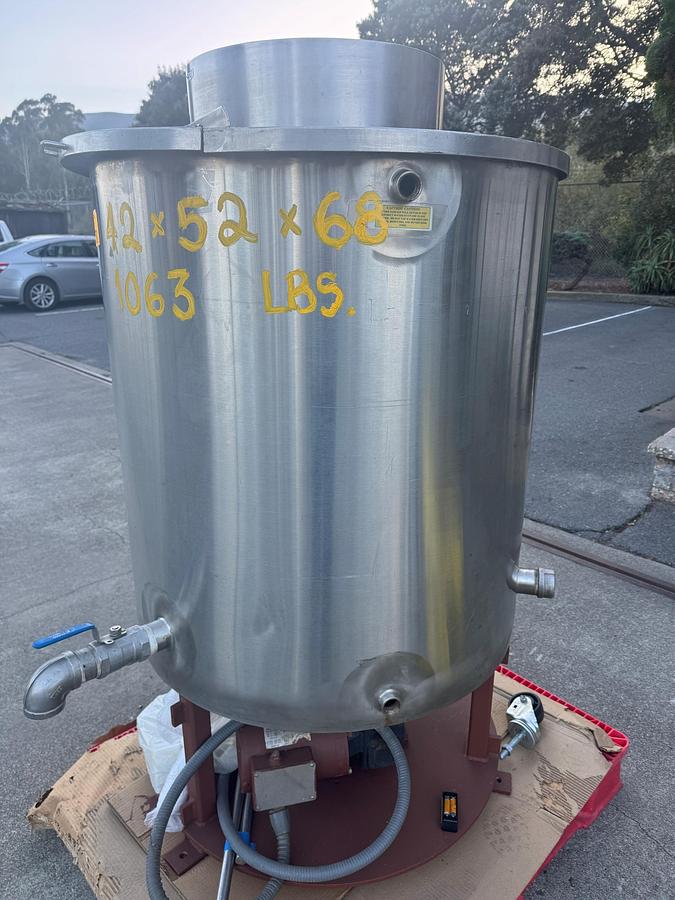

Stainless steel electrically heated kettle, approximately 150-Gallon, measuring 36" diameter x 40" deep, equipped with a bottom-mounted agitator driving a full-coverage sweep system with Teflon scrapers. Unit includes a removable lid, 2" side-bottom outlet with manual valve, and Watlow integrated electrical heat source suitable for controlled melting and mixing operations. The vessel is supported by a steel frame with motor and gearbox located below the tank. Previously used as a chocolate melter and mixer, showing a design well suited for viscous materials requiring consistent temperature and agitation.
Specifications
| Stock Number | 5991658 |
| Previous Use | Chocolate melting and mixing |
| Lid | Included |
| Outlet | 2" side-bottom outlet with manual valve |

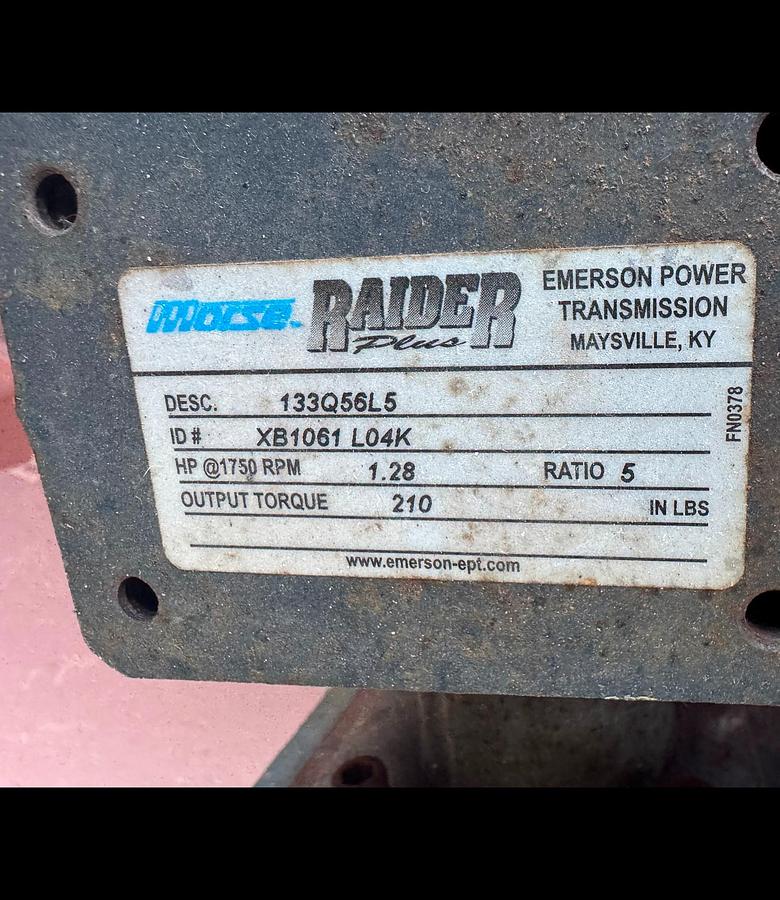

| Gear Reducer | Emerson / Morse Raider, 5:1 ratio |

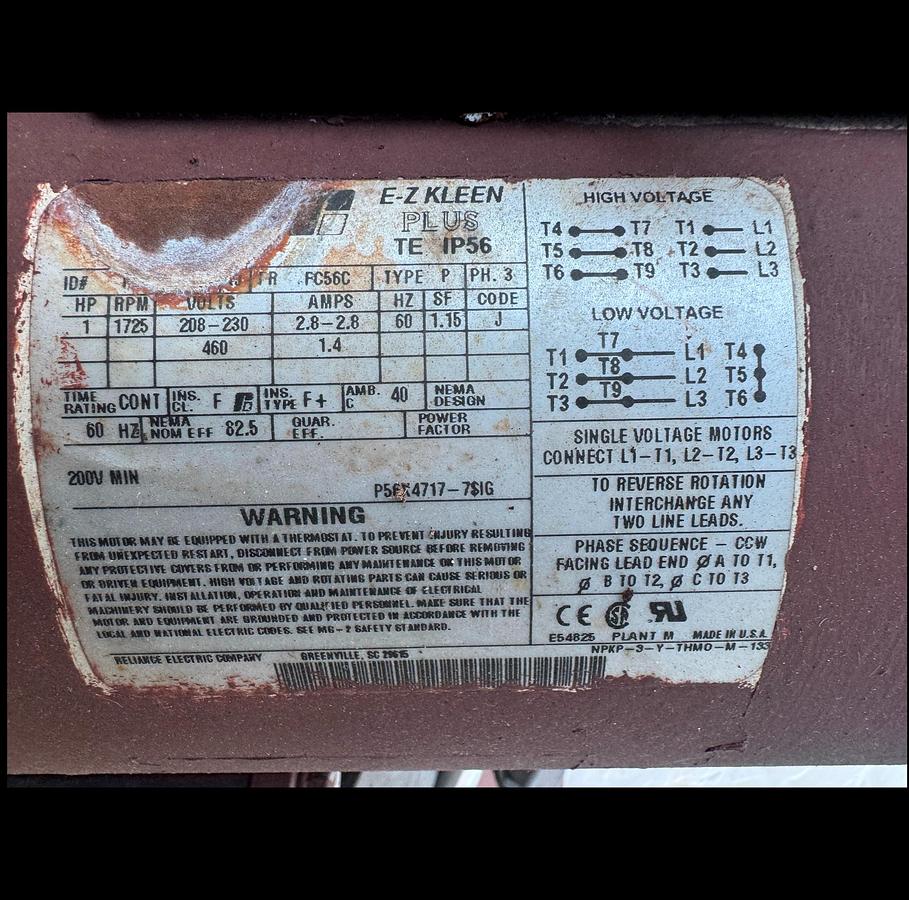

| Motor | Reliance Electric 1 HP, 1725 RPM |

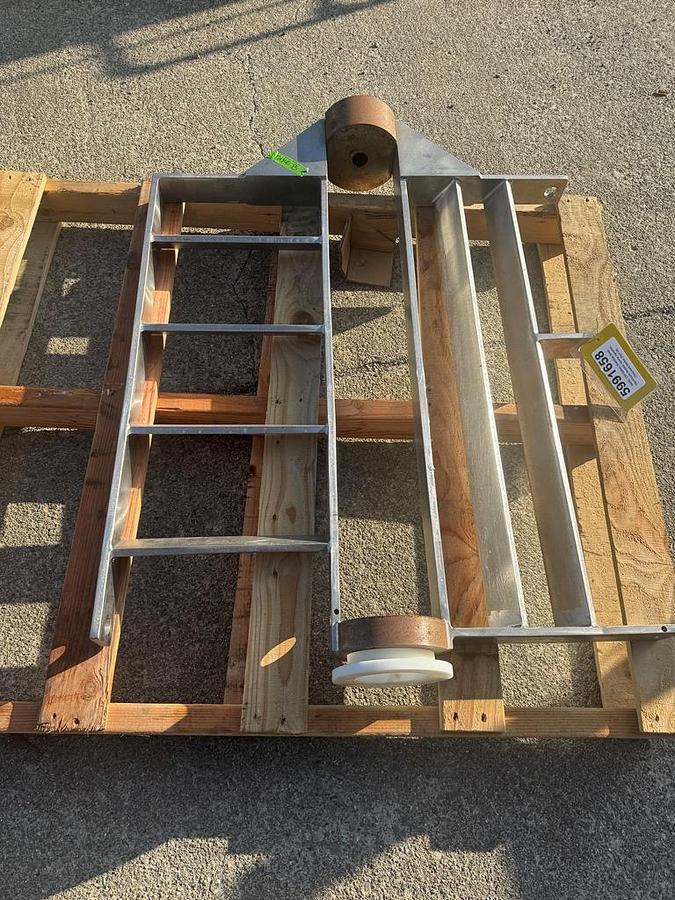

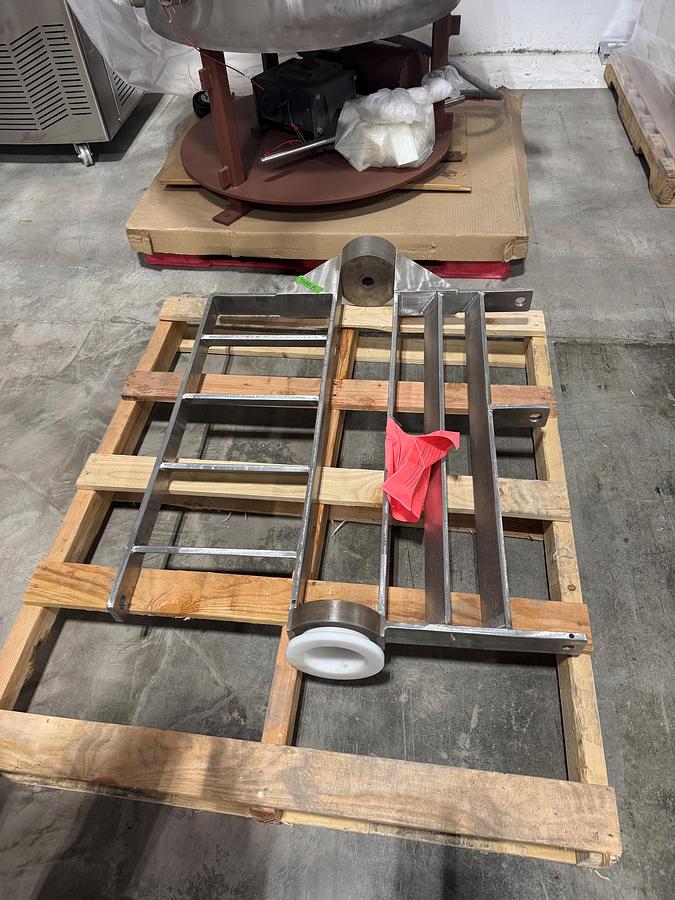

| Agitation | Bottom-mounted drive with wide sweep and Teflon scraper blades |

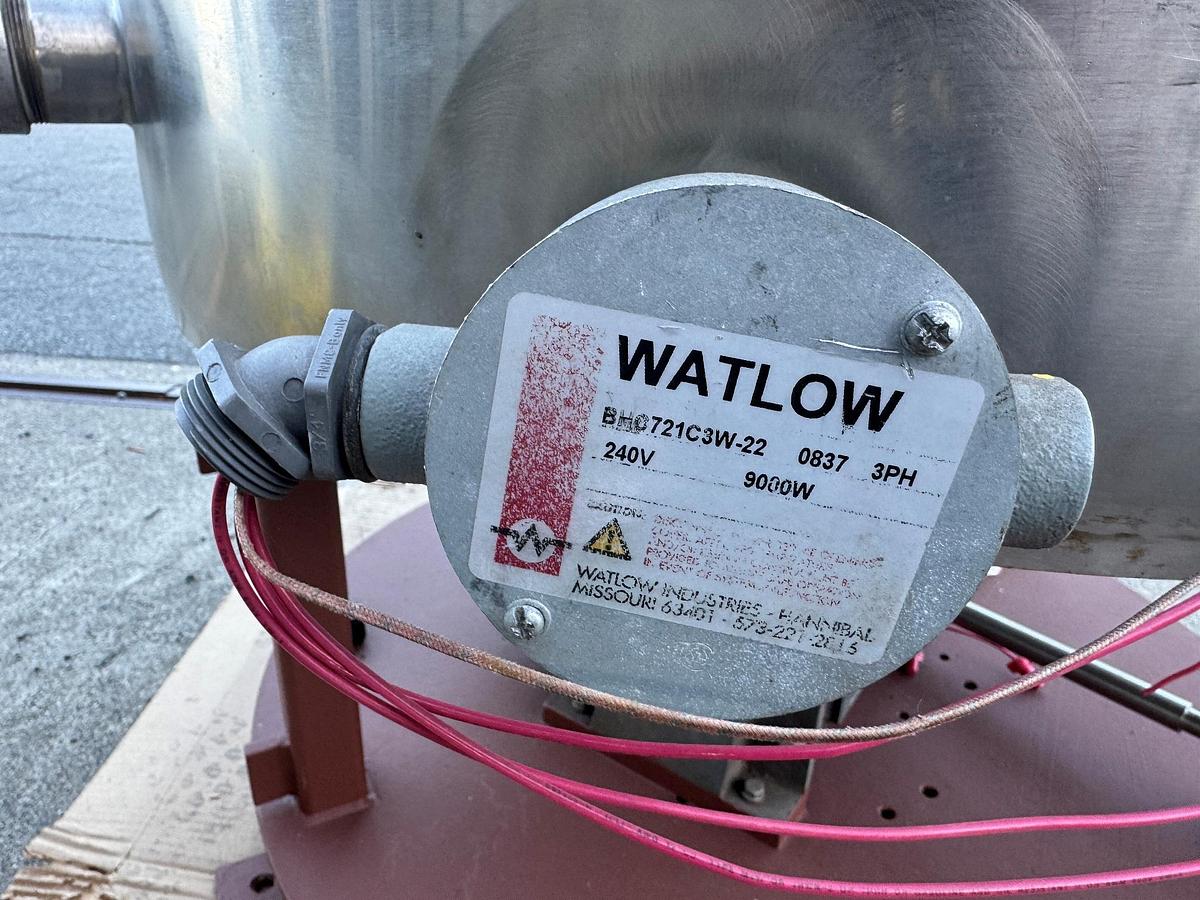

| Heat System | Electric immersion (Watlow; 240V, 3-phase, 9000W) |
| Materials of Construction | Stainless steel vessel; steel base |
| Dimensions | 36" diameter x 40" deep |
| Gallons | 150 (Estimate) |
| Basis | FOB |
General Information
Stainless steel electrically heated kettle, approximately 150-Gallon, measuring 36" diameter x 40" deep, equipped with a bottom-mounted agitator driving a full-coverage sweep system with Teflon scrapers. Unit includes a removable lid, 2" side-bottom outlet with manual valve, and Watlow integrated electrical heat source suitable for controlled melting and mixing operations. The vessel is supported by a steel frame with motor and gearbox located below the tank. Previously used as a chocolate melter and mixer, showing a design well suited for viscous materials requiring consistent temperature and agitation.
