Tank, 20,000 Gallon, Fiberglass, Plant Maintenance Services, 12’ x 24’, (Qty. 2) #5991546
Tank, 20,000 Gallon, Fiberglass, Plant Maintenance Services, 12’ x 24’, (Qty. 2) #5991546
Location:Texas
Available quantity:2
Description

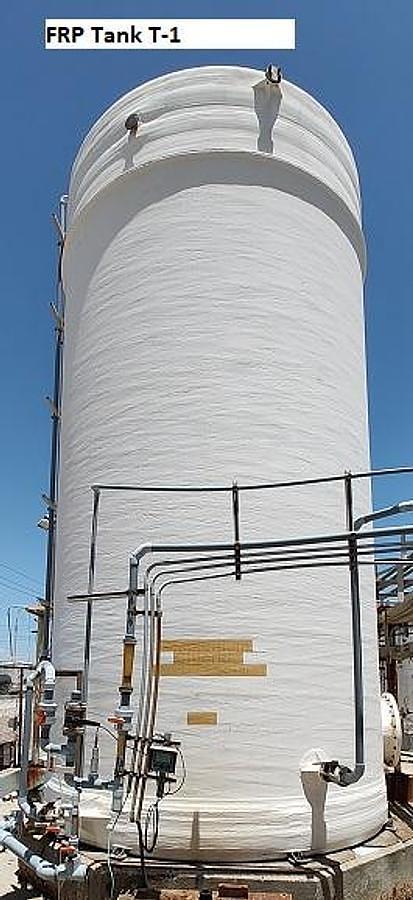

Used Plant Maintenance Services 20,000 gallon fiberglass vertical storage tank measuring 12' diameter x 24' high straight side. Rated atmospheric at 200°F, S.G. 1.00. Features a dished top and flat bottom with liner surface 1-ply C-Veil, total liner thickness 100 ML, liner resin Hetron 922, and filament wound structure with Hetron 922 resin. Catalyst system: liner CoNAP/MEKP, structure CoNAP/MEKP. Nozzle rating 50 PSIG, seismic loading ASCE 7-10, and wind loading ASCE 7-10 at 160 mph. Fittings include (5) 2", (2) 4", and a 24" side bottom manway. Weight 4,520 lbs. Previously stored 34% ammonium chloride, cleaned and ready to ship.
Specifications
| Stock Number | 5991546 |
| Manufacturer | Plant Maintenance Services |
| Year | 2014 |
| Gallons | 20,000 |
| Dimensions | 12" diameter x 24" straight side |
| Materials of Construction | Fiberglass, Filament Wound |
| Liner | 1-Ply C-Veil, Hetron 922 Resin |
| Rating | Atmospheric @ 200°F, S.G. 1.00 |
| Nozzle Rating | 50 PSIG |
| Weight | 4,520 lbs |
| Basis | FOB |
General Information
Two Units Available. Fiberglass vertical storage tanks from Plant Maintenance Services are engineered for durability and chemical resistance, making them well-suited for bulk liquid storage in industrial, municipal, and chemical processing facilities. The robust filament wound construction and chemical-grade liner provide long service life for corrosive or non-corrosive contents.
