Tank, 30,435 Gallon, Fiberglass, Vertical, Thorpe Plant Services, #5991538
Tank, 30,435 Gallon, Fiberglass, Vertical, Thorpe Plant Services, #5991538
Location:Texas
Available quantity:2
Description

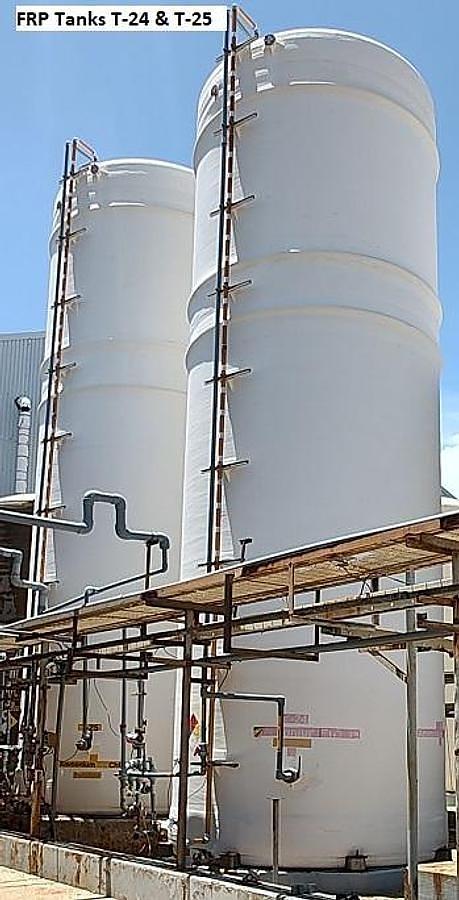

Used Thorpe Plant Services 30,435-gallon fiberglass vertical storage tank with dished top and flat bottom. Measures 12' diameter x 36' high straight side. Rated atmospheric @ 200°F with a specific gravity of 1.22. Constructed with a 1-ply C-Veil liner, total liner thickness 130 mil, using Hetron 922 resin. Structure is filament wound with Hetron 922 resin and CoNAP/MEKP catalyst system. Nozzles rated for 50 PSIG. Includes (6) 2", (2) 4" fittings and a 24" side bottom manway. Seismic and wind loading per ASCE 7-10 (165 mph). Built in 2015. Weight 7,700 lbs.
Specifications
| Stock Number | 5991538 |
| Manufacturer | Thorpe Plant Services |
| Year | 2015 |
| Gallons | 30,435 |
| Materials of Construction | Fiberglass |
| Dimensions | 12' Diameter x 36' Straight Side |
| Top/Bottom | Dished Top, Flat Bottom |
| Liner Resin | Hetron 922 |
| Structure Type | Filament Wound |
| Structure Resin | Hetron 922 |
| Rated | Atmospheric @ 200°F |
| Specific Gravity | 1.22 |
| Nozzle Rating | 50 PSIG |
| Fittings | (6) 2", (2) 4", (1) 24" Side Bottom Manway |
| Previous Use | 40% Ammonium Sulfate |
| Basis | As-is, Where-is |
General Information
High-capacity fiberglass vertical tank engineered for corrosive chemical storage in industrial and agricultural environments. Designed for use under atmospheric pressure with excellent thermal and seismic durability. Ideal for applications involving ammonium sulfate or other corrosive media requiring strong chemical resistance and large-volume containment.
