Dust Collector, Donaldson 24 Cyclone, 7.5 HP, 1950–3500 CFM, #5991533
Dust Collector, Donaldson 24 Cyclone, 7.5 HP, 1950–3500 CFM, #5991533
Location:San Dimas, CA
Available quantity:1
Description

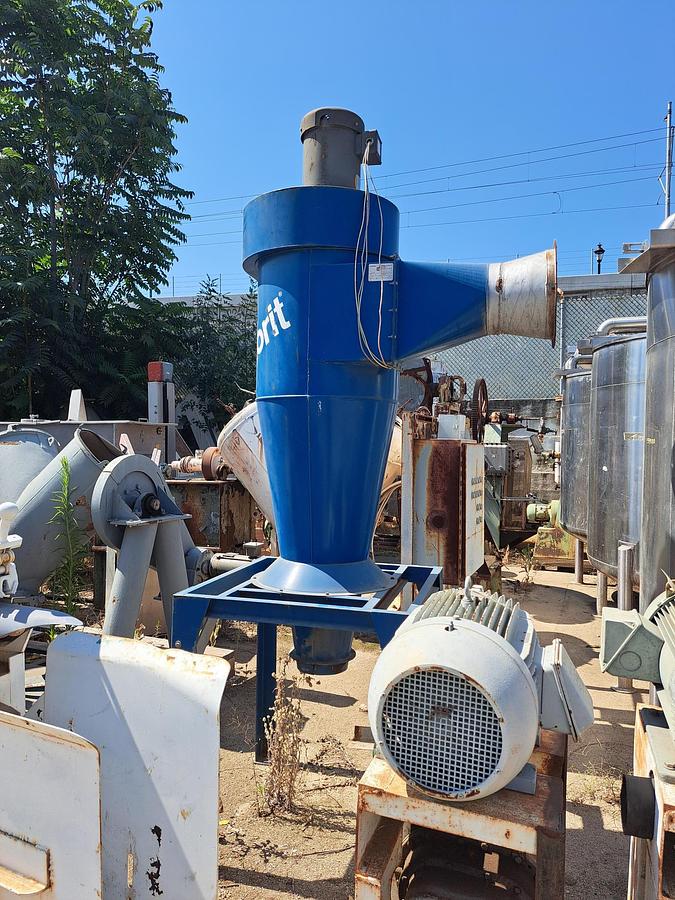

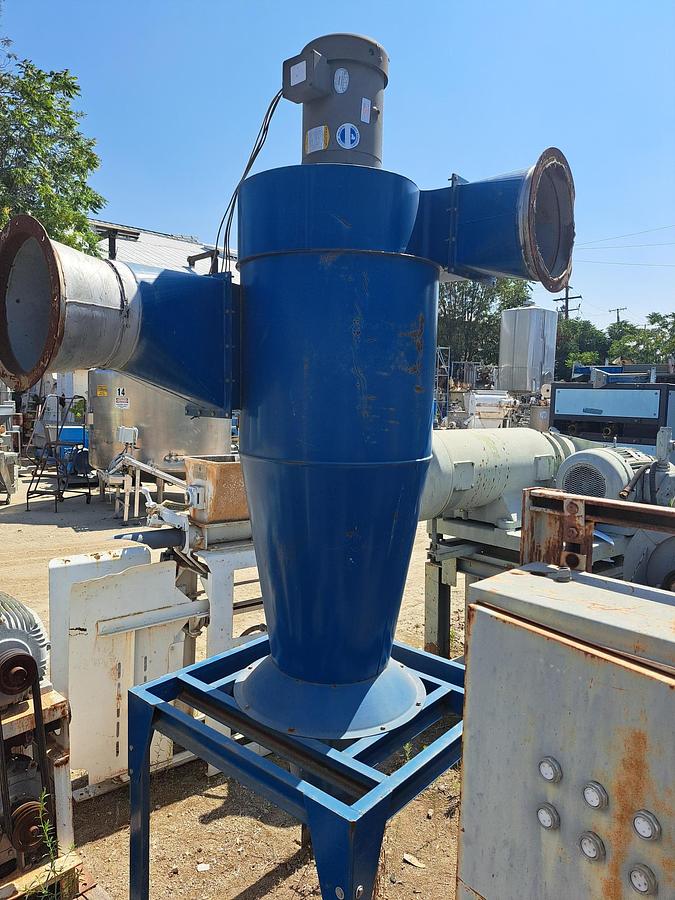

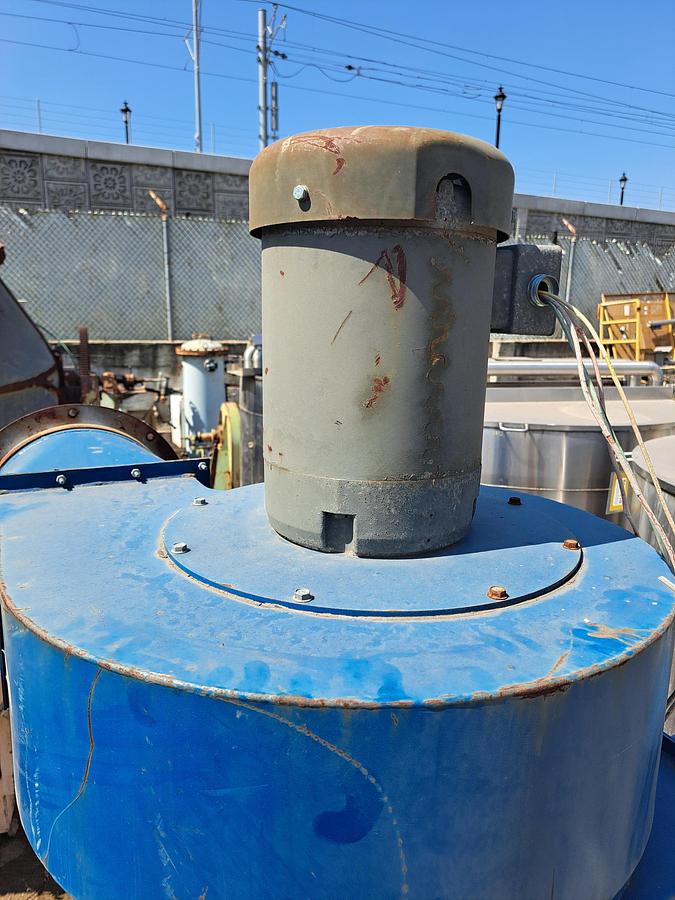

Used Donaldson Model 24 Cyclone Dust Collector with 7.5 HP motor, 3450 RPM, 3-phase, 60 Hz, wired for 208/230/460V operation. Designed for high-volume dust extraction with a nominal airflow range of 1950 to 3500 CFM (3,312 to 6,450 m³/hr). Unit includes 12" air inlet and outlet and 8" bottom discharge. Rated for up to 13.4" WG external static pressure. Efficient cyclone separation design ensures reliable performance in demanding industrial dust collection applications.
Specifications
| Stock Number | 5991533 |

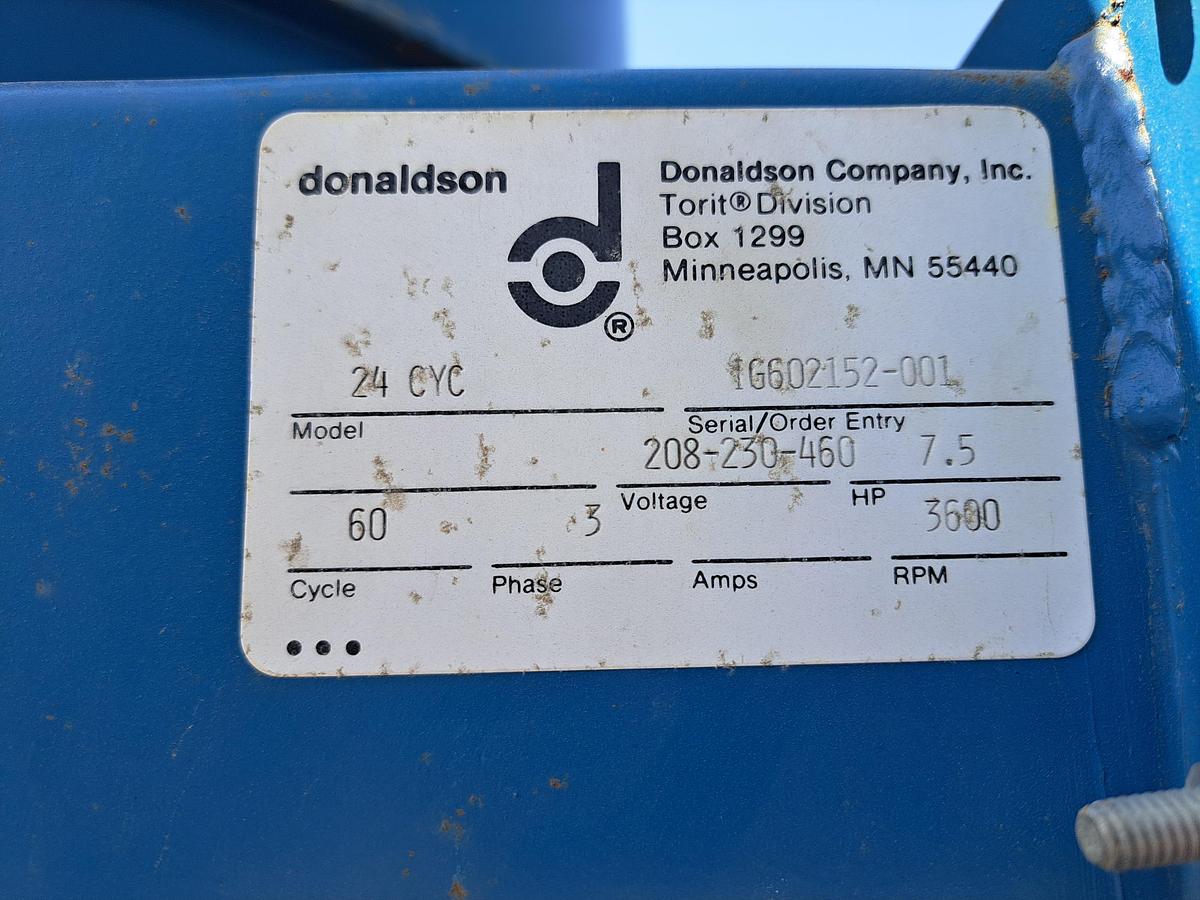

| Manufacturer | Donaldson |
| Model | 24 CYC |
| Serial Number | 1G602152-001 |

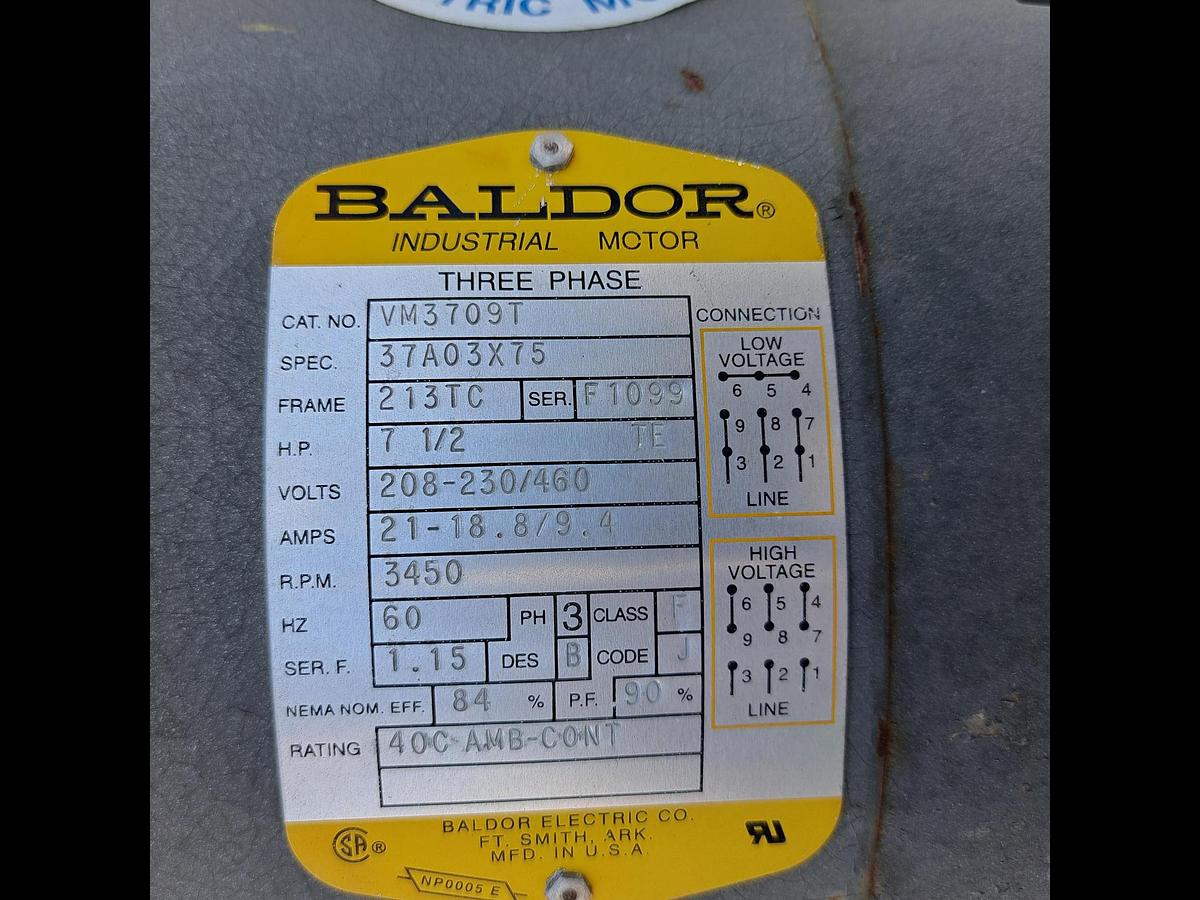

| HP | 7.5 |
| Voltage | 208/230/460V |
| RPM | 3450 |
| Phase/Frequency | 3-Phase / 60 Hz |
| Airflow (CFM) | 1950 – 3500 |
| Airflow (m³/hr) | 3,312 – 6,450 |
| External Static Pressure | 13.4" WG |
| Inlet/Outlet Diameter | 12" |
| Bottom Discharge | 8" |
| Mounting | Floor or platform mount |
| Basis | FOB |
General Information
Donaldson is a trusted name in industrial air filtration, and the 24 Cyclone is ideal for medium to high-volume particulate removal in manufacturing, woodworking, metalworking, or powder handling environments. This unit provides effective separation of dust and debris using centrifugal force and is compatible with ducted systems.
