Mill, Disintegrator, 6", Bar Export, Model 400 Grinder, 1 HP, Stainless Steel, #5991514
Mill, Disintegrator, 6", Bar Export, Model 400 Grinder, 1 HP, Stainless Steel, #5991514
Location:Brisbane, CA
Available quantity:1
Description

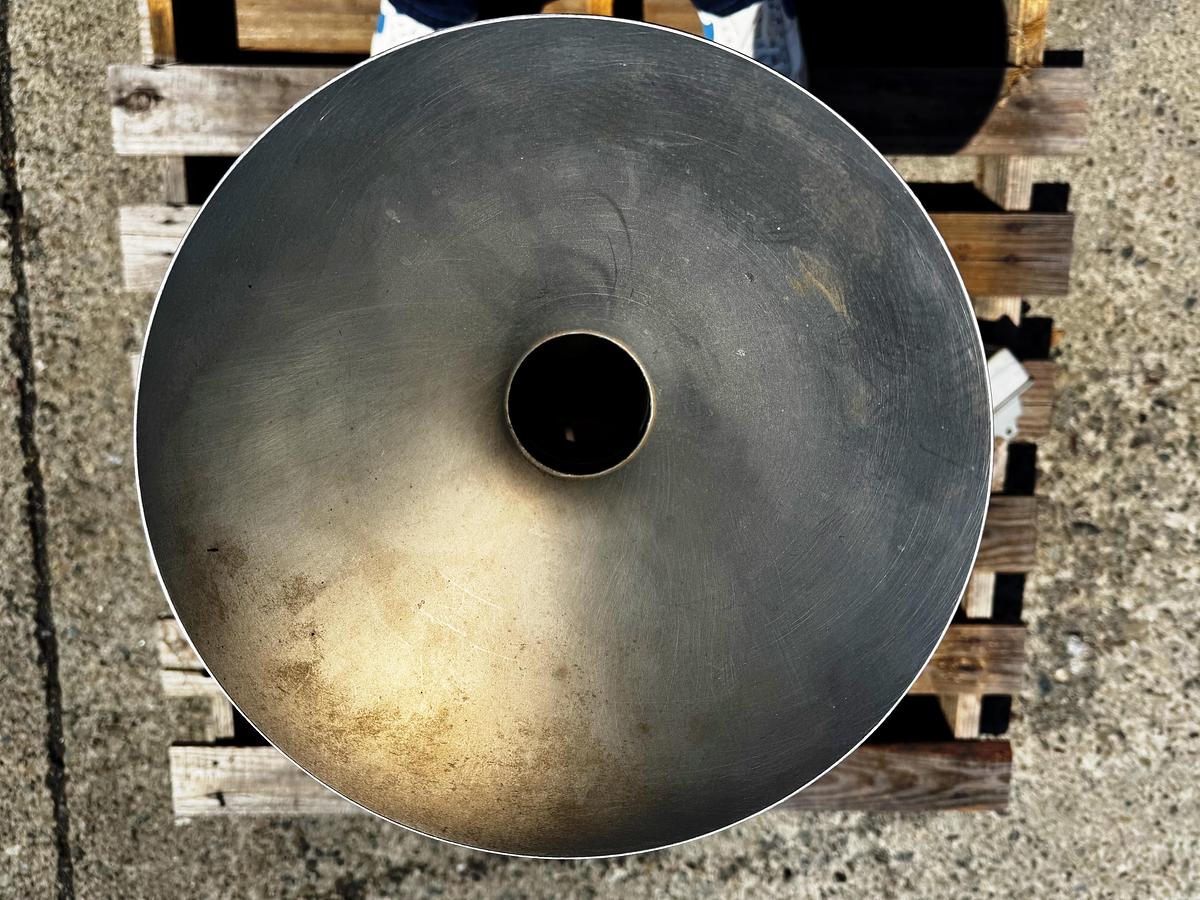

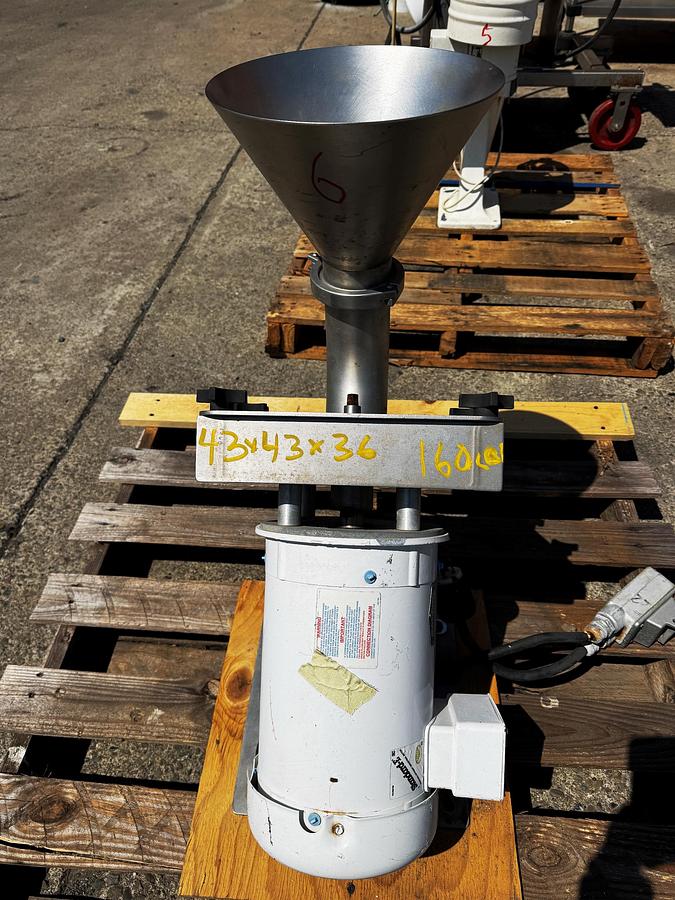

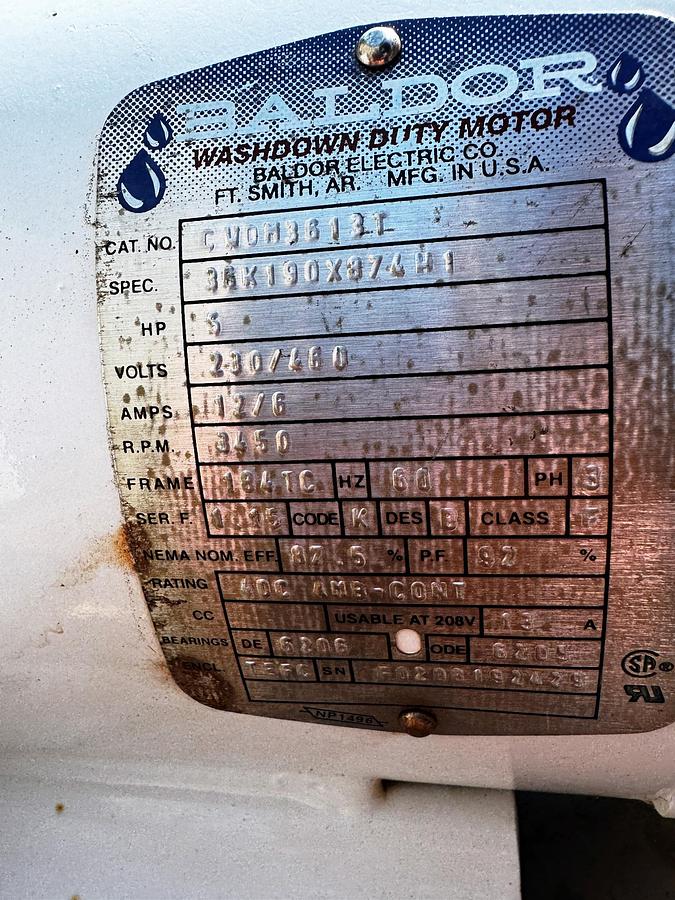

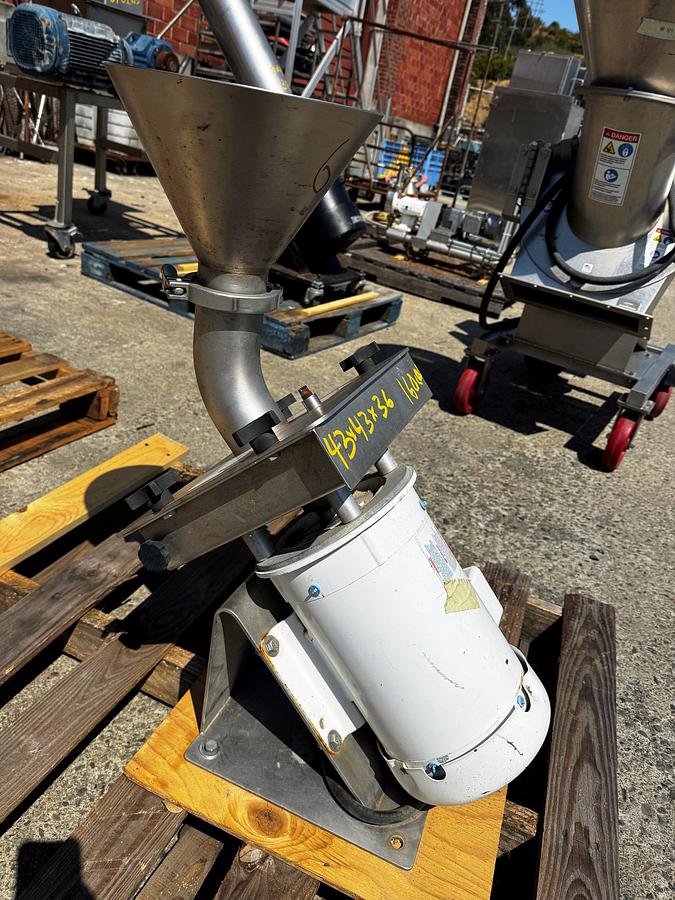

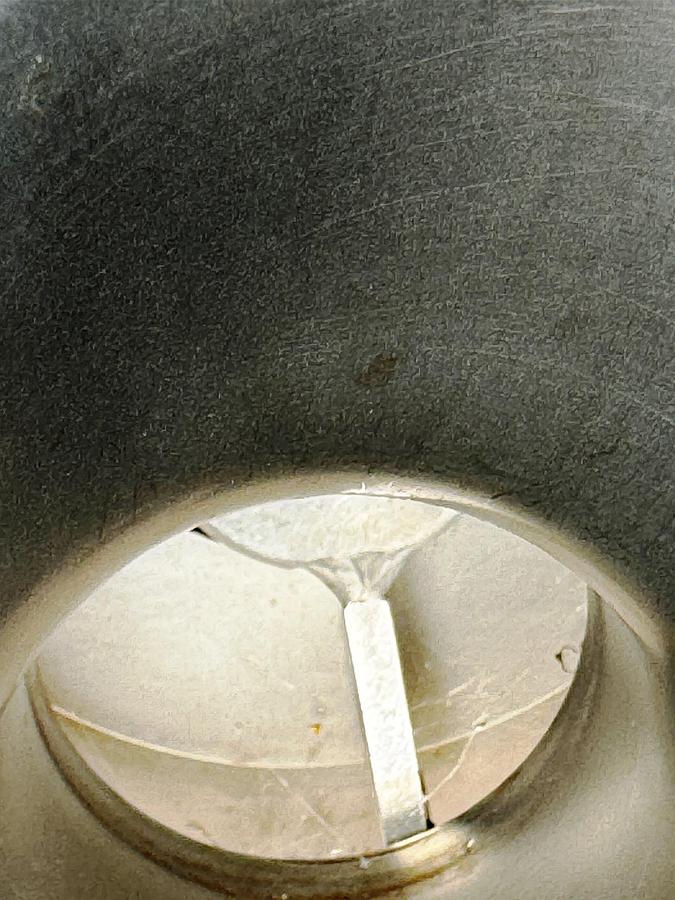

Bar Export disintegrator mill, model 400 Grinder, angle-mounted, with 6" diameter grinding chamber and 10" diameter conical stainless steel feed hopper reducing to 3" inlet. Driven by 1 HP Baldor motor, 230/460V, 3450 RPM, 3 phase, 60 Hz. Includes clamped top cover, electrical plug connection, and on/off toggle switch. Mounted on stainless steel base. Overall dimensions approximately 43" x 43" x 36" high; weight 160 lbs.
Specifications
| Stock Number | 5991514 |
| Manufacturer | Bar Export |
| Model | 400 Grinder |

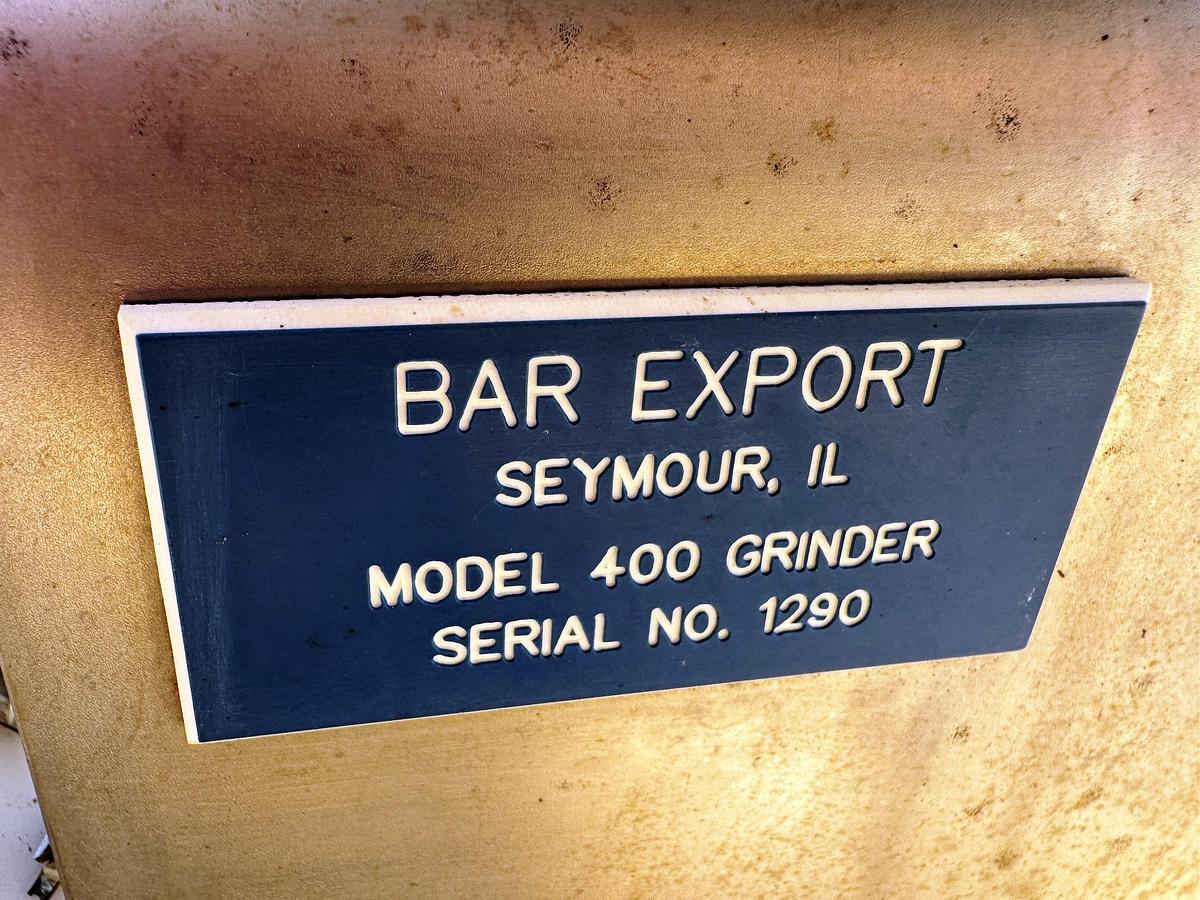

| Serial Number | 1290 |
| Diameter | 6" |
| HP | 1 |
| RPM | 3450 |
| Voltage | 230/460V, 3 Phase, 60 Hz |
| Feed Hopper | 10" Diameter to 3" Inlet |
| Mounting | Stainless Steel Base |
| Controls | On/Off Switch |
| Basis | FOB |
General Information
The Bar Export Model 400 Grinder is a compact disintegrator mill used for small-batch particle reduction of fibrous or semi-solid materials in microbial, biotech, and light food processing environments. The angle discharge design, stainless construction, and portable frame make it suitable for hygienic and pilot-scale operations.
