Mixer, Ribbon, 65 CF, Stainless Steel, Hayes & Stolz, Double Ribbon, #5991512
Mixer, Ribbon, 65 CF, Stainless Steel, Hayes & Stolz, Double Ribbon, #5991512
Location:Los Angeles, CA
Available quantity:1
Description

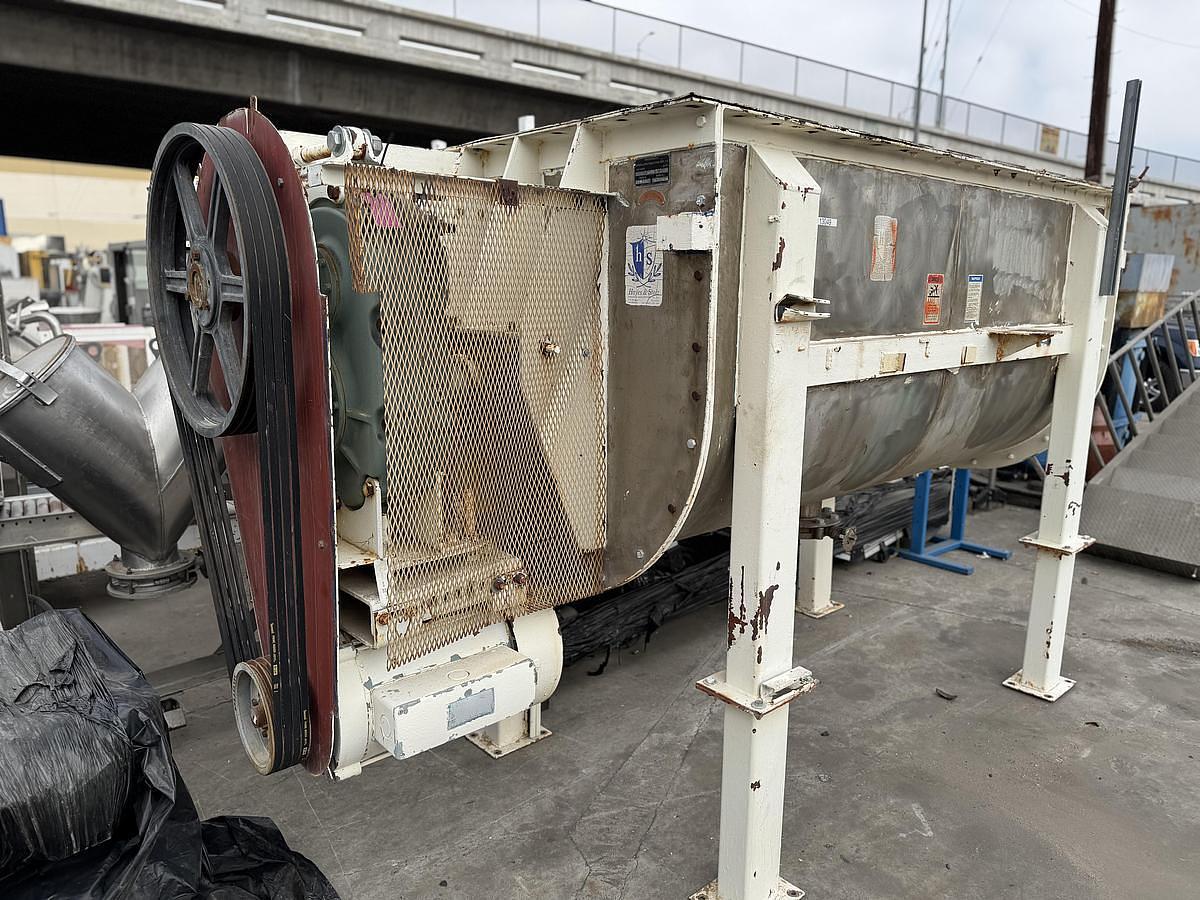

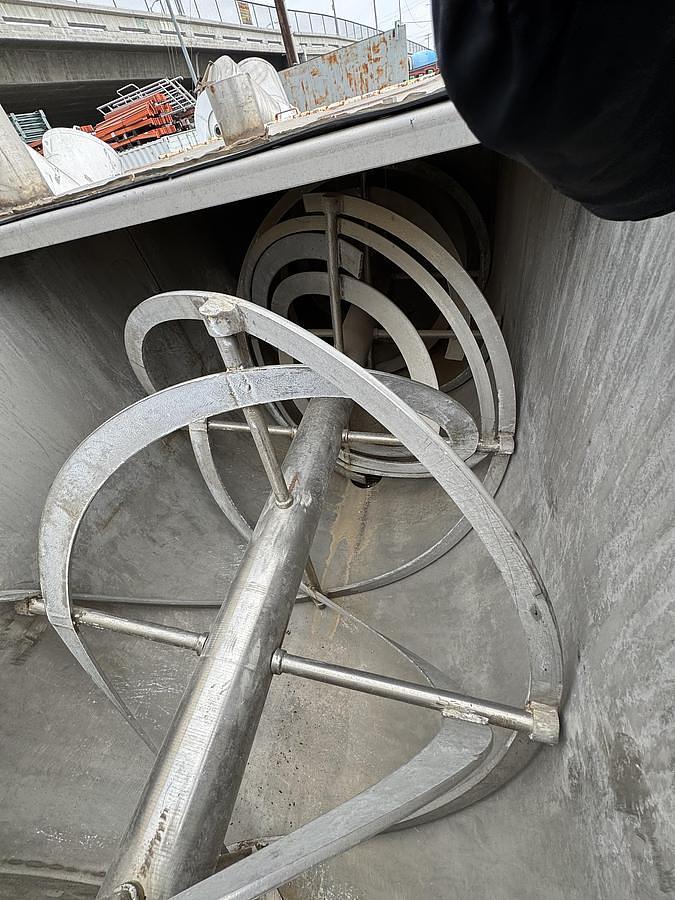

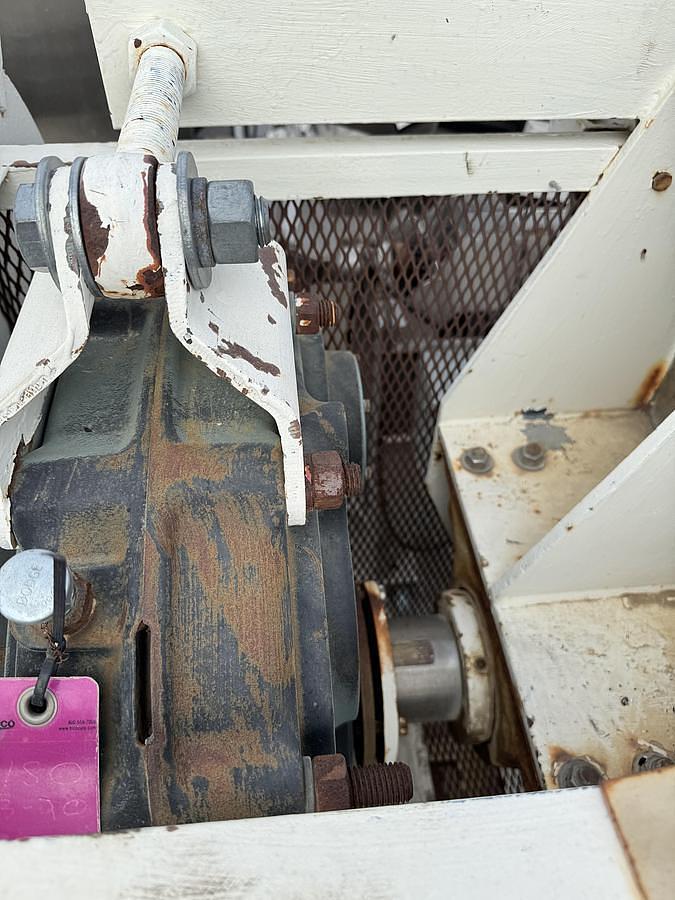

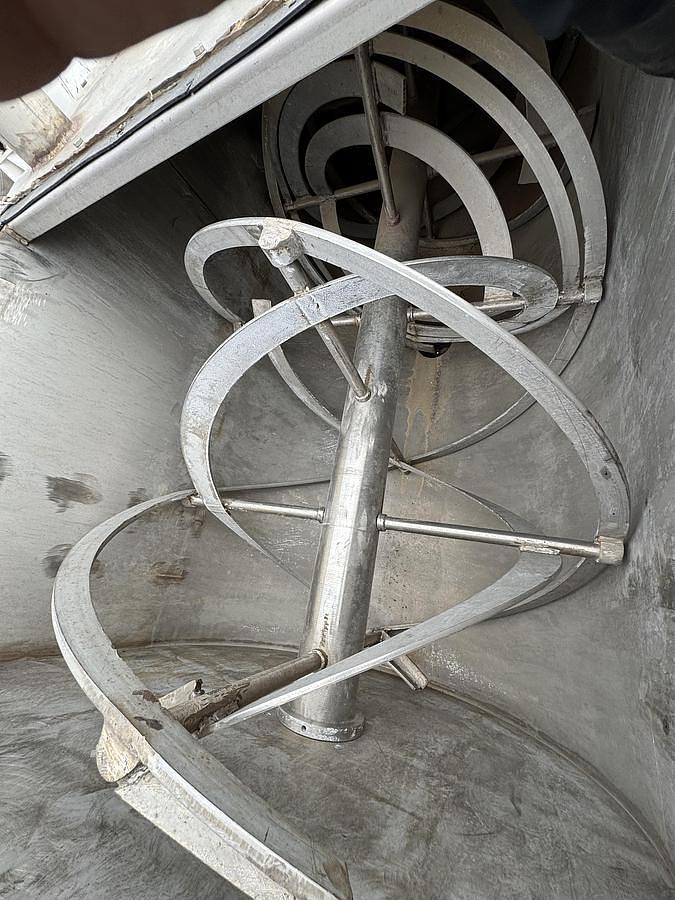

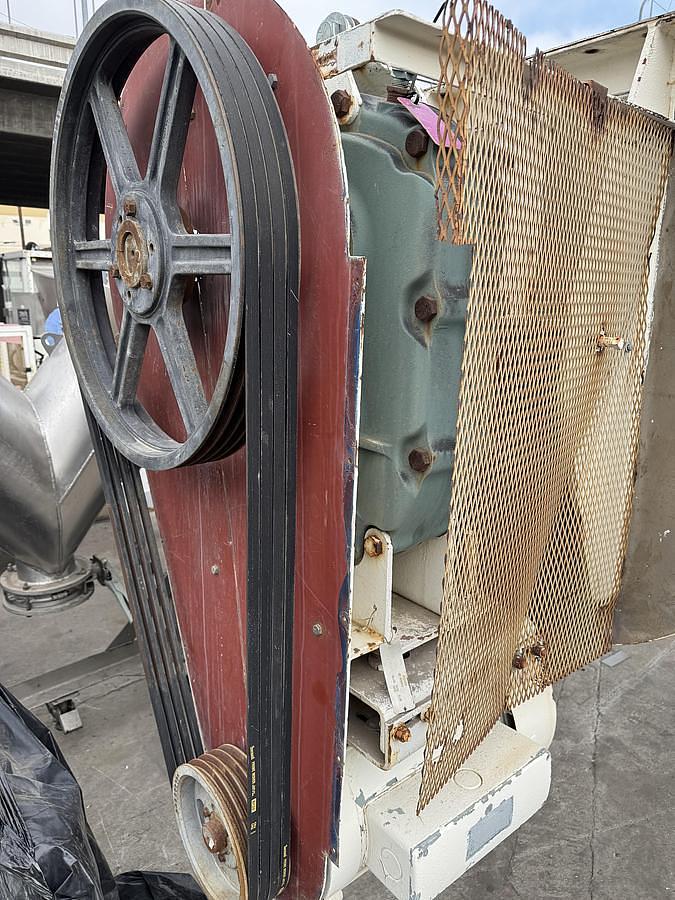

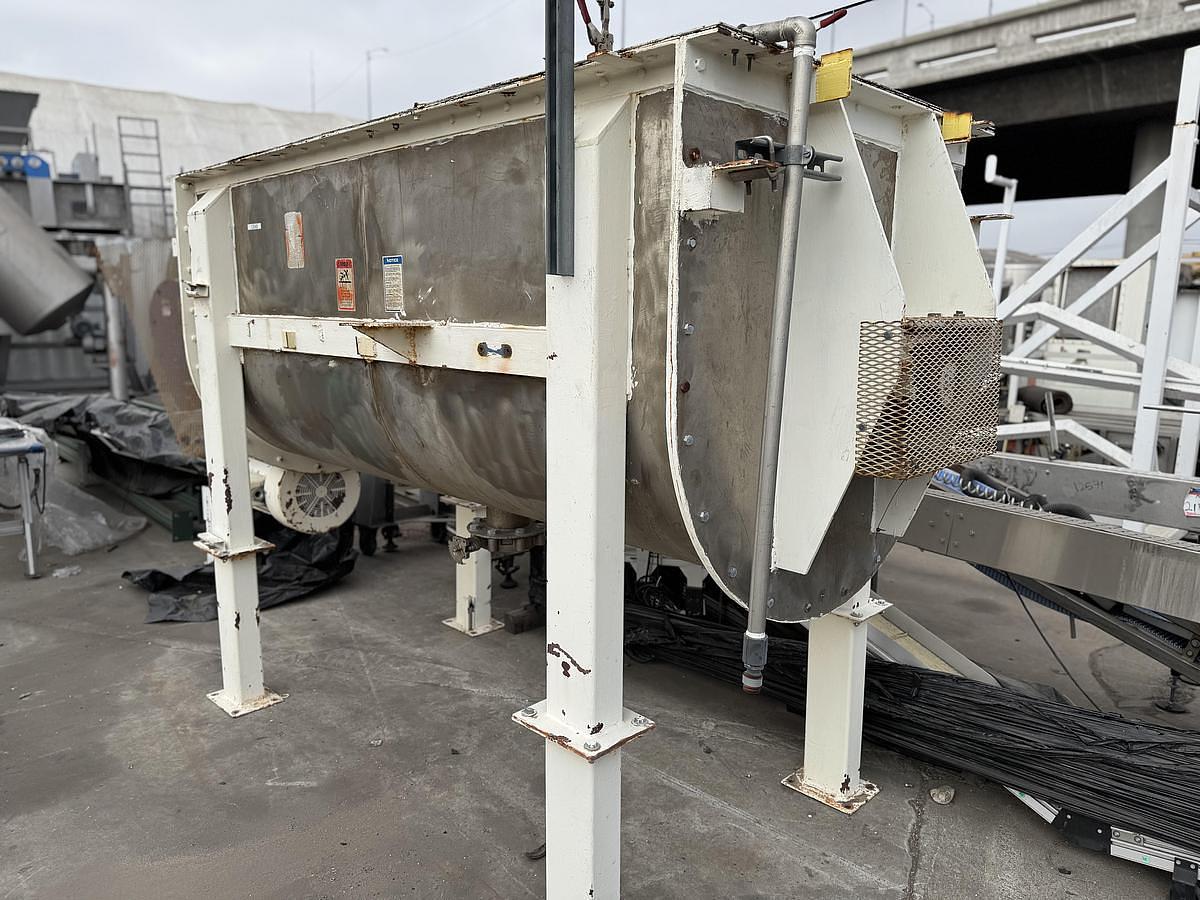

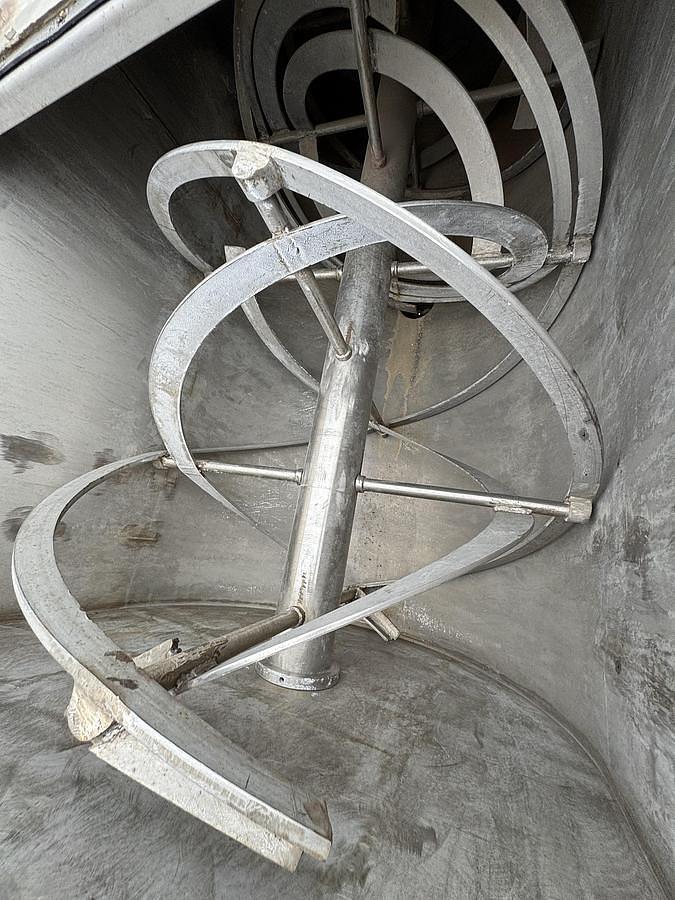

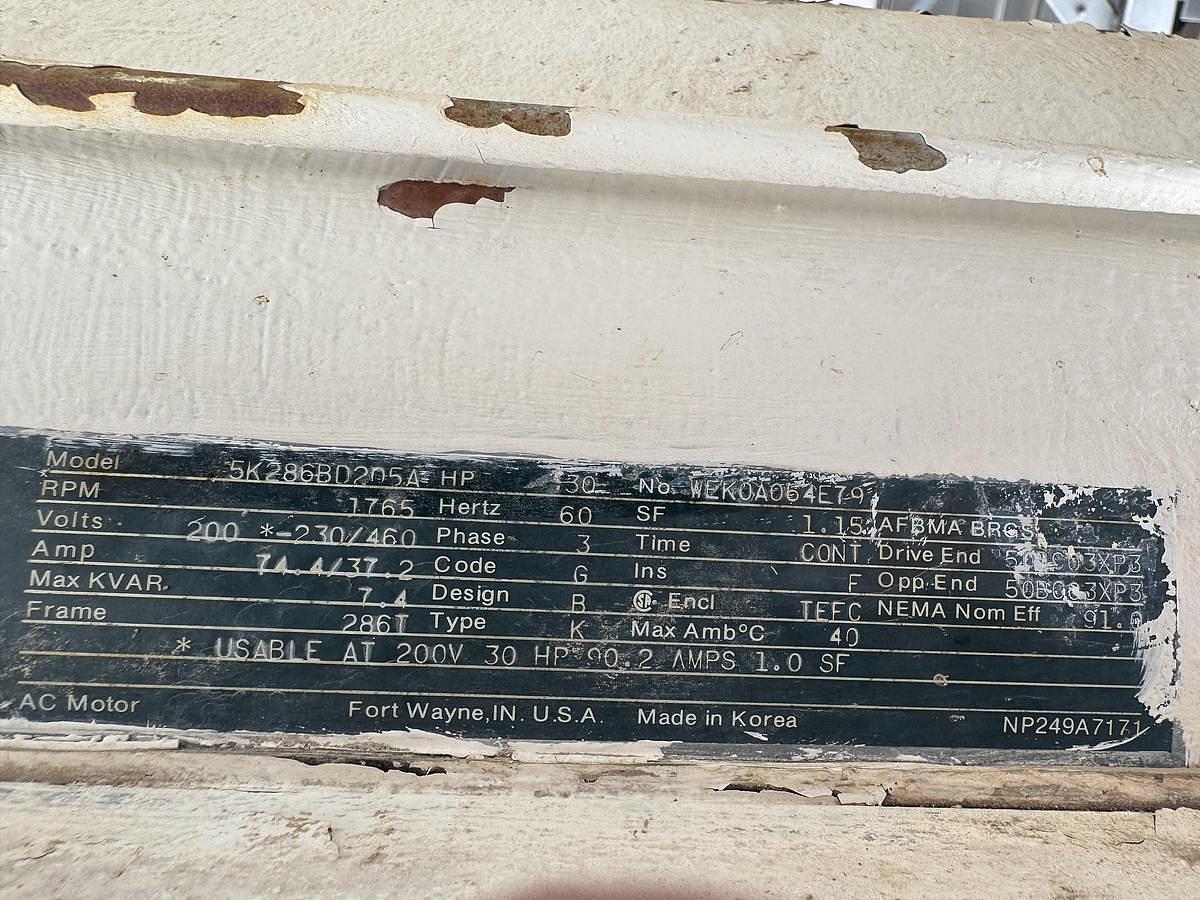

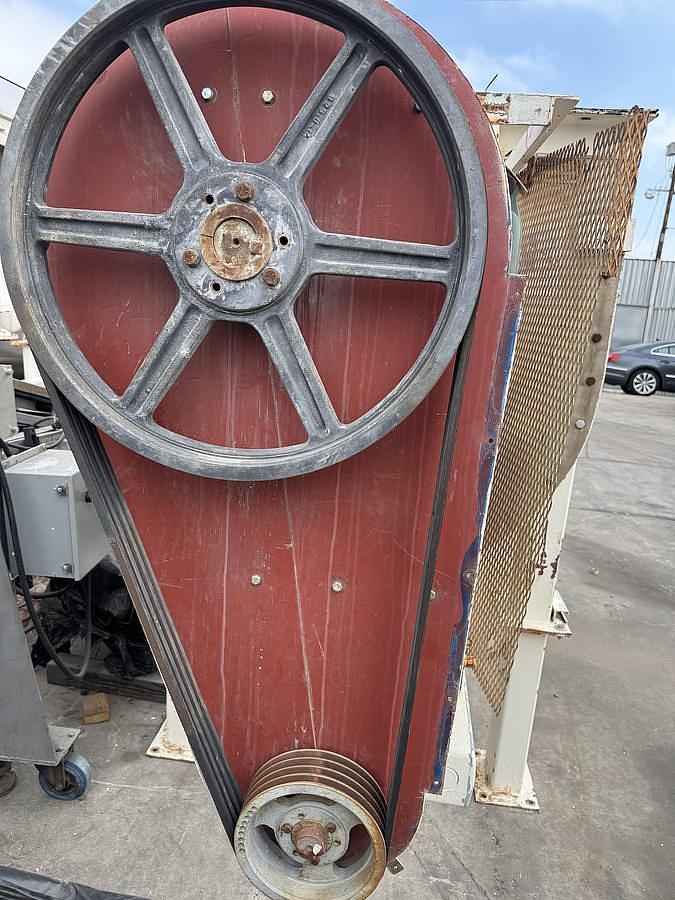

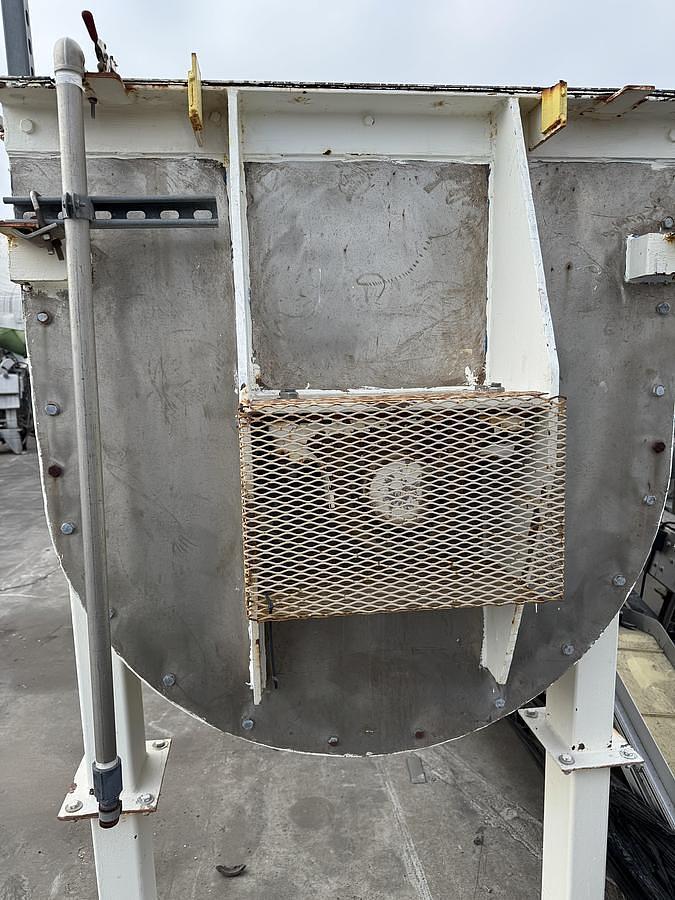

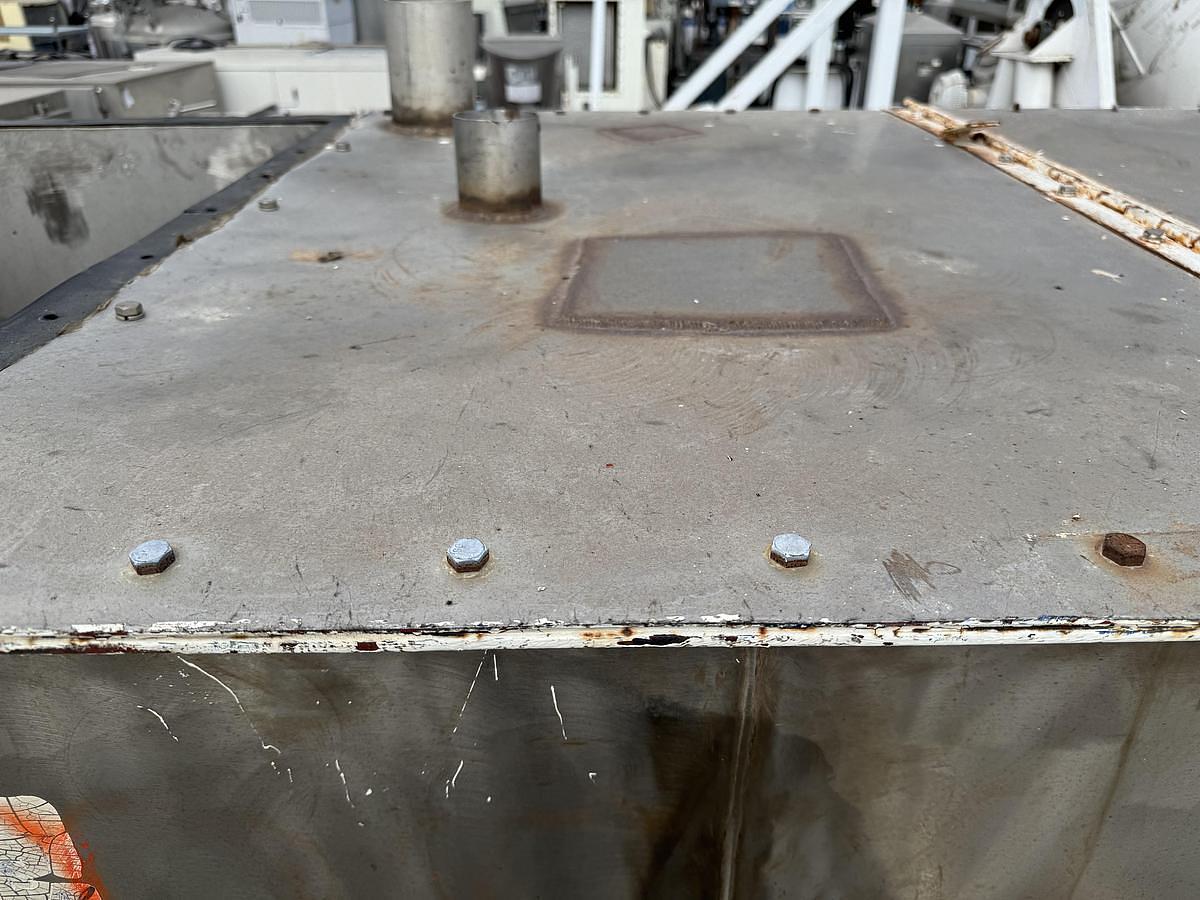

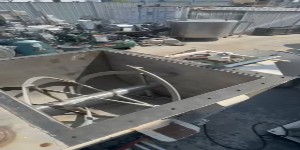

Hayes & Stolz ribbon mixer with an approximate 65 cubic foot capacity, featuring a double ribbon agitator and center bottom discharge. Mixing trough measures approximately 30" wide x 10' long and includes a split hinged top cover for access. Constructed from stainless steel, this unit is mounted on a heavy-duty carbon steel support frame with four legs. Driven by a 30 HP AC motor (GE Model 5K286BD205A) rated 1765 RPM, 200/230/460 Volt, 3- phase, 60 Hz, TEFC enclosure, with 1.15 service factor. Ideal for batch mixing of powders, granules, or other dry materials in sanitary or industrial applications.
Specifications
| Stock Number | 5991512 |
| Manufacturer | Hayes & Stolz |

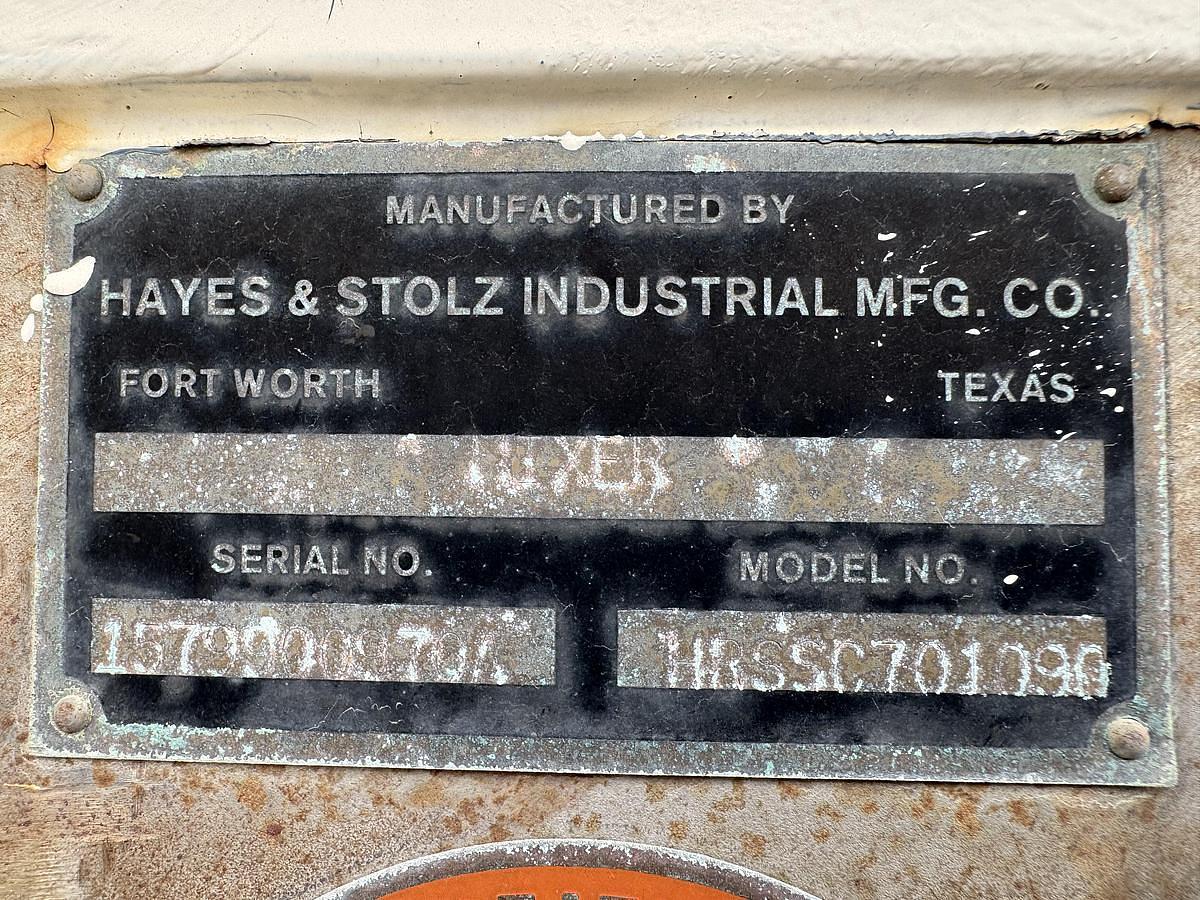

| Model | HRSSC701090 |
| Serial Number | 1579001771 |
| Cubic Feet | 65 Cu Ft (Approx.) |
| Dimensions | Approx. 30" W x 10' L |
| Agitation | Double Ribbon |
| Materials of Construction | Stainless Steel Mixing Chamber |
| Motor | 30 HP, 1765 RPM, 3-Phase, 208/230/460V, 60 Hz, TEFC |

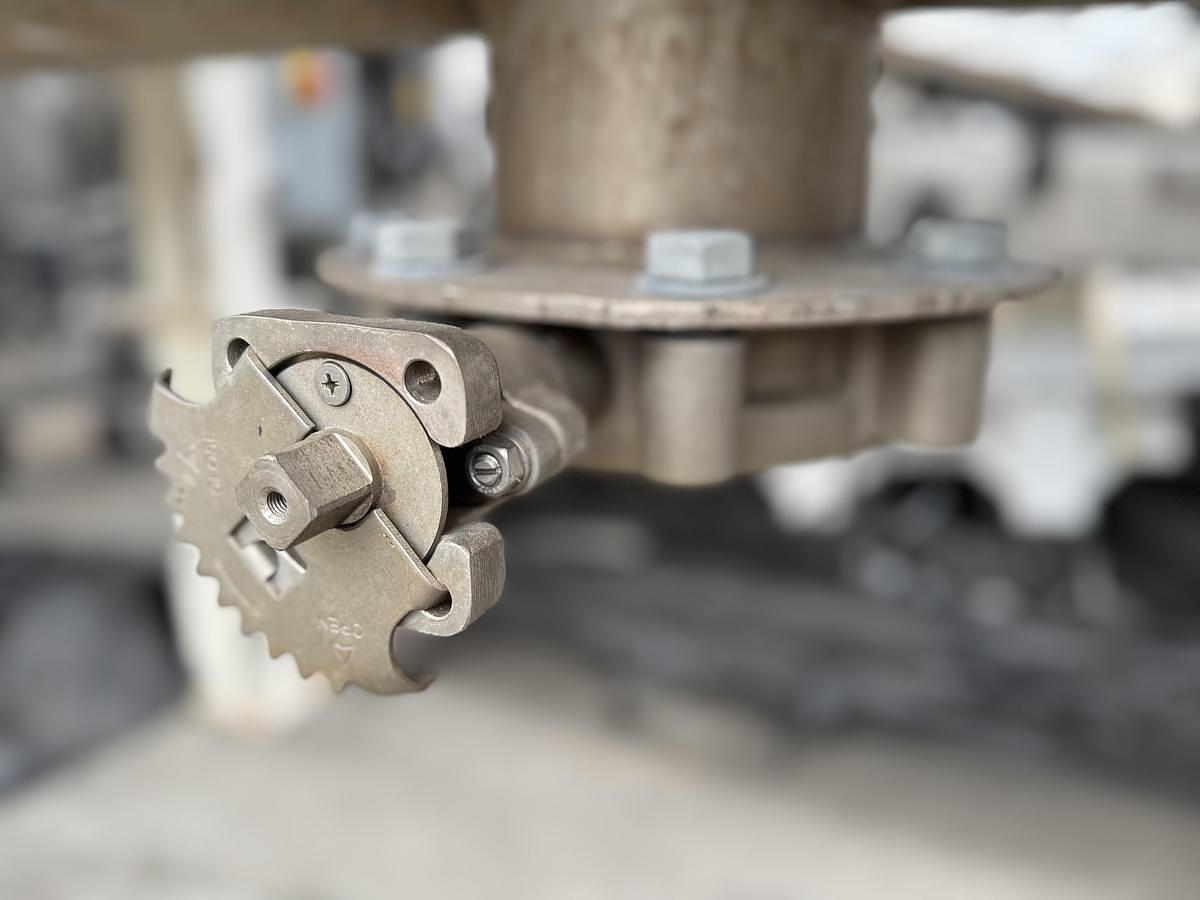

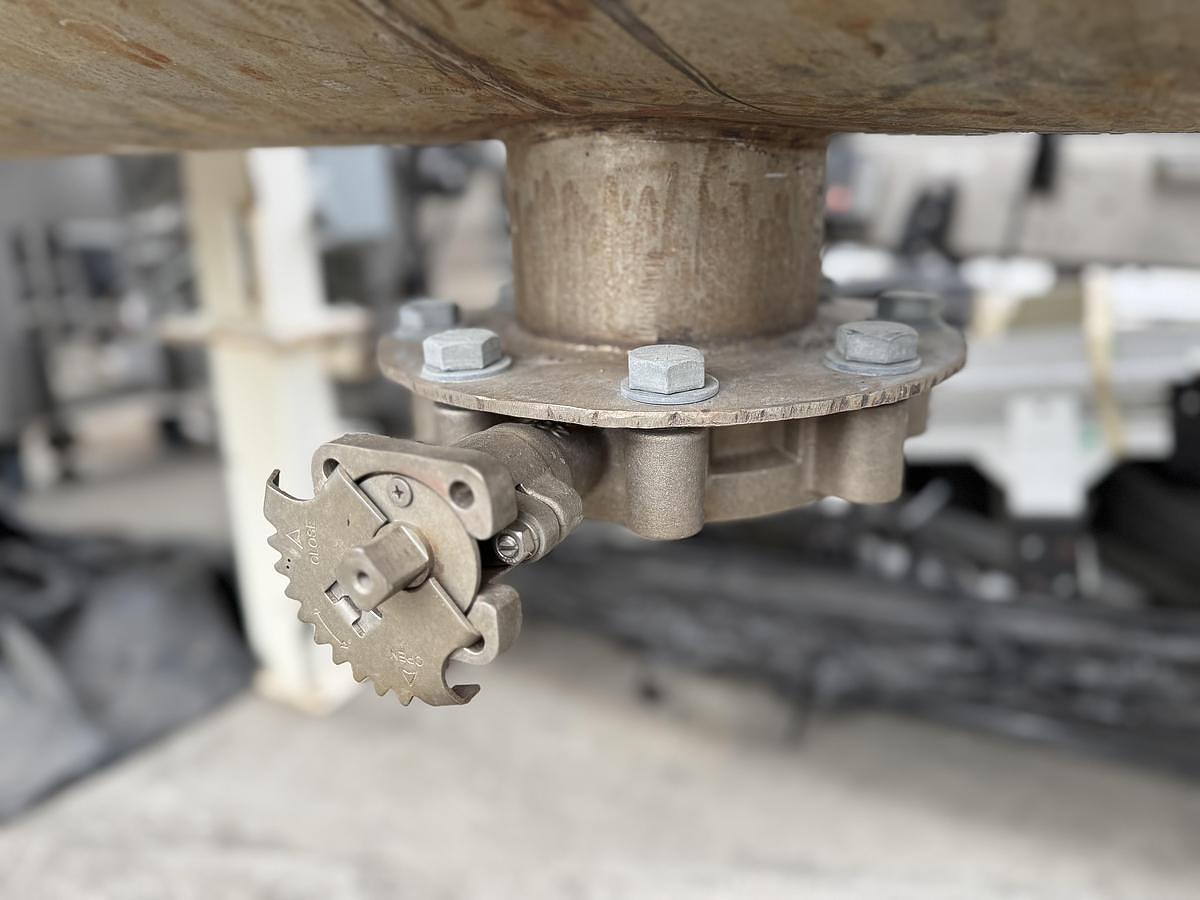

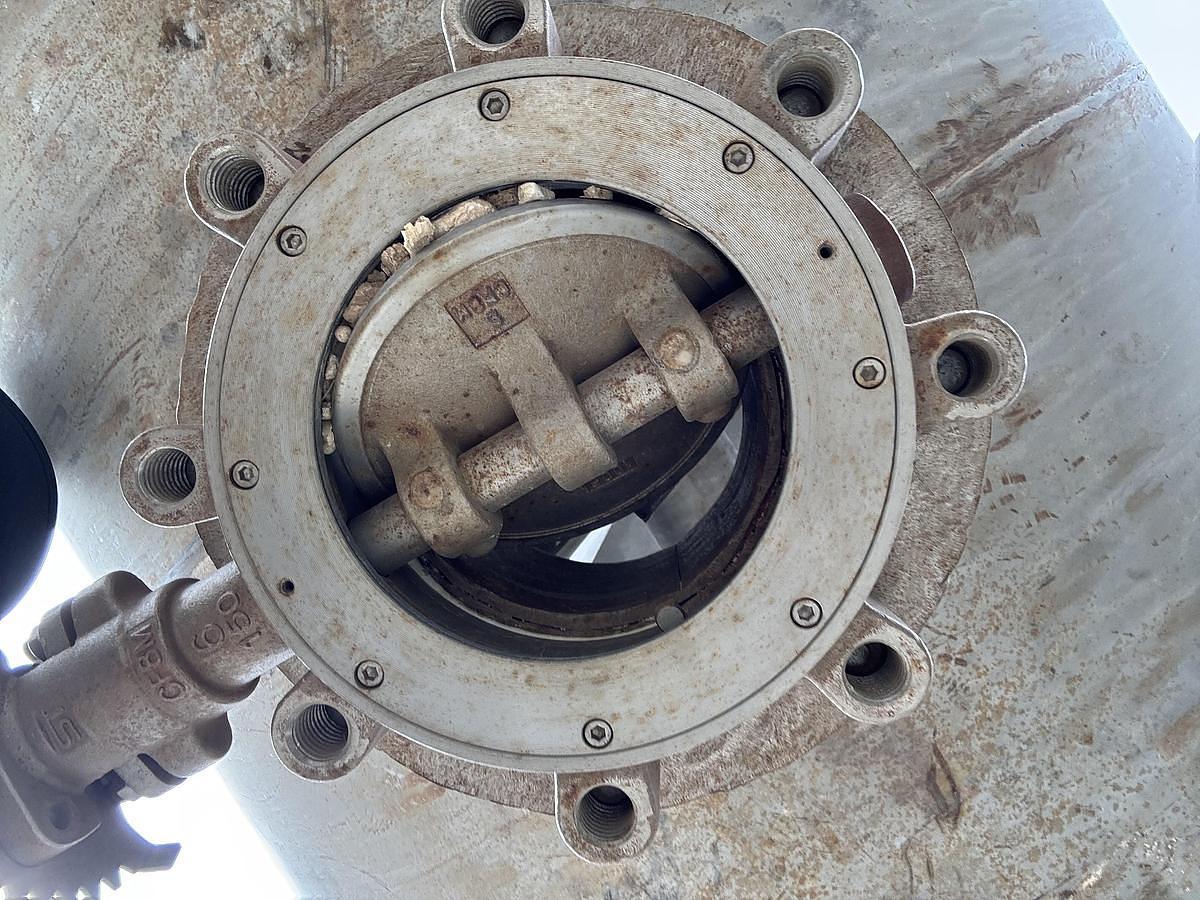

| Discharge | Center Bottom Outlet |
| Basis | FOB |
General Information
Hayes & Stolz manufactures high-performance industrial mixers engineered for consistent, large-volume blending. Ribbon blenders are commonly used in applications such as spice mixes, nutritional powders, powdered chemicals, detergents, and polymer additives. The double ribbon design ensures efficient axial and radial blending of dry materials in sanitary or general industrial settings.
