Heat Exchanger, Tube-in-Tube, 30 SF, 6-Pass, Allegheny Bradford, 4"/2", 100 PSI, #5991499
Heat Exchanger, Tube-in-Tube, 30 SF, 6-Pass, Allegheny Bradford, 4"/2", 100 PSI, #5991499
Location:Chowchilla, CA
Available quantity:1
Description

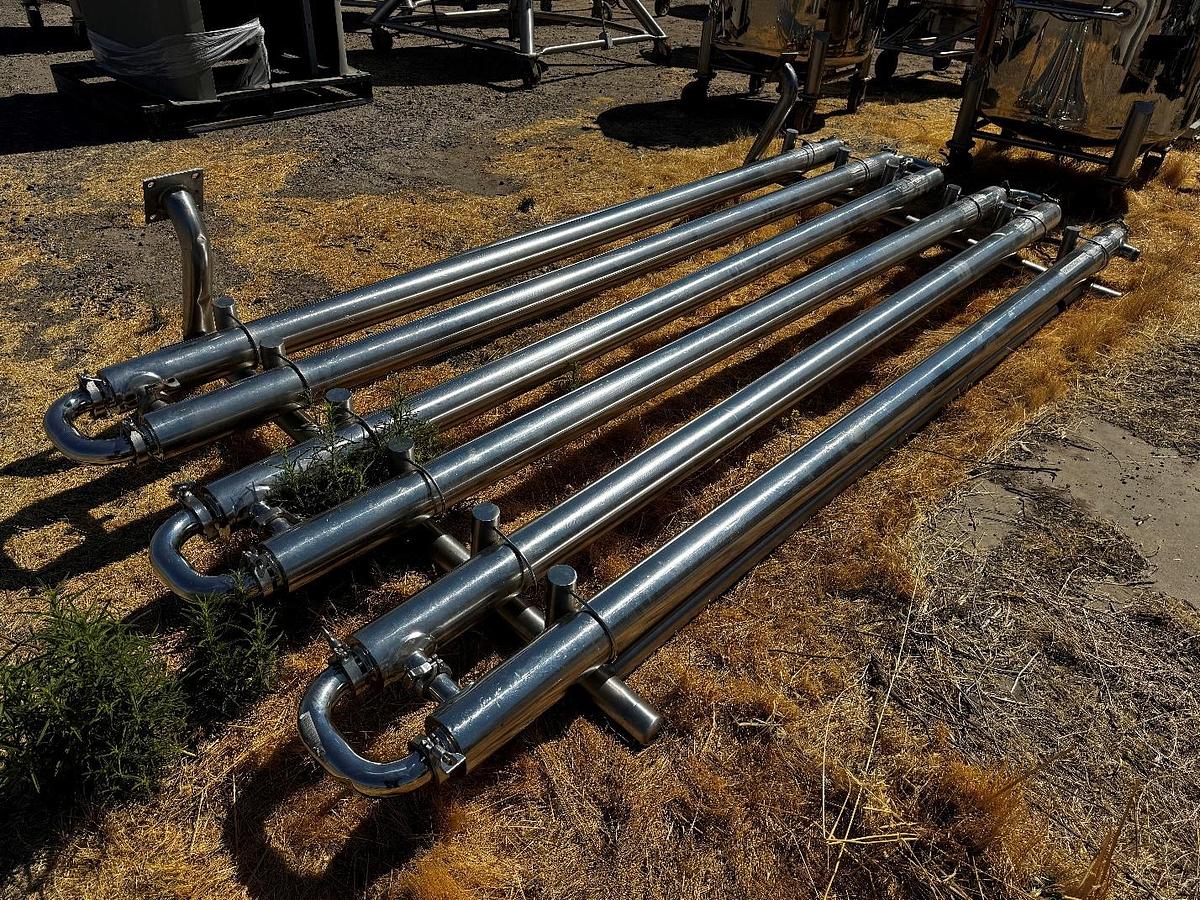

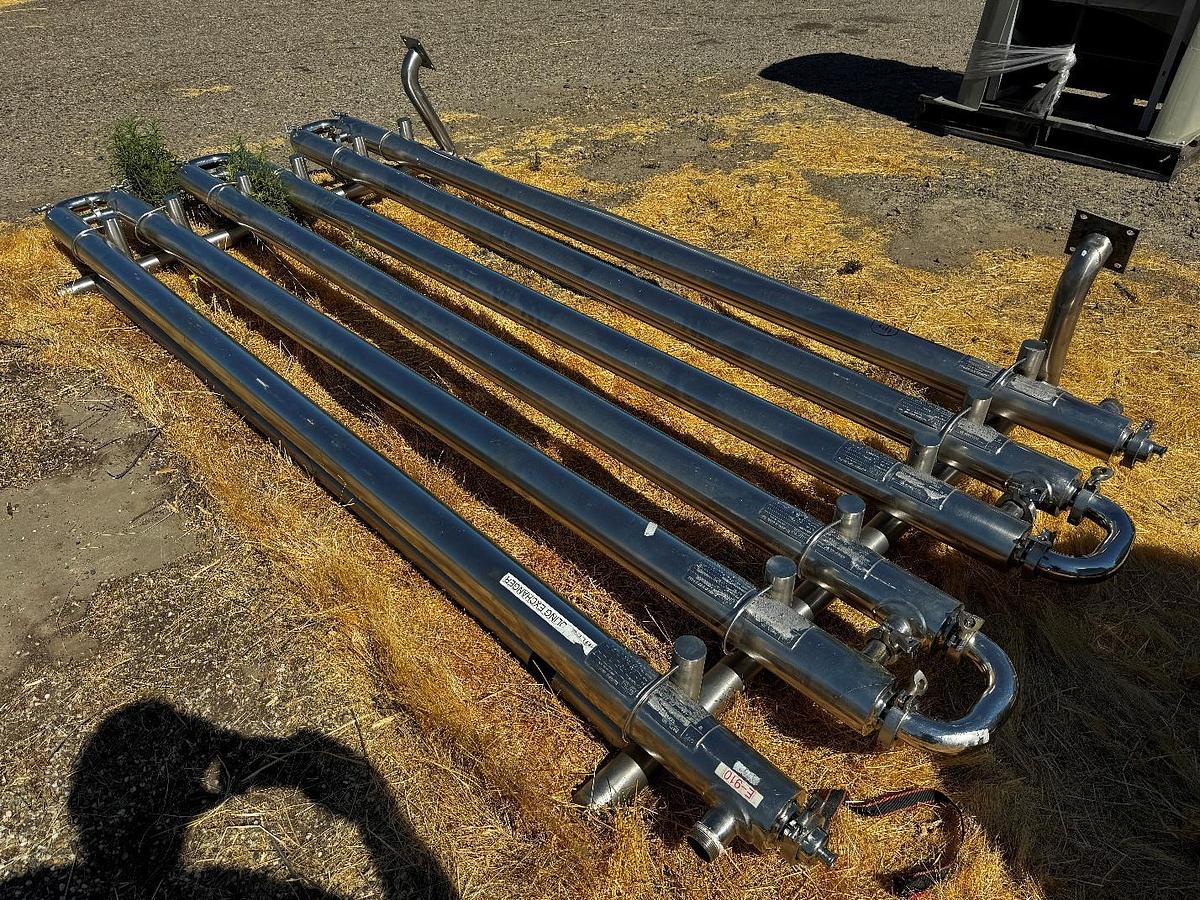

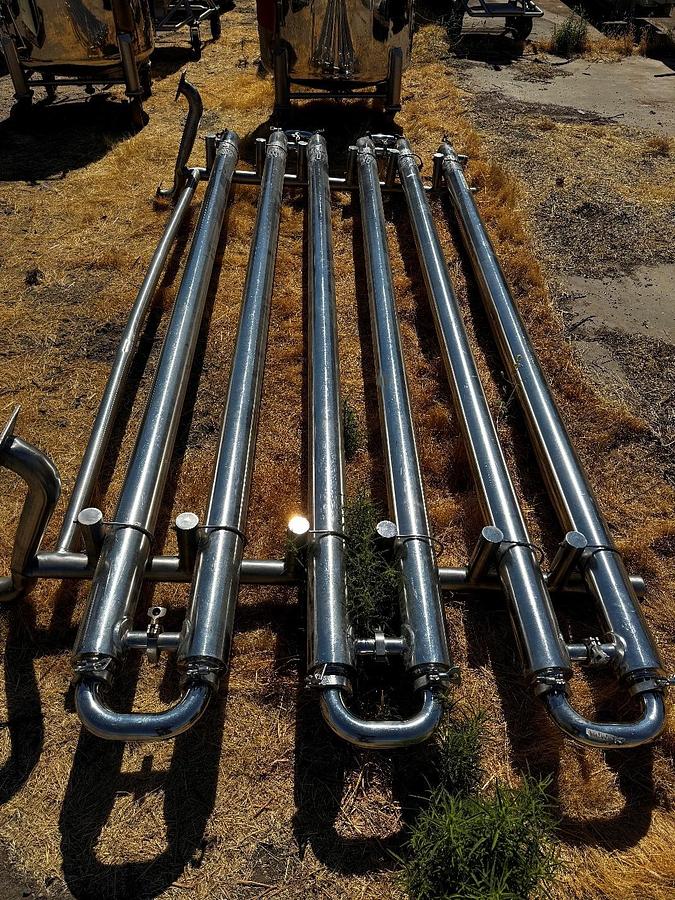

Six-pass tube-in-tube heat exchanger built by Allegheny Bradford with approximately 30 square feet of internal product contact surface area. Each of the (6) 9'10" long tubes features 4" outer and 2" inner stainless steel construction, with 2" feed on the shell side and 3/4" feed on the tube side. Designed for 100 PSI @ 300°F with elbow connections. Serial numbers range from 4001-01-1 to 4001-01-6.
Specifications
| Stock Number | 5991499 |
| Manufacturer | Allegheny Bradford |
| Model | Custom / E910 |

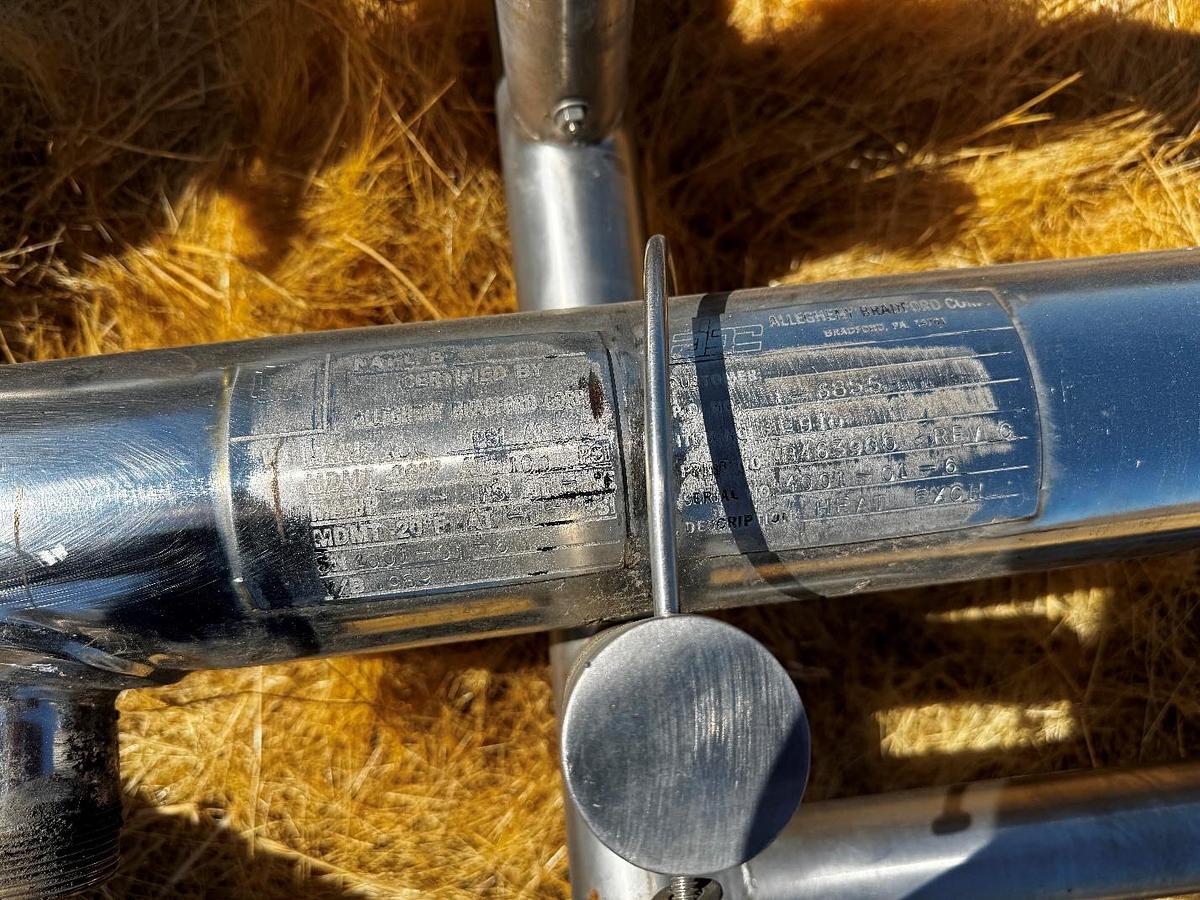

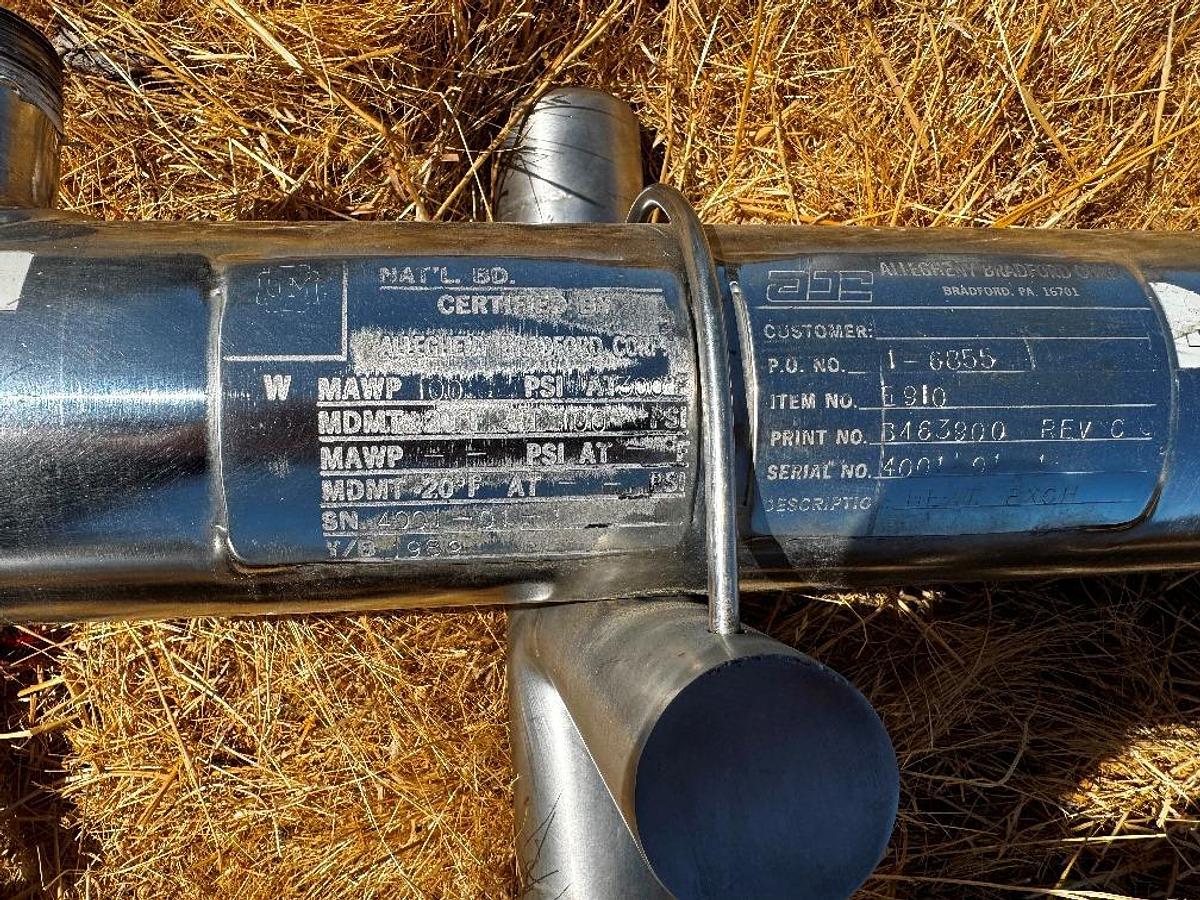

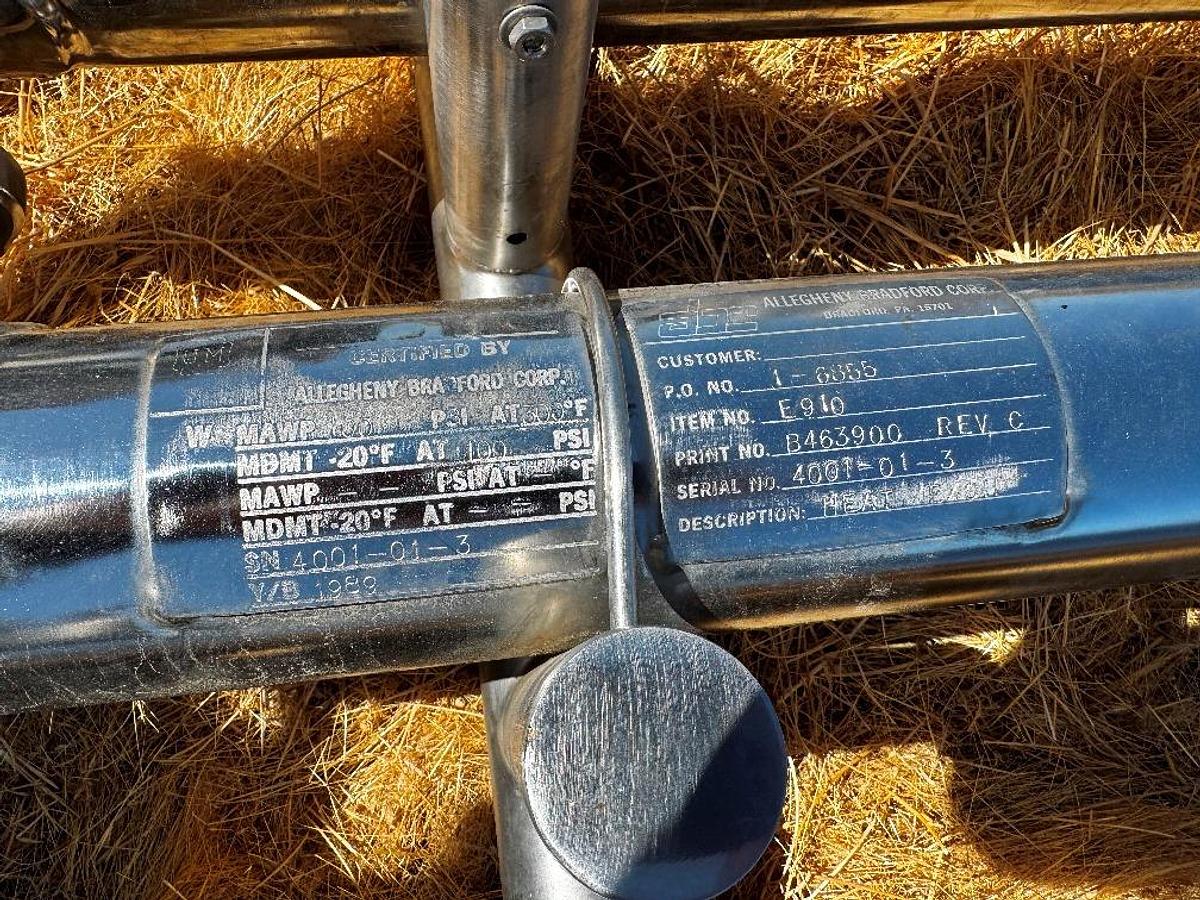

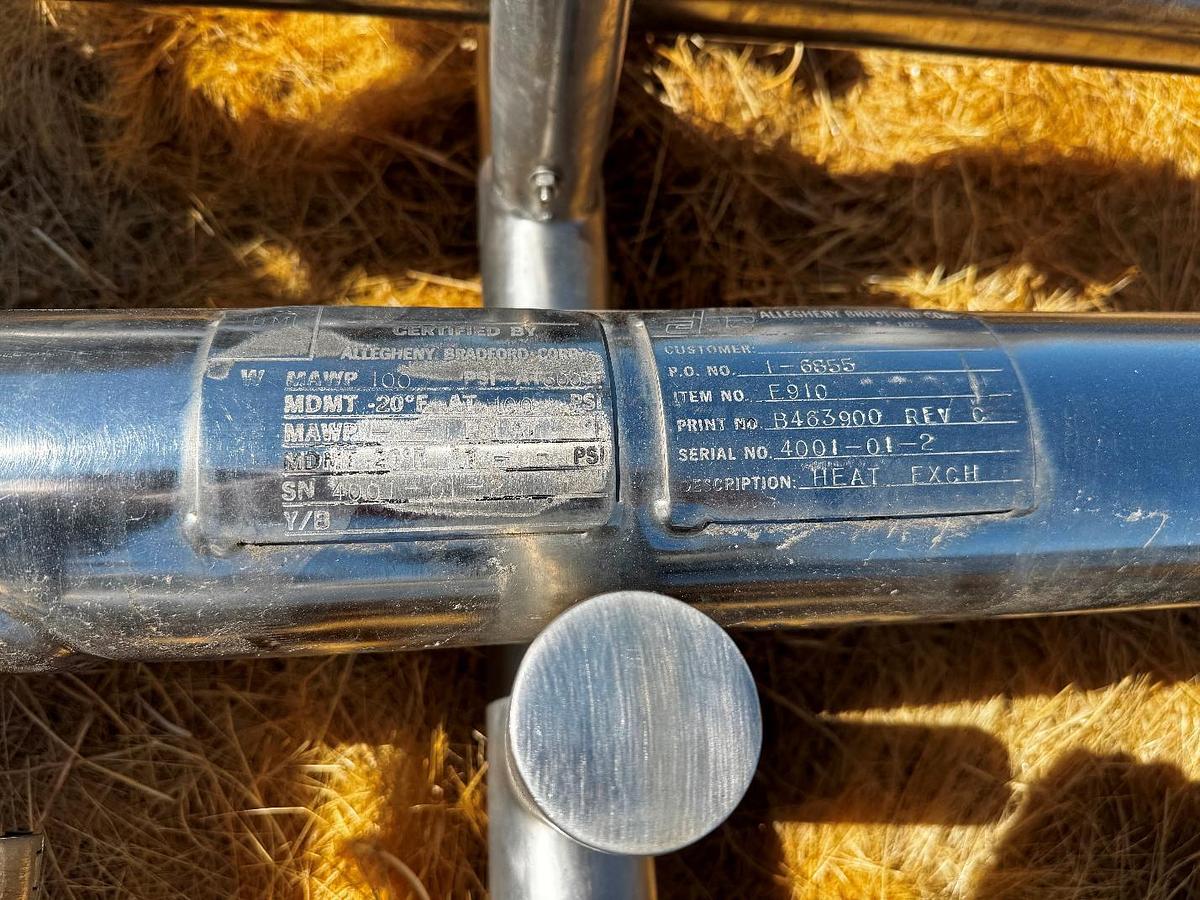

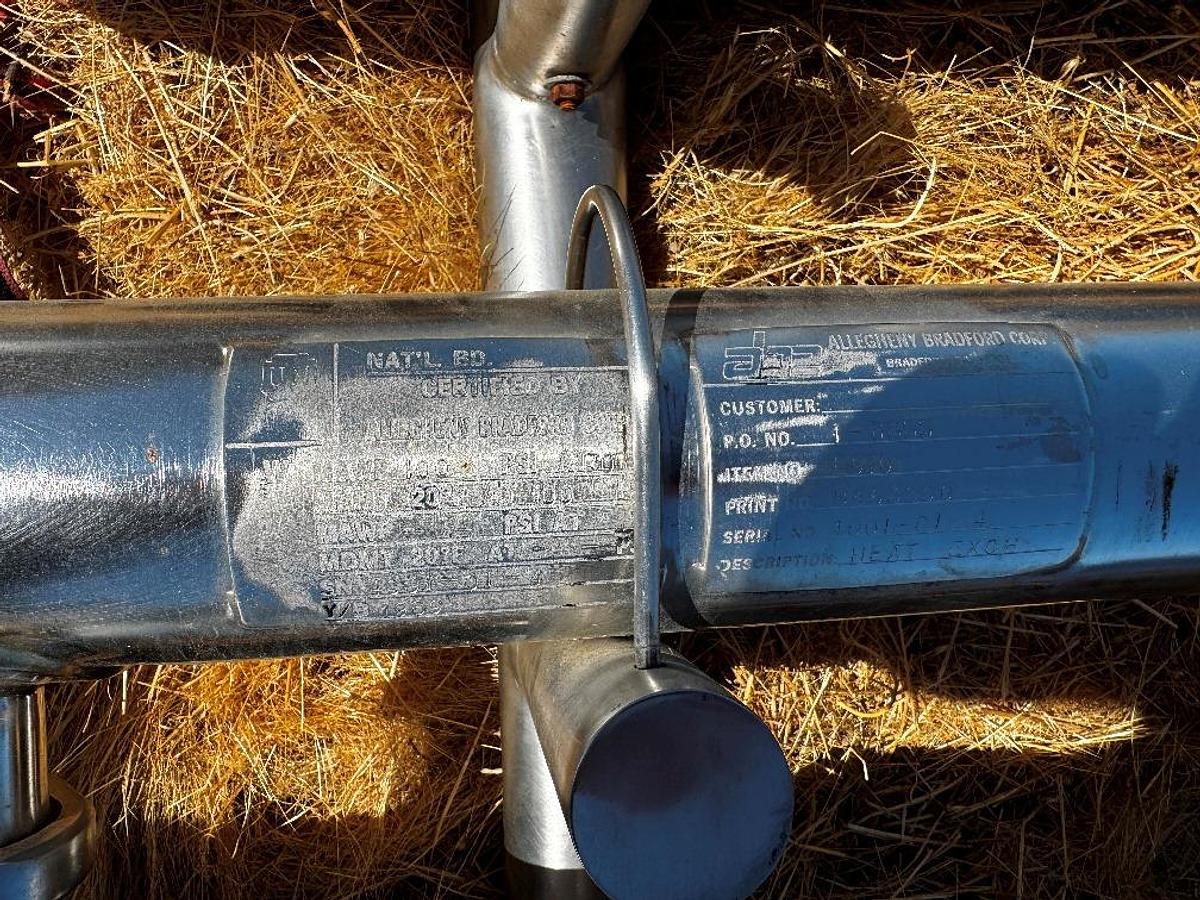

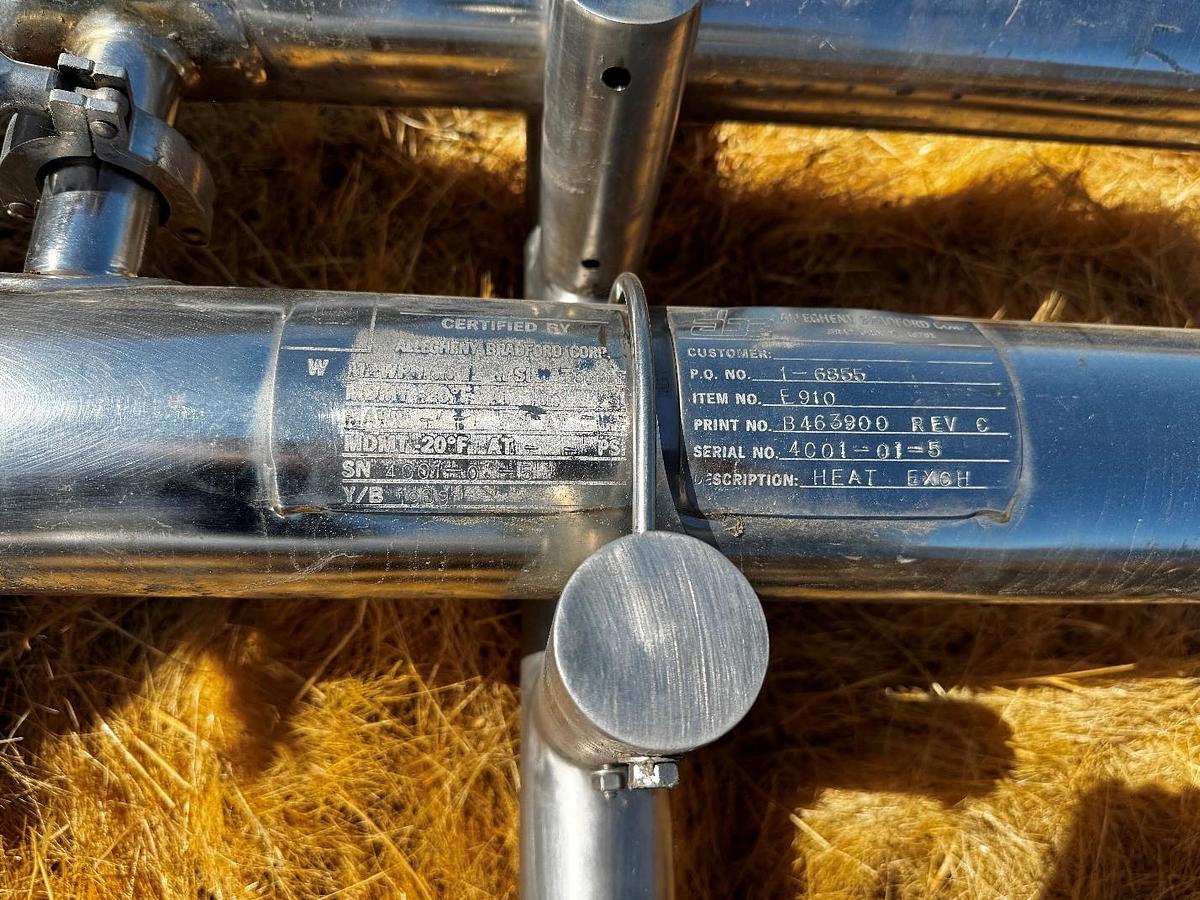

| Serial Number | 4001-01-1 through 4001-01-6 |
| Inner Tube Diameter | 2" |
| Outer Tube Diameter | 4" |
| Surface Area | Approx. 30 ft² |
| Configuration | 6-Pass |
| Shell Side Feed | 2" |
| Tube Side Feed | 3/4" |
| Length | 9'10" |
| MAWP | 100 PSI @ 300°F / -20ºF |
| Basis | FOB |
General Information
Allegheny Bradford is a leading manufacturer of sanitary stainless steel heat exchangers and process equipment, trusted in the pharmaceutical, biotech, and food industries. This tube-in-tube exchanger’s 6-pass configuration is ideal for applications requiring precise thermal control with a compact footprint. Suitable for CIP heating/cooling loops, product-to-product heat exchange, and thermal treatment of viscous or shear-sensitive materials. Commonly used in fermentation, cell culture, syrup processing, and WFI systems.
