Tank, 2,642 Gallon (10,000 Liter), Stainless Steel, Full Vac, 45 PSI, Insulated #5991438
Tank, 2,642 Gallon (10,000 Liter), Stainless Steel, Full Vac, 45 PSI, Insulated #5991438
Location:Brisbane, CA
Available quantity:1
Description

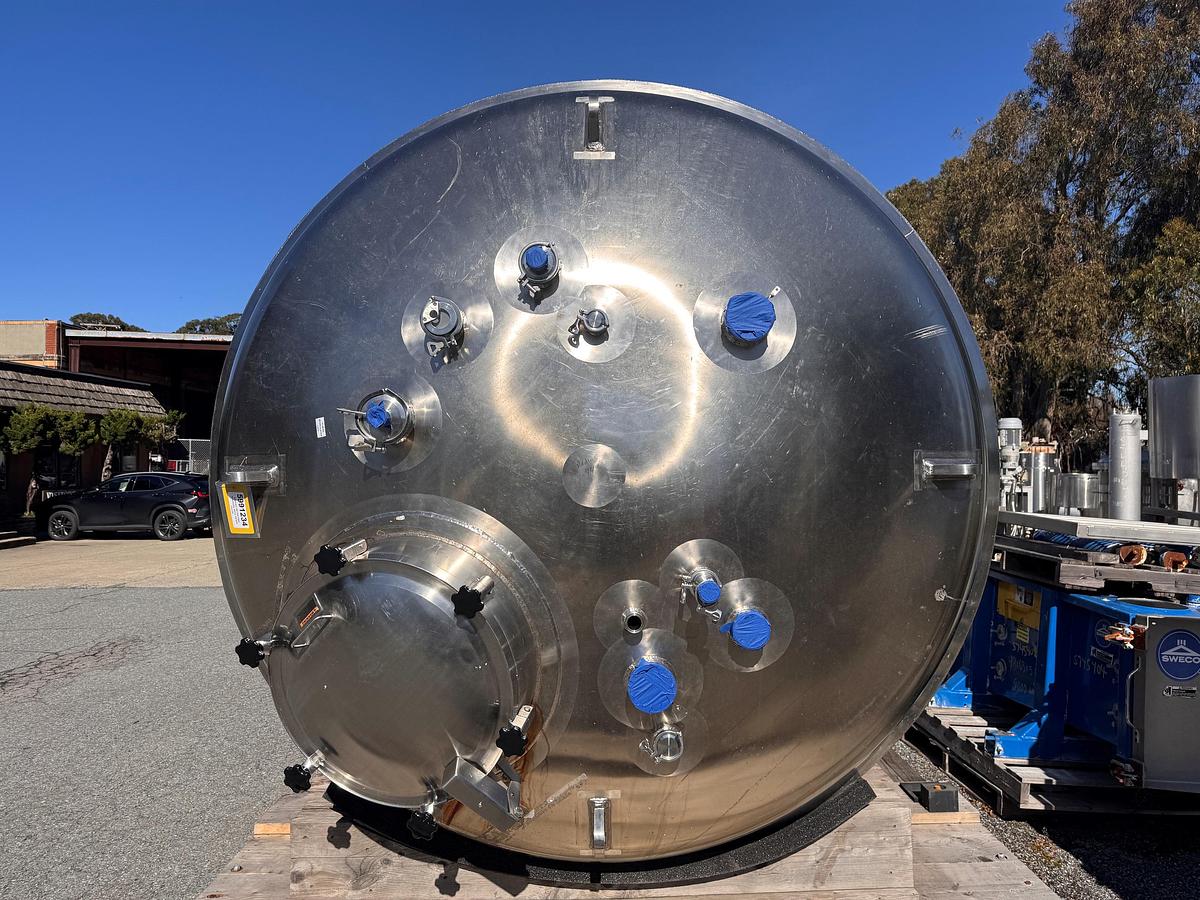

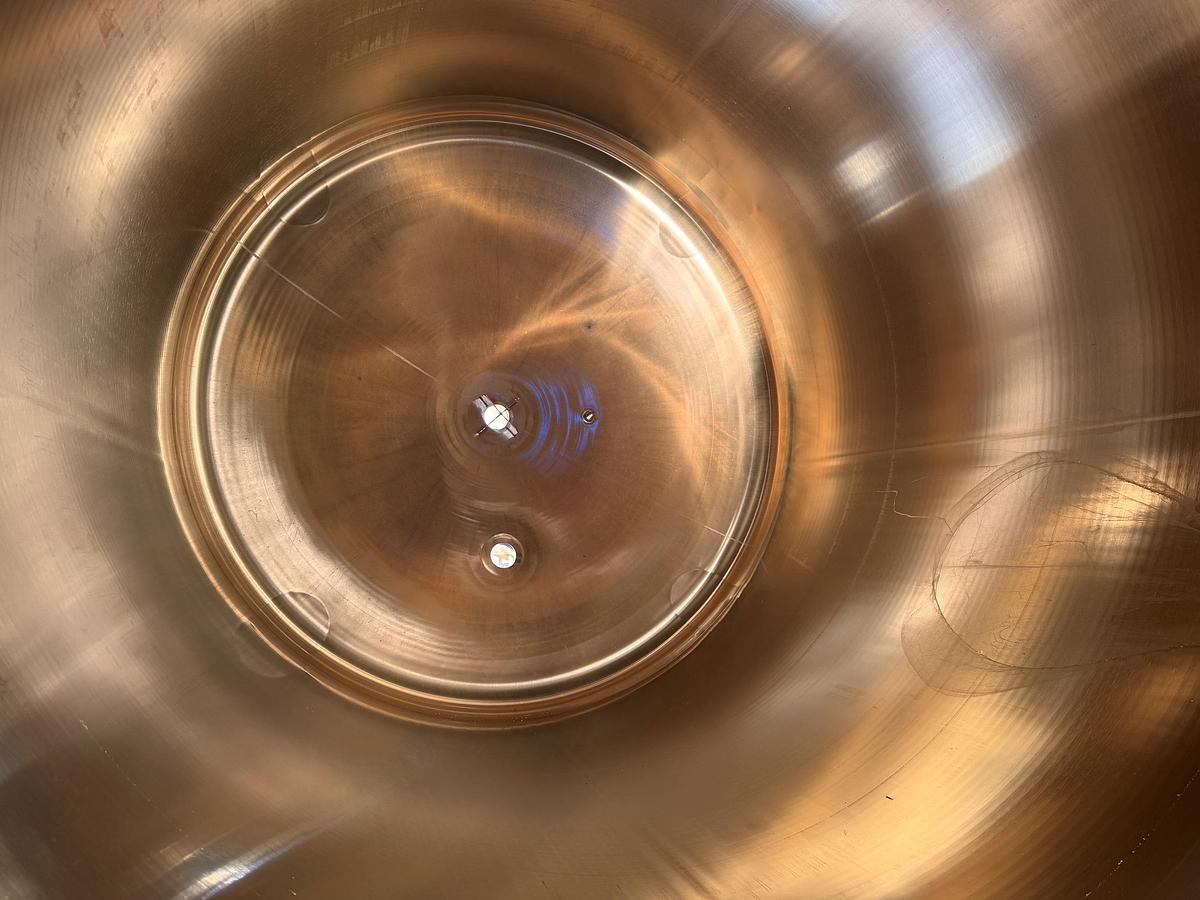

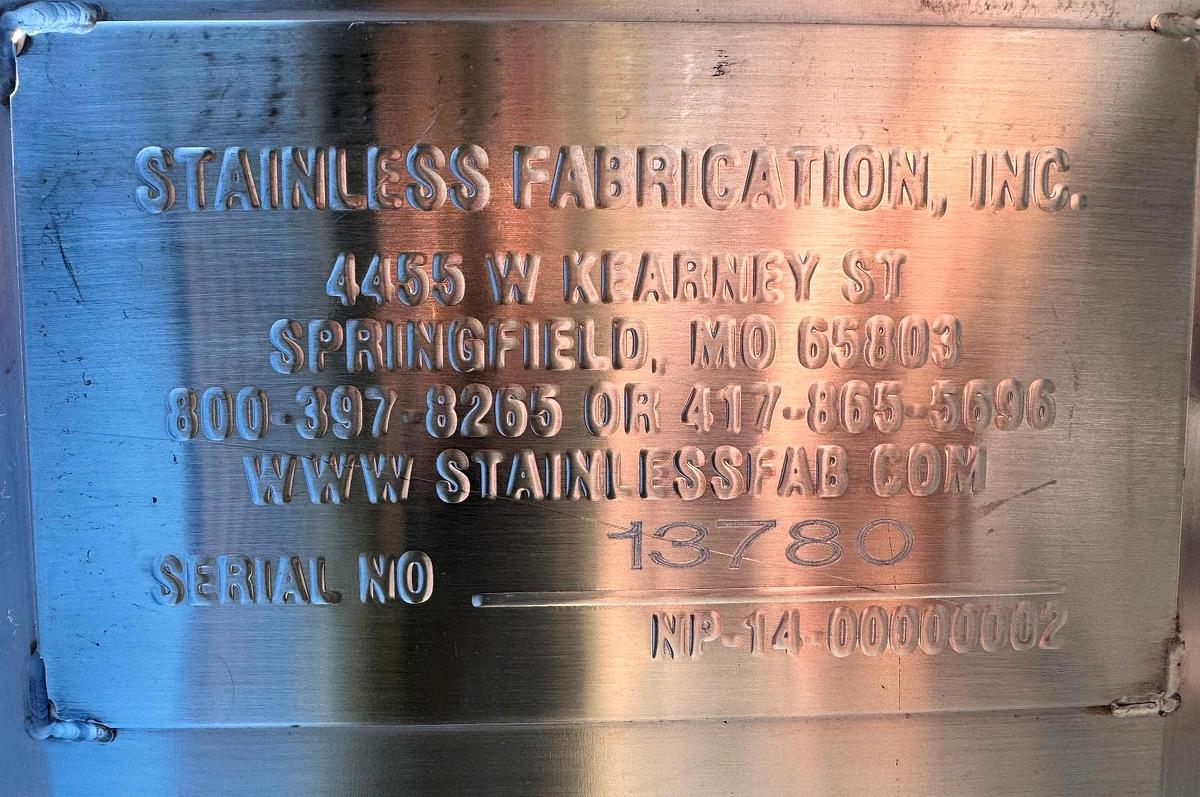

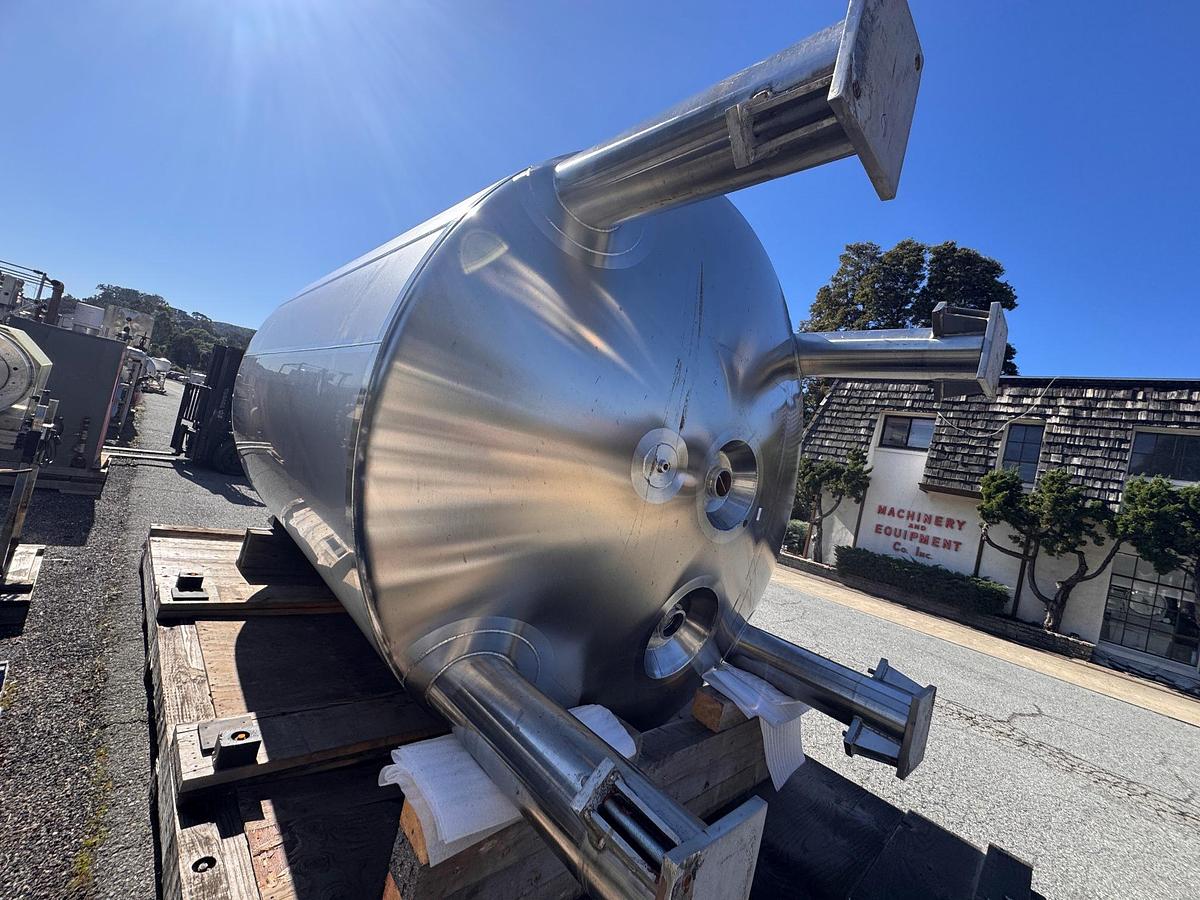

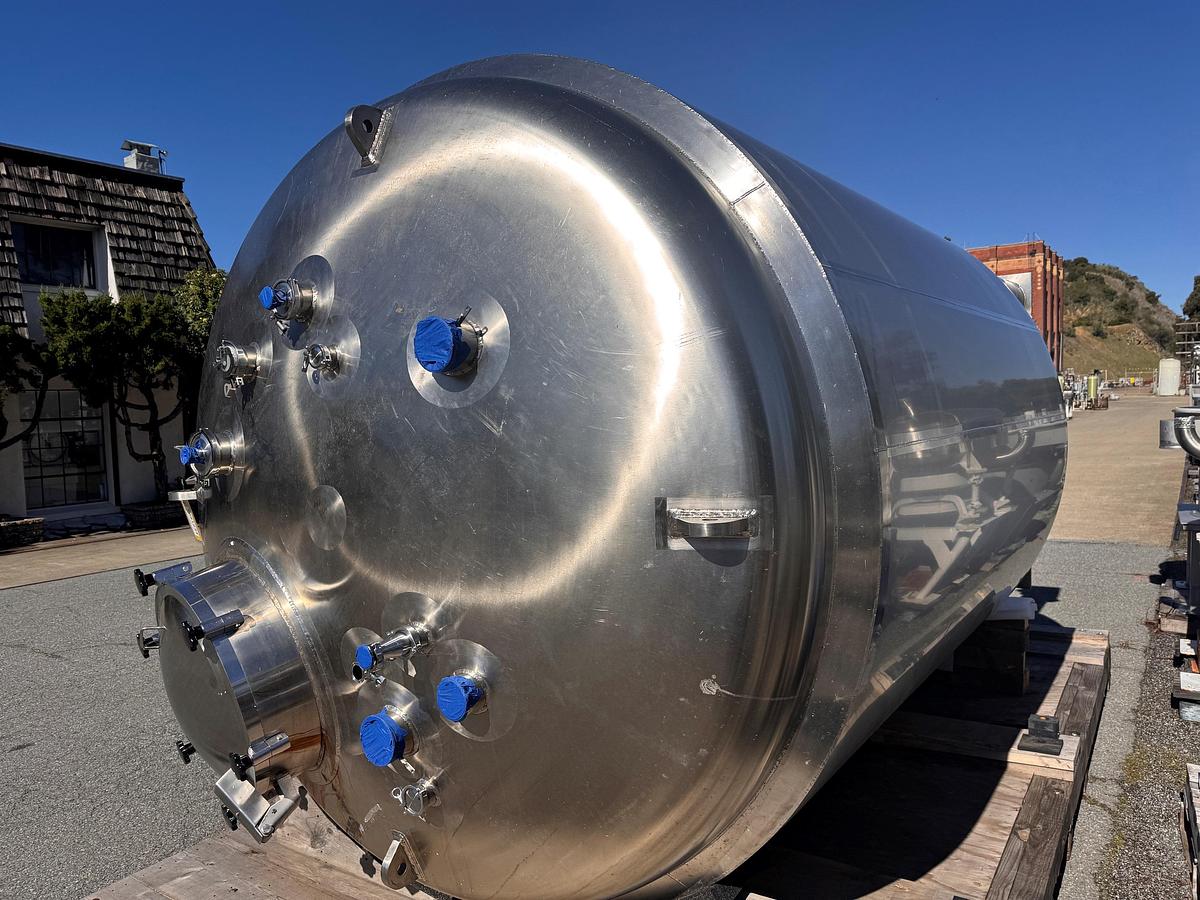

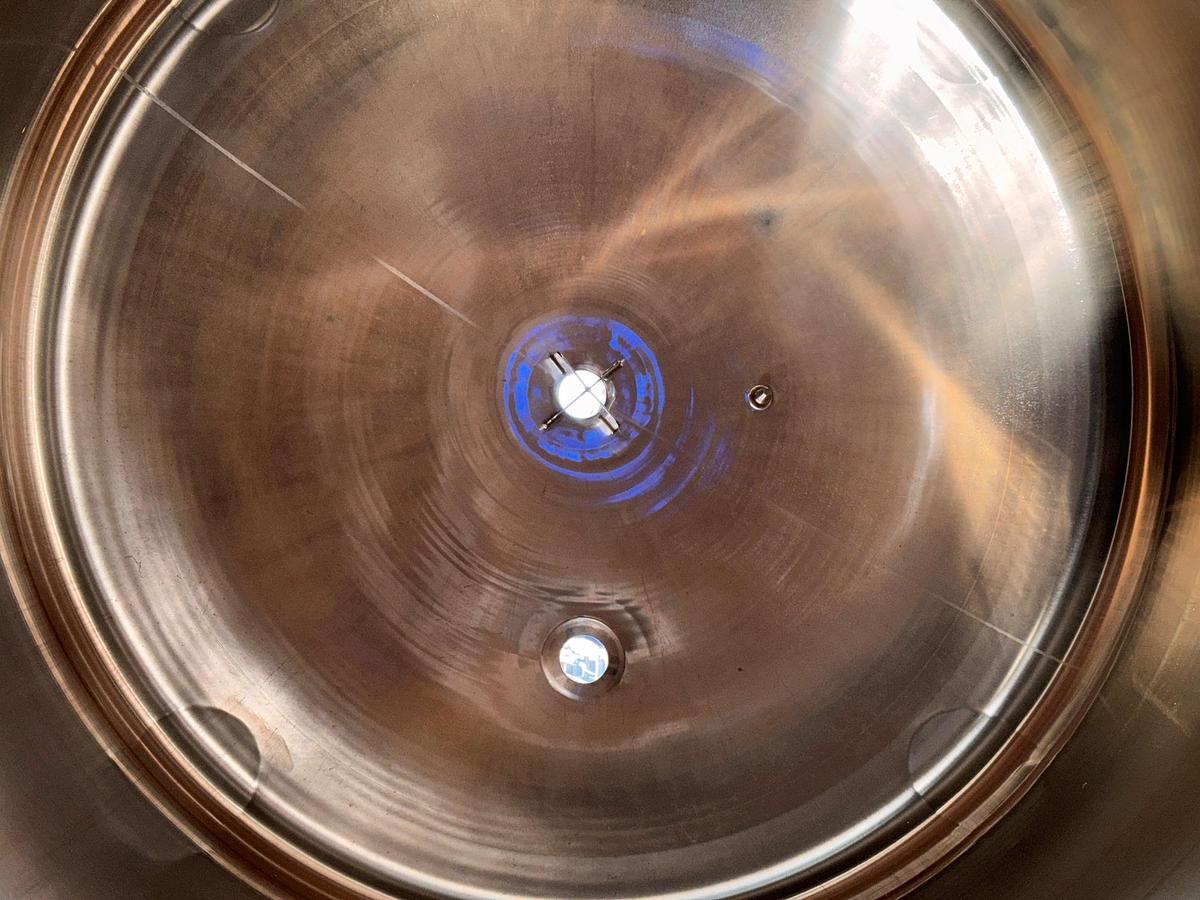

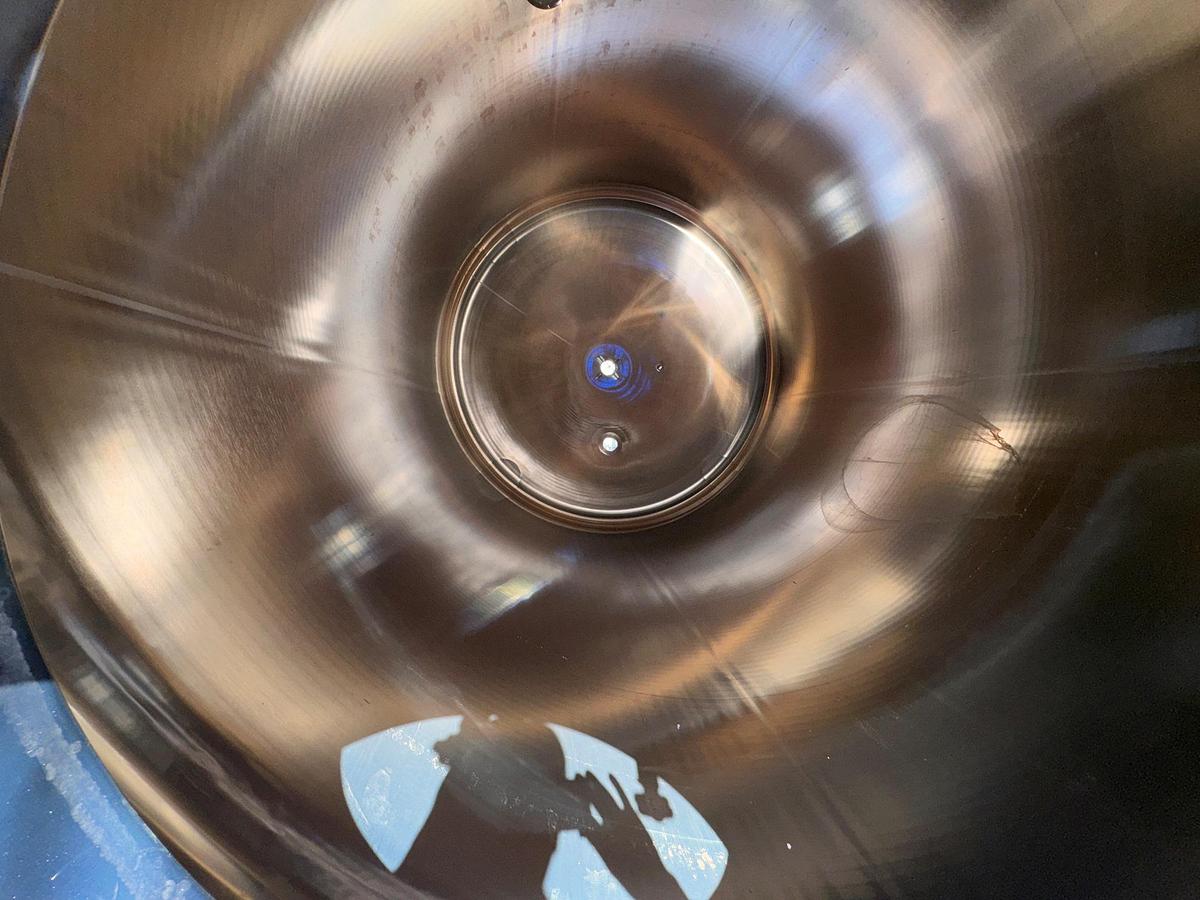

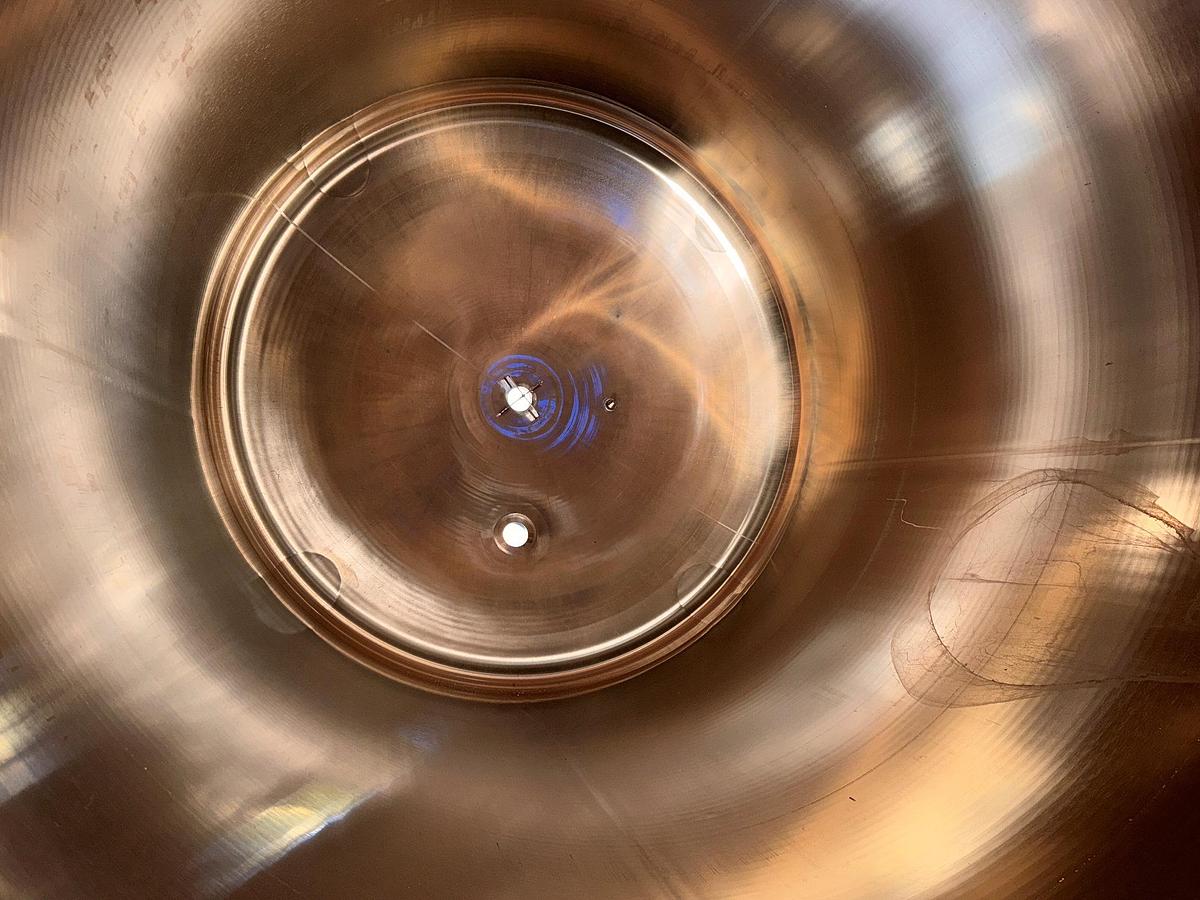

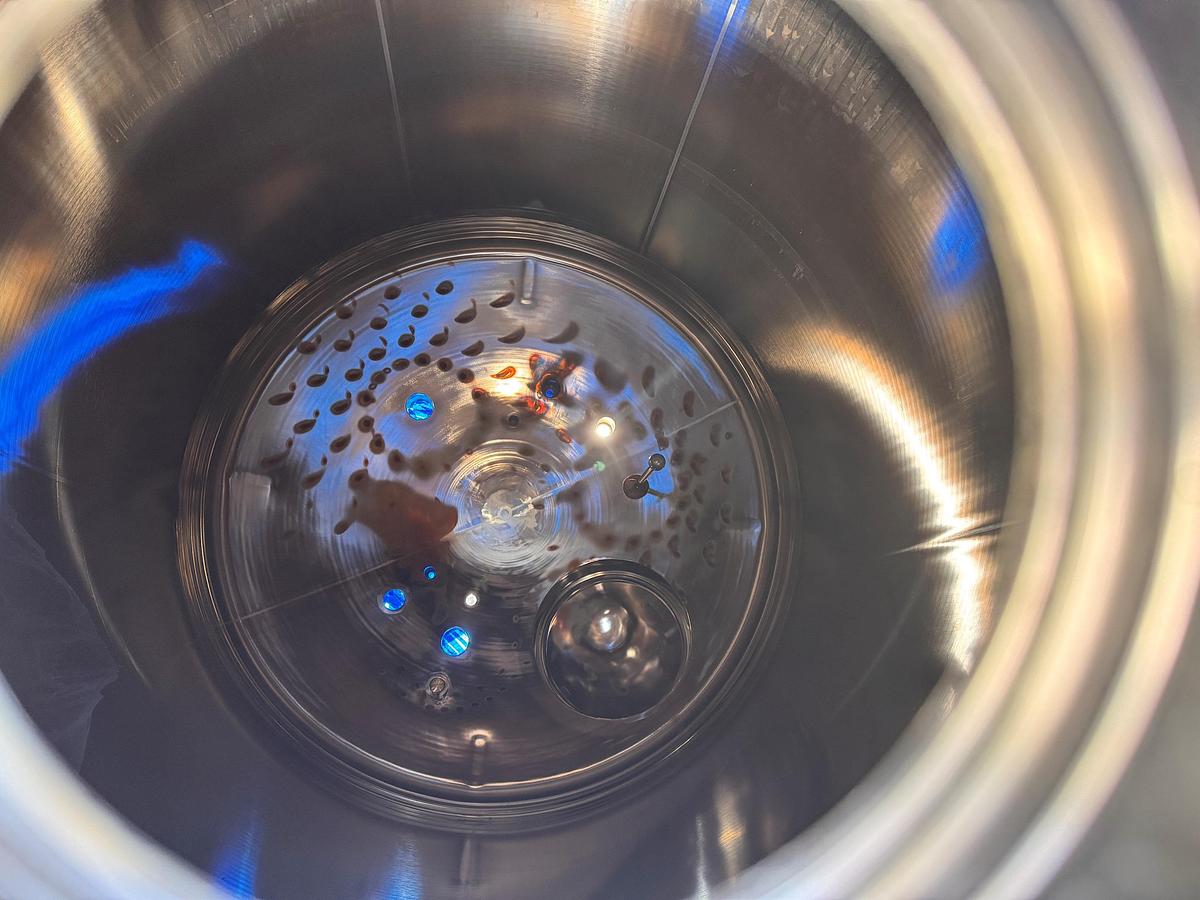

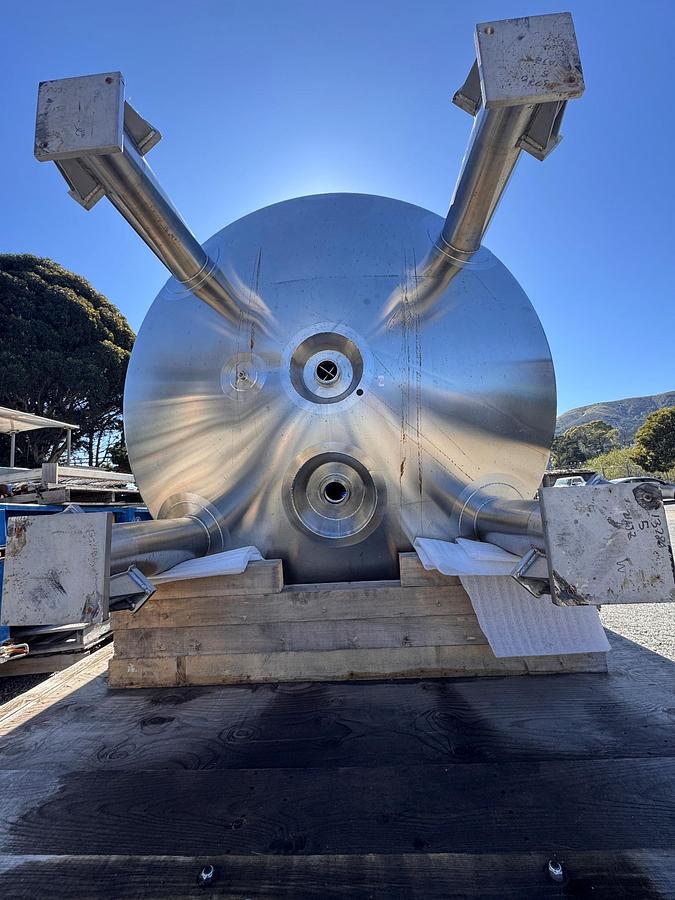

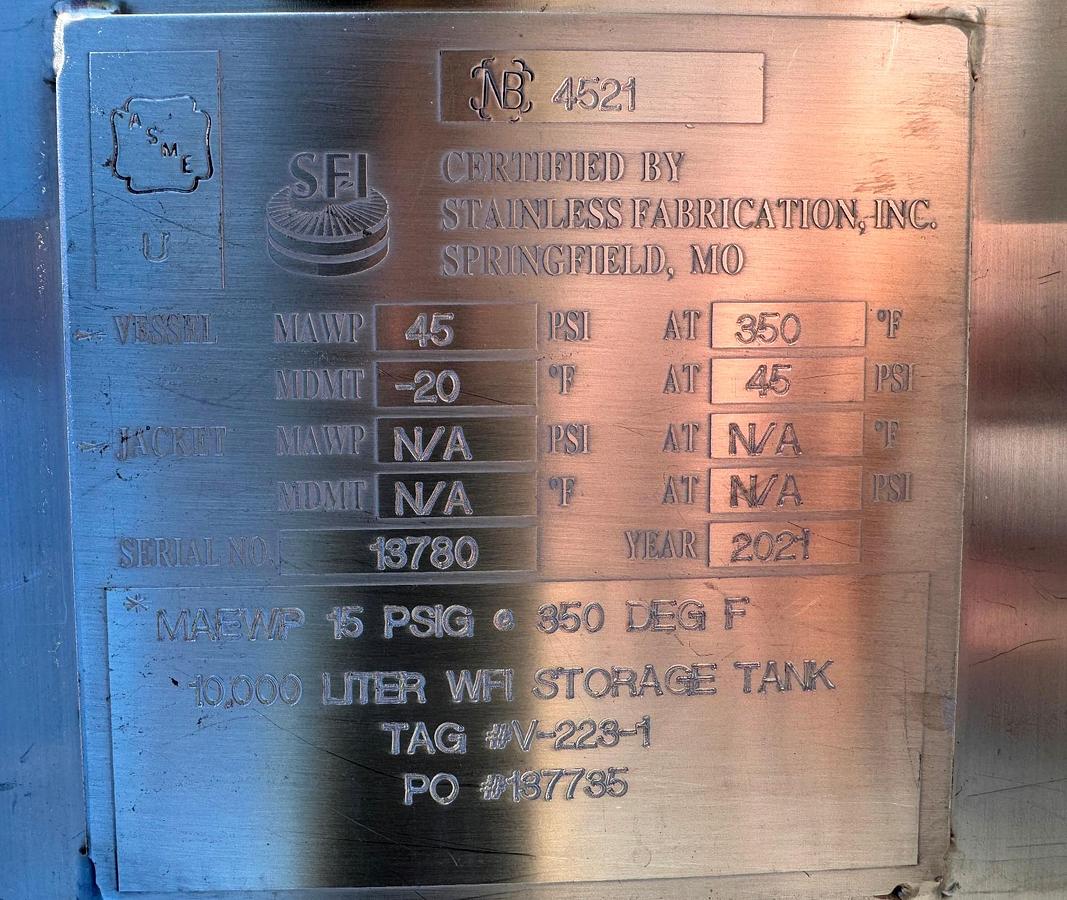

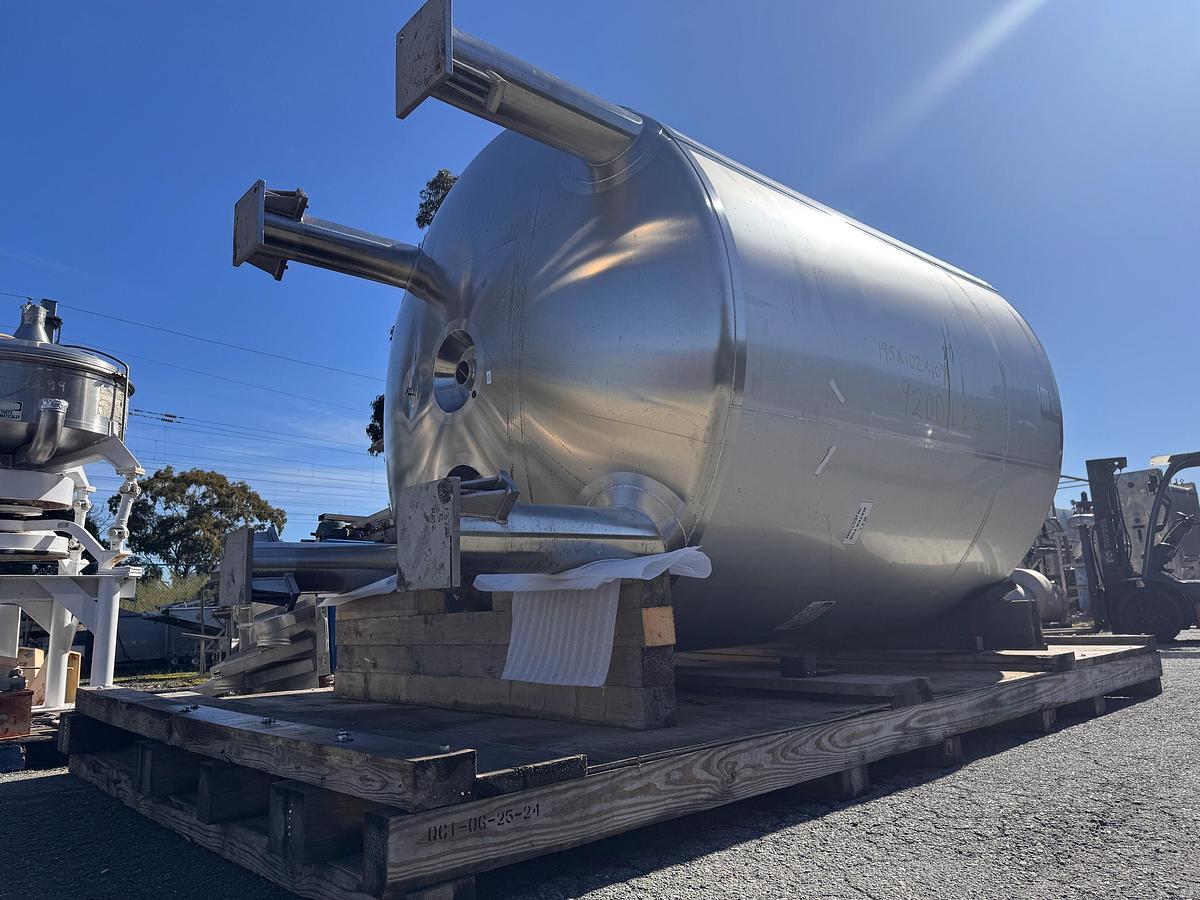

Used 10,000 liter WFI (Water for Injection) vertical stainless steel storage tank manufactured by Stainless Fabrication, Inc. (SFI), serial number 13780. Constructed from 316L stainless steel, the tank is rated for 15 PSIG MAEWP and 45 PSIG internal pressure at 350°F. Tank is insulated and features a dished head, multiple sanitary connections, lifting lugs, and base with four heavy-duty legs. Last certified in 2021. Clean interior with sprayball, center bottom outlet and multiple top openings. Originally designed as a WFI tank for pharmaceutical-grade applications.
Specifications
| Stock Number | 5991438 |
| Manufacturer | Stainless Fabrication (SEI) |
| Model | WFI Storage Tank |
| Year | 2021 |
| Serial Number | 13780 |
| Gallons | 2,642 (10,000 Liters) |
| MAEWP | 15 PSIG (Full Vac) |
| Internal Pressure | 45 PSIG @ 350°F |
| Materials of Construction | 316 Stainless Steel |
| Orientation | Vertical |
| Year Built | 2021 |
| Basis | FOB |
General Information
Stainless Fabrication, Inc. (SFI) is known for fabricating high-purity stainless steel tanks for the pharmaceutical, biotech, and food sectors. This 10,000-liter insulated WFI tank is ideally suited for ultra-pure water storage in pharmaceutical and biotechnology operations. It can also be used in applications requiring elevated temperature and pressure conditions, including CIP (clean-in-place) systems, sterile water storage, and other sanitary fluid handling processes.
