Tank, 6,870 Gallon (26,000 Liter), 7' Diameter, Stainless Steel, Vertical #5991408
Tank, 6,870 Gallon (26,000 Liter), 7' Diameter, Stainless Steel, Vertical #5991408
Location:Chowchilla, CA
Available quantity:1
Description

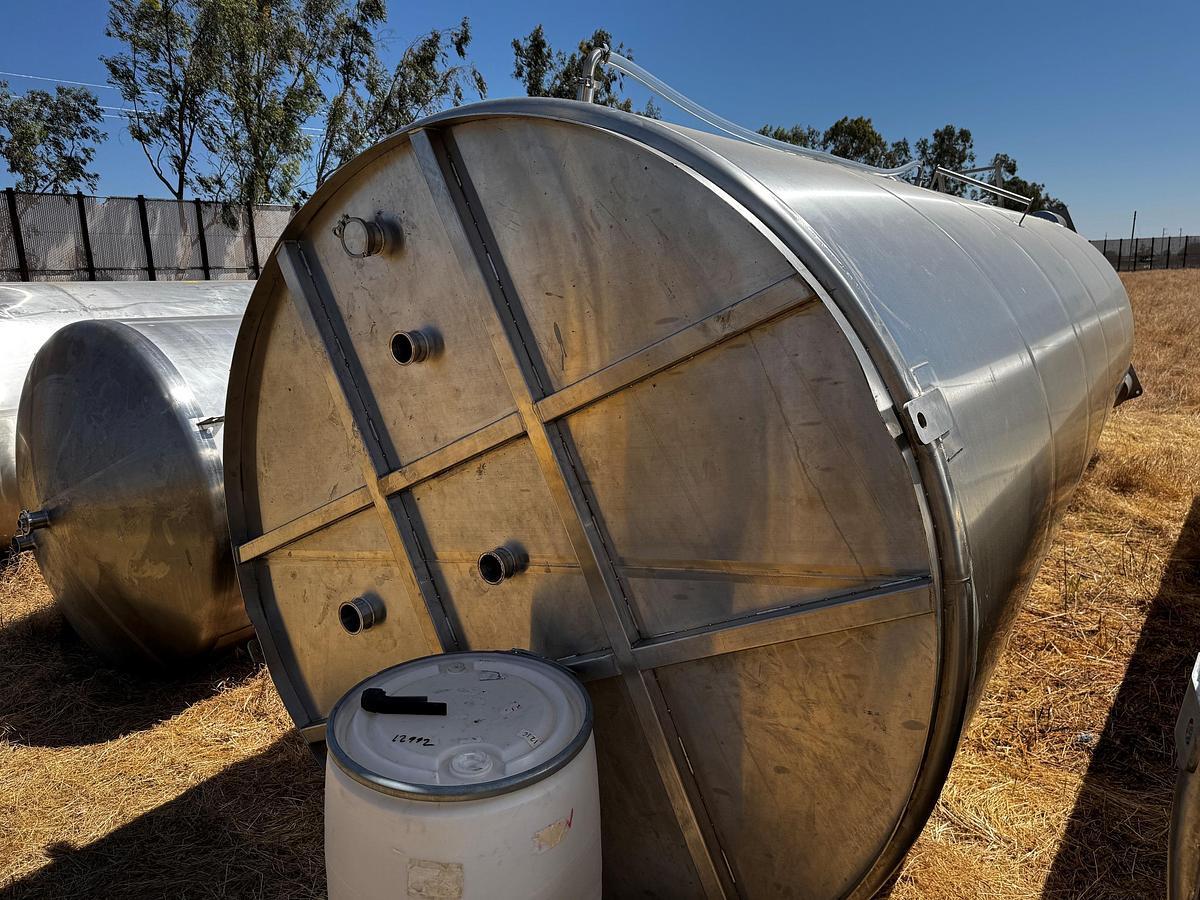

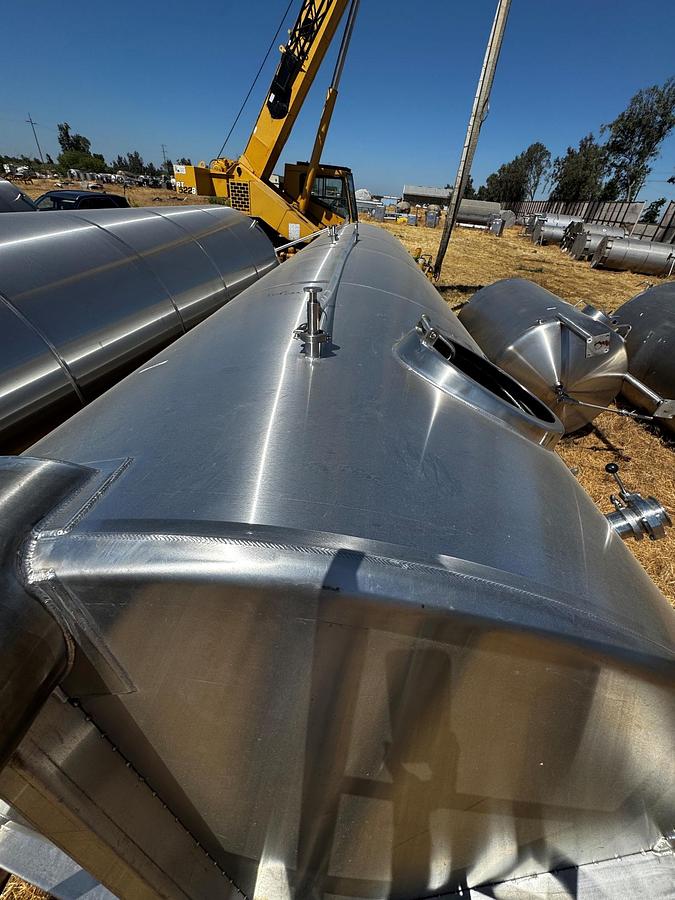

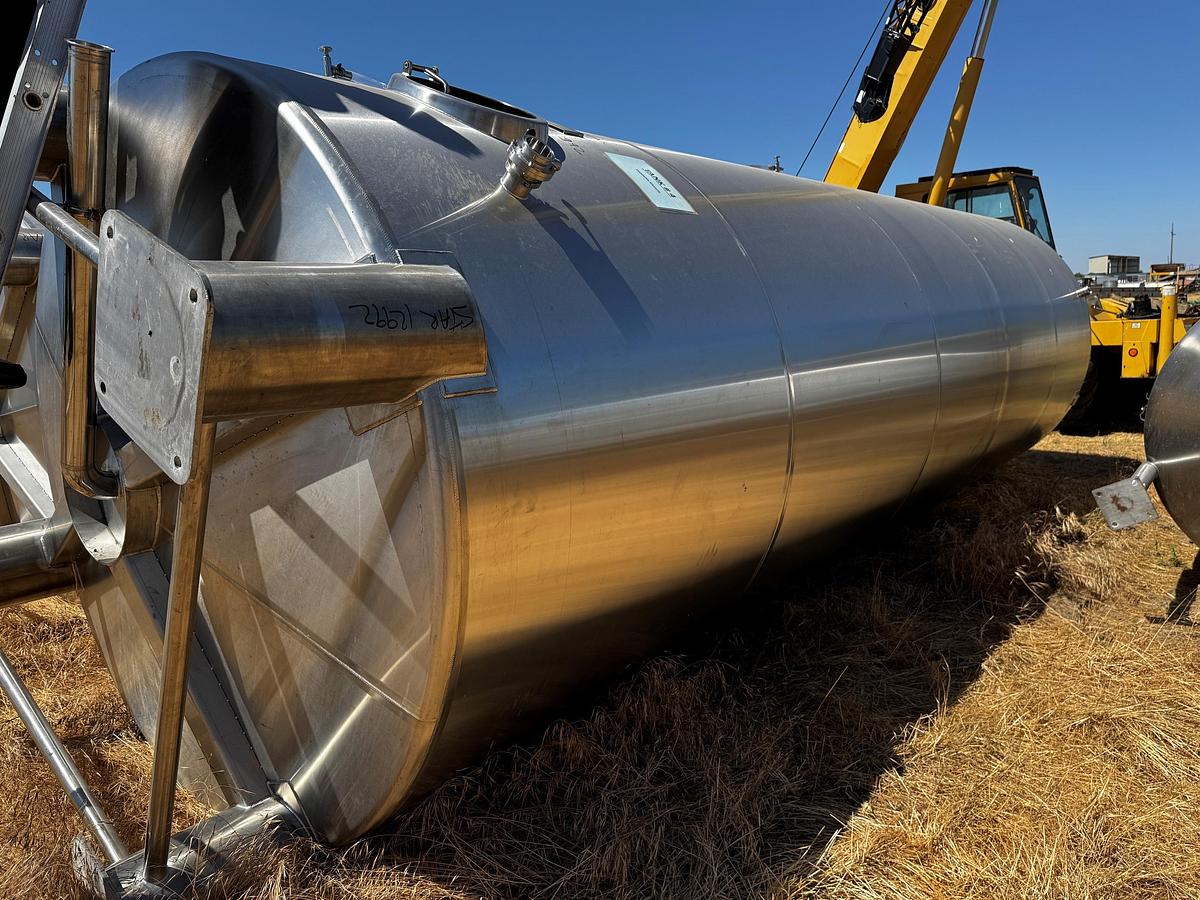

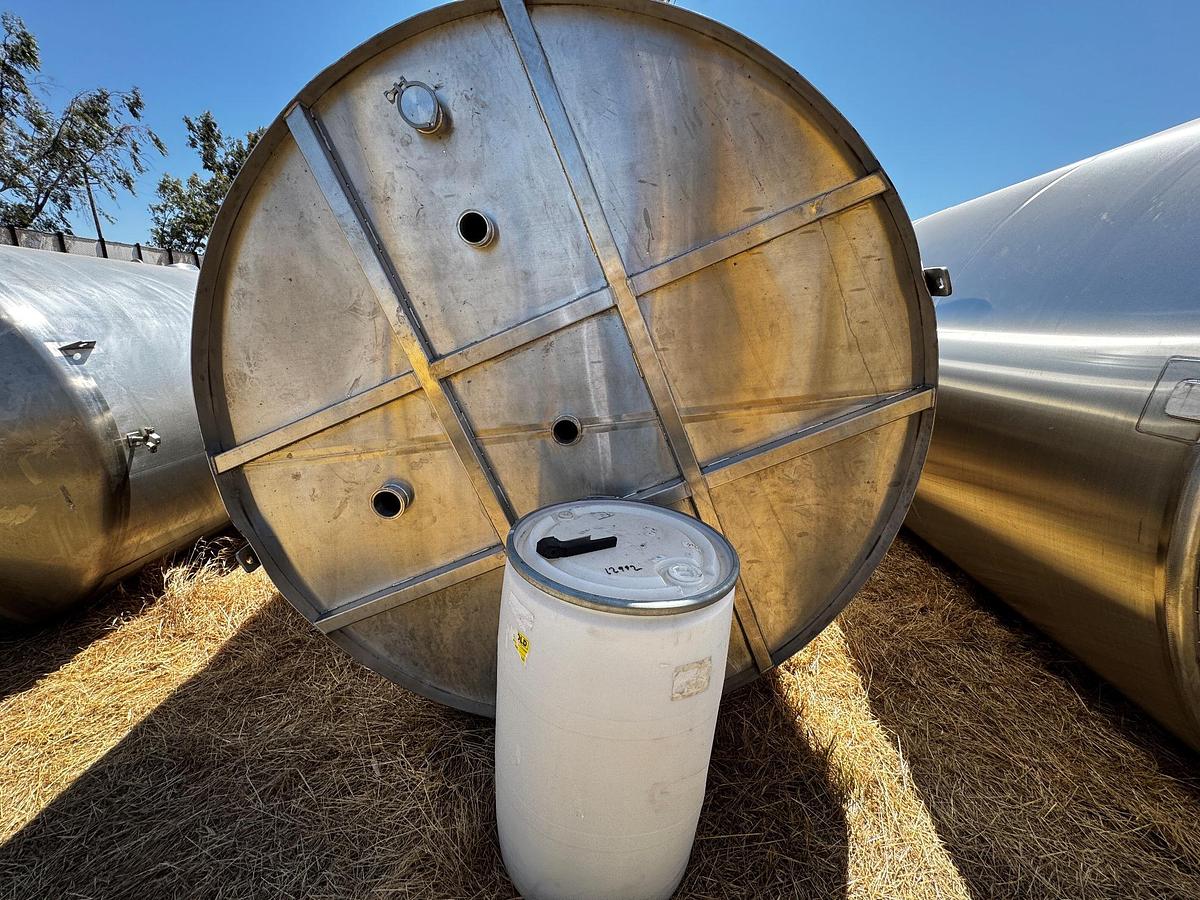

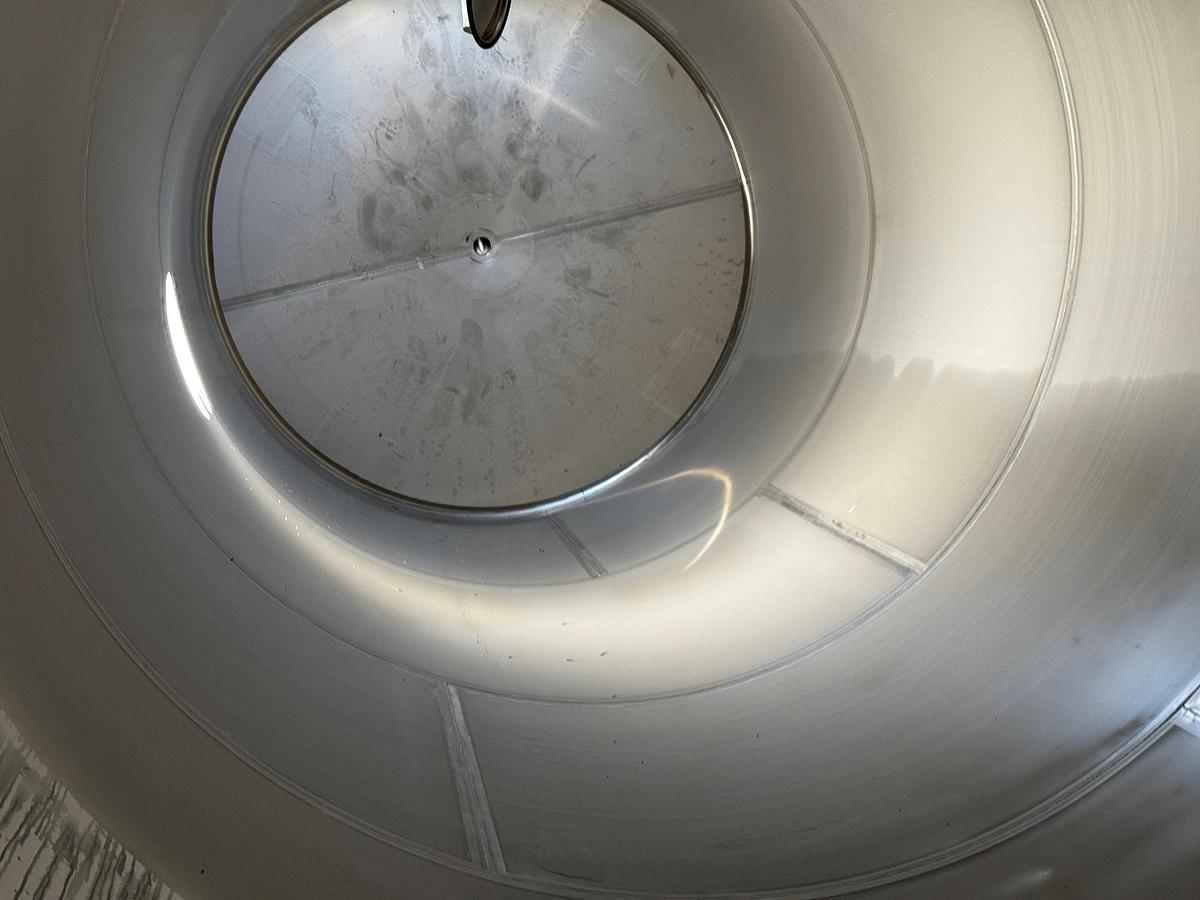

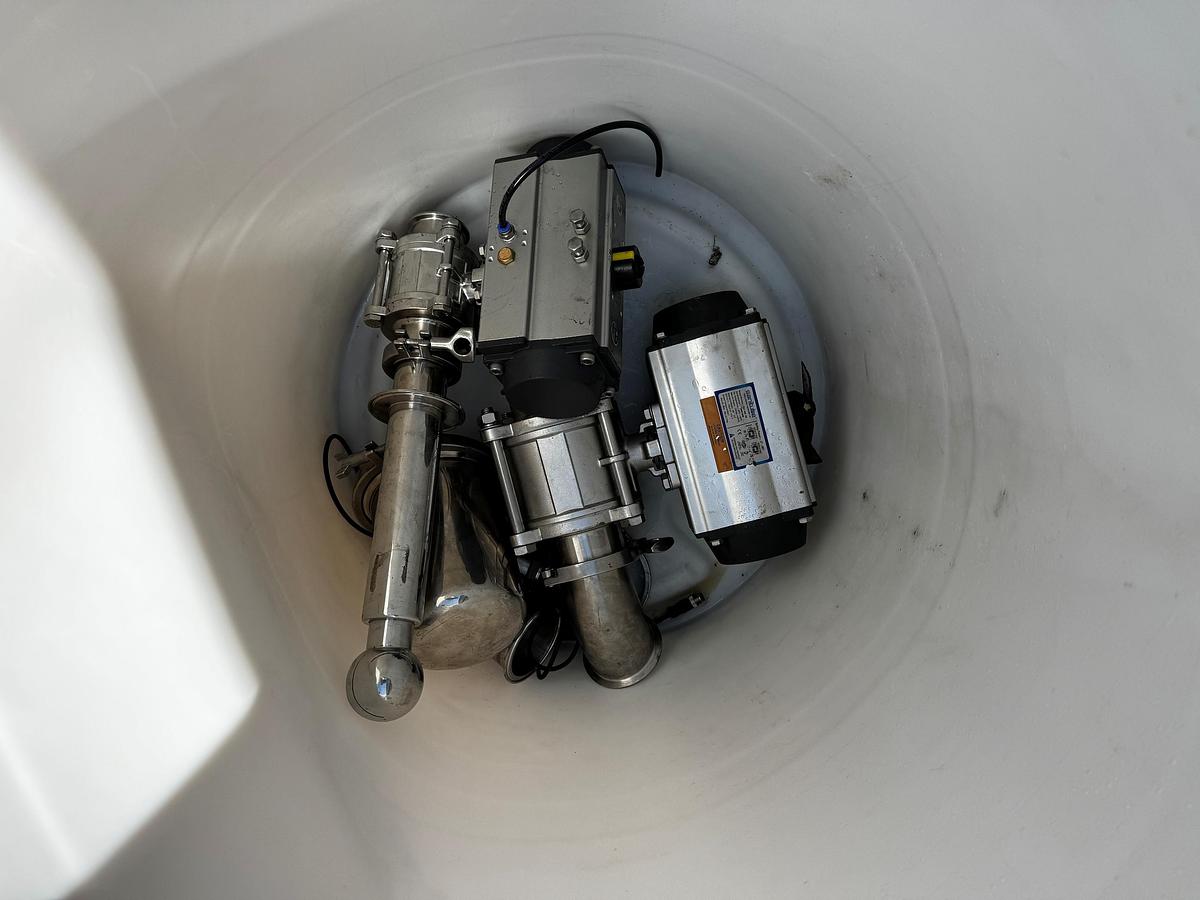

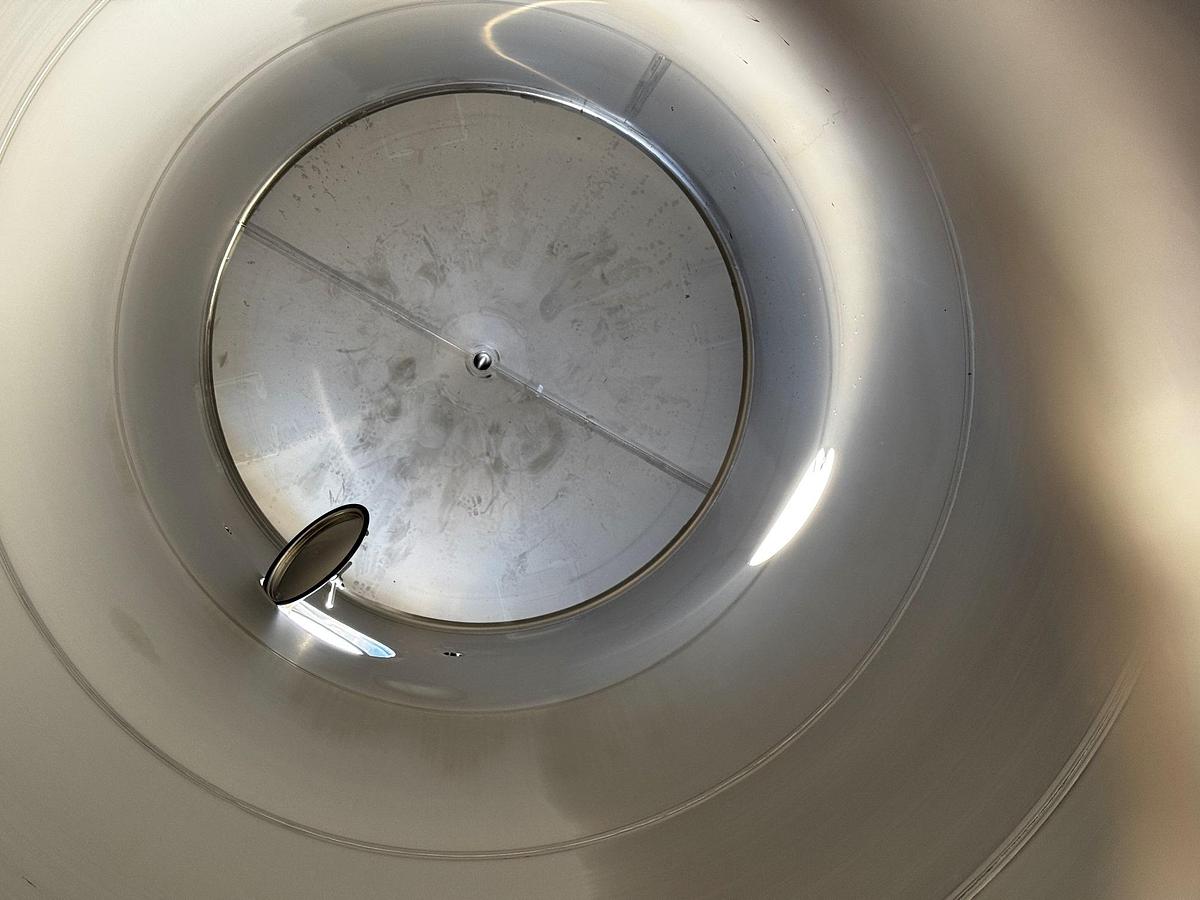

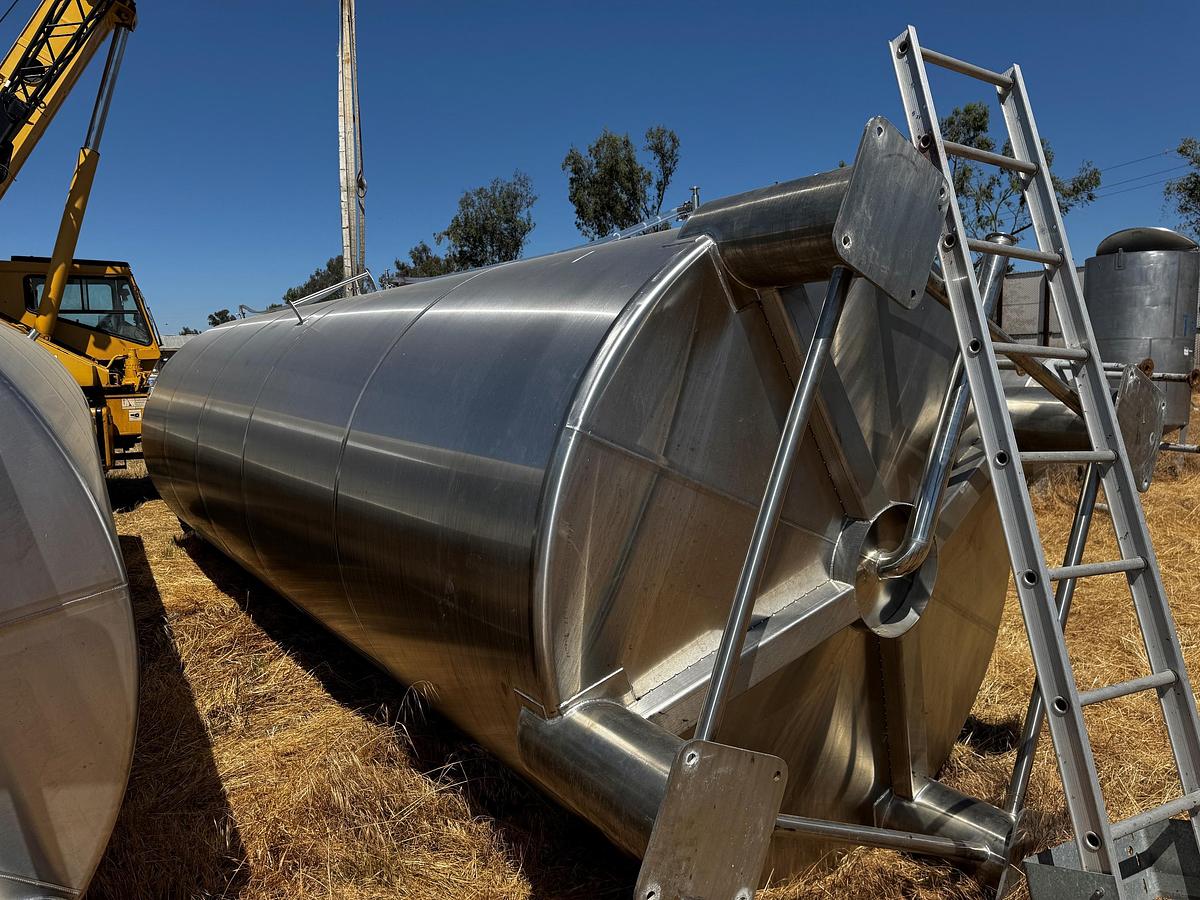

Stainless Steel Tank, 26,000-liter (approx. 6,870 gallon) vertical process tank constructed from 304 stainless steel in 2022. The tank stands approximately 7'2" in diameter with a 22' straight side, featuring a domed top and a shallow cone bottom for effective drainage. Mounted on a structural steel frame with four tubular legs, it includes a 3" center bottom discharge with welded elbow pipe, a 13.5" x 18" top oval manway, four 3" tri-clamp inlets on the top head, and one 3" side-mounted top inlet. The internal components feature a CIP spray ball and pneumatic valve system for flow control. Last used in vegetable glycerin storage and handling.
Specifications
| Stock Number | 5991408 |
| Manufacturer | Yuxin |
| Year | 2022 |
| Gallons | 6,870 Gallons (26,000 Liters) |
| Diameter | 7'2" |
| Materials of Construction | 304 Stainless Steel |
| Orientation | Vertical |
| Previous Use | Vegetable glycerin storage |
| Bottom | Cone Bottom |
| Mounting | Leg Mounted with Square Support |
| Basis | FOB |
General Information
Engineered for industrial liquid handling, this stainless tank offers a clean, weld-finished interior suitable for food-grade or chemical applications. Built by Yuxin Industrial and delivered in late 2022, the tank includes integrated ports for automation and monitoring. The spray ball enables automated internal cleaning, while the bottom-mounted actuator valve system allows for remote liquid transfer. Commonly used in biofuel, personal care, and chemical processing facilities.
