Tank, 4,500 Gallon, 316 Stainless Steel, Cone Bottom, Legs, #5991304
Sold
Tank, 4,500 Gallon, 316 Stainless Steel, Cone Bottom, Legs, #5991304
Location:San Dimas, CA
Available quantity:1
Description

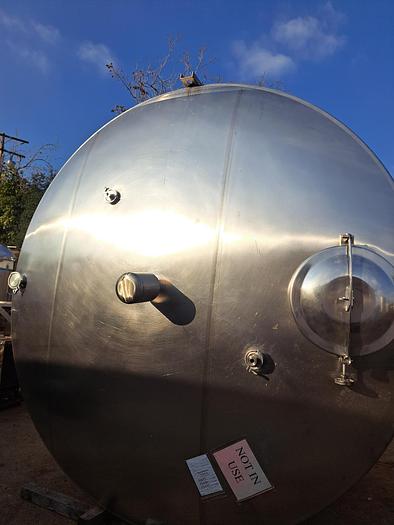

JV Northwest 4,500-gallon stainless steel single-wall tanks, constructed of 316 stainless steel. Tank measures 120" diameter x 86" straight side, with a dome top and cone bottom design. Bottom head includes a 4" diameter center bottom outlet. Top features a 20" manway and ports: (2) 3" diameter and (1) 4" diameter. Shell Thickness: 2.3mm/0.090 inches. Mounted on (4) stainless steel legs.
Specifications
| Stock Number | 5991304 |
| Manufacturer | JV Northwest |
| Gallons | 4,500 |
| Dimensions | 120" diameter x 86" straight side |
| Materials of Construction | 316L Stainless Steel |
| Shell Thickness | 2.3mm/0.090 inches |
| Top Features | 20" manway, (2) 3" , (1) 4" |
| Discharge | 4" diameter center bottom |
| Basis | FOB |
General Information
JV Northwest stainless steel tanks are a standard in winery and beverage industries, and this 4,500-gallon cone bottom model offers reliable long-term liquid storage.
