Tank, 4,500-Gallon, 316 Stainless Steel, JV Northwest, Cone Bottom, #5991297

Tank, 4,500-Gallon, 316 Stainless Steel, JV Northwest, Cone Bottom, #5991297

Location:San Dimas, CA

Available quantity:1

or
Call +1 (415) 467-3400

Description

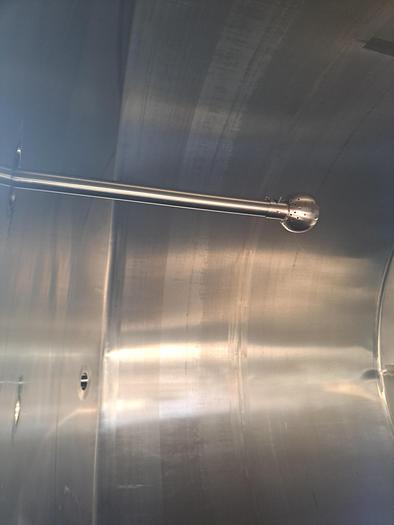

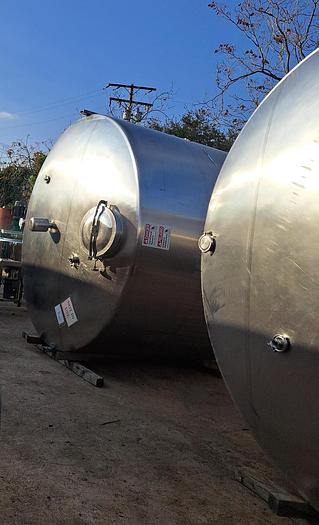

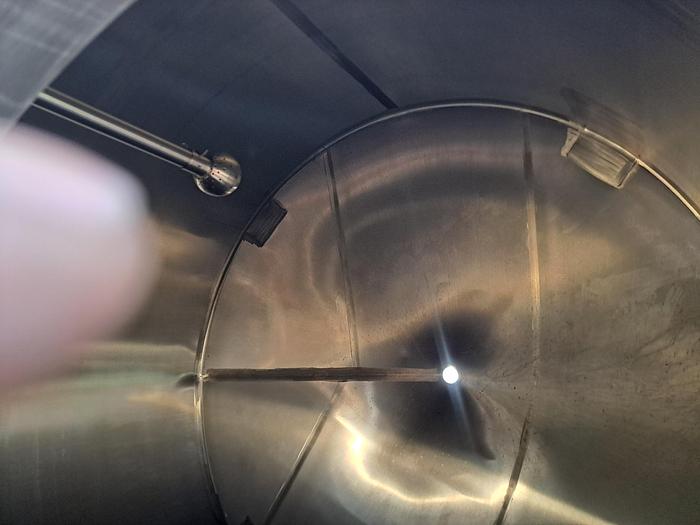

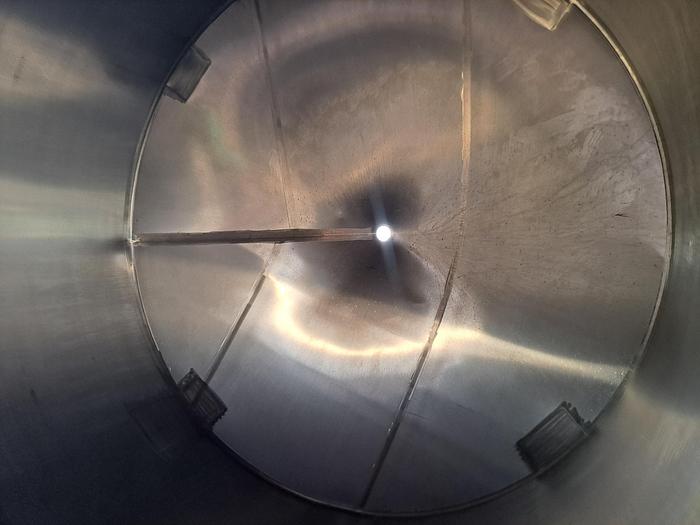

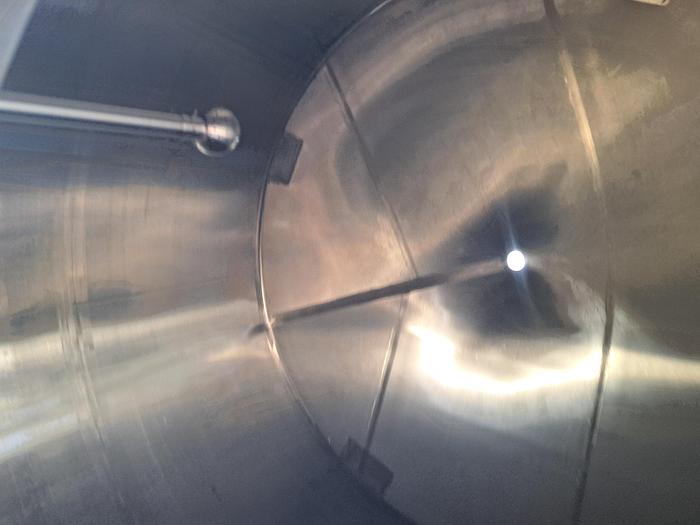

JV Northwest 4,500-gallon stainless steel single-wall tanks, constructed of 316 stainless steel. Tank measures 120" diameter x 86" straight side, with a dome top and cone bottom design. Bottom head includes a 4" diameter center bottom outlet. Top features a 20" manway and ports: (2) 3" diameter and (1) 4" diameter. Shell Thickness: 2.3mm/0.090 inches. Mounted on (4) stainless steel legs.

Specifications

Stock Number5991297
ManufacturerJV Northwest
Gallons4,500
Dimensions120" diameter x 86" straight side
Materials of Construction316L Stainless Steel
Shell Thickness2.3mm/0.090 inches
Top Features20" manway, (2) 3" , (1) 4"
Discharge4" diameter center bottom
BasisFOB, Brisbane, CA

General Information

JV Northwest is a respected manufacturer of stainless steel tanks, and this 4,500-gallon cone bottom tank in 316 stainless steel is designed for winery, food, and beverage storage applications.
