Tank, 500-Gallon, Stainless Steel, Dbl Motion Agiated, Jacketed, Lee, #5991295

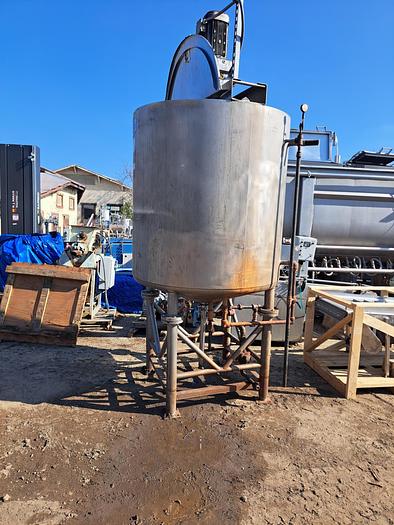

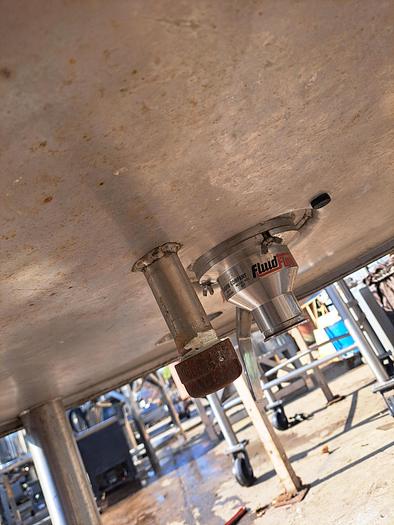

Lee Industries 500-gallon stainless steel Jacketed Tank with Double Motion Agitation, constructed of 304 stainless steel. Measures 56" diameter x 58" straight side with flat top and dish bottom. Internal agitation is set up for side and bottom scrapers, as well as counter-rotating center agitation. Driven by a top-mounted drive through a gear reducer. 7.5 HP motor, 1735 RPM, 230/460V, 3/60Hz, with a gear reducer ratio of 17.1 resulting in an output of 100 RPM. The tank features a 3-zone jacket. Vessel is mounted on 3 stainless steel legs and has a 3" diameter center bottom outlet. Design pressure: 100 PSI, design temperature: 338°F. National Board number 32898. Thickness: 2.5mm/0.098 inches. Previously used in cosmetics industry.
