Tank, 1,700 Gallon, 316 Stainless Steel, Jacketed, Double Agitation, #5990995

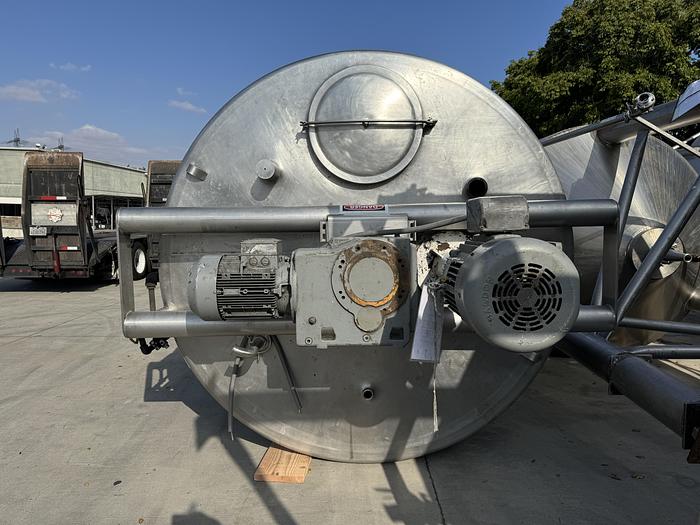

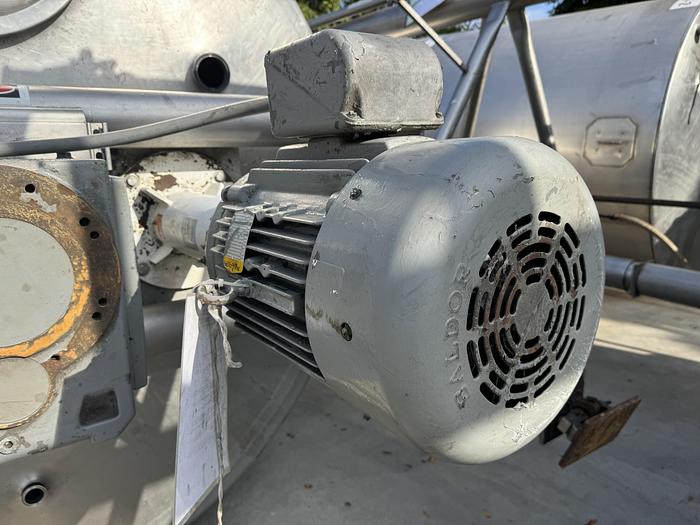

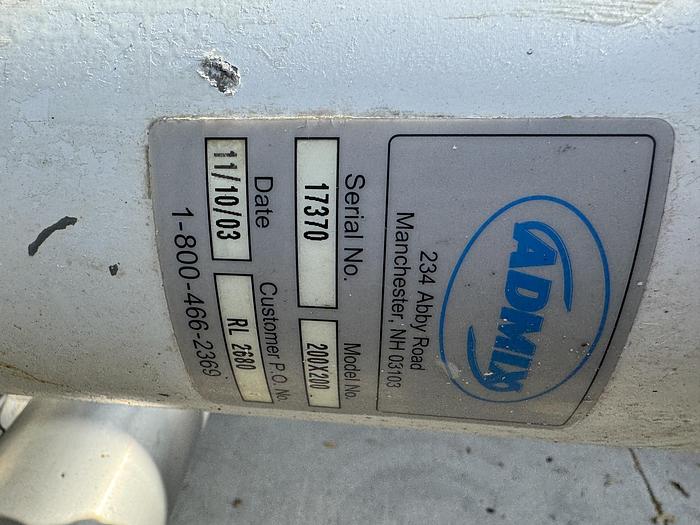

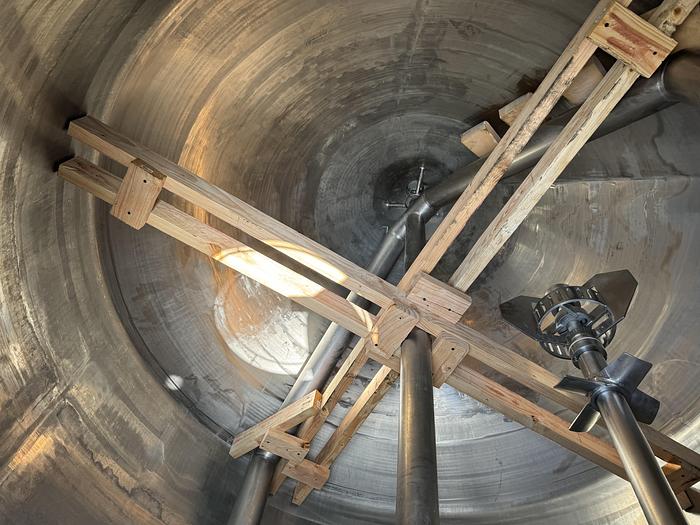

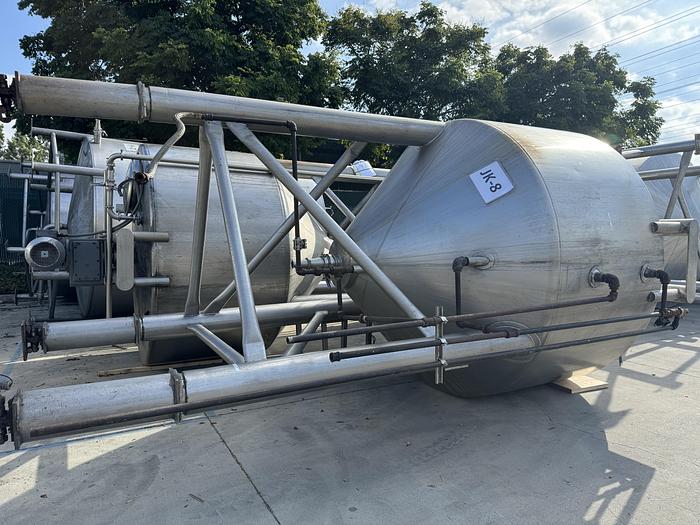

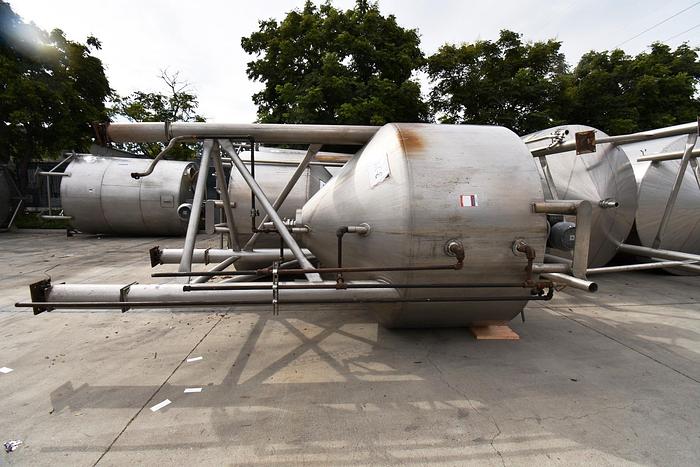

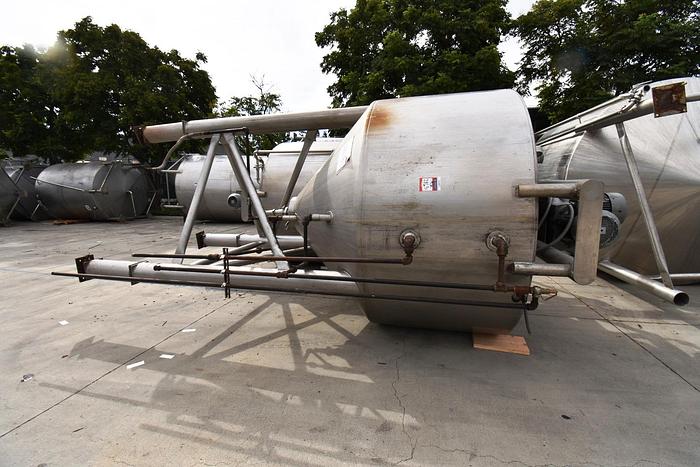

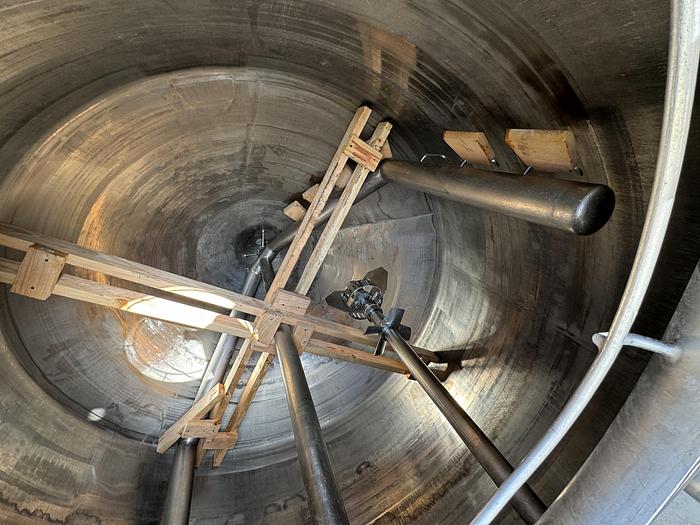

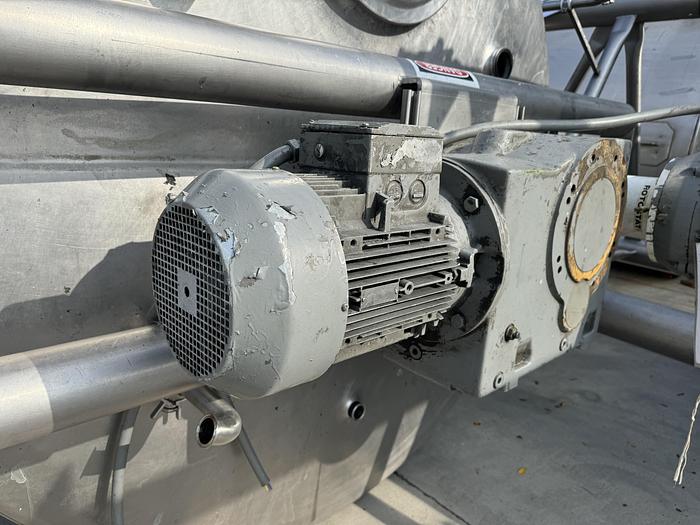

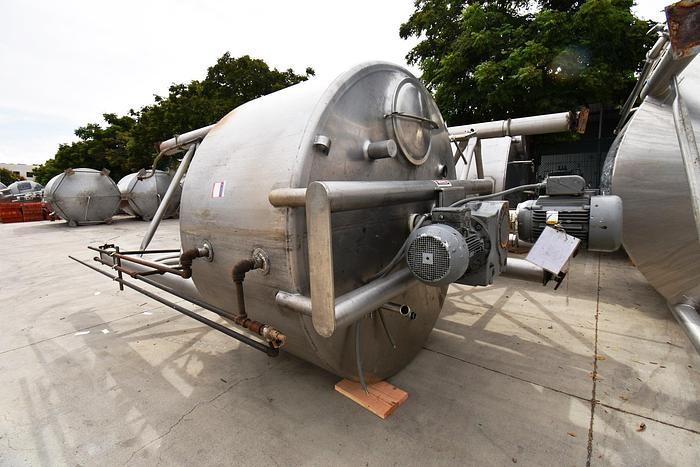

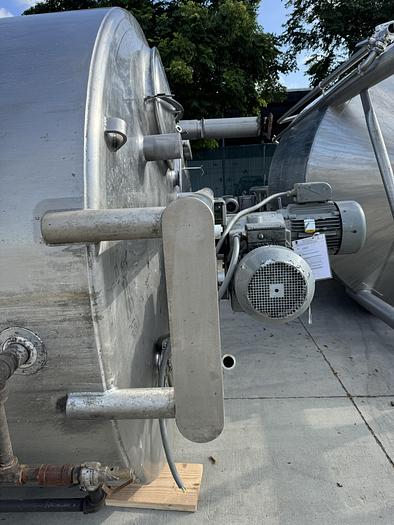

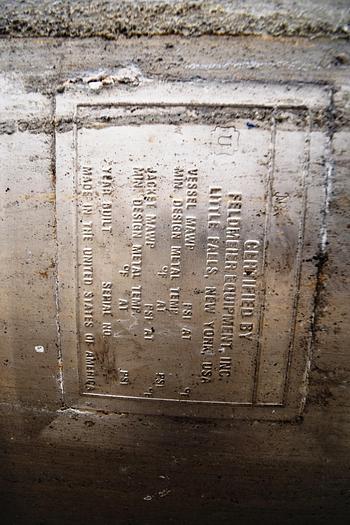

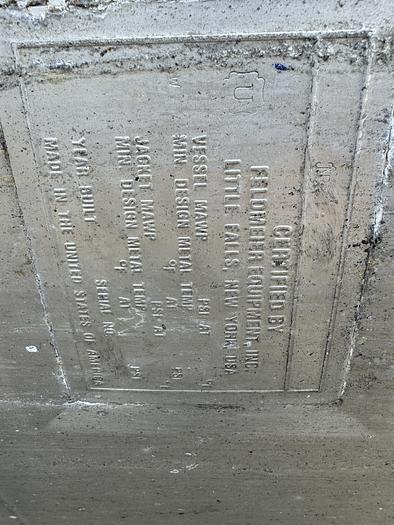

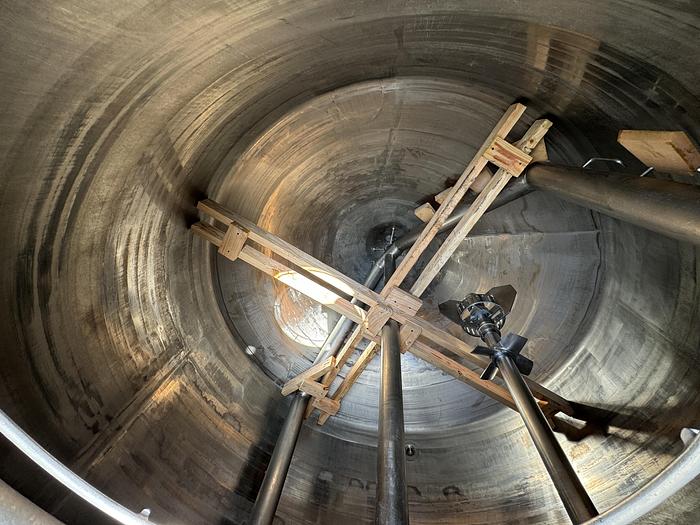

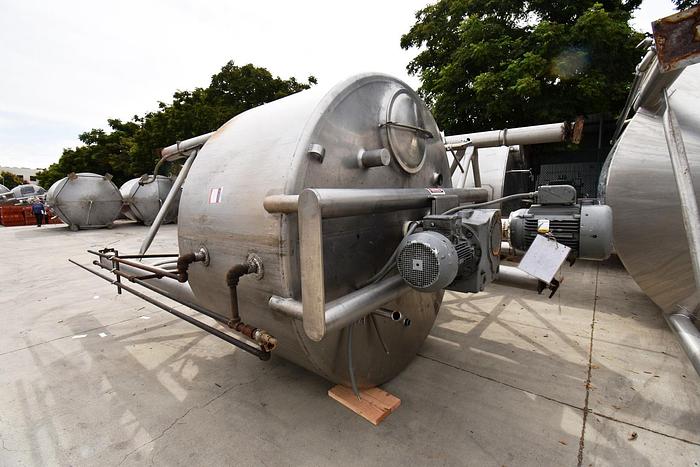

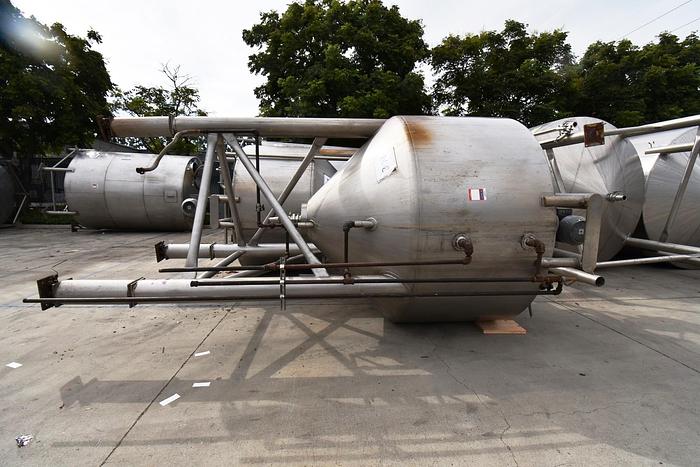

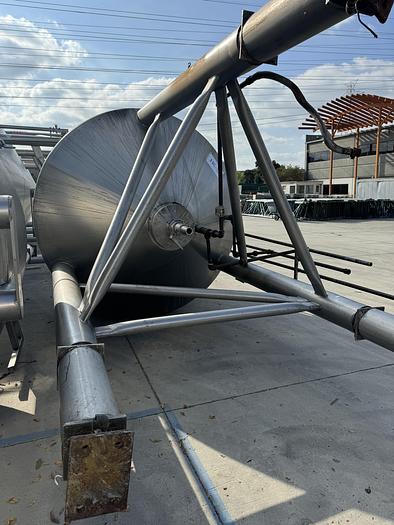

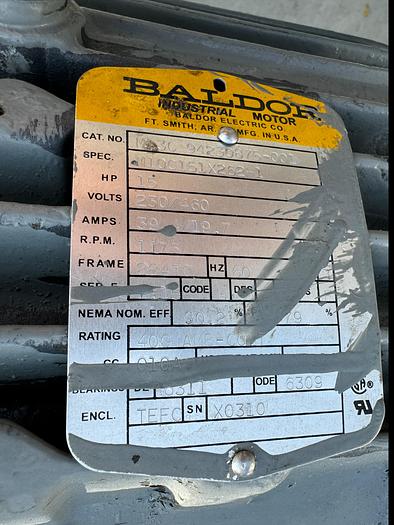

Feldmeier 1,700 Gallon Jacketed tank with double motion scraper agitation, measures 8' diameter X 4' straight side with approximate 45 degree cone bottom with 4" center bottom outlet, tapered to 2" with manual butterfly valve. Jacket is rated for 100 PSI @ 350 degrees Fahrenheit, ASME code, National Board # 5882, serial number E-572-03. Top head includes 24" manway with cover, (2) 4" top openings tapered to to 2" and (1) 2" opening. Mounted on (3) 9" diameter pipe legs, approximate 5-1/2' discharge height. Tank is offered with Admix model 200x200 high shear mixer driven by 15 HP, 230/460V, 3/60, 1175 RPM direct connect motor, and scraper agitation driven by 15 HP motor thru gearbox. Previously used in cosmetics industry.
