Kettle, 200 Gallon, Stainless Steel, Lee Industries, Model 200 D9MS, 2020 #C745282

Kettle, 200 Gallon, Stainless Steel, Lee Industries, Model 200 D9MS, 2020 #C745282

Available quantity: 1

Brisbane, CA

Get Financing orCall +1 (415) 467-3400

Description

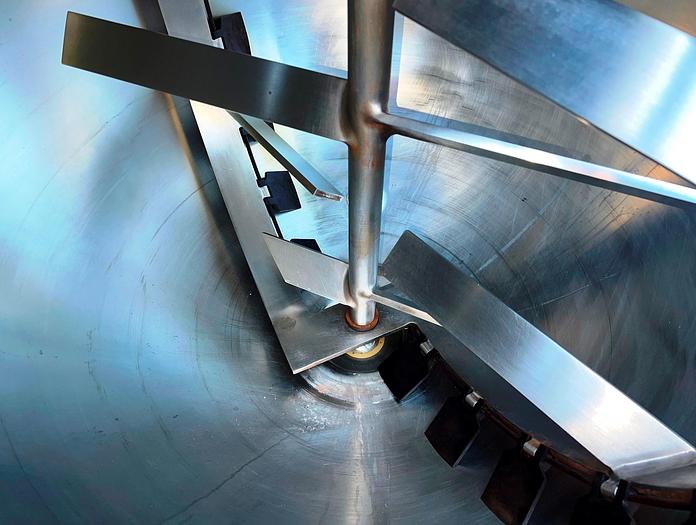

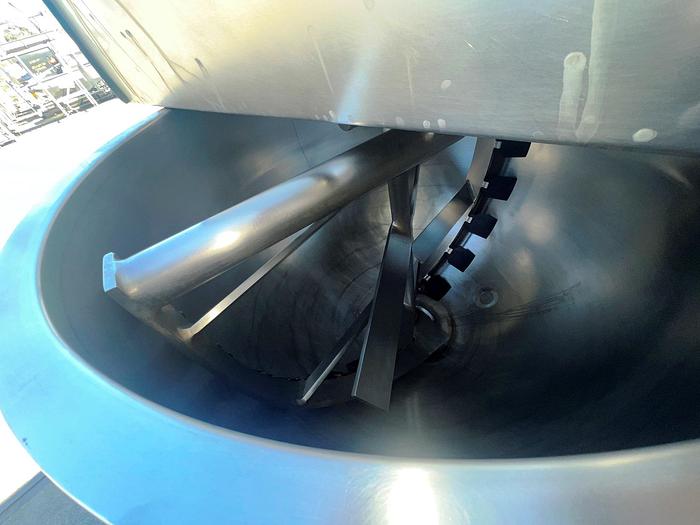

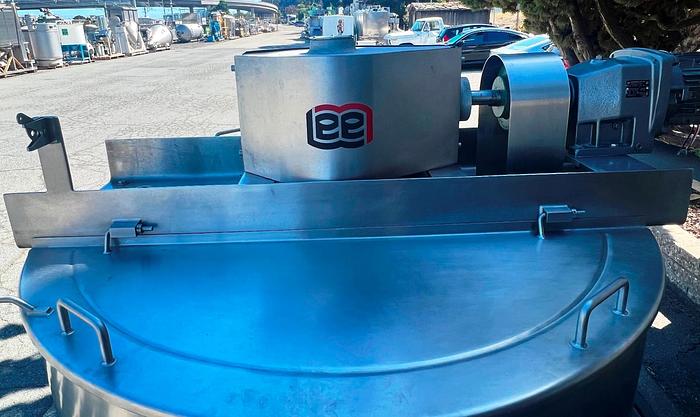

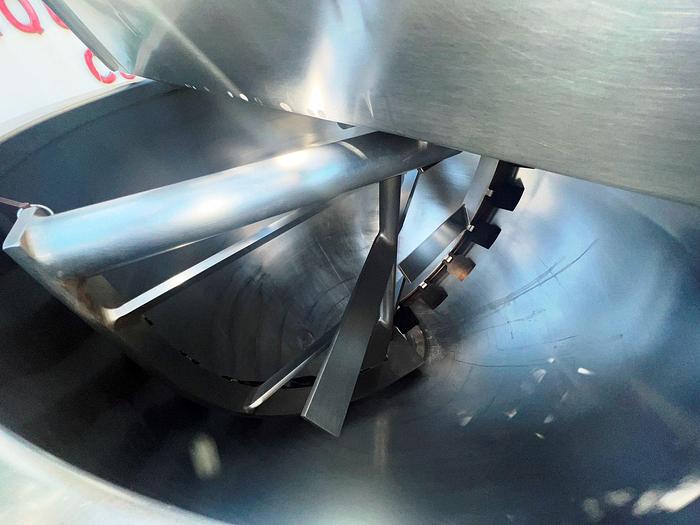

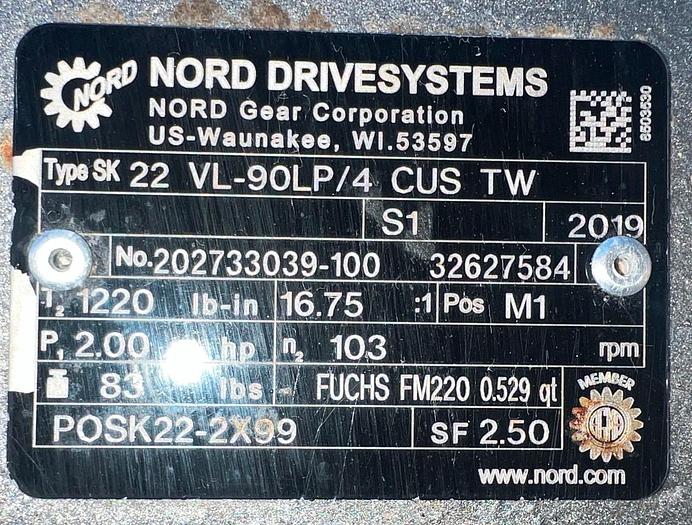

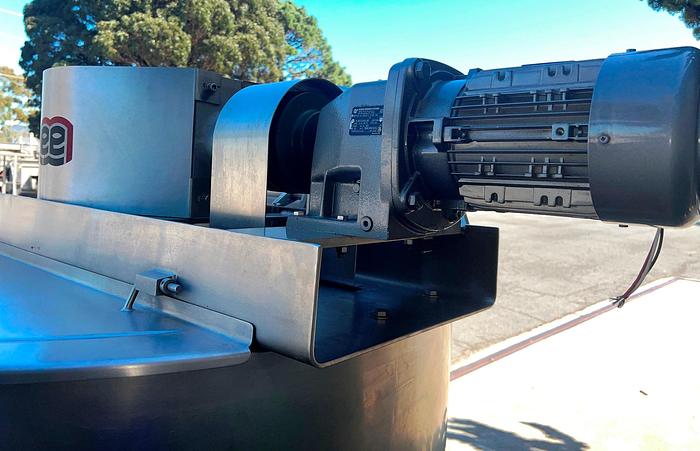

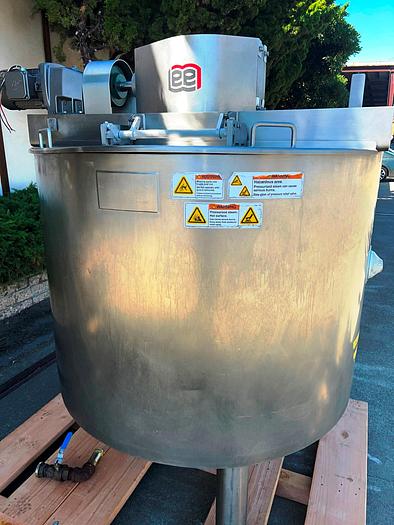

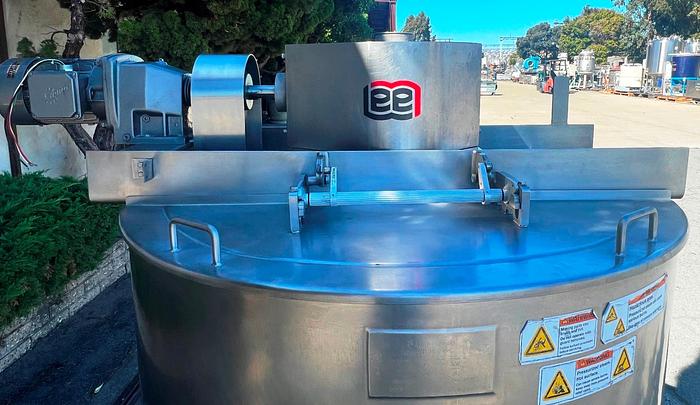

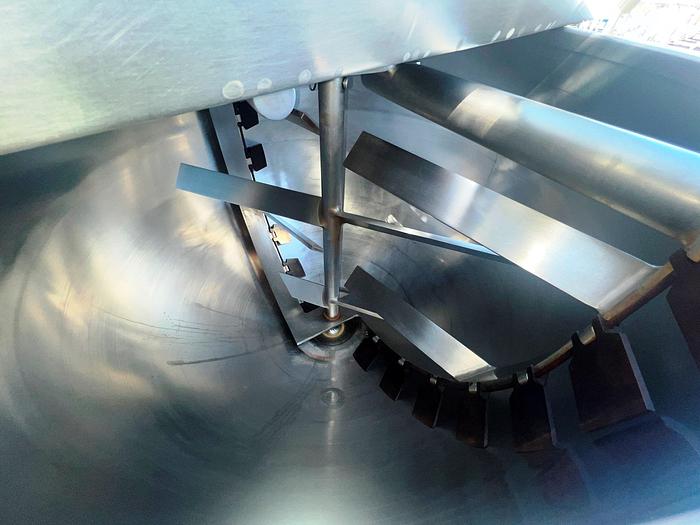

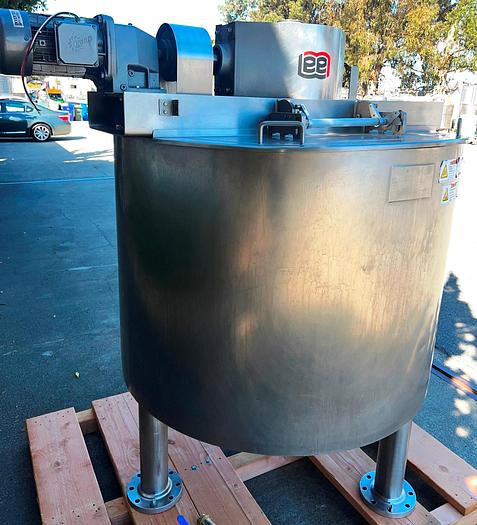

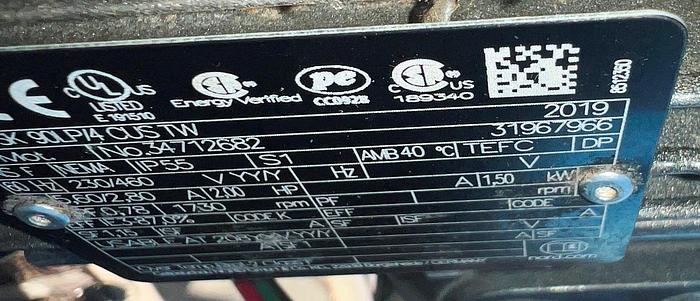

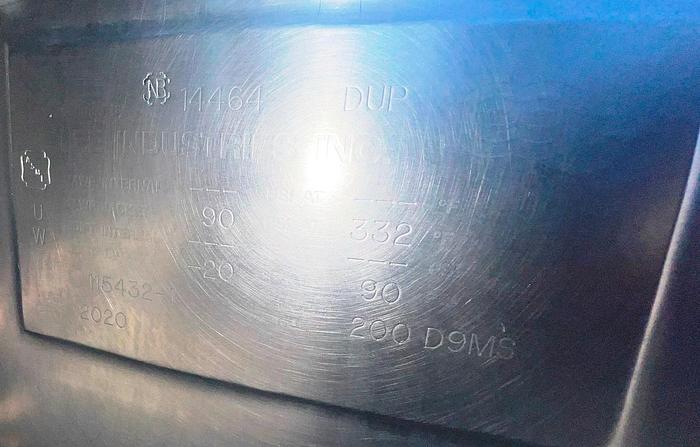

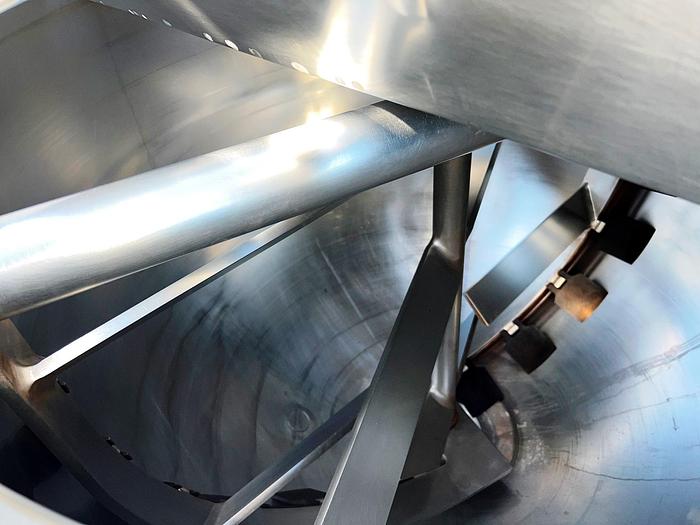

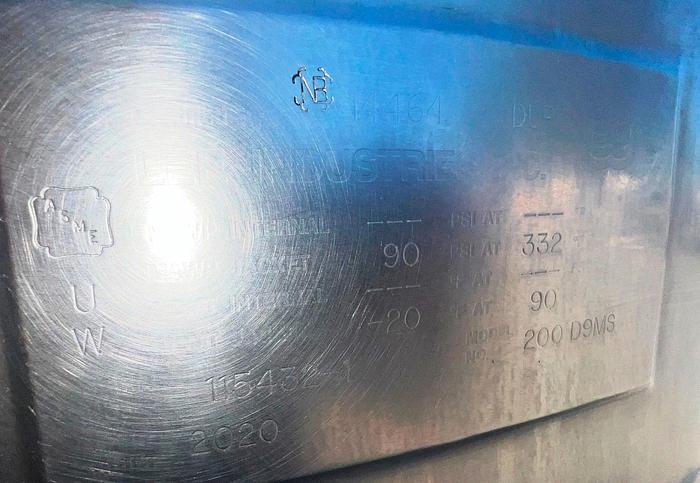

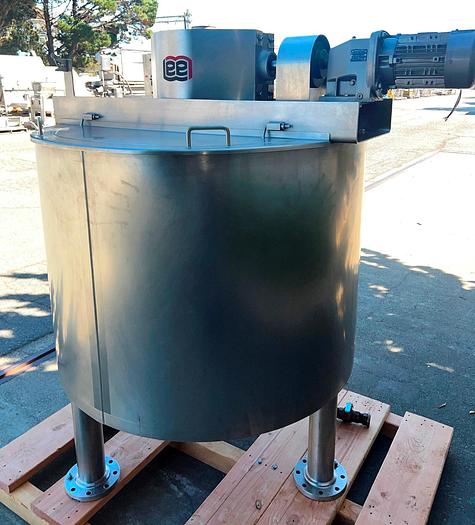

Lee Industries 200-Gallon Double Motion Scraper Agitated Kettle, Model 200 D9MS, all stainless steel construction with fully jacketed vessel. Vessel measures 48" diameter X 36" deep with hemispherical bottom with 3" diameter center bottom outlet with 3A Fluid Flow ball valve. Includes counter rotating agitation with Teflon scrapers on sweep agitator and center paddle agitator. Agitation is bridge mounted and driven by 2 HP, 230/460V, 1730 RPM, 3/60Hz gearhead motor. Top includes hinged cover on each side of drive with self locking lids. Jacket is ASME rated for 90 PSI at 332 degrees Fahrenheit, Minimum design temperature (MDMT) of -20 degrees Fahrenheit at 90 PSI. Serial number 115432-1, National board number 14464. Previously used in food application.

Specifications

Stock NumberC745282
ManufacturerLee Industries
Model200 D9MS
Year2020
Serial Number115432-1
Gallons200
Materials of ConstructionStainless Steel
Agitator TypeDouble Motion Scraper Agitation
HP2
Jacket Pressure90 PSI @ 332º F
National Board Number14464
BasisFOB

Additional Information

New cost was over $80,000 in 2020. Has seen very little use. Excellent condition.
