Reactor, 925 Gallon (3,500 Liter), Stainless Steel, Precision Stainless, Jacketed, 50 PSI Internal #S745200

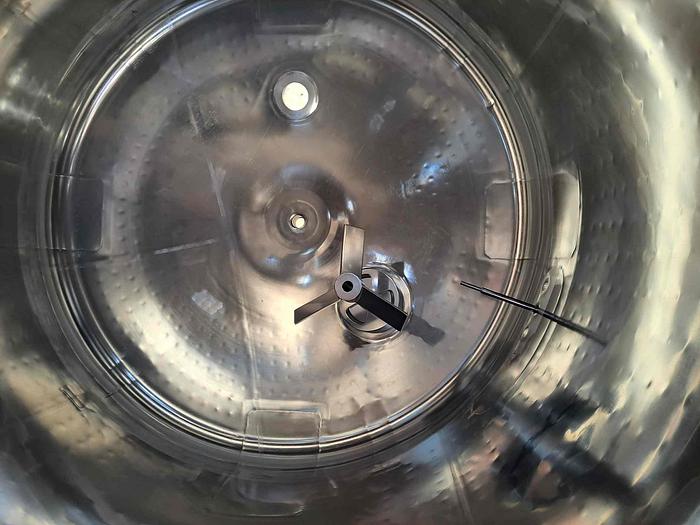

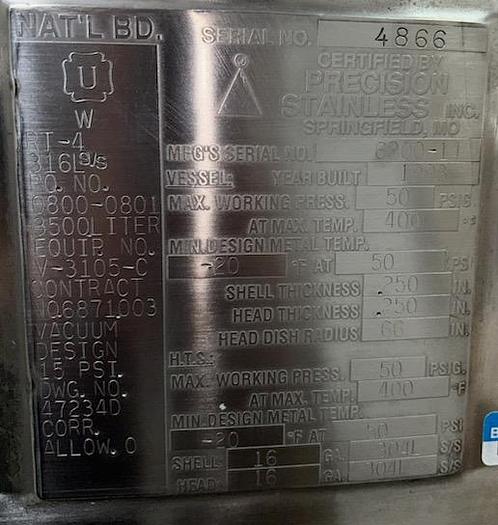

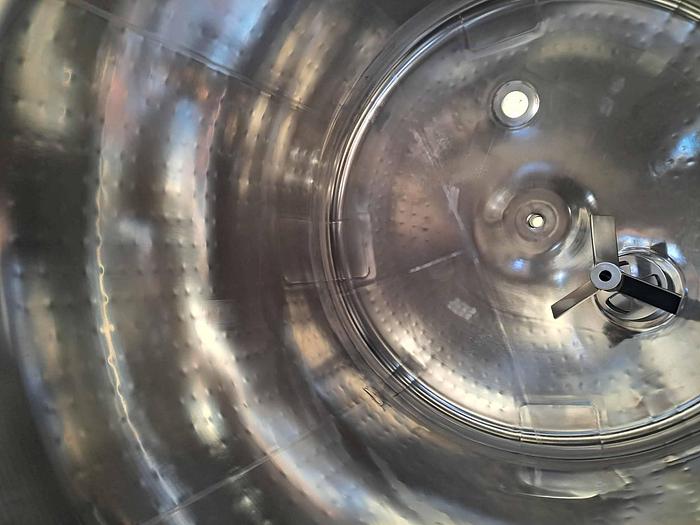

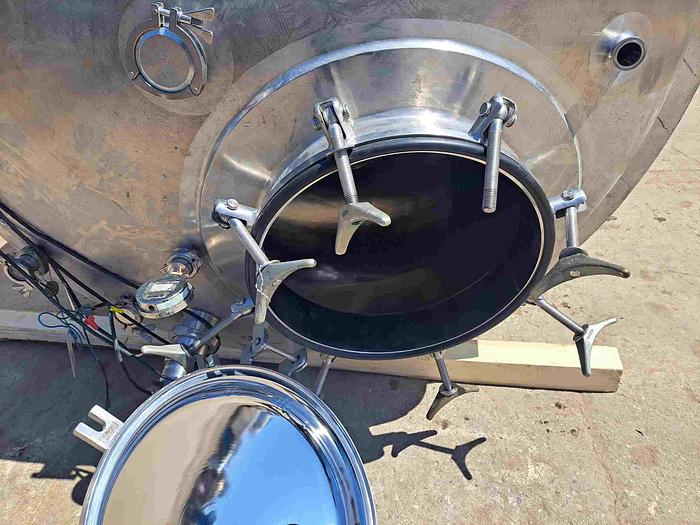

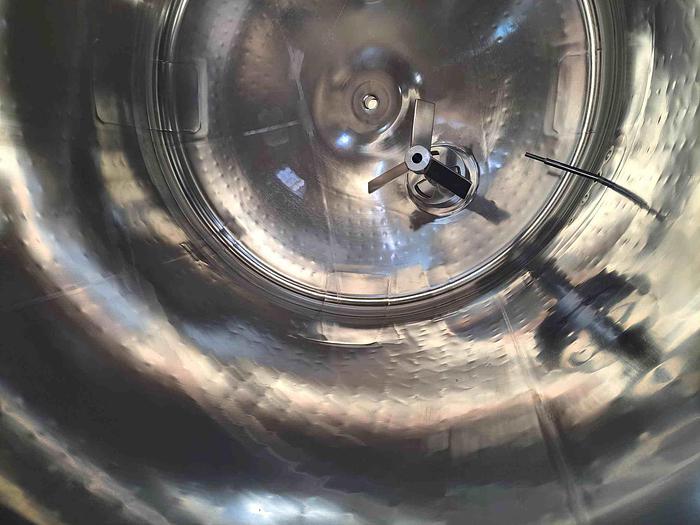

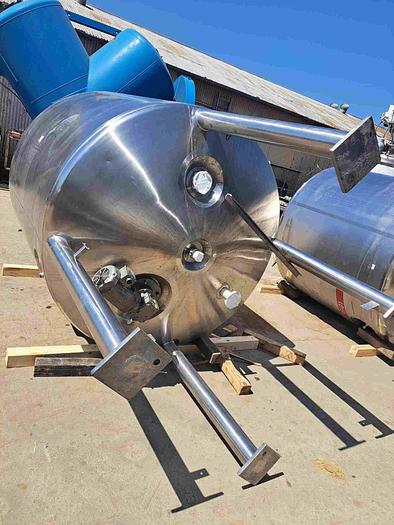

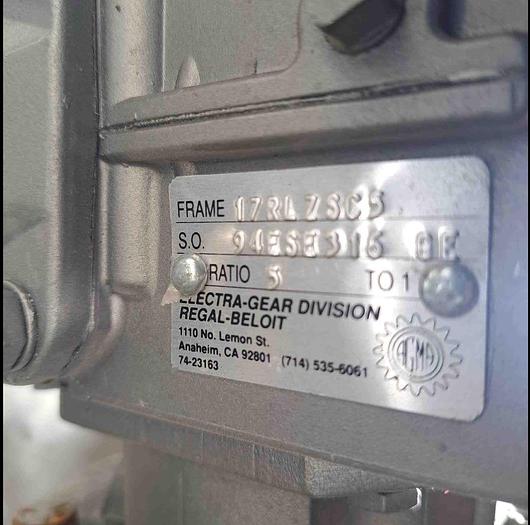

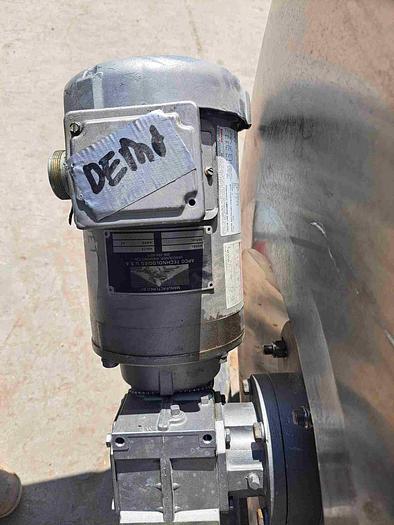

Precision Stainless 3,500-Liter Stainless Steel Reactor. Vessels is constructed of 316L stainless steel, which offers corrosion resistance. . Measures 66” Diameter X 66” straight side with dish bottom and 2" center bottom outlet. The tank features a jacket capable of handling pressures up to 50 PSI at temperatures ranging from -20 Degrees Fahrenheit to 400 Degrees Fahrenheit. The internal pressure is also 50 PSI within the same temperature range. The tank is also designed to withstand a vacuum of up to 15 PSI. Serial number 6200-11 and National Board number 4866. ASME code constructed Jacket is constructed of 304L stainless steel. Shell and head thickness are 0.250" Also includes bottom mounted agitation with 3-blade pitched turbine blades. 20” Top manway. Bottom entering mixer 1 HP, 230/460v, 3ph/60hz, 1750 rpm gear ratio 5 to 1 final output 350 rpm. Mounted on (4) 4” diameter pipe legs. Top ports: (5) 1-1/2”, (2)  2”, (2) 3”, (1) 3-1/2”, (1) 4-1/8”.
