Mixer, Ribbon, Continuous, Stainless Steel, 3/4 HP #C745086
Mixer, Ribbon, Continuous, Stainless Steel, 3/4 HP #C745086
Available quantity: 1
Brisbane, CA
Description

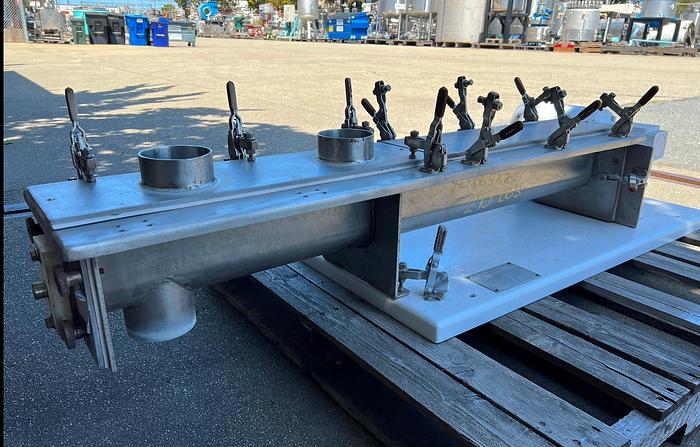

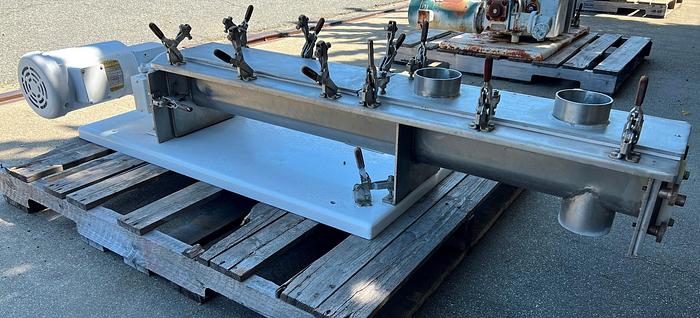

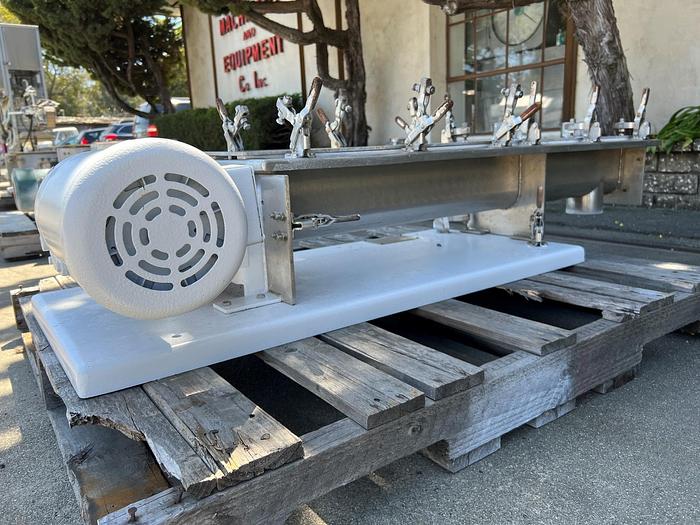

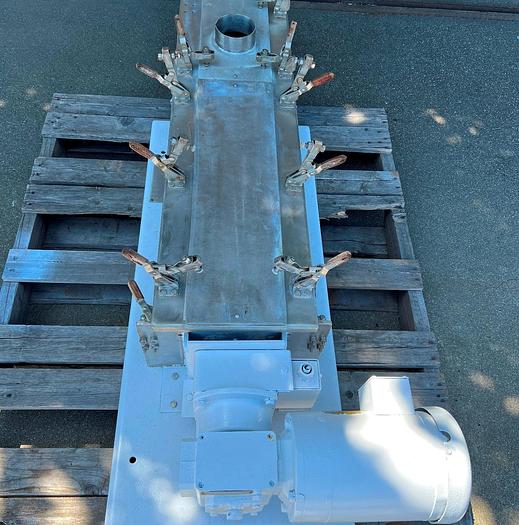

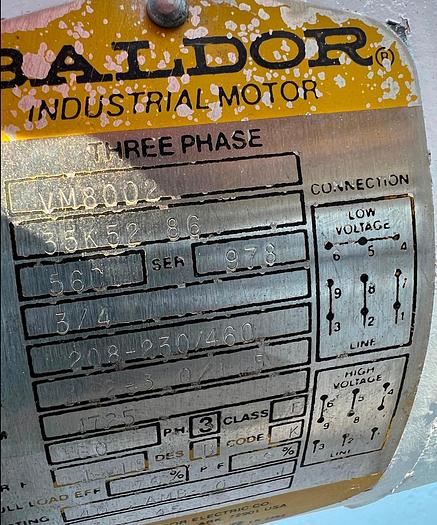

Acrison 301 Continuous Blender, 3-1/3" diameter X 48" long single ribbon, Model 301-K, stainless steel construction. Includes Single Helicoidal Auger with 3-3/4" diameter end bottom discharge. Also includes (2) top covers with clamps, one cover includes (2) 3-1/2" diameter feed ports. Driven by 3/4 HP, 208-230/460 V, 1725 RPM motor through gearbox with 15:1 ratio. Unitized on base. Serial number 98092.
Previously fed by (2) Acrison Model 507Z metering screw feeders. Item numbers C745087 & C745088
Specifications
| Stock Number | C745086 |
| Manufacturer | Acrison |
| Model | 301-K |

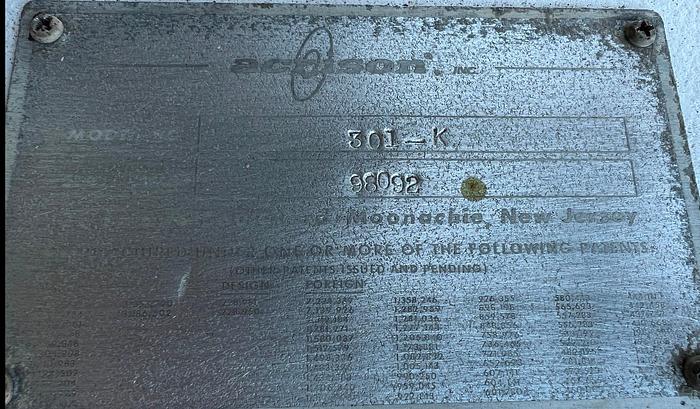

| Serial Number | 98092 |
| HP | 0.75 |
| Materials of Construction | Stainless Steel |
| Basis | FOB |
Additional Information
The Model 301 utilizes a specially designed single helicoidal mixing auger for blending granular, pelletized and certain amorphous dry solid materials on a continuous basis. In operation, the rotating blending auger, housed in a trough or tube, conveys and tumbles the material with a portion of the blending auger also configured to produce a partial bi-directional flow pattern, resulting in a highly effective and efficient mixing action.
