Pump, Positive, GH Products, Model GHP-1120, 2" In/Out, 3 HP #S745082
Pump, Positive, GH Products, Model GHP-1120, 2" In/Out, 3 HP #S745082
Available quantity: 1
San Dimas, CA
Description

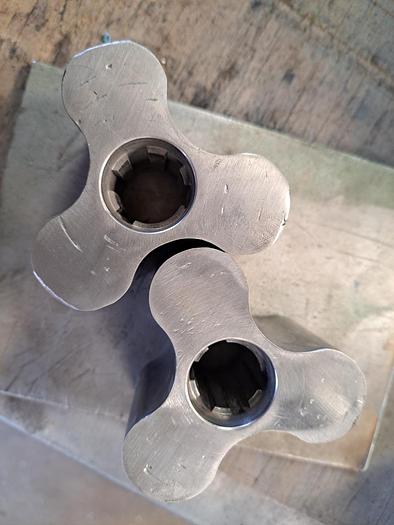

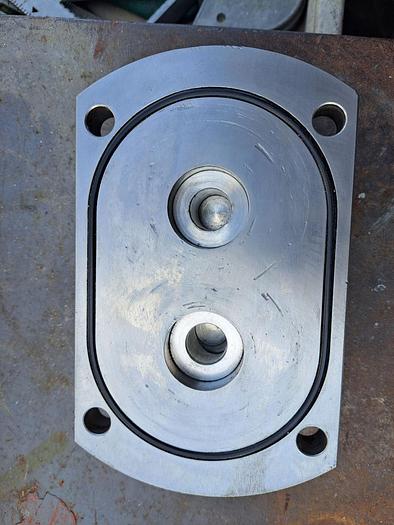

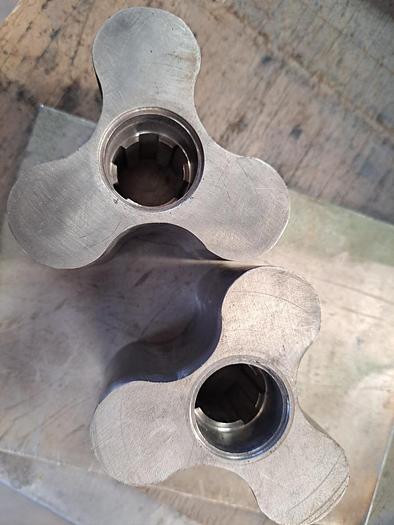

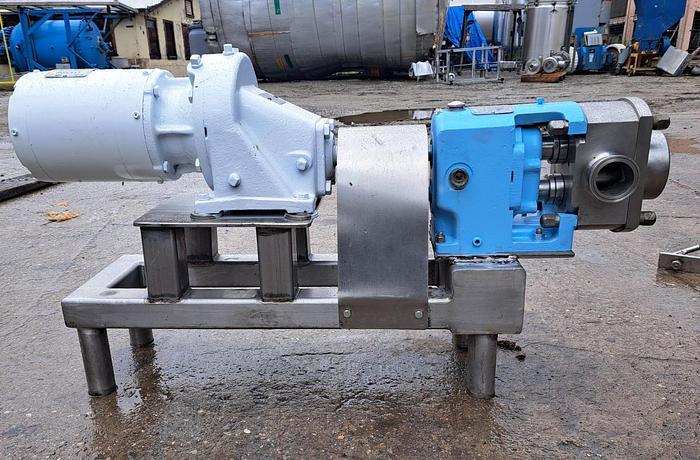

GH Products Rotary Positive Displacement Pump, Model GHP-1120, 316 Stainless Steel contacts. Includes 2" diameter tri-clamp inlet/outlet with (2) 3-lobe rotors and vented cover. Rated for approximate capacity of 45 GPM, 9.25 gallons per 100 revolutions. Driven by a 3 HP, 3/60/208-230/460-volt, 1725 RPM gear motor, ratio 3.4:1, resulting in final output 500 RPM. Serial number 88-6-2416. Unitized on stainless steel frame with (4) legs.
Specifications
| Stock Number | S745082 |
| Manufacturer | GH Products |
| Model | GHP-1120 |
| Serial Number | 88-6-2416 |
| HP | 3 |
| Inlet and Outlet | 2" Inlet and Outlet |
| Contact Parts | 316 Stainless Steel |
| Basis | FOB |
