Mill, Ball, 23" x 23", 5 HP, Stevenson, 5.5 Cu. Ft. #S745065

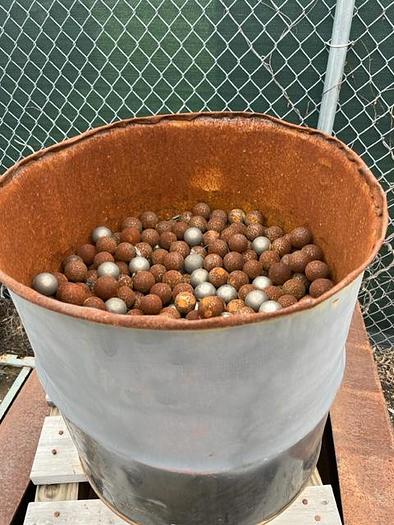

Stevenson 23" diameter X 23" long unlined steel ball mill - dry grind with dust seal rings: total volume 5.5 cubic feet Cylinder: All Fab. Steel-shell and lifter bars of hi-chrome-manganese steel (A202B Lukens) - machined on centers to insure positive alignment. Bearing: Dodge SAF-XT spherical roller bearing pillow blocks - 2 15/16 dia. gearing: direct drive- no open gears, belts, or sprockets. Drive: 5 H.P. - TEFC-230/460/3/60 HZ - right angle motor/speed reduced with gear coupling 37 RPM out. Access: one steel grinding door 23" & discharge door 23" Pedestals: fabricated steel plate and rectangular tubing with integral motor base- distance to floor 36". Venting: steel plug/brass casing mounted on door or cylinder head. Control: one control box/stop/start/timer. Discharge one steel dry discharge housing. Offered with 1-3/4 " steel balls grinding media - 1000 lbs. Unused.
