Tank, 5,000 gallon, Stainless, Agitated, 15 HP, Hicks, 7'x16' #S745049

Tank, 5,000 gallon, Stainless, Agitated, 15 HP, Hicks, 7'x16' #S745049

Location:Chowchilla, CA

Available quantity:1

orCall +1 (415) 467-3400

Description

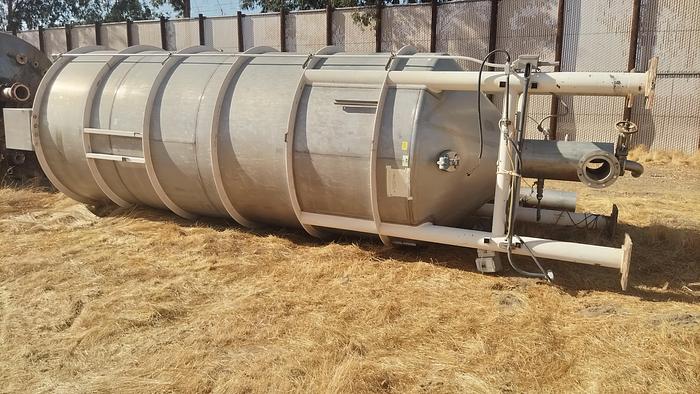

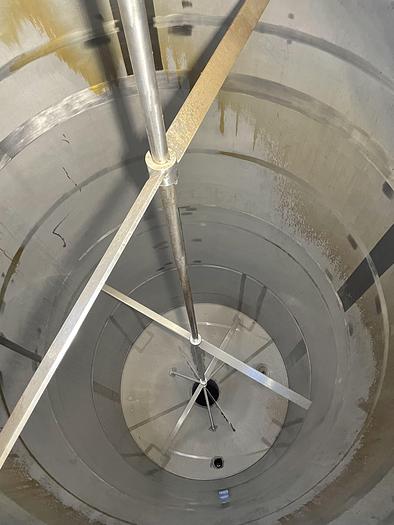

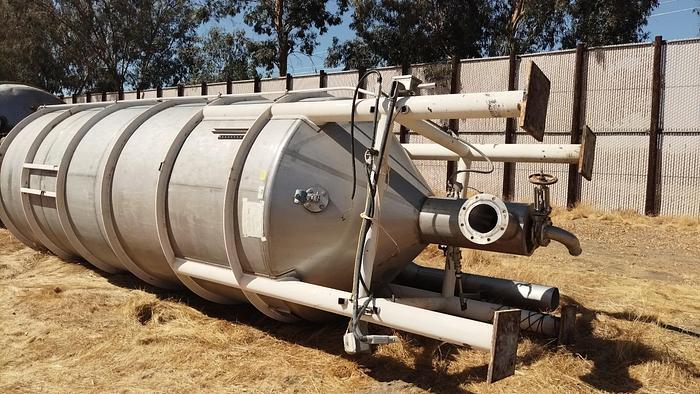

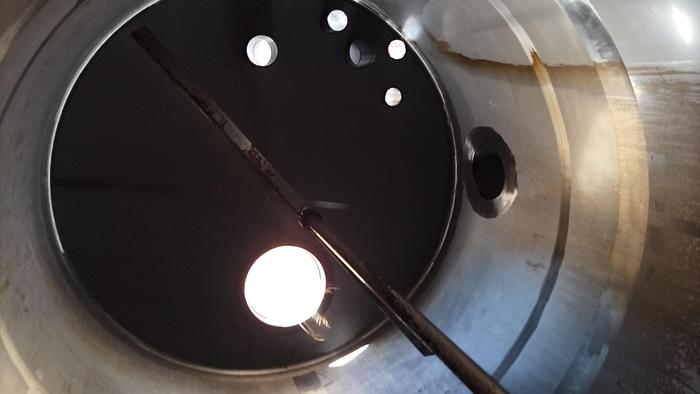

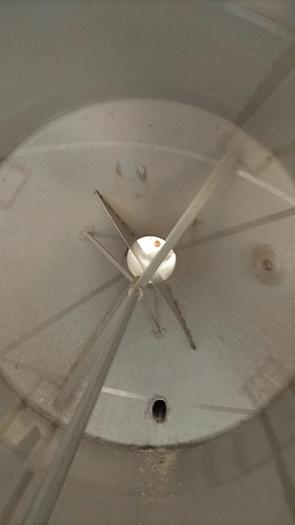

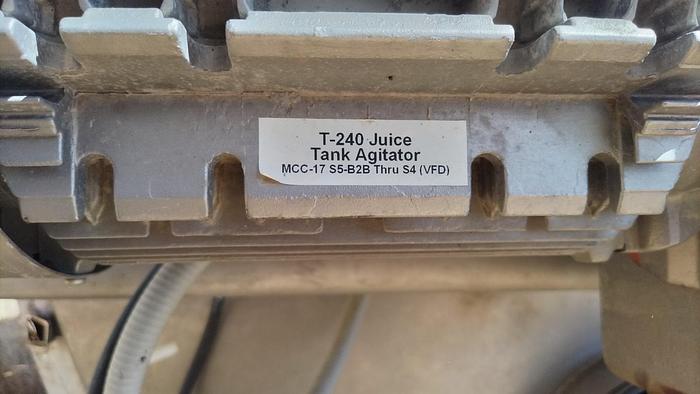

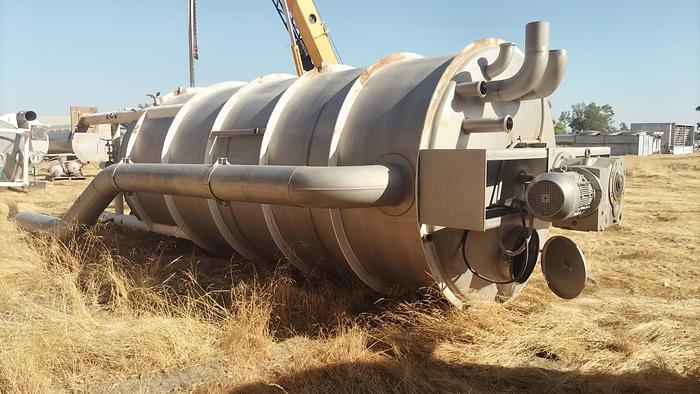

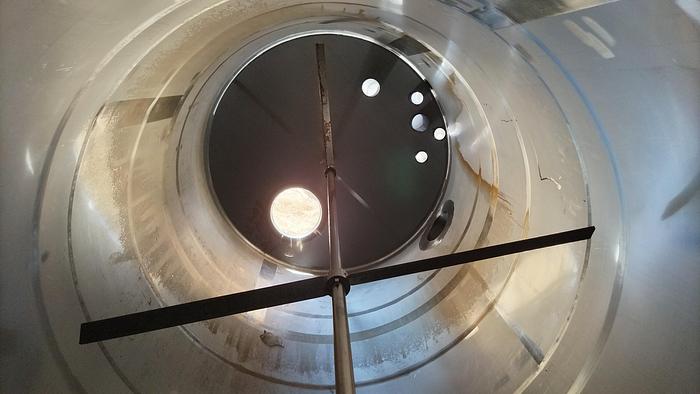

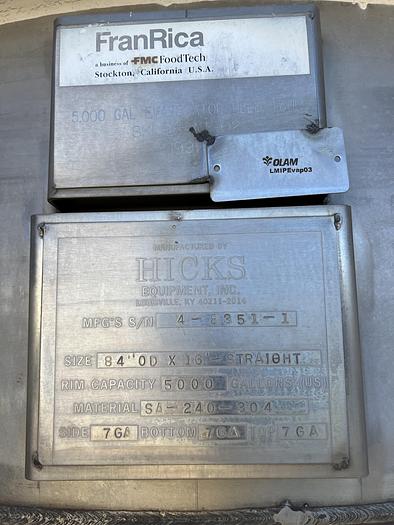

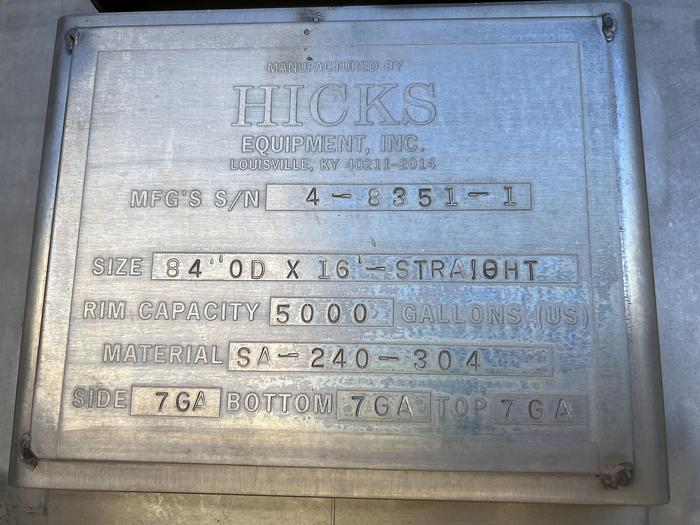

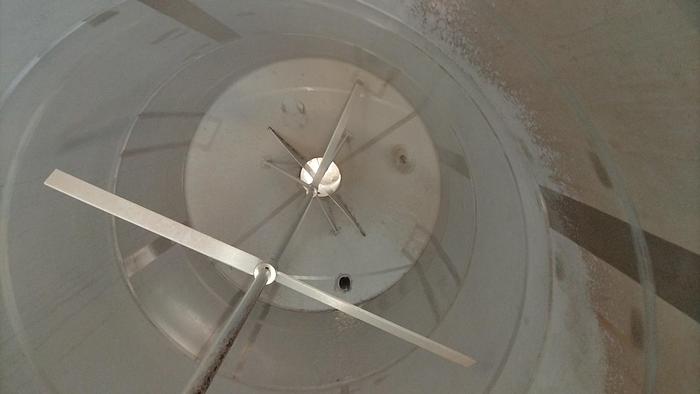

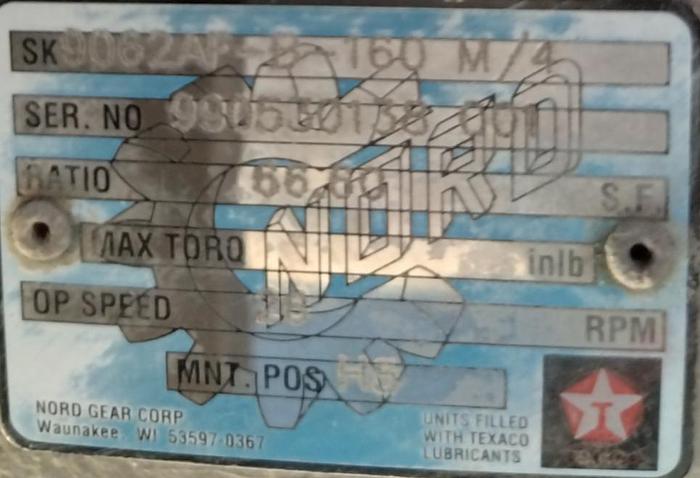

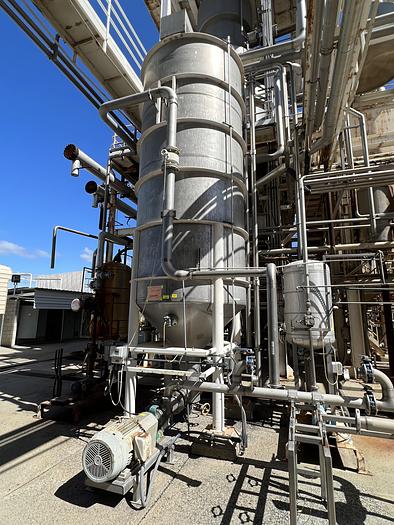

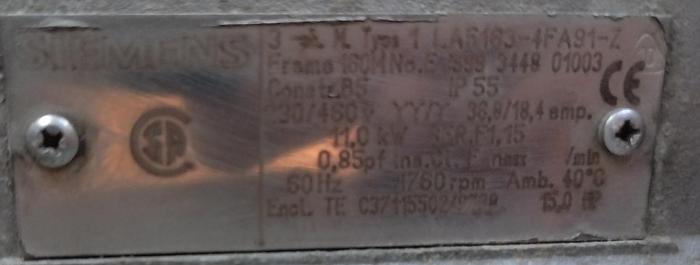

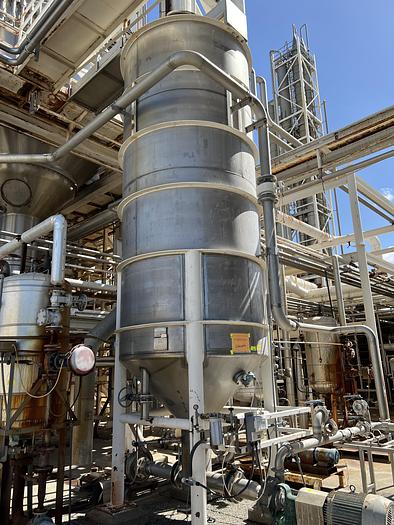

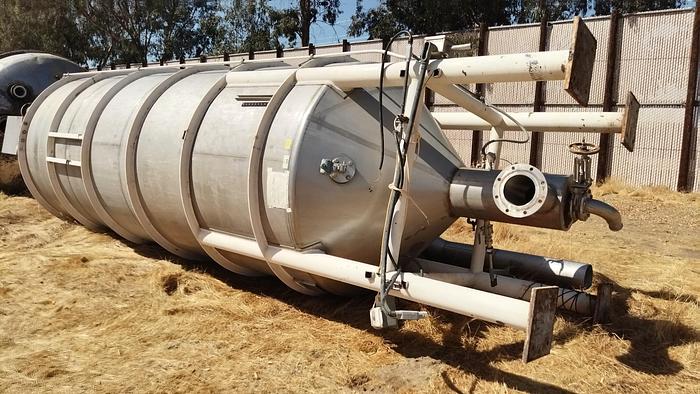

Stainless Steel 5,000 Gallon Agitated Tank, manufactured by Hicks Equipment. Vessel measures 84" diameter x 16' straight side, with 4' deep cone bottom. Constructed of SA-240-304 stainless steel, 7 gauge side, bottom, and top wall thickness. Includes top bridge-mounted agitator drive with (3) 2-blade wide sweep paddles along 2" diameter common shaft, mixing blades measure 6'2" in total length and 3/4" thick. Agitation driven by Siemens 15 HP, 1760 RPM, 230/460V, 3/60Hz motor thru Nord gearbox with 66.50:1 ratio, resulting in 26.5 output RPM. Top head includes 18" diameter top manhole, (3) 4" inlets, (2) 6" inlets and 12" diameter overflow pipe. Bottom head includes 16" center bottom outlet, leading to 3" center bottom outlet, as well as (1) 8" & (1) 7-1/2" flanged side outlets. Mounted on mild steel legs. Previously used in food processing facility. Serial number 4-8351-1. Overall height is 25'3" high.

Specifications

Stock NumberS745049
ManufacturerHicks Equipment
Serial Number4-8351-1
Gallons5000
Shell Thickness7 Gauge (3/16")
Materials of ConstructionStainless Steel
Bottom TypeSteep Cone Bottom (Approx. 45º)
BasisFOB
