Tank, 2,000 Gallon, Stainless Steel, Agitated, DT/DB #S745019

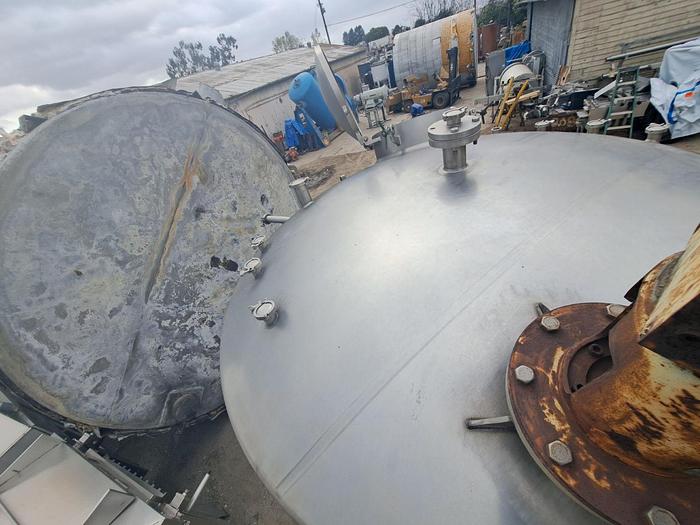

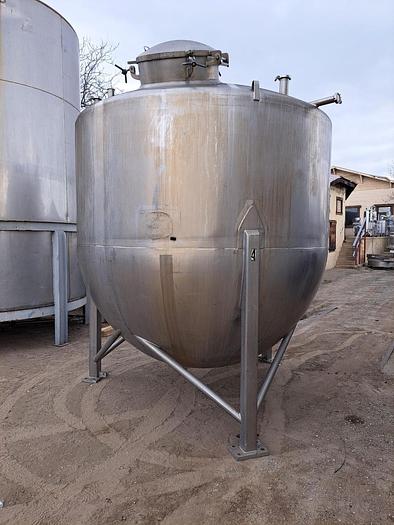

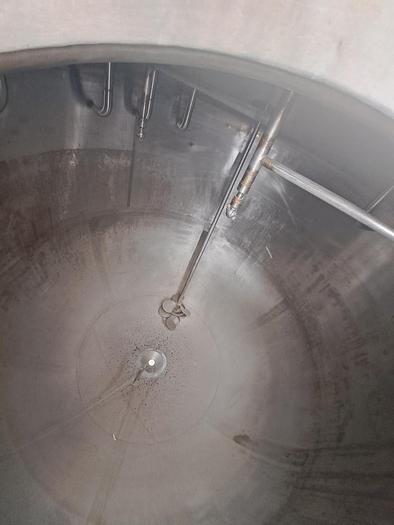

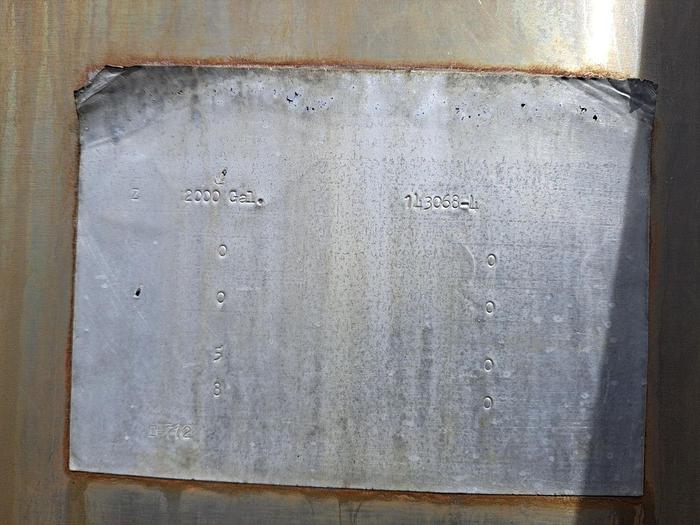

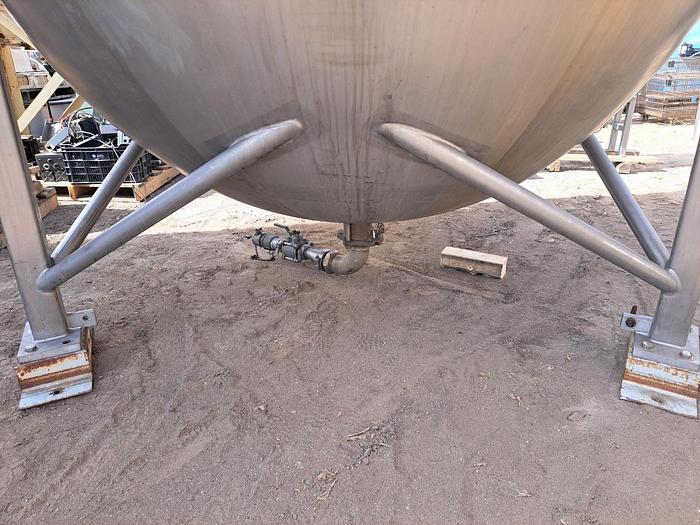

316 Stainless Steel 2,000-gallon vertical agitated tank with hemispherical bottom. Measures 8' diameter X 42" straight side with 92" deep bottom. Vessel has domed top with hemispherical bottom, leading to 3" outlet with elbow and ball valve to 2" side bottom outlet. Includes 23-1/2" diameter top manway and top-entering Agitator, with (2) 3-blade propellers (16" diameter swing) on 1-1/2" diameter X 90" long shaft (less drive), and (3) CIP spray nozzles. Top head includes ports: (3) 1-1/2", (1) 2-1/2" tri-clamp fitting. Shell thicknesses: top section: 1/8", bottom section: 3/16". Serial number 143068-4.
