Pump, Gear, 7.5 HP, 2", Viking, Model LQ225 #S744938
Sold
Pump, Gear, 7.5 HP, 2", Viking, Model LQ225 #S744938
Location:San Dimas, CA
Description

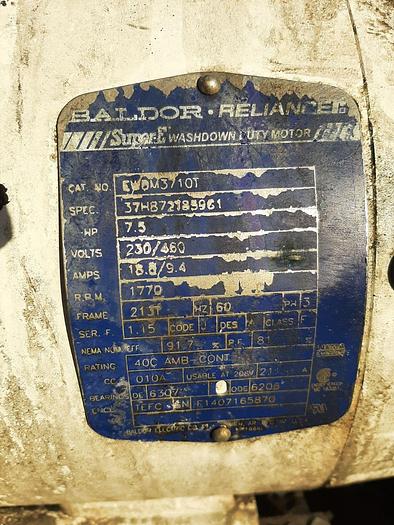

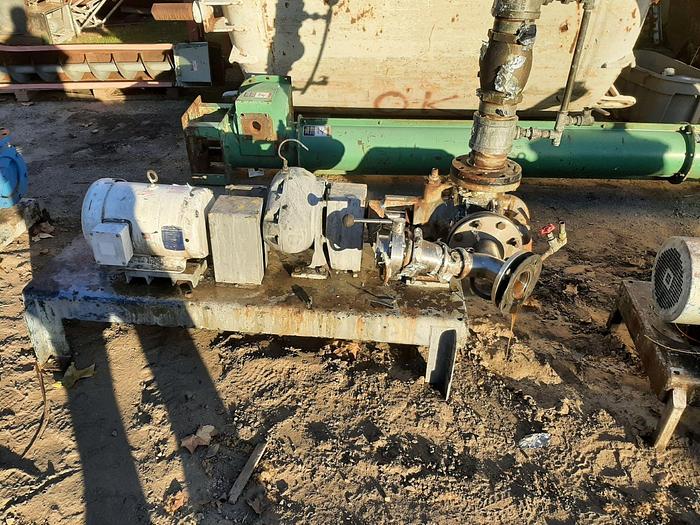

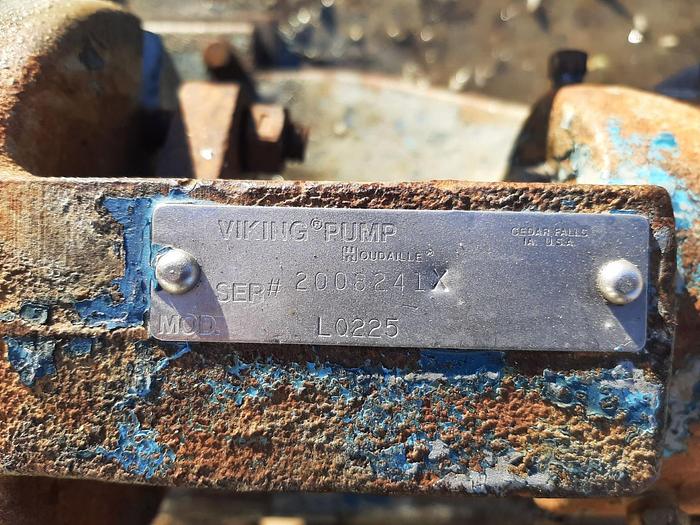

Viking, 7.5 HP Gear Pump Model LQ225, jacketed, Cast iron. Rated nominal capacity of 135 GPM/200 PSI, 3" diameter inlet & outlet with 8-bolt 9" diameter ANSI flanged connection, mechanical shaft seal. Rated for up to 400 degrees Fahrenheit operating temperature, mounted on stationary base. Direct coupled 7.5 HP, 230/460 volts, 1770 RPM drive with gear reducer. Serial number 2008241X.
Specifications
| Stock Number | S744938 |
| Manufacturer | Viking |
| Model | LQ225 |
| Serial Number | 2008241X |
| HP | 7.5 |
| Inlet and Outlet | 3" diameter inlet & outlet |
| Contact Parts | Cast Iron |
| Basis | FOB |
General Information
Viking gear pumps are used for heavy, viscous liquids such as syrup, oil, or resins. Jacketed design maintains product temperature and ensures smooth flow in demanding process conditions.
