Mixer, Ribbon, 35 CF, 304 S/st, JH Day, 20 HP #S744771

Available quantity



San Dimas, CA

orCall +1 (415) 467-3400


Stock NumberS744771
ManufacturerJ H Day
Model35 Cu/Ft
Cubic Feet35
Materials of Construction304 Stainless Steel
Previous UseBlending Spices

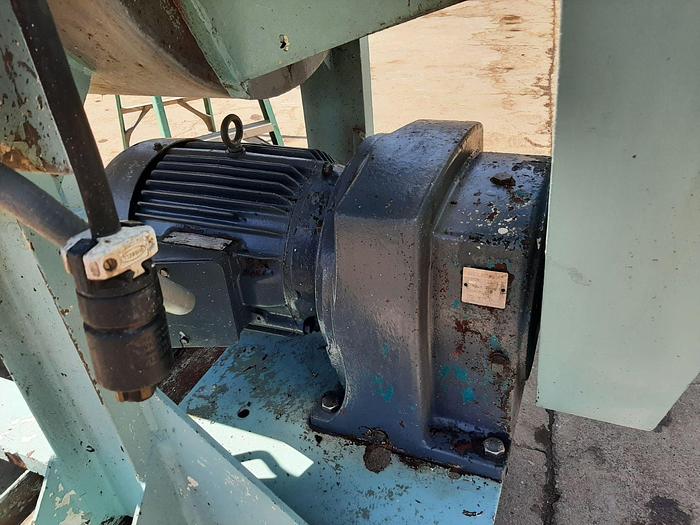

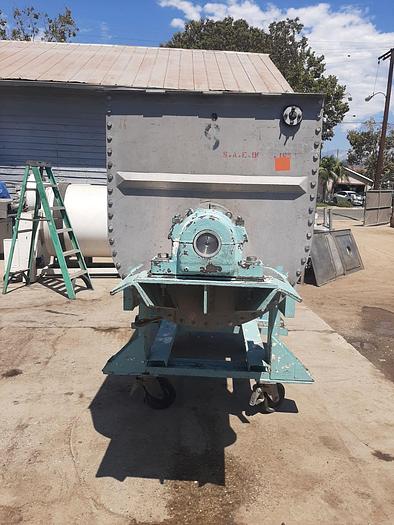

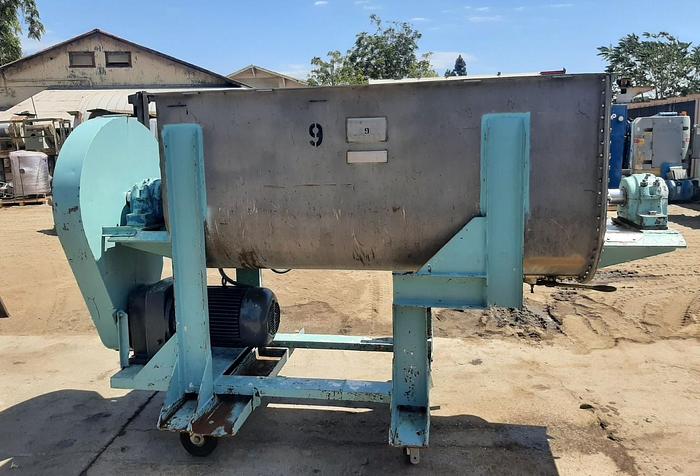

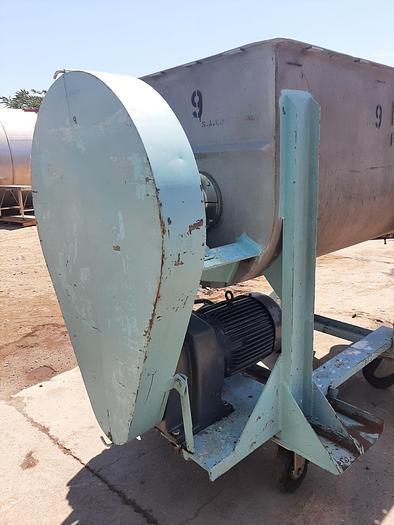

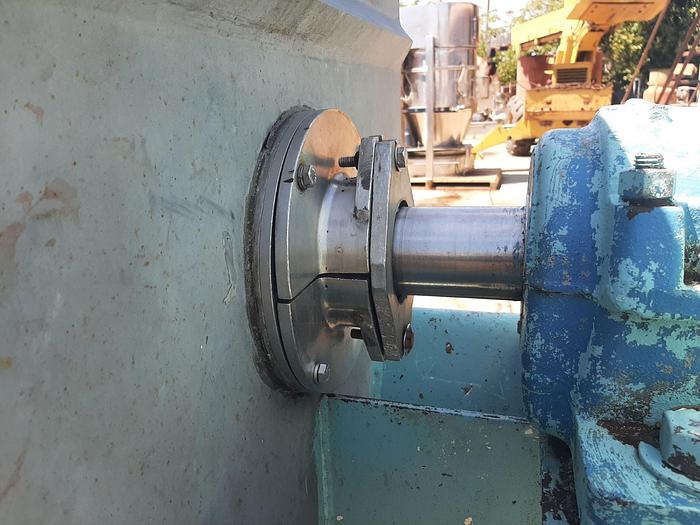

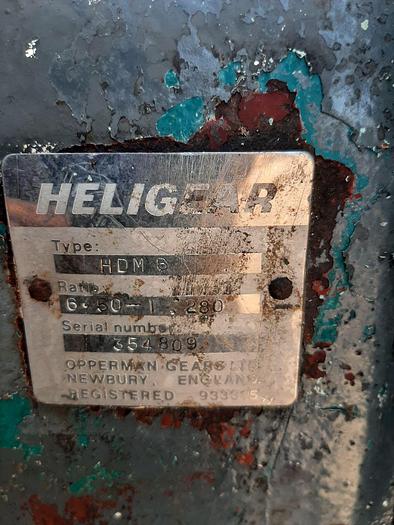

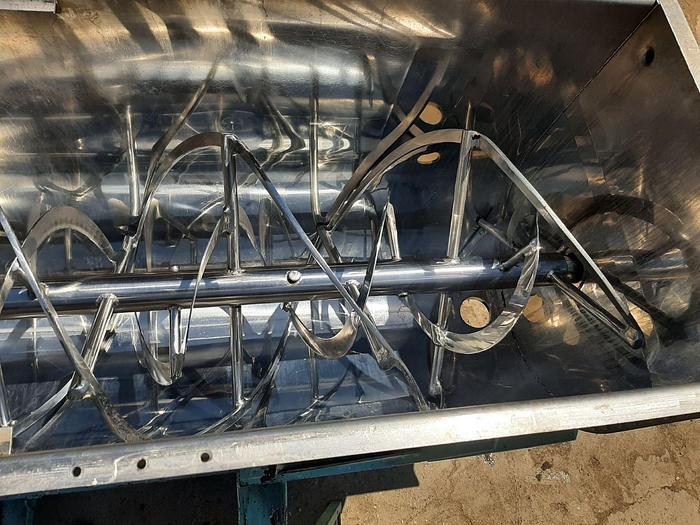

JH Day 35-Cubic Foot Double Spiral Ribbon Blender, Model 35 Cu/Ft, 304 stainless construction. Trough measures 30" wide x 78" long x approximately 32" deep, 4" diameter end bottom outlet. Ribbon assembly includes 3-1/2" diameter center shaft, 2" wide x 1/8" thick inner ribbon, 1-1/2" wide x 3/8" thick outer ribbon, welded to 1" diameter posts. Includes outboard roller bearings, packing glands and top hinged cover. Driven by 20 HP 230/460 V, 1770 RPM, 3/60 Hz motor with gear reducer ratio: 6.50 to 1,280 output RPM to chain & sprocket assembly. Mounted on carbon steel frame with 4 legs with casters.
