Tank, 7 Gallon, 316L Stainless steel, 30 PSI, FV, Holloway #S744744

Tank, 7 Gallon, 316L Stainless steel, 30 PSI, FV, Holloway #S744744

Location:Brisbane, CA

Available quantity:1

orCall +1 (415) 467-3400

Description

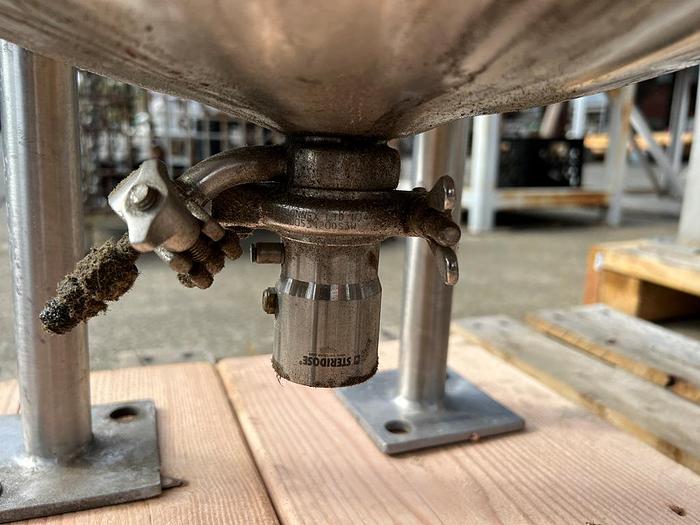

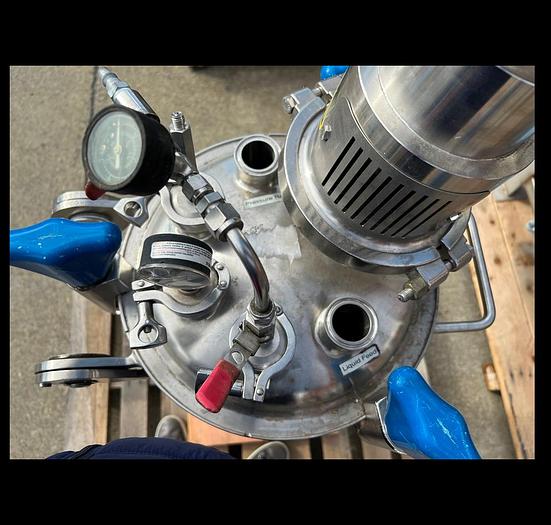

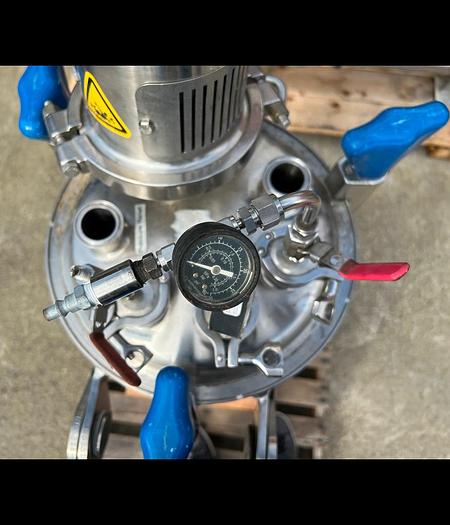

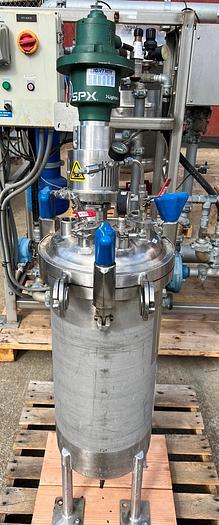

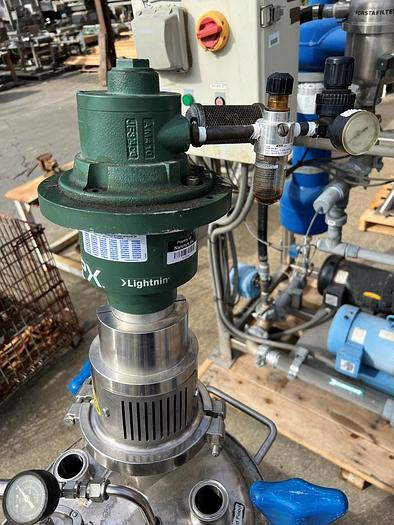

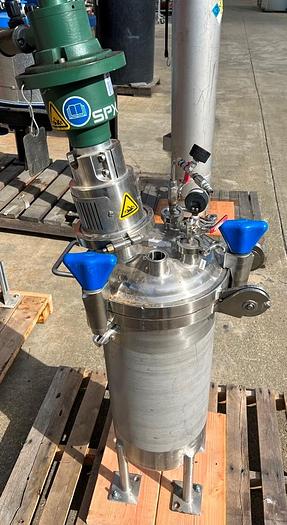

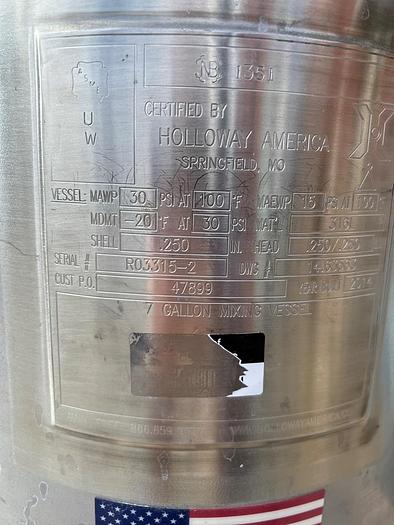

Holloway America 7-Gallon Pressure Mixing Vessel, 316L Stainless Steel construction, maximum allowable working pressure (MAWP) rated for 30 PSI at 100 degrees Fahrenheit, maximum allowable external working pressure (MAEWP) rated for 15 PSI at 100 degrees Fahrenheit, ASME code constructed. Vessel measures 12" diameter x 26" straight side with dish bottom with 1" center bottom outlet including valve reducing discharge to 1/4" diameter. Top head is secured by J-clamps and has hinge to fully open top. Top includes (5) 1-1/2" diameter tri-clamp connections, set up with nitrogen feed with valve, pressure gauge, vent with valve, Pressure relief port (no valve) and liquid feed opening. Offered with SPX Lightnin Model M15S8 pneumatically operated agitator. Serial number R03315-2. National Board number 1351.

Specifications

Stock NumberS744744
ManufacturerHolloway America
Serial NumberR03315-2
Gallons7
Measurements12" diameter x 26" straight side with dish bottom with 1" center bottom outlet
Internal Pressure15 PSI at 100 degrees Fahrenheit
Materials of Construction316L Stainless Steel
National Board Number1351
BasisFOB
