Tunnel, Shrink, Jorestech, Mdl TUN-4525, 22" x 35" #S744495

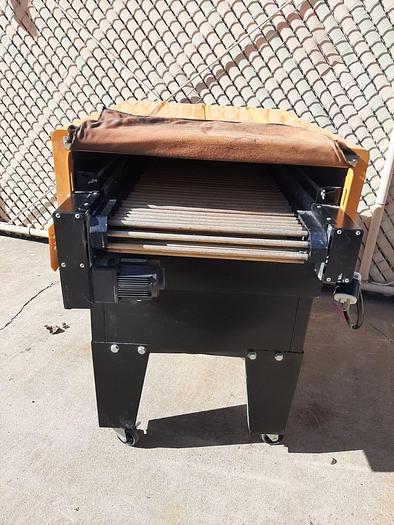

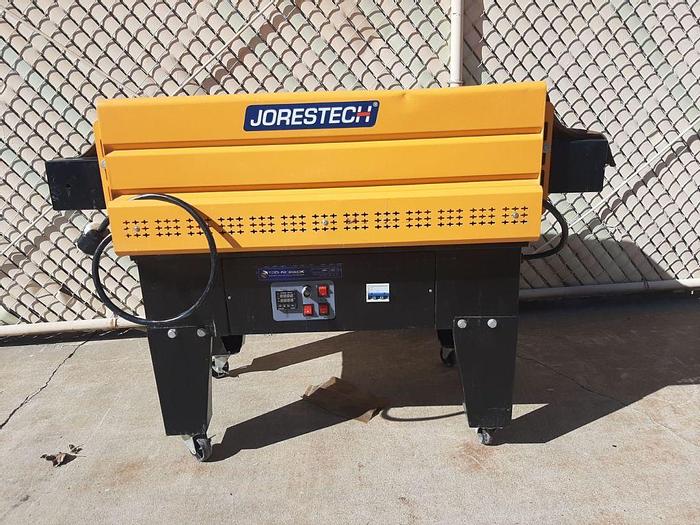

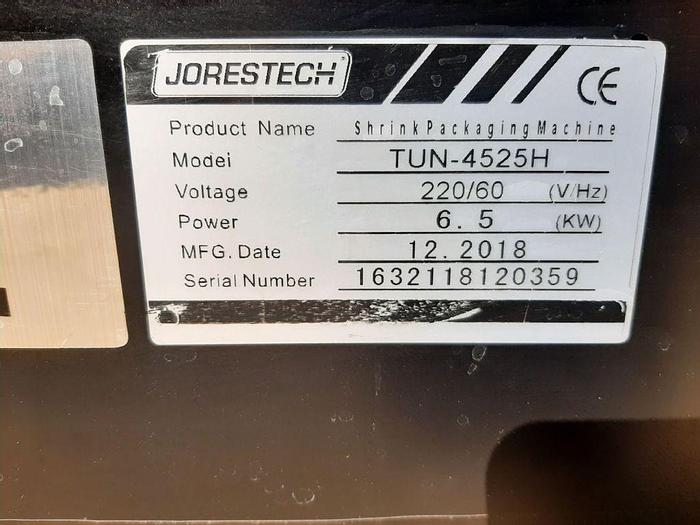

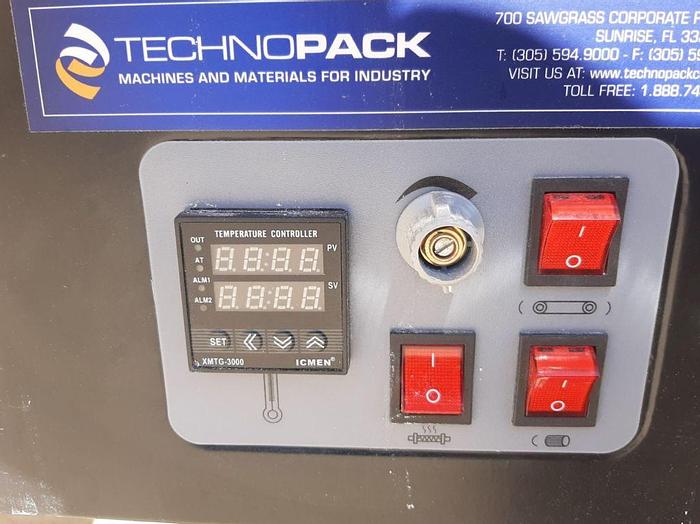

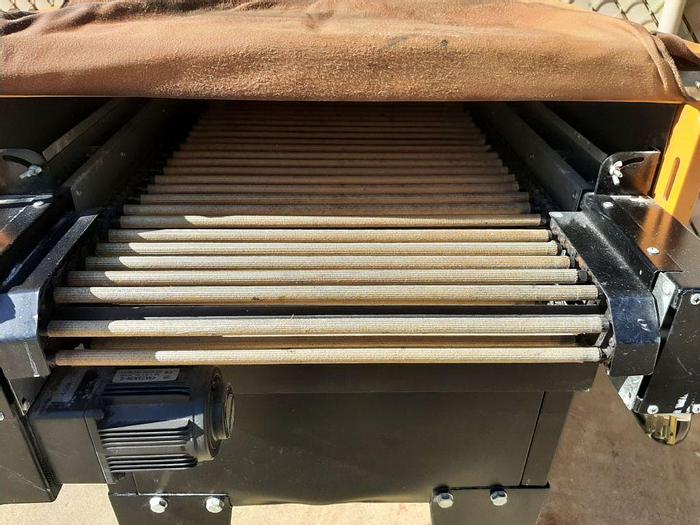

Jorestech Model TUN-4525 Shrink Tunnel, chamber measures 22" wide X 35" long chamber, with 3" to 9"adjustable height aperture. Offered with 15” x 35” long roller conveyor with a 35" infeed/discharge height. Rated for 6.5 kW, 220 Volts, single phase, 60 Hz, 30 AMPS. Mounted on 4-leg frame with casters. Control panel with temperature controller, conveyor on/off, variable speed conveyor, heater on/off and fan on/off controls. Serial number 1632118120359.

Manufacturer Specifications:

• Maximum temperature 482 degrees Fahrenheit
• Single-zone rated from 0 to 32.8 feet per minute for various products depending on materials, application, environment, and machine configuration.
