Reactor, 50 Gallon, Glass Lined, 25 PSI, FV, Jkt, Agit, Pfaudler #S744351

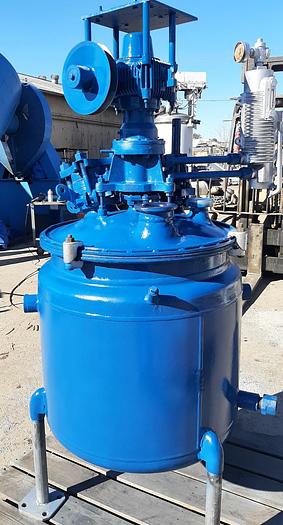

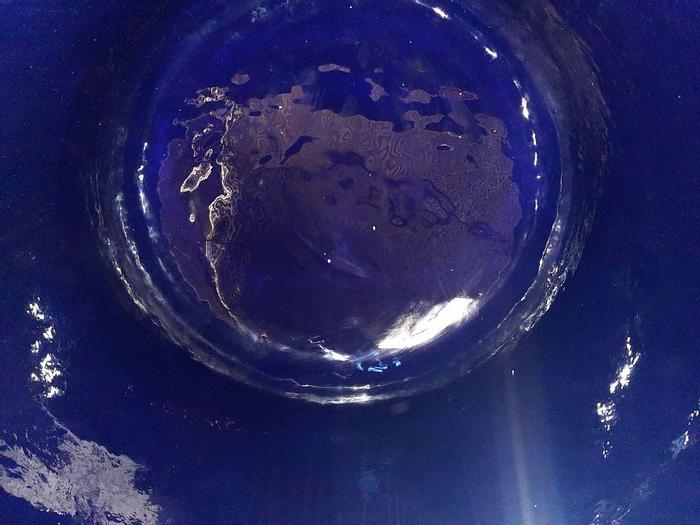

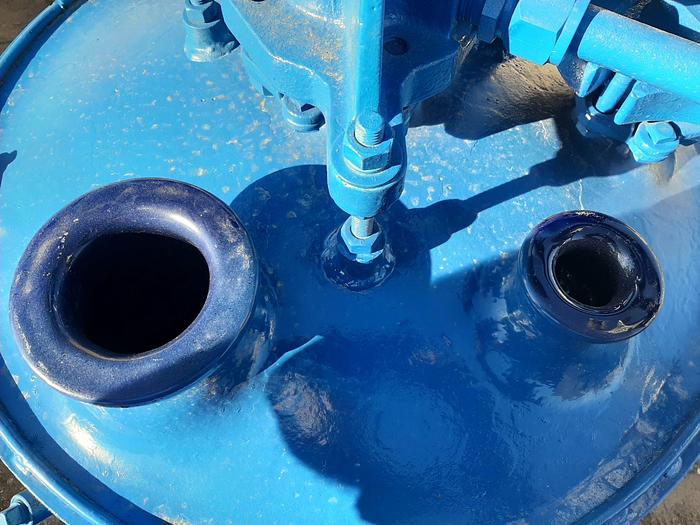

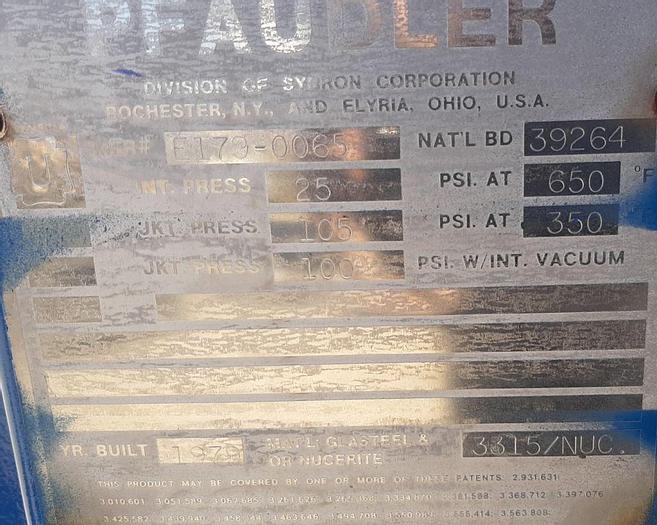

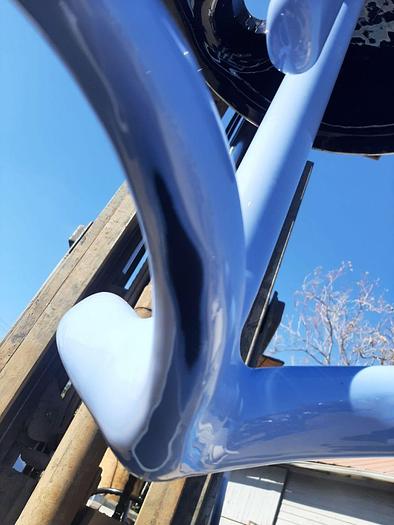

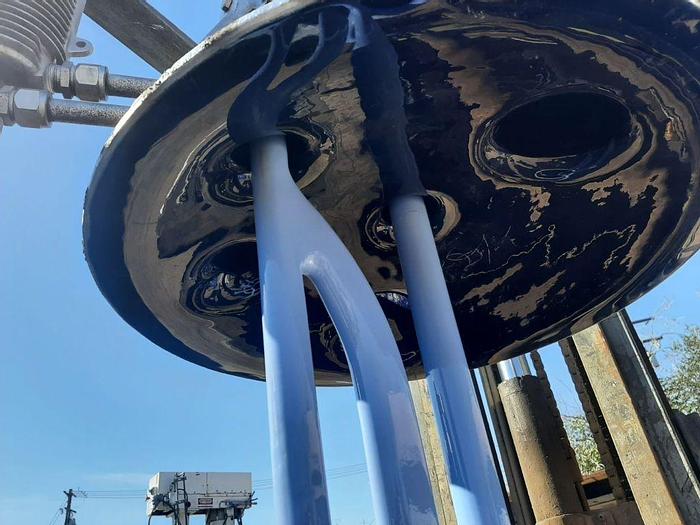

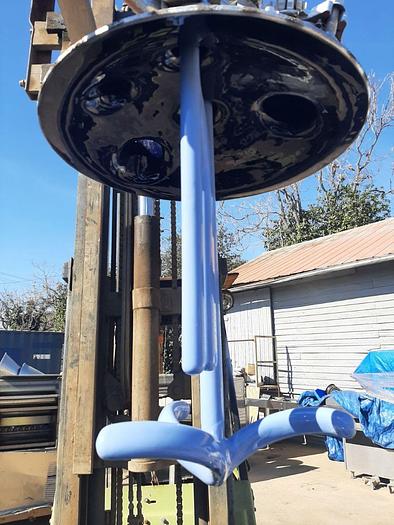

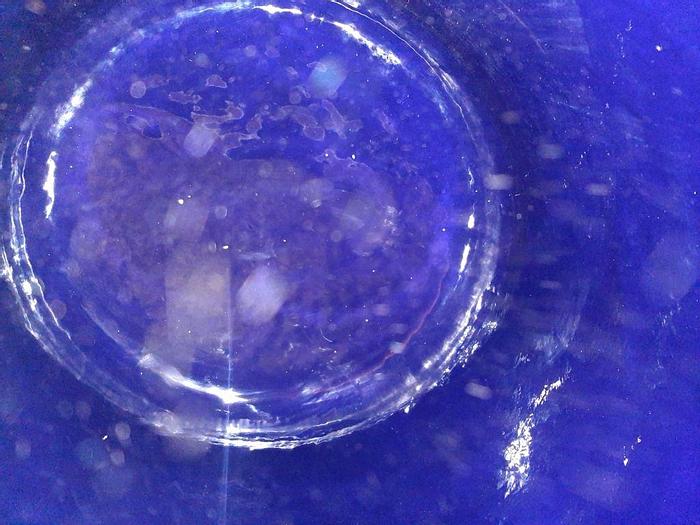

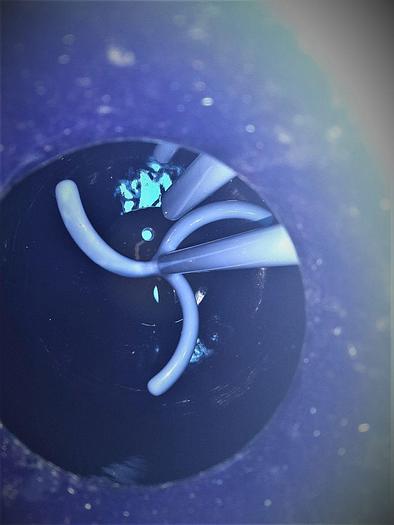

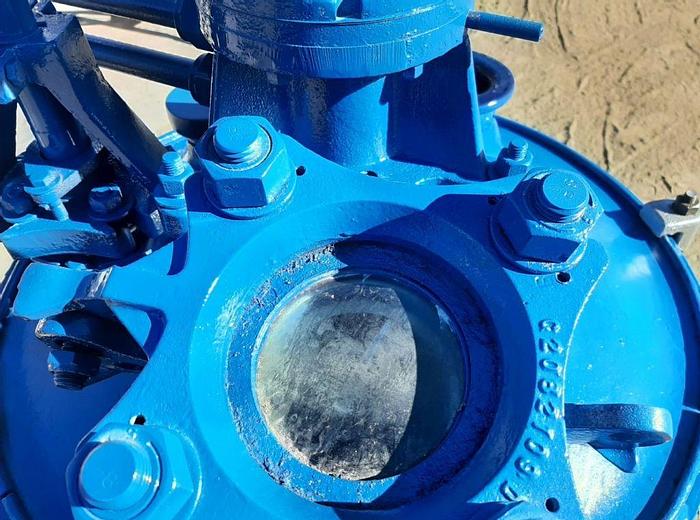

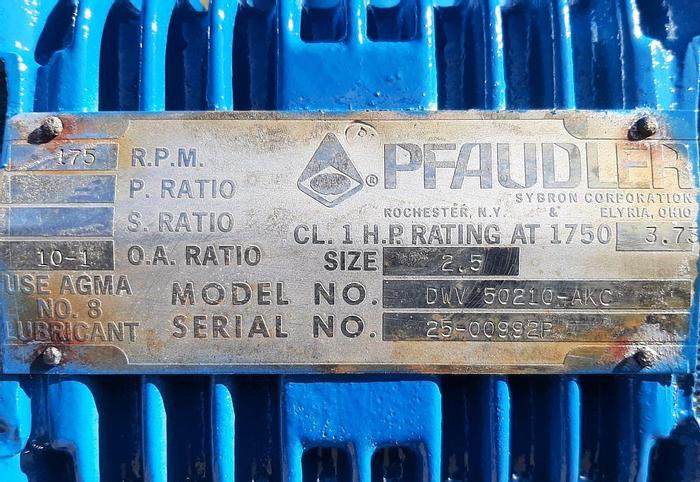

Pfaudler 50-gallon glass-lined reactor with agitation, dome top & dish bottom, pharmaceutical grade. Vessel measures 24" diameter X 24" straight side, Internally rated for 25 PSI / Full Vacuum at 650 degrees Fahrenheit, jacket rated for 105 PSI at 350 degrees Fahrenheit. Serial number E179-0065, National Board number 39264. Offered with Pfaulder Size 2.5, Model DWV 50210-AKC agitator, mechanical seal, 3-blade agitator, and internal baffle. Drive includes gear reducer with 10:1 ratio, final output 175 RPM. Requires hydraulic power pack to run agitator. Top head includes 18" diameter manway, (1) 4" and (1) 1-1/2" ports. Bottom head includes 1-1/2" diameter center bottom NPT connection for jacket. Product discharge from the top with a pump.
