Pasteurizer, Tube-In-Tube, Goodnature, XT Series, Heater, #S744275

Available quantity

1

Location

Chowchilla, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS744275
ManufacturerGoodnature
ModelFP XT 1500
Year2016
ConditionUsed
Serial Number29052
BasisFOB

Description

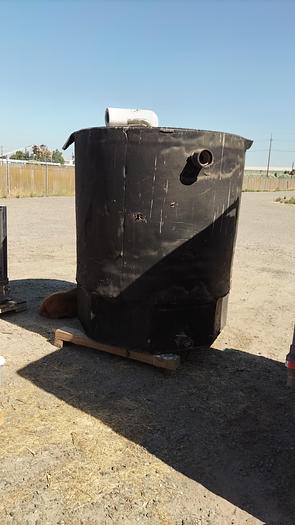

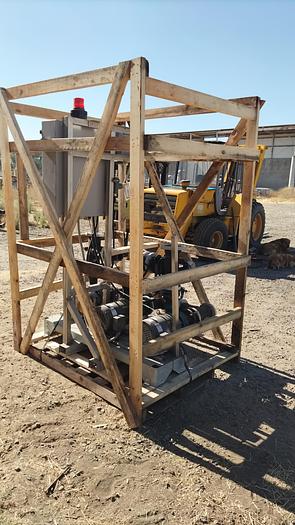

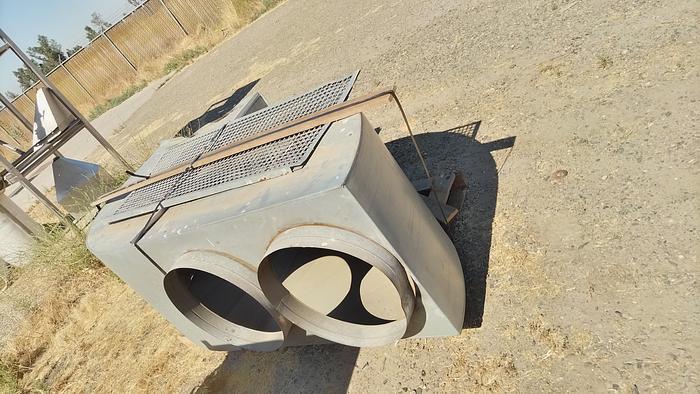

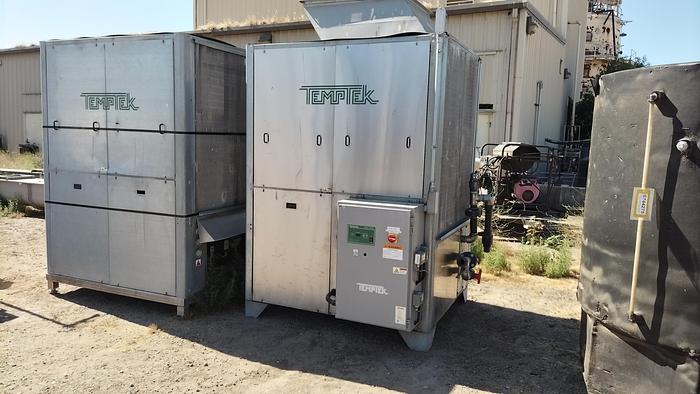

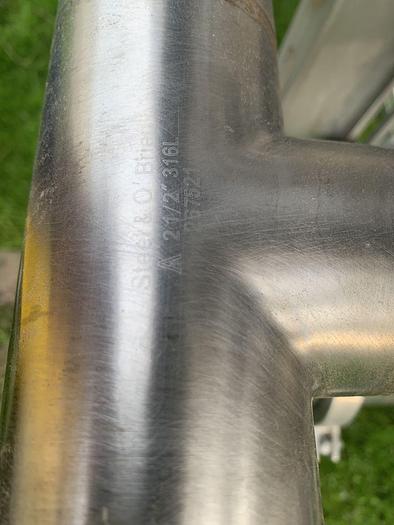

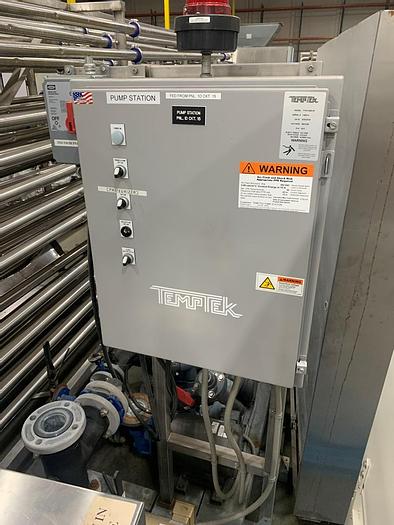

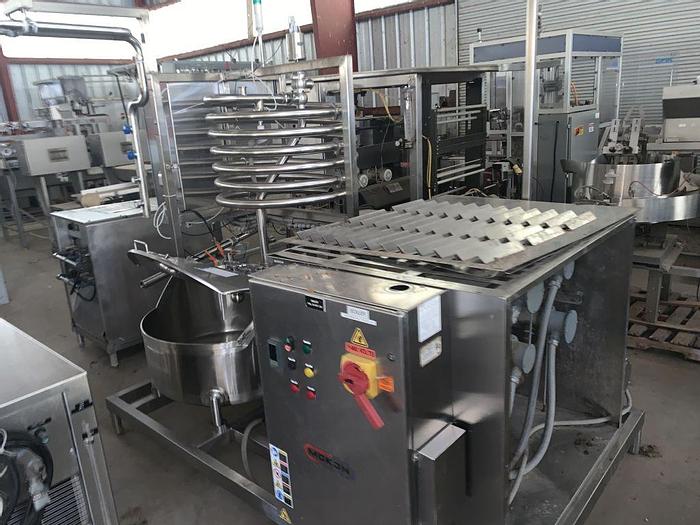

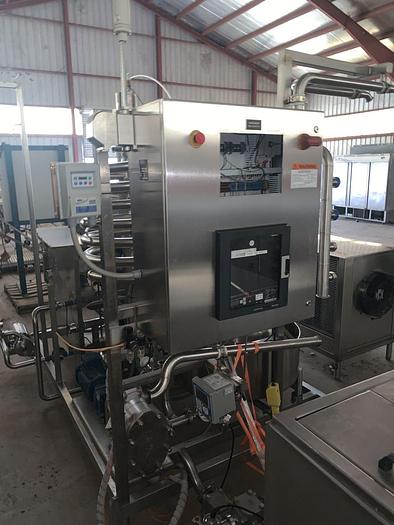

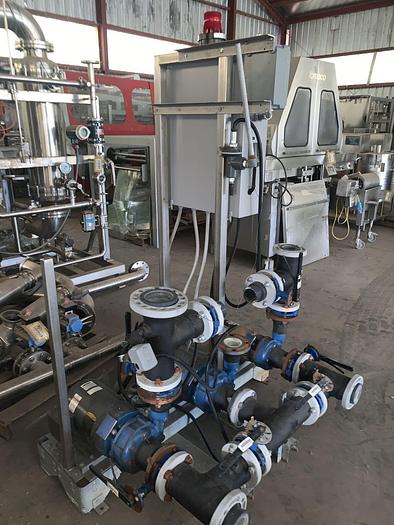

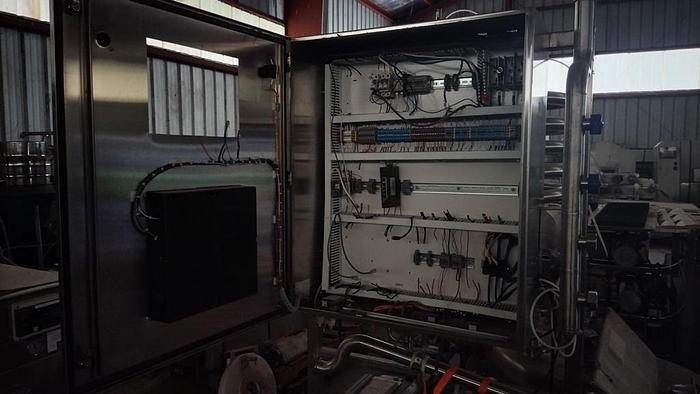

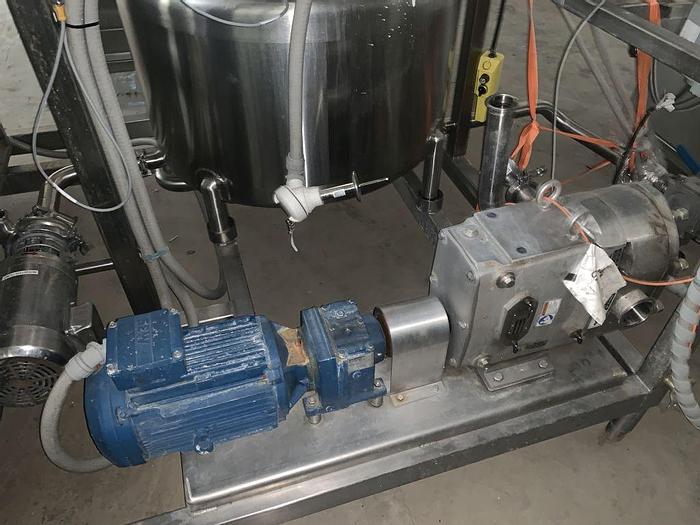

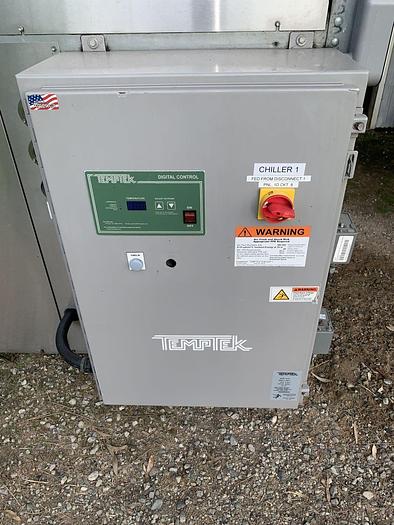

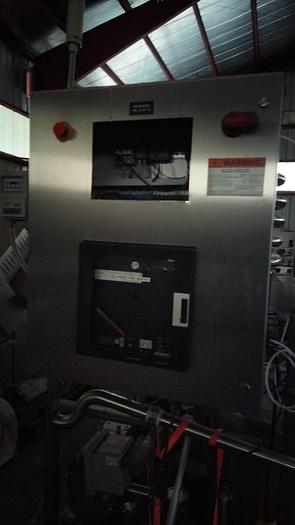

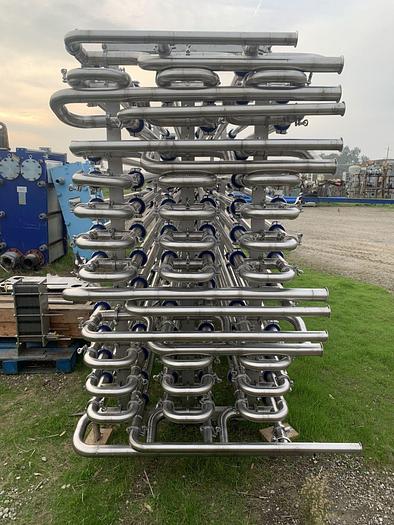

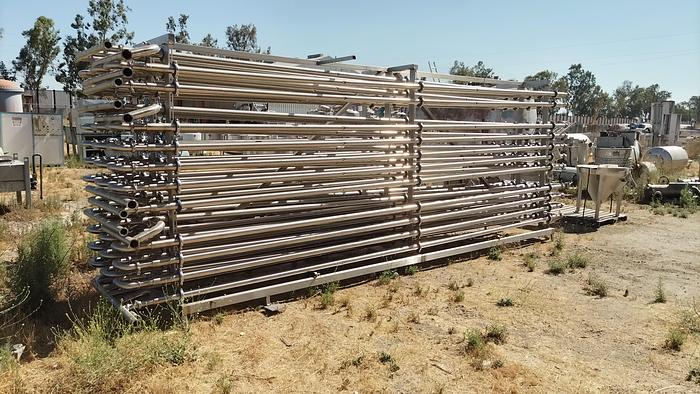

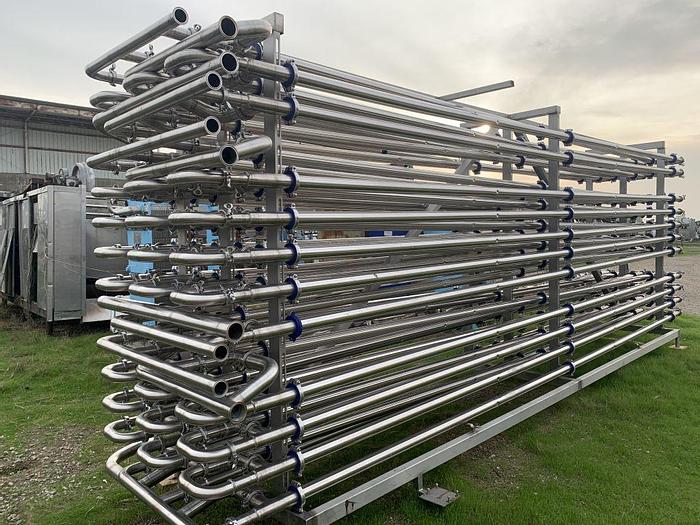

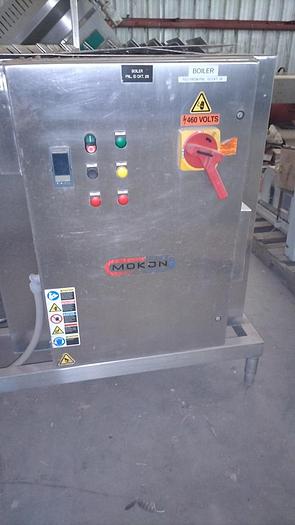

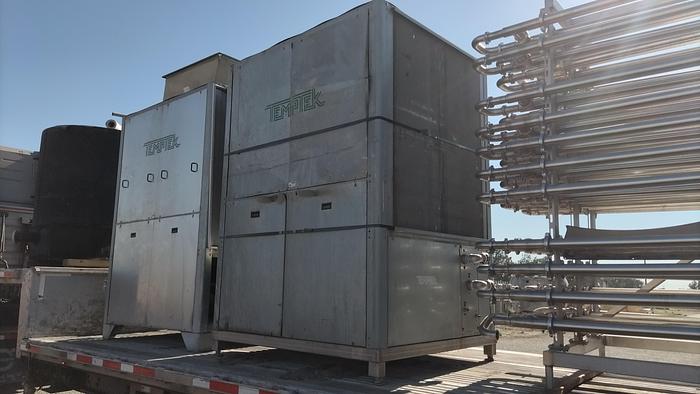

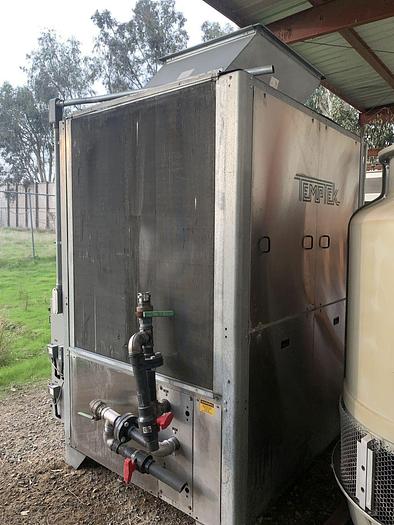

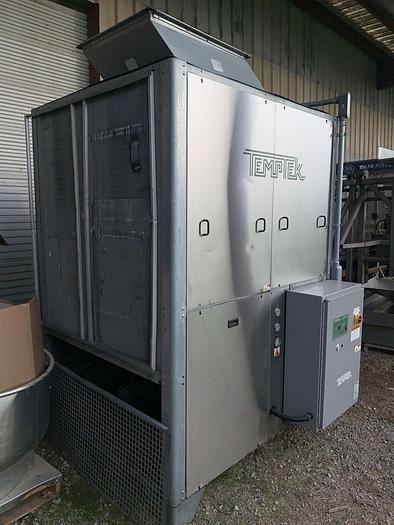

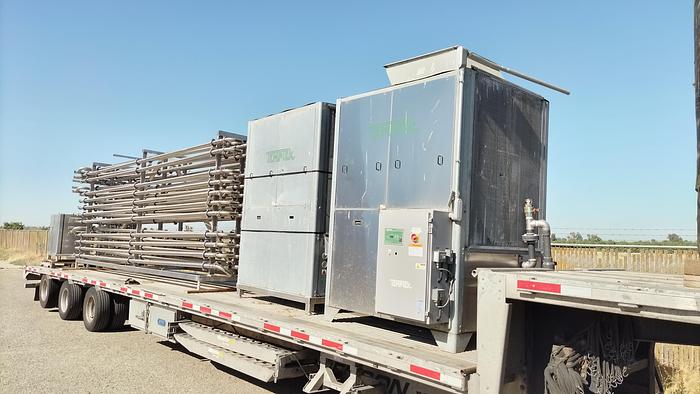

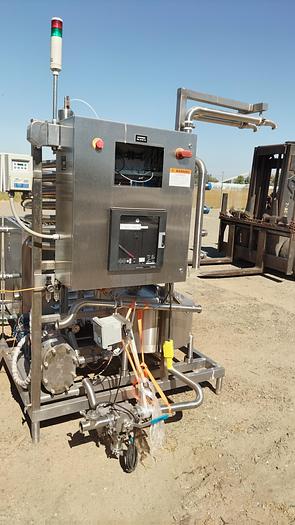

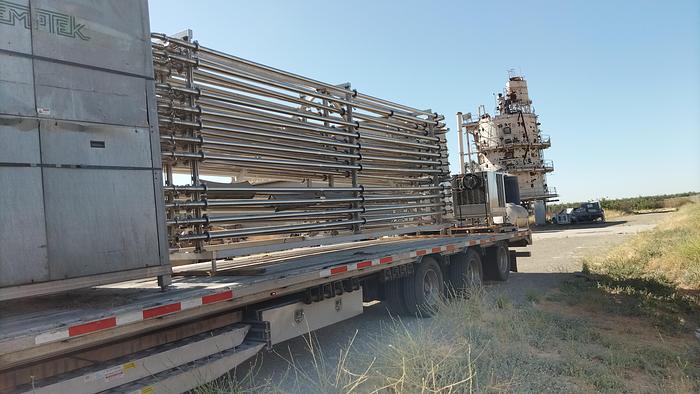

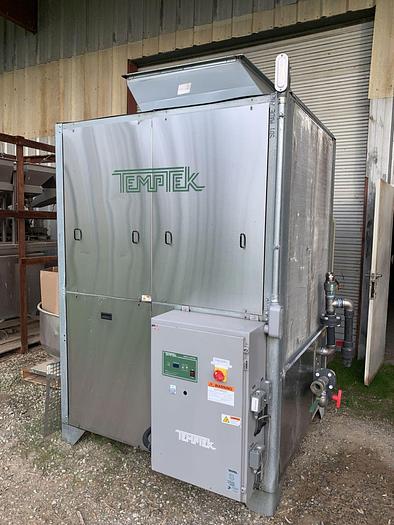

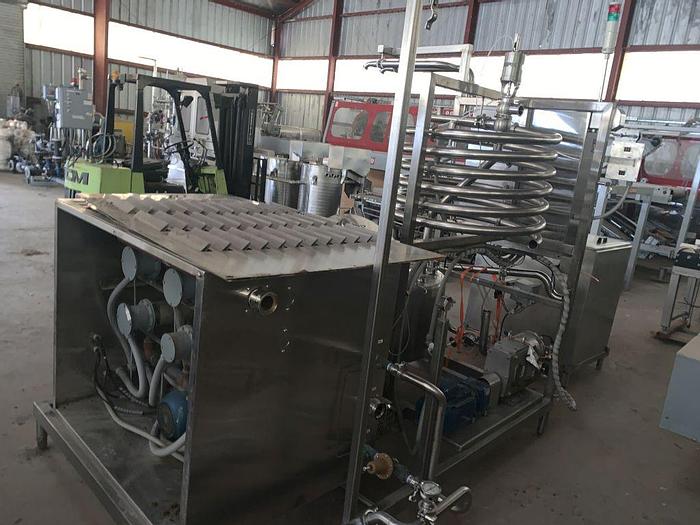

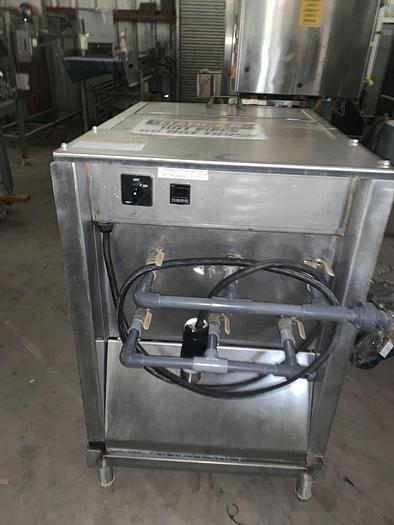

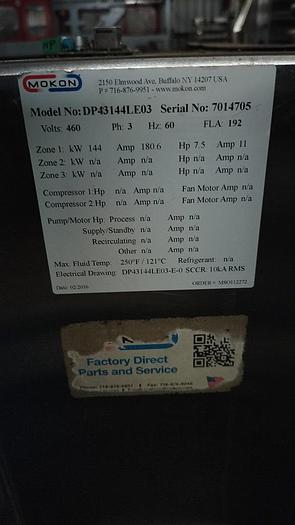

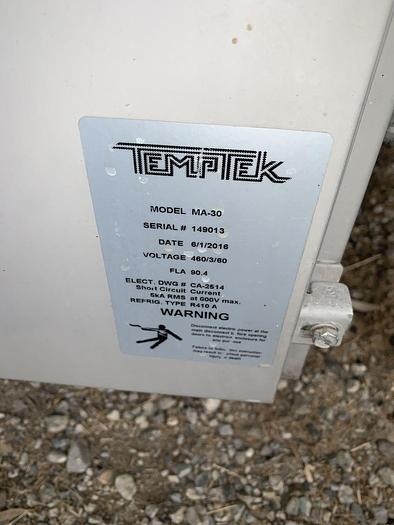

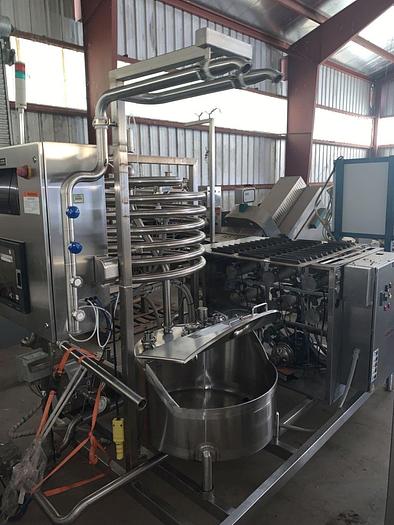

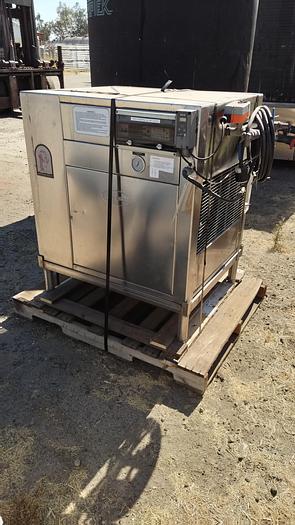

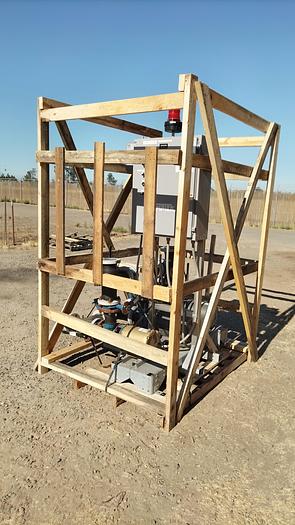

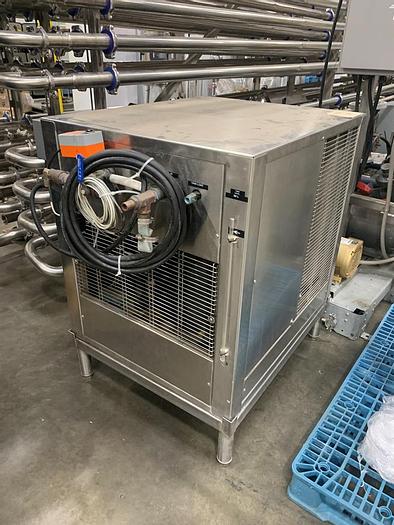

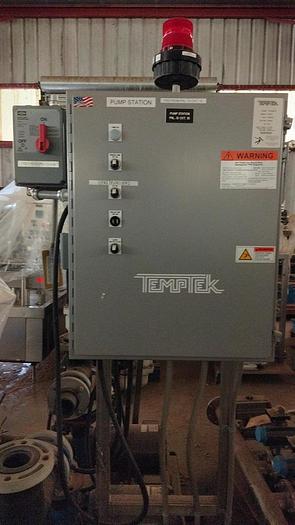

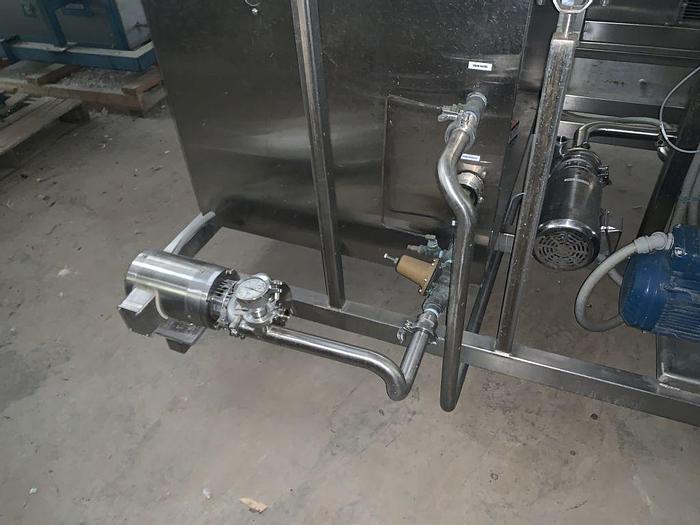

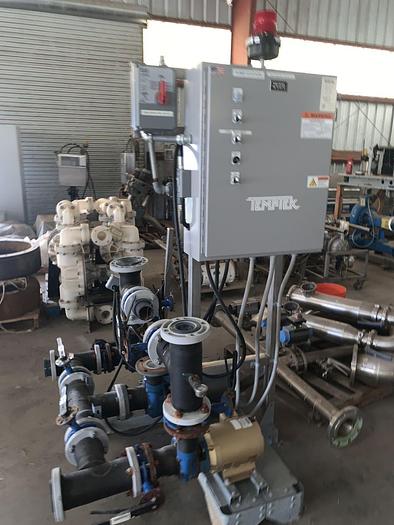

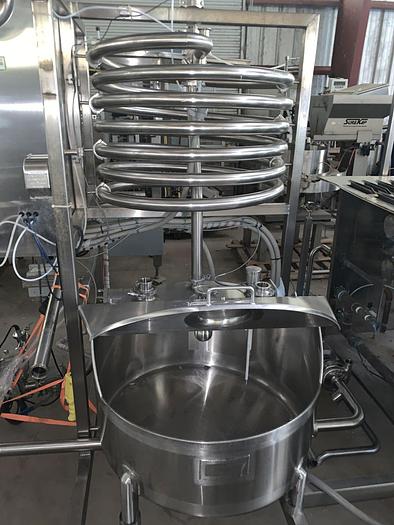

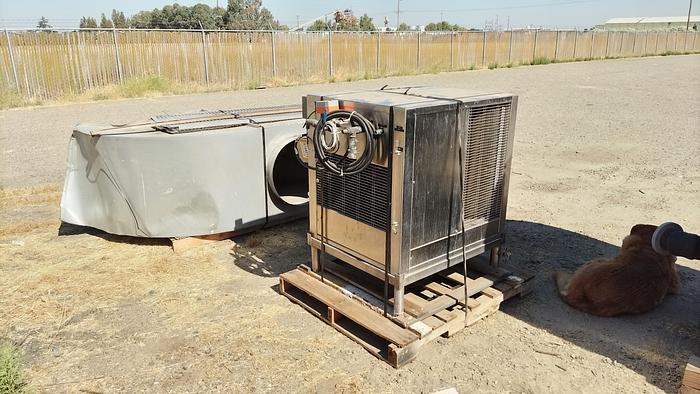

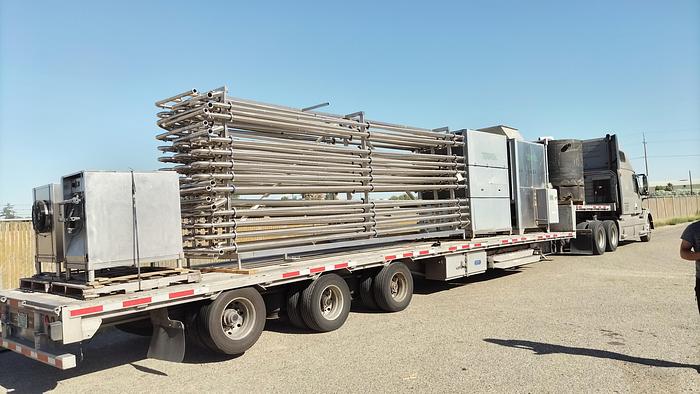

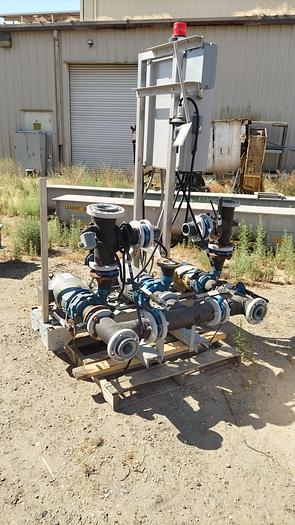

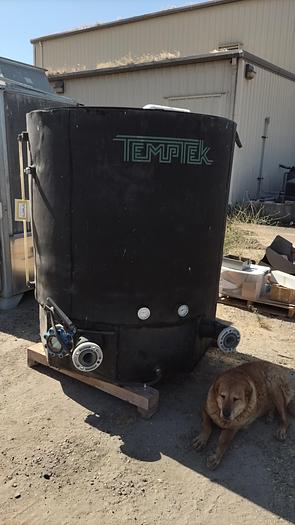

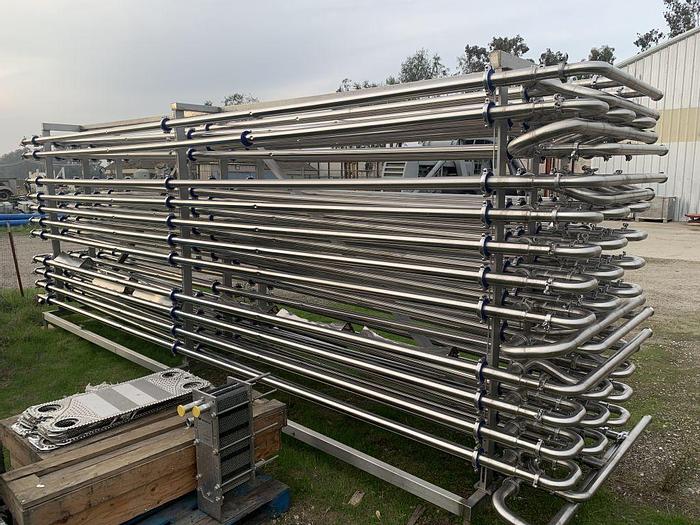

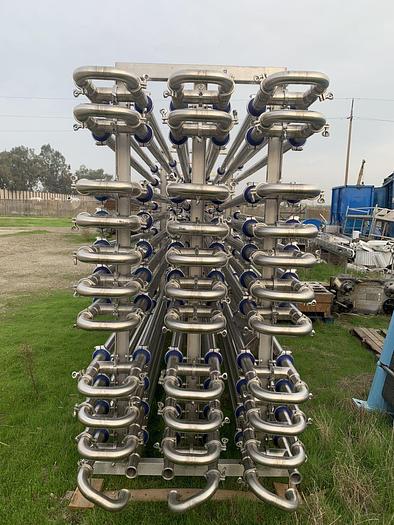

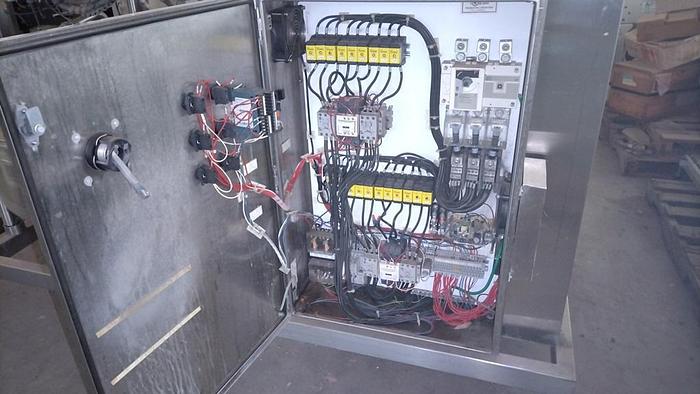

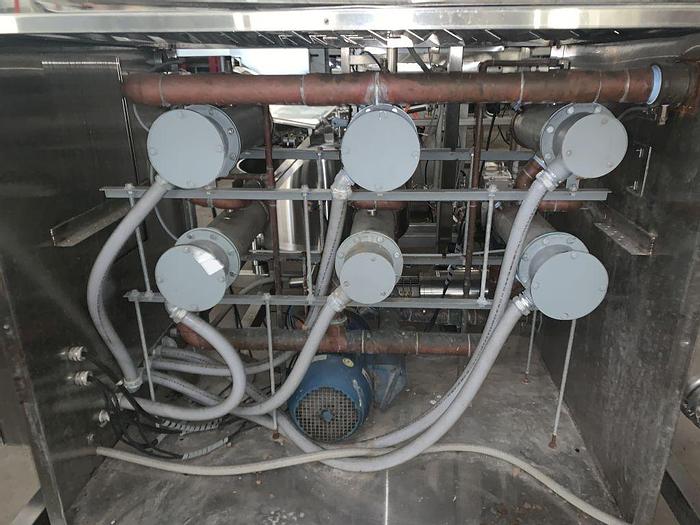

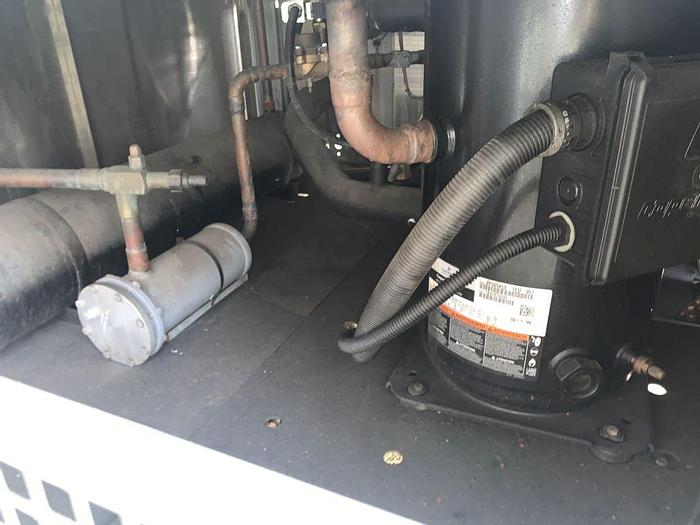

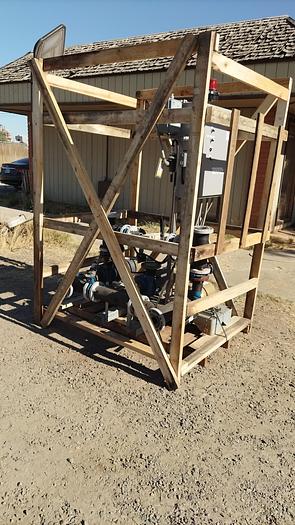

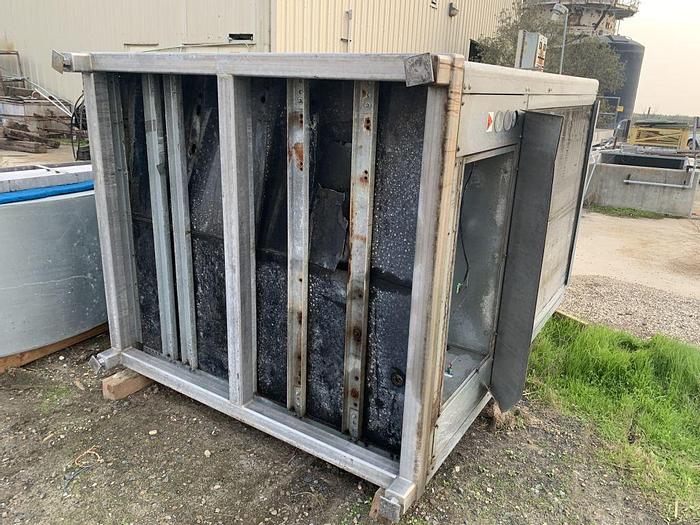

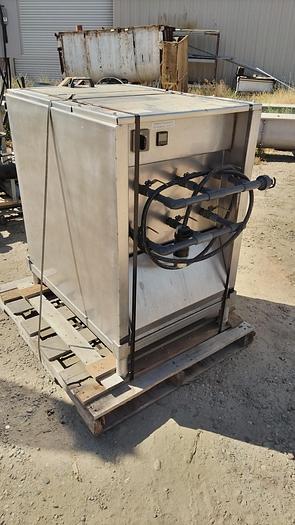

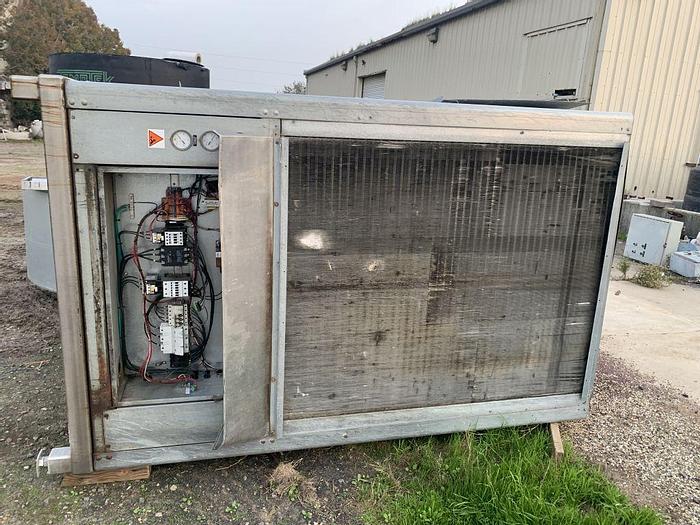

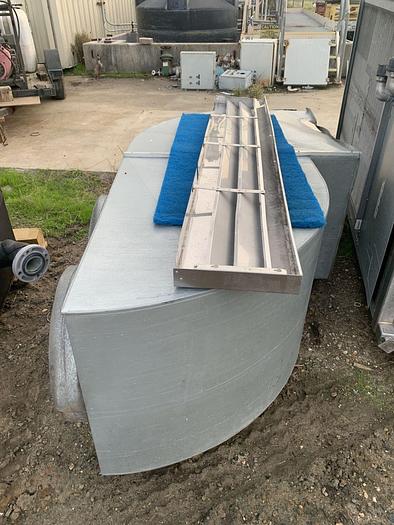

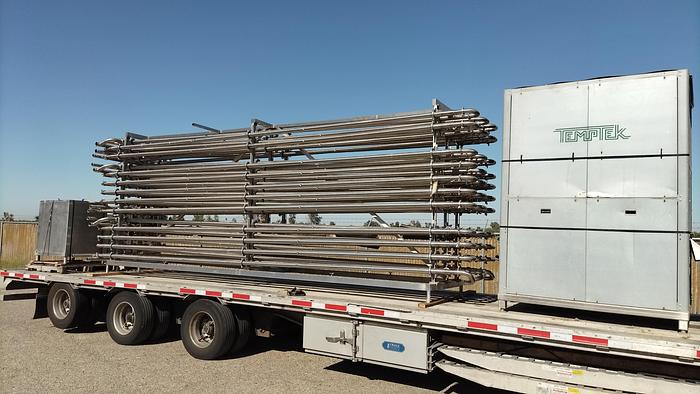

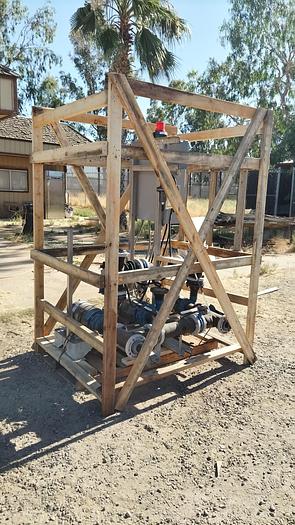

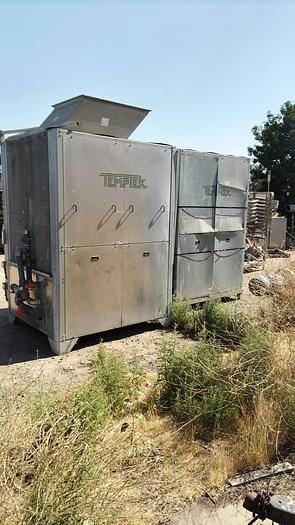

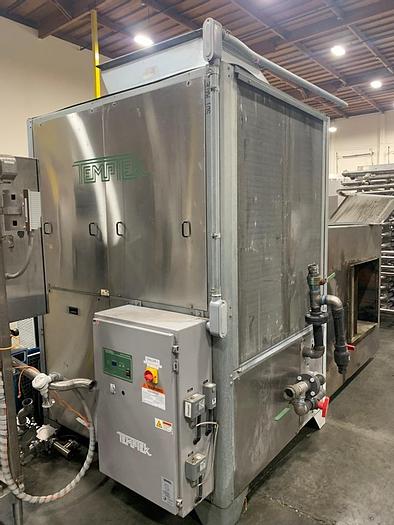

Goodnature FP XT 1500 Stainless Steel Tubular Pasteurizer HTST (High Temperature Short Time) System. Rated for 1,500 gallons per hour, 40 - 70 degrees F incoming temp, 195 degrees F pasteurization temp, max 9.2 lb per gallon product weight, 15-second hold time. Flash Pasteurizer includes 20' long, 316 stainless steel tube-in-tube heat exchanger and Goodnature Skid with 2" diameter coil, 40 gallon balance tank, (2) stainless steel centrifugal pumps, Waukesha Model 060-U3 positive displacement timing pump and Mokon heating system with electrically heated heat exchangers. System is also offered with Temptek Model MA-30 Air-Cooled Glycol Chiller package with glycol tank and Temptek Model TTKC-800-3P Pump Station. Previously used at major beverage processing facility. Includes stainless steel panel with chart recorder (less touch screen controller). Tube set includes Three-Zone set-up with 20' long tubes, 2-1/2" diameter outer tubes and 2" diameter inner tubes; Upper Zone includes (12) tubes, Middle Zone includes (30) tubes & Lower Zone includes (24) tubes. Goodnature Serial number 29052. New in 2016.
