Tank, 350 Gallon, Stainless Steel, 2'6" X 10', Double Agitation, #C693490
|Materials of Construction||Alloy 20Cb-3 Stainless Steel & 316 stainless steel|
|Agitator Type||Double Motion Scraper Agitation|

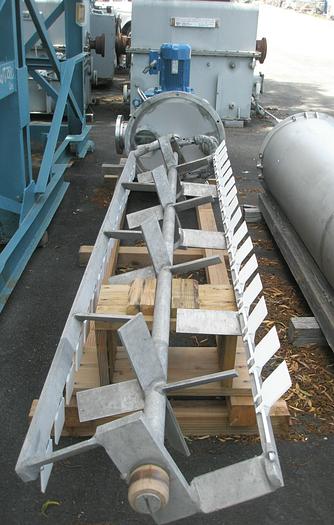

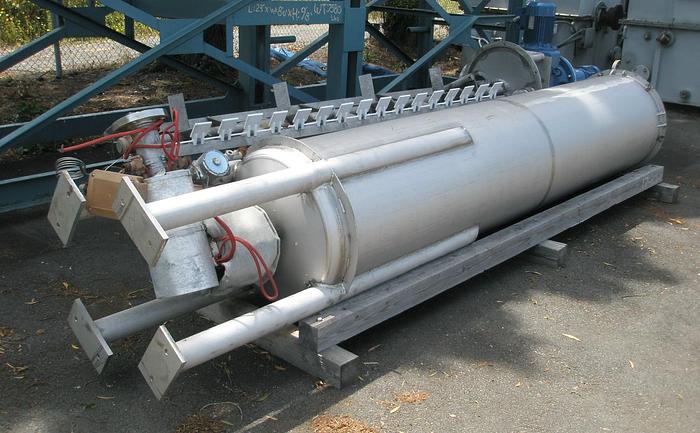

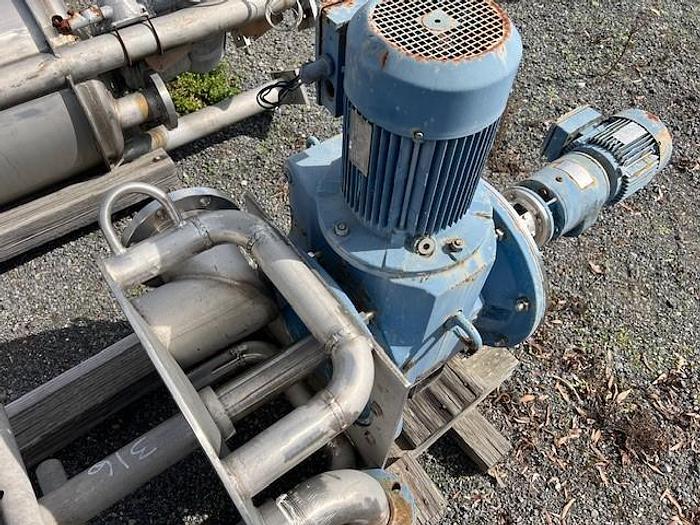

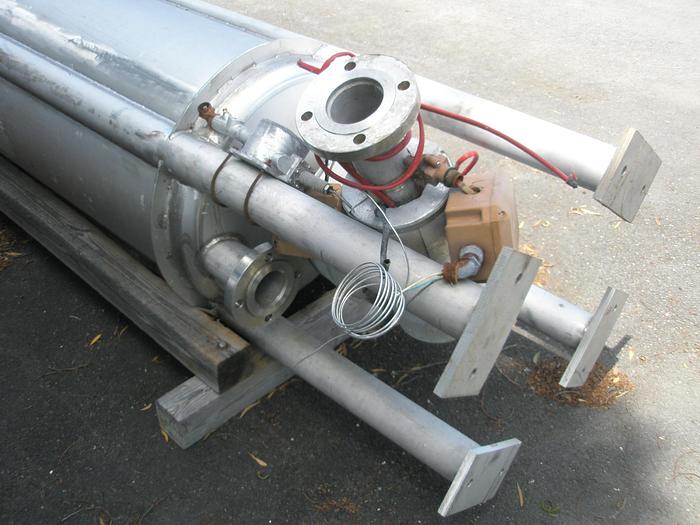

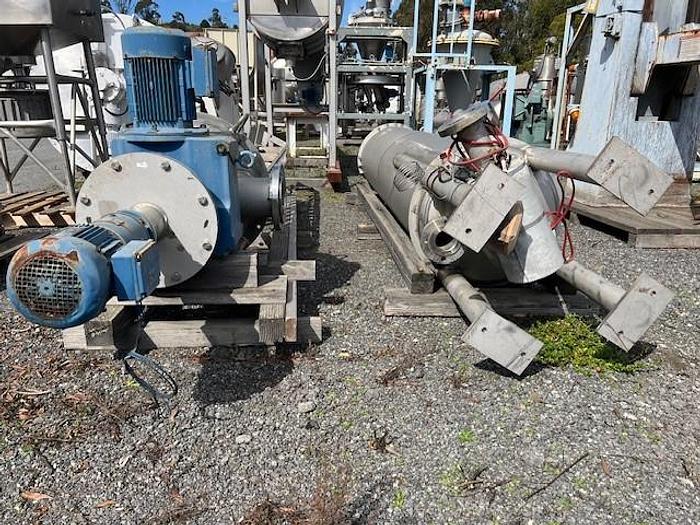

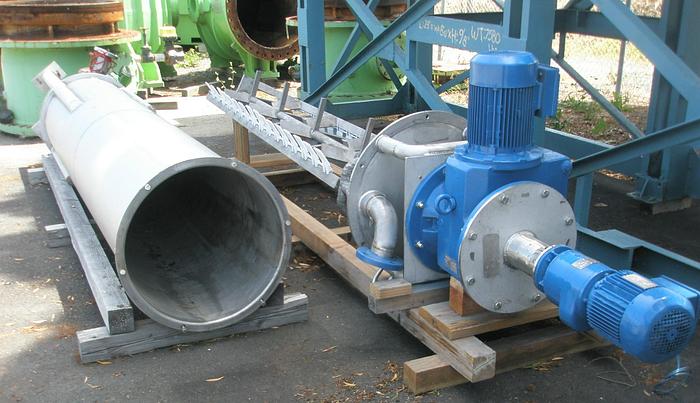

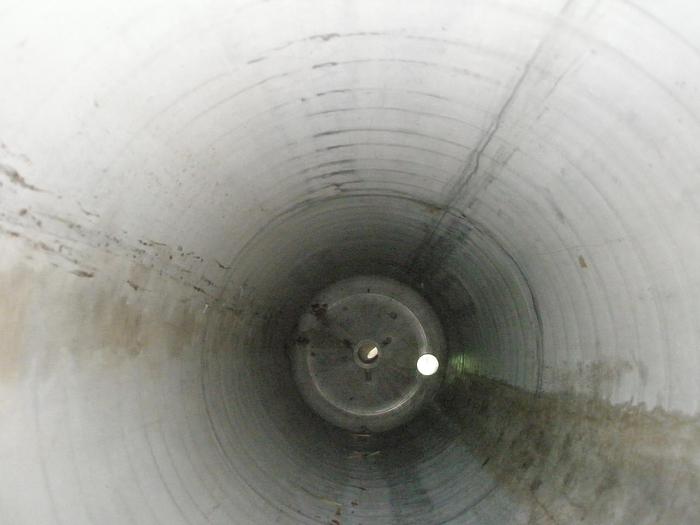

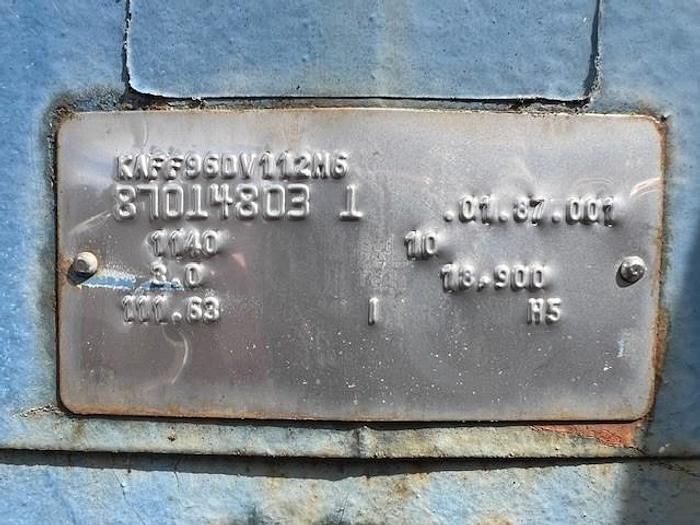

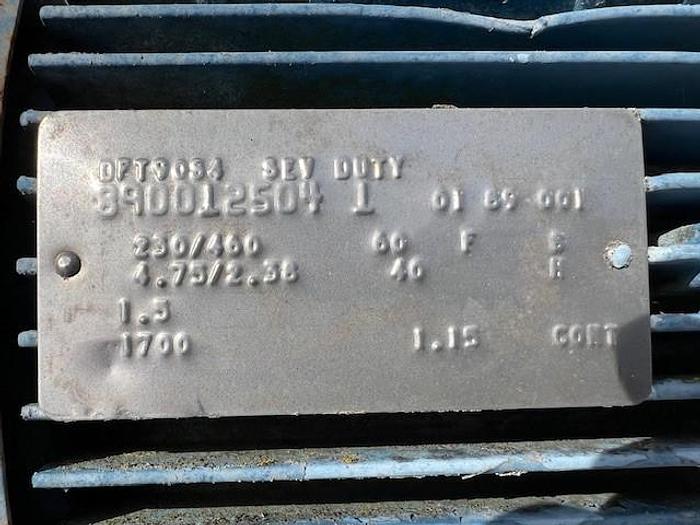

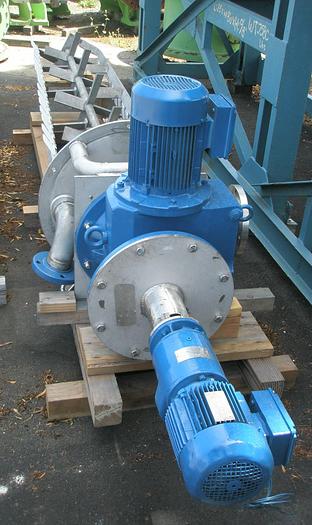

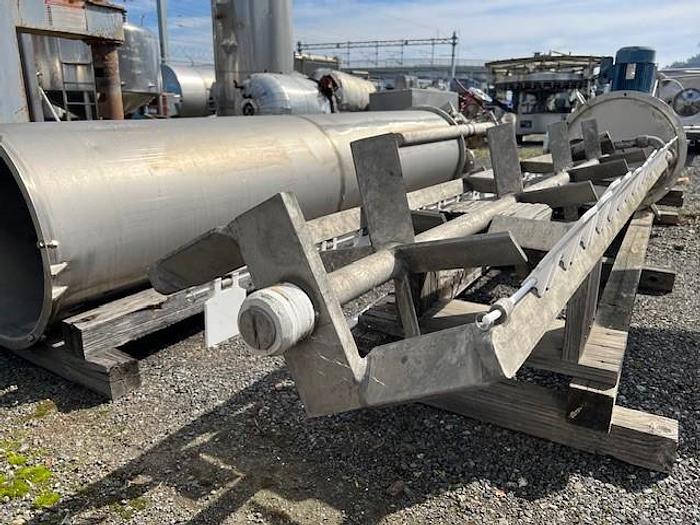

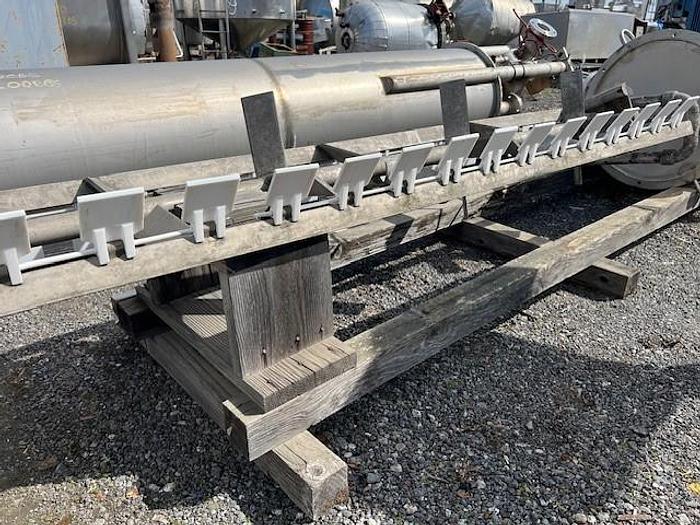

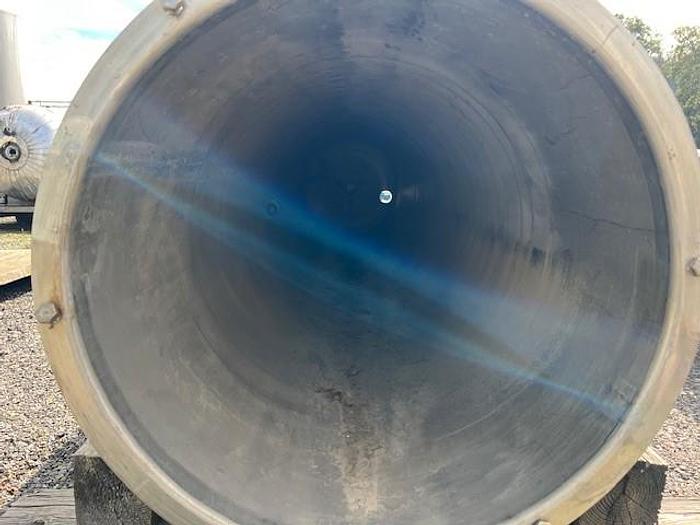

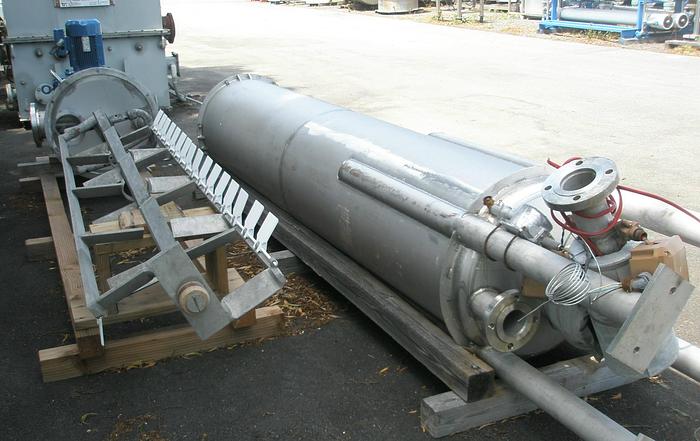

Stainless steel Mix tank, approximately 350-gallon capacity, measures 2.5' diameter x 10' high, removable dome top, dished bottom, 3" center bottom outlet, tank is constructed of alloy 20Cb-3 stainless steel.. Unit is complete with double motion agitation - center agitation and scraper-type, 316 stainless steel agitator. Center agitation includes (4) 4-blade paddles on common 2" diameter shaft, 14" diameter Swing, driven by 1-1/2 HP, 230/460 V, 1700 RPM, 3/60 Hz motor thru gearbox, resulting in 56 output RPM. Scraper agitation includes (16) Teflon scrapers on (2) wiper arms extending along interior wall, driven by 3 HP, 230/460 V, 1140 RPM, 3/60 Hz motor thru gearbox, resulting in 10 output RPM. Appears to have seen very little use.
Includes scraper agitation.
Alloy 20 is a highly alloyed iron-base nickel-chromium-molybdenum stainless steel developed primarily for use in the sulfuric acid related processes.
