Press, Platen, Bench, Hydraulic, Greenerd, Mdl HPF-15, #C740813

Available quantity

1

Location

Brisbane, CA

Sold

Specifications

Stock NumberC740813
ManufacturerOther
ModelHPF-15-12L3
ConditionUsed
Serial Number04T6417
BasisFOB

Description

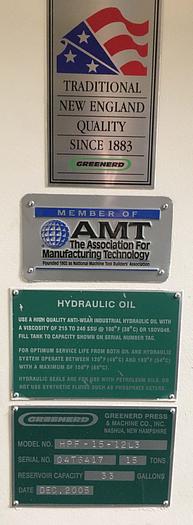

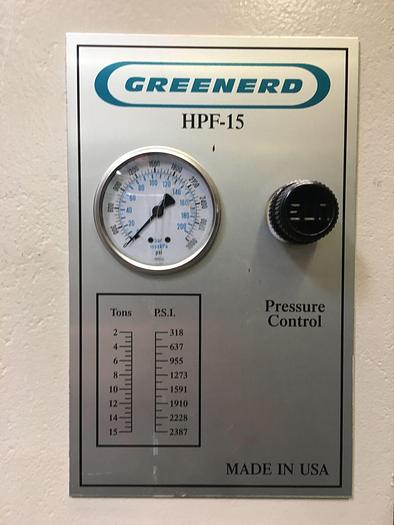

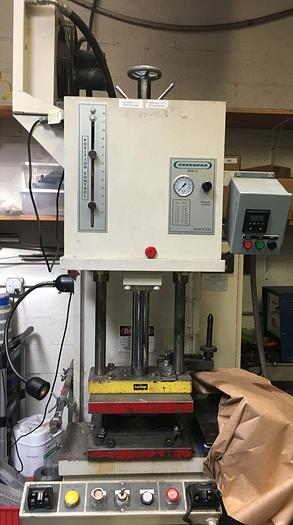

Greenerd Model HPF-15-12L3 hydraulic bench press, previously used in blanking of stainless steel wire mesh and forming wire mesh discs. Rated between 3 to 15 ton pressure (adjustable), 14" daylight, 8" stroke, 9" throat, 4" cylinder bore, 2.5" ram diameter, 14.5" table height, table measures 18" x 11" x 2" thick. Hydraulic pumps are rated for 12 GPM & 3 GPM, 5 HP. Includes two hand thumb sensor controls. Purchased new 2005 and used monthly to blank and form steel wire mesh parts. Speed dependent upon stroke, up to 110 SPM. Serial# 04T6417. (Servo feeder available separately).
