Mill, Pug, 19" X 15" X 14", Walker, S/st, 3/4 HP, #S736713

Sold

Mill, Pug, 19" X 15" X 14", Walker, S/st, 3/4 HP, #S736713

Available quantity: 1

Brisbane, CA

Description

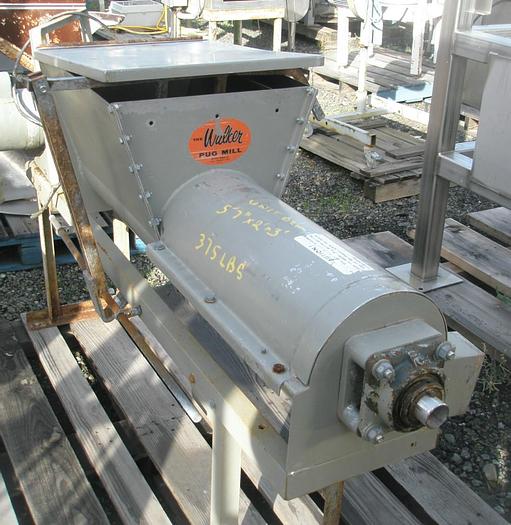

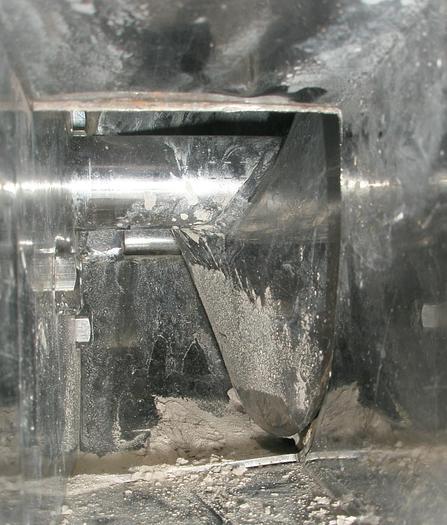

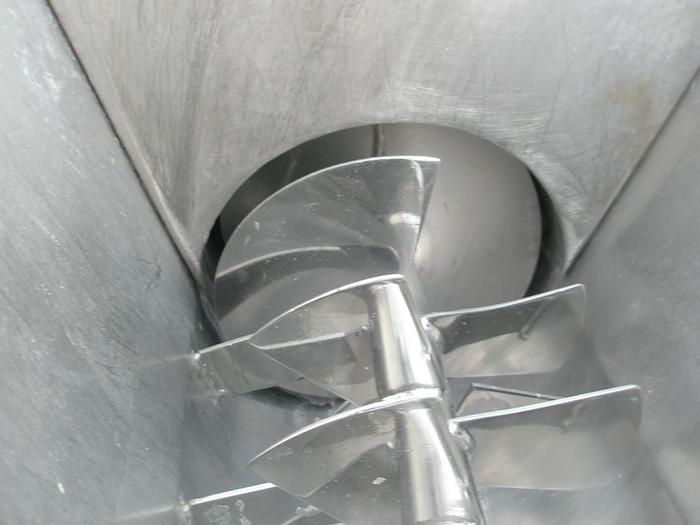

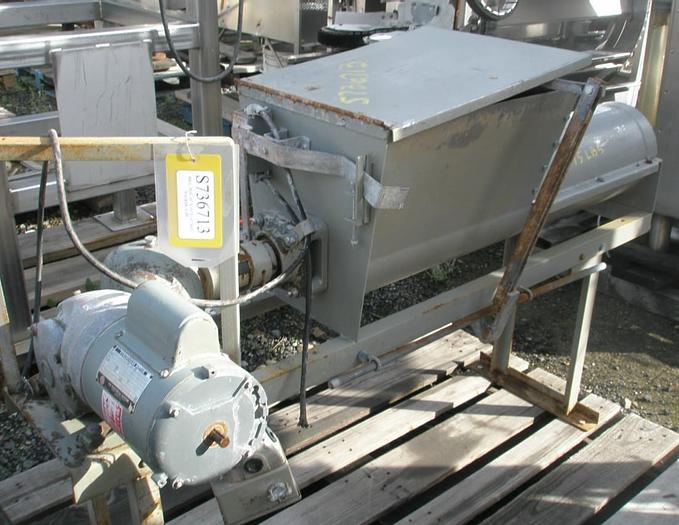

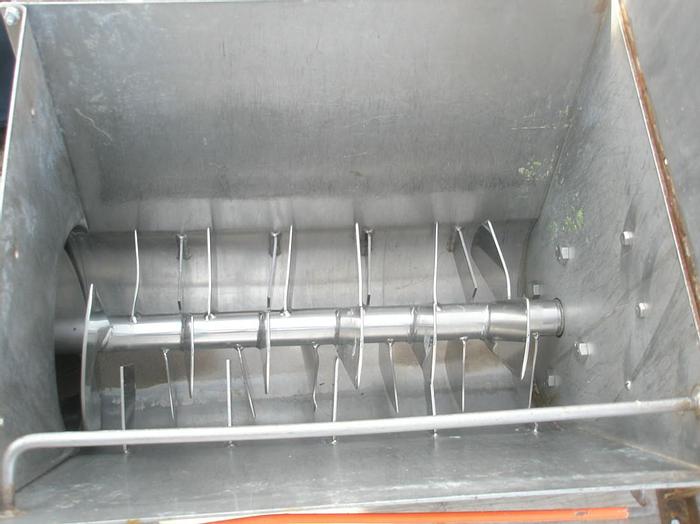

Walker pug mill, measures 19" x 15-1/2" x 14" deep, stainless steel contacts, includes hopper leading to milling section, with 1-1/2" diameter shaft including (17) 3" x 3" paddles on common shaft and 8 stationary paddles welded to inner wall of hopper. Milling section leads to 8" diameter auger discharge leading to 2" x 4" side-end discharge. Mounted on mild steel frame, shaft is driven by 3/4 HP, 1-phase, 60 cycle, 115/230V motor through gearbox, (motor needs to be replaced), hopper section includes a hinged cover.

Specifications

Stock NumberS736713
ManufacturerWalker
Chamber Dimensions19" Wide X 15" Long X 14" Deep
HP.75
Materials of ConstructionCarbon Steel
BasisFOB
