Heat Exchanger, Shell & Tube, 50 SF, S/st, 200 PSI, 600 deg #S743643

Available quantity

1

Location

Chowchilla, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS743643
ManufacturerEnerquip
Year2014
Serial Number16506
Square Feet50
Tube MeasurementsApproximately 1/2" Diameter Tubes, 1-1/2" Diameter Tube Feed Inlet
Number of Tubes1
Tube Ratings175 PSI at 600 Degrees
Shell Ratings 200 PSI at 350 degrees
Tube MatirialsStainless Steel
BasisFOB

Description

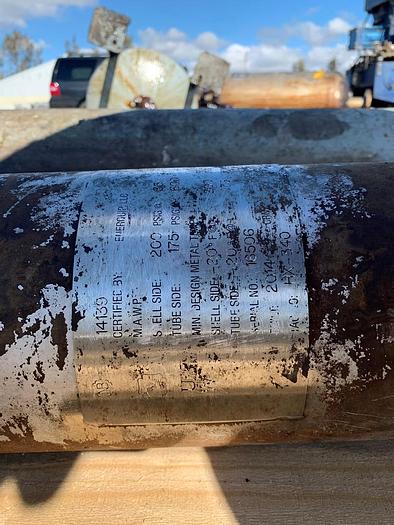

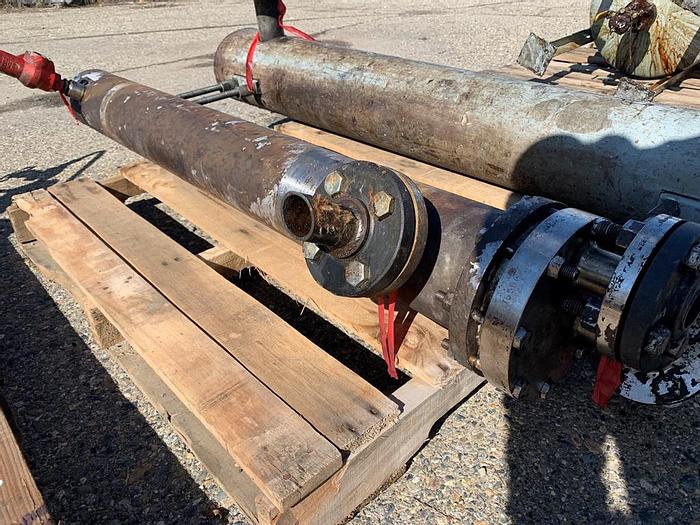

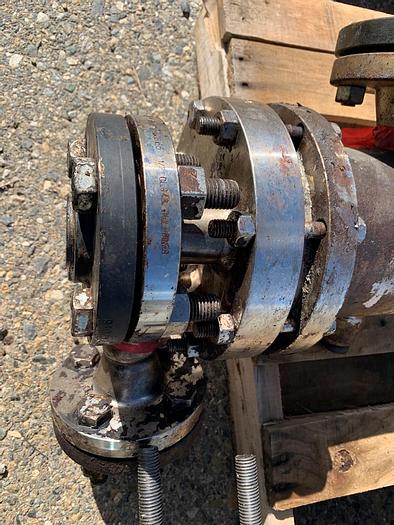

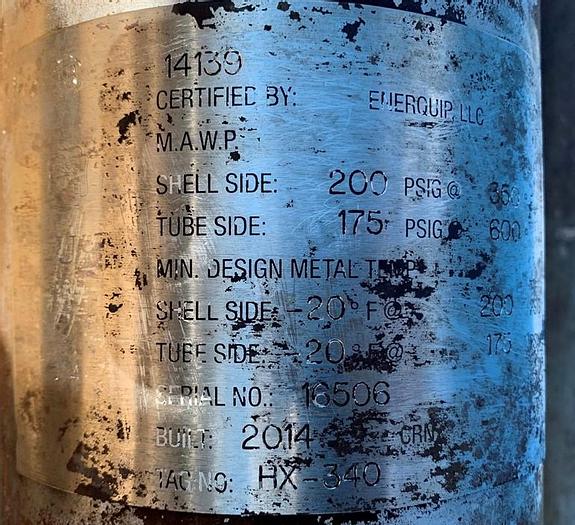

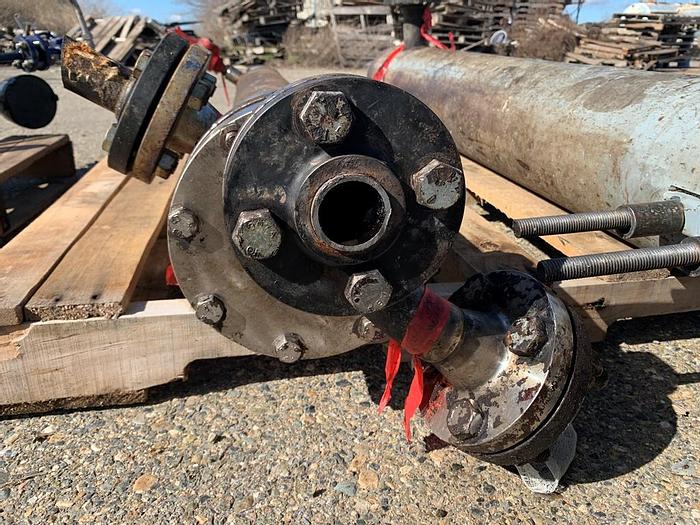

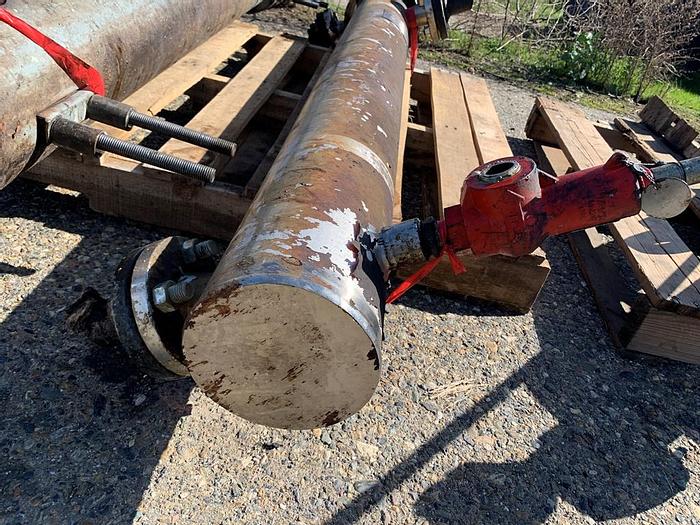

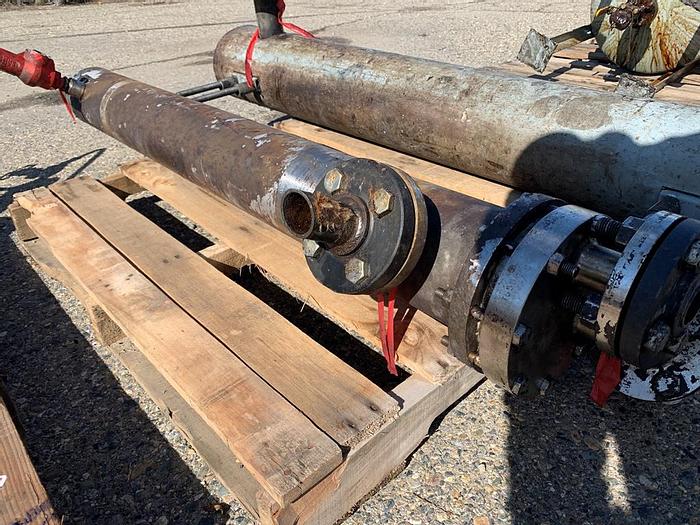

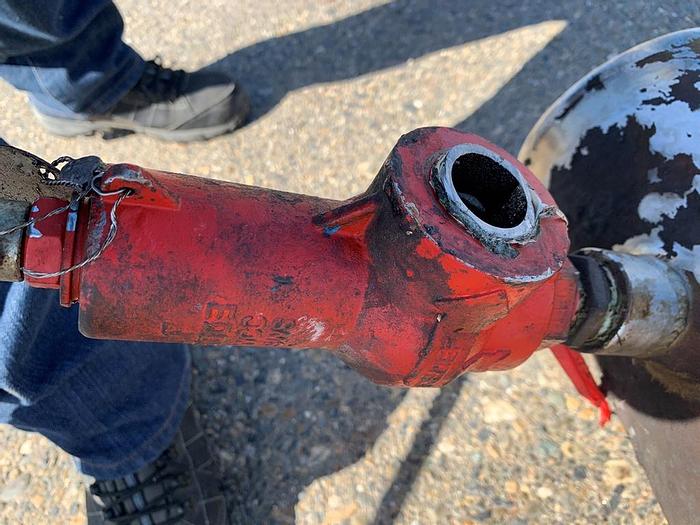

Enerquip stainless steel shell & tube heat exchanger, approximately 50 square feet surface area. Rated for 200 PSI at 350 degrees Fahrenheit to minus 20 degrees Fahrenheit on shell side, 175 PSI at 600 degrees Fahrenheit to minus 20 degrees Fahrenheit tube side. Shell measures 6" diameter x 60" long, approximately 1/2" diameter tubes, 1-1/2" diameter tube feed inlet, 2" diameter shell side connections. Includes relief valve on one end. ASME code constructed. NB# 14139. New in 2014. Tag number HX-340. Serial# 16506.
