Pasteurizer, Pilot Plant, Tetra Laval, 300 Liter, HTST, #C741676

Sold

Pasteurizer, Pilot Plant, Tetra Laval, 300 Liter, HTST, #C741676

Available quantity: 1

San Dimas, CA

Description

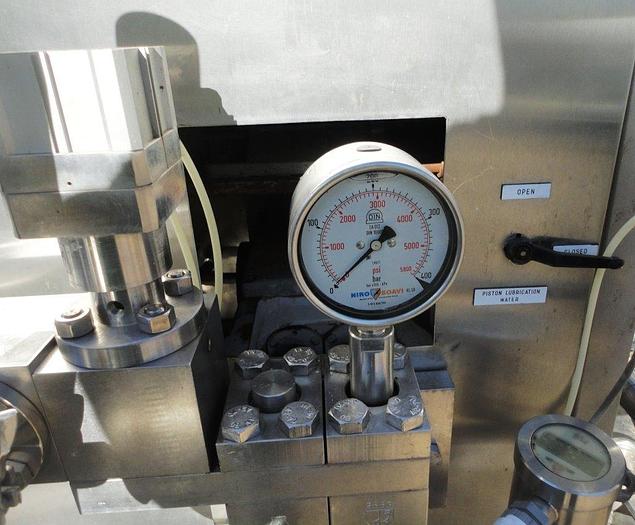

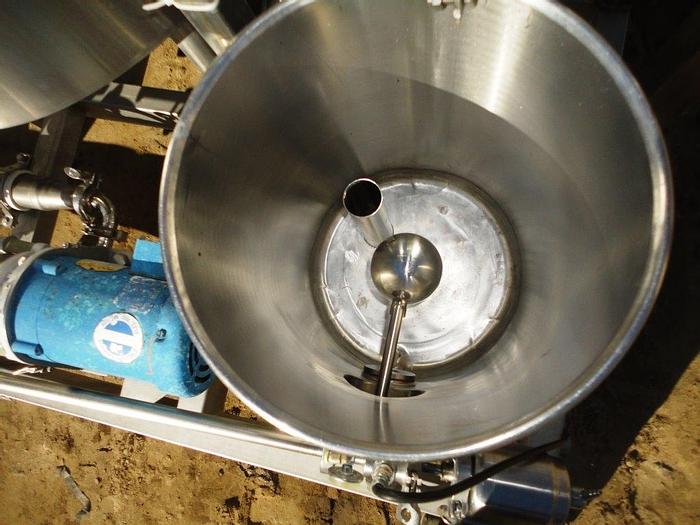

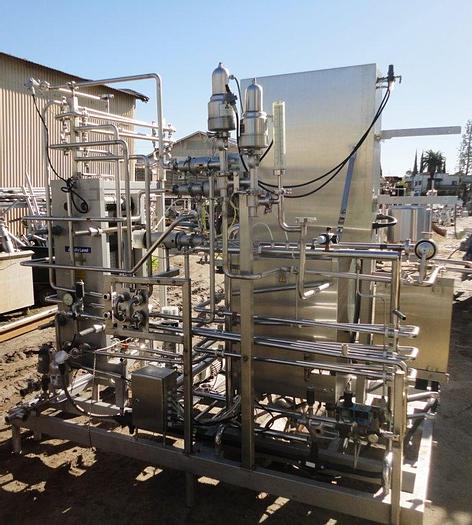

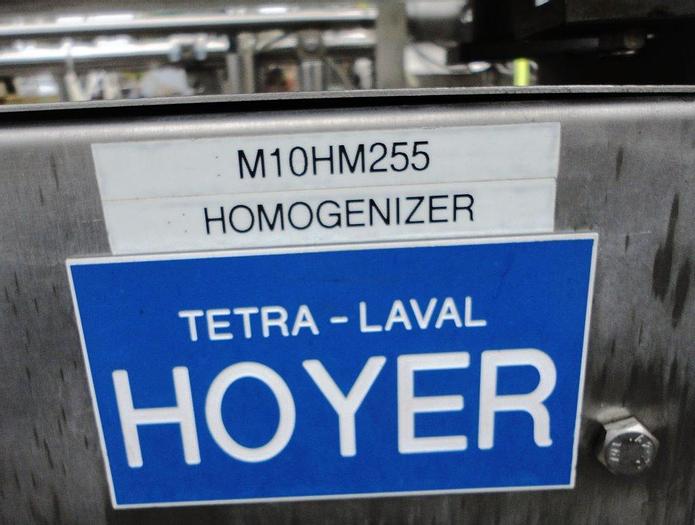

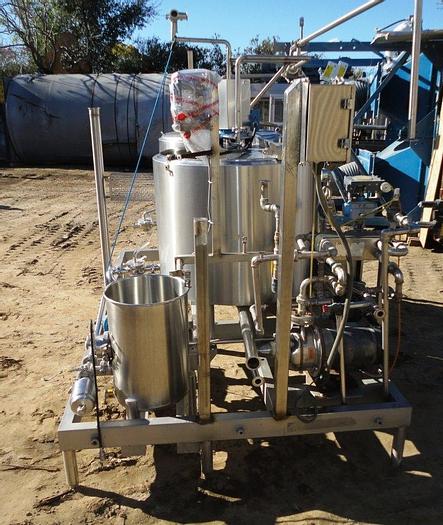

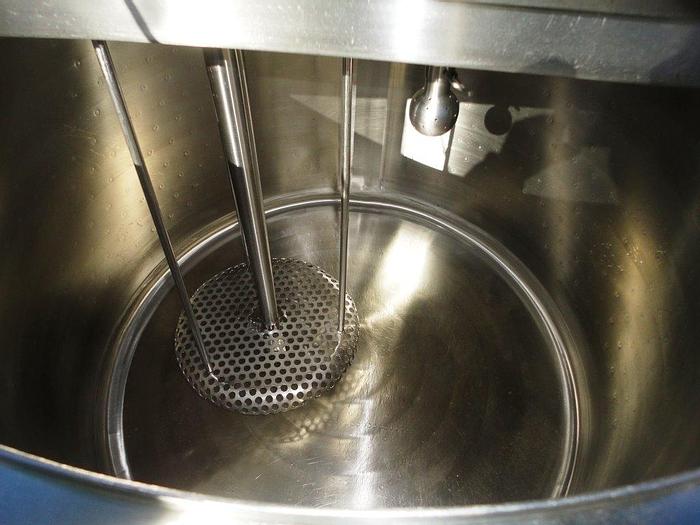

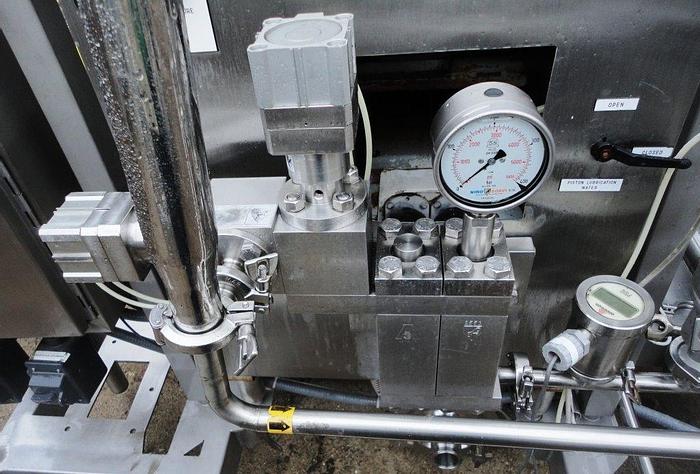

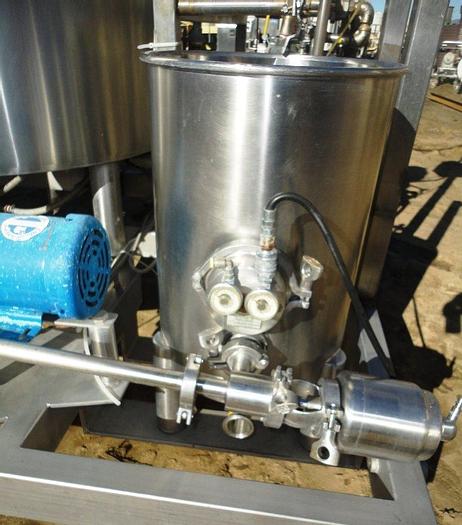

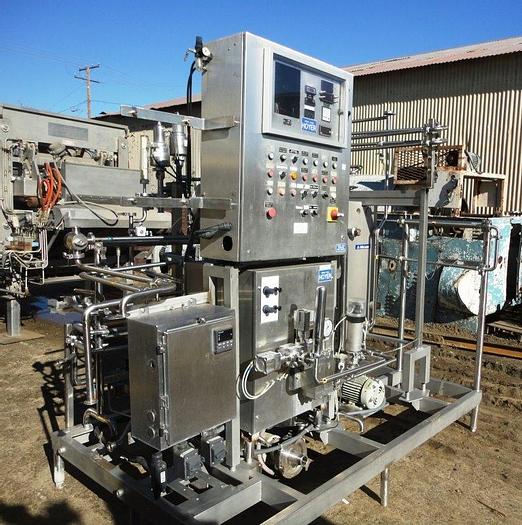

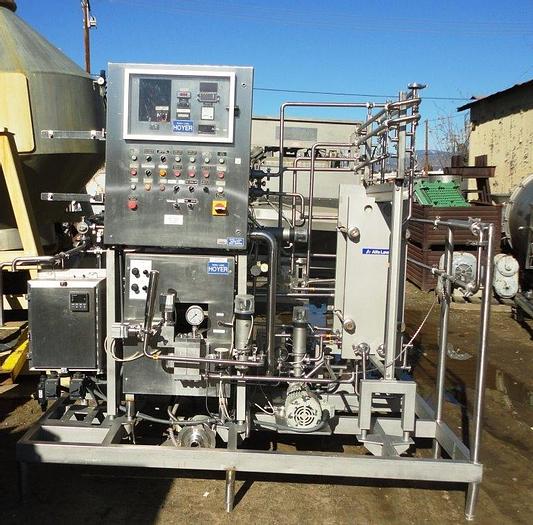

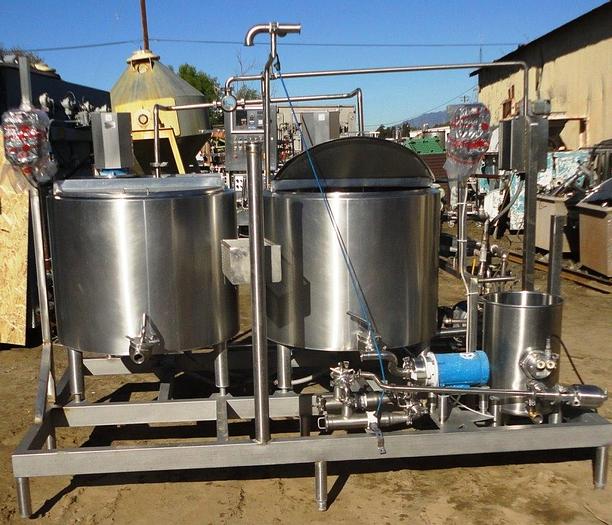

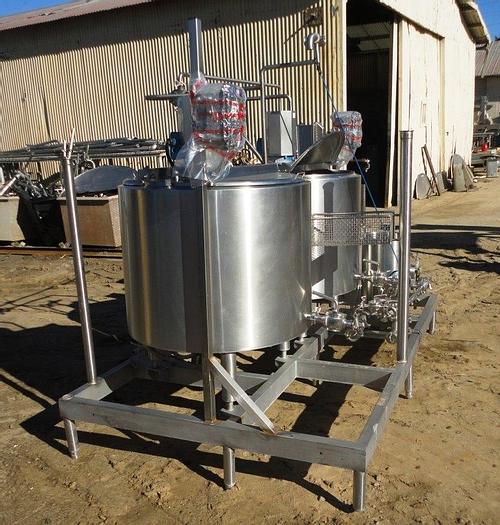

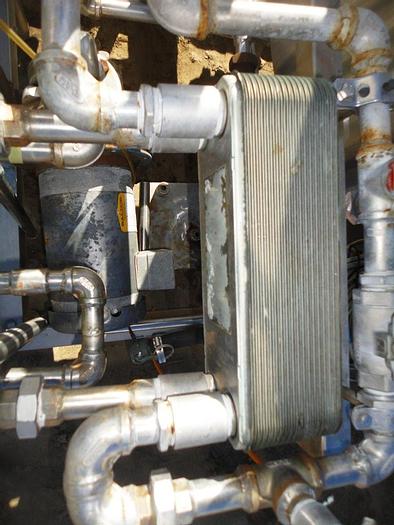

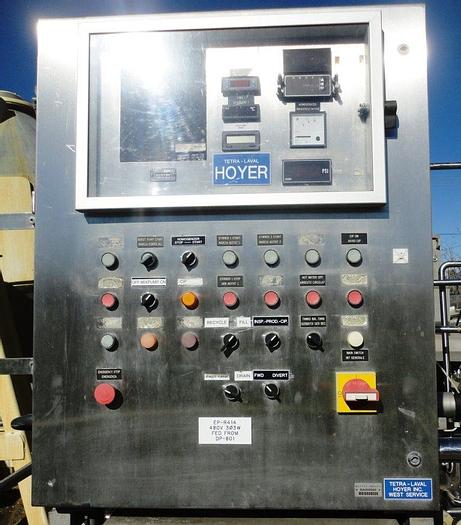

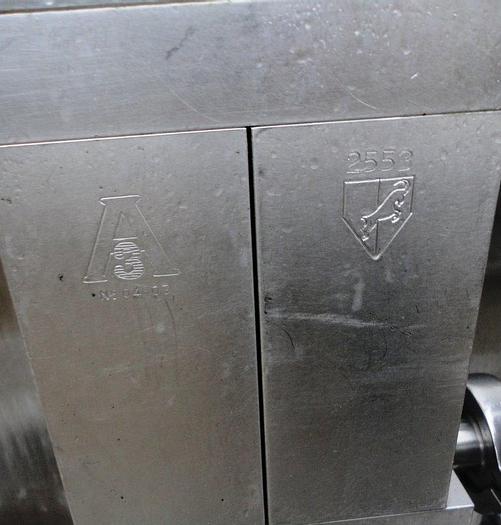

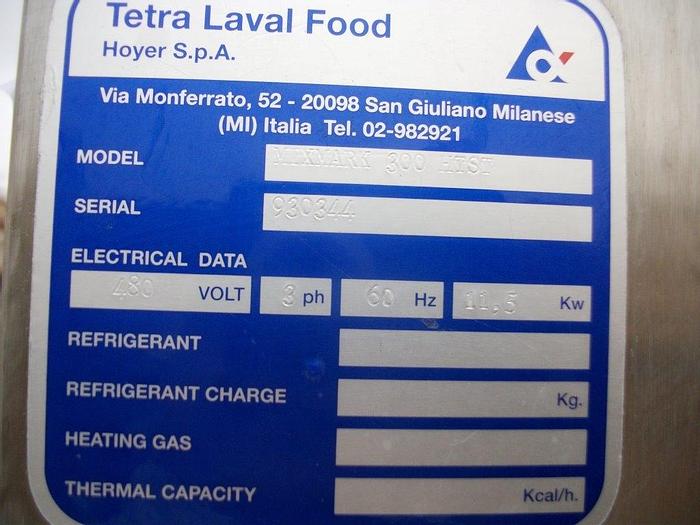

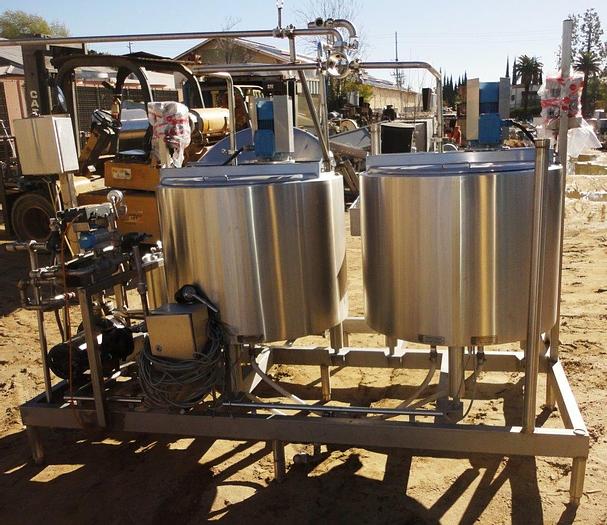

Tetra Laval Model MIXMARK 300 HTST pilot plant pasteurizer system, 3A dairy grade stainless steel, 300 liter/hr capacity, previously used at dairy operation, serial # 930344. Skid mounted system. Skid 1 is complete with Niro Soavi model NS 2006-A sanitary 2-stage homogenizer with 1" inlet/outlet, rated for up to 200 bar (3,000 PSI), serial# 2553; Alfa Laval stainless steel heat exchanger, type CLIP6RM, 3 sections; 13-33-9 plates, serial# 30100-40781. Also includes (2) stainless steel centrifugal pumps, electrical panel, etc. Second skid includes (2) 95 gallon stainless steel pasteurization tanks with sloped bottom, measuring 33" diameter x 25" high, top entering agitation, driven by 3 HP motor, driving 1-1/2" diameter x 22" long shaft, 4" diameter propeller; (2) centrifugal pumps; (1) 10 gal rec tank 13" x 20", (1) small heat exchanger with 35 plates. Rated for 480V, 3 phase, 60Hz, 11.5 kW. System new in 1993. In working condition when removed from service.

Specifications

Stock NumberC741676
ManufacturerTetraPak
ModelMIXMARK 300 HTST
Year1993
BasisFOB
