Reactor, 158.50 Gallon, 304L S/st, 36" X 36", 90 PSI, #L743755

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberL743755
ManufacturerPrecision Stainless
ModelMB610P55
Year1988
Serial Number8596-2
Gallons158.5
Materials of Construction304L Stainless Steel
Internal Pressure25 PSI @ 400 deg. F.
Jacket Pressure90 PSI @ 400 deg. F
HP0.75
BasisFOB

Description

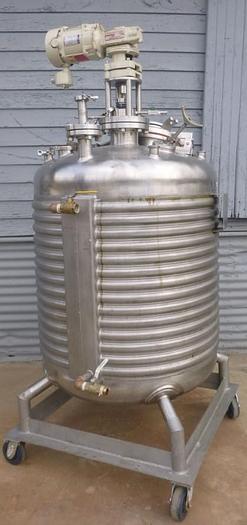

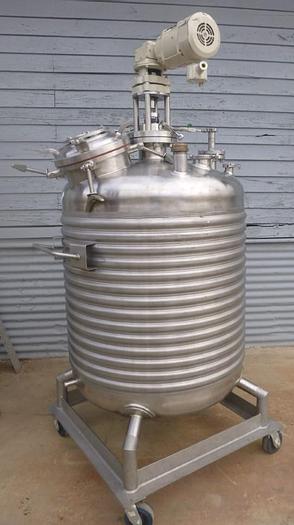

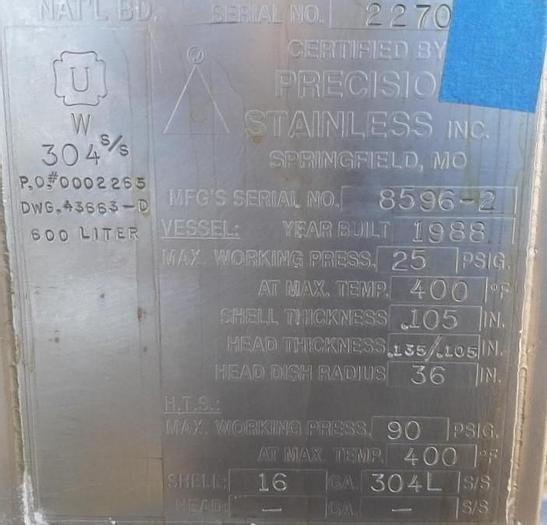

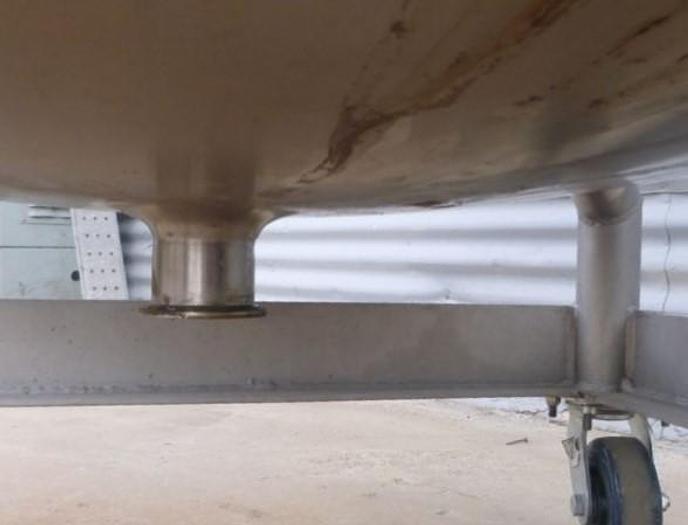

Precision Stainless Pressure Tank, 600 Liters (158.50 Gallons), 304L Stainless Steel, vertical, 36" diameter x 36" straight side, dished top and bottom heads. Vessel maximum working press 25 PSIG at 400 degrees Fahrenheit, HTS: maximum working press 90 PSIG at 400 degrees Fahrenheit. Top entering Lightnin agitator, Model MB610P55, shaft size 1" X 48" long with 10"dimeter propeller, 3/4 HP, 230/460 Volts, 1725 RPM, 60 Hz, 3-Phase, Openings: top 12", (3) 1-1/2" tri-clamp, (2) npt female, (1) 3" Tri-clamp; 1-1/2" center bottom outlet, Mounted on 4 stainless steel legs with casters. Serial number 8596-2. National Board Number 2270. Built in 1988.
