Mixer, Ribbon, 75 CF, C/St, Scott, Hopper, Dust Collector, #S741694

Mixer, Ribbon, 75 CF, C/St, Scott, Hopper, Dust Collector, #S741694

Location:Chowchilla, CA

Available quantity:1

Description

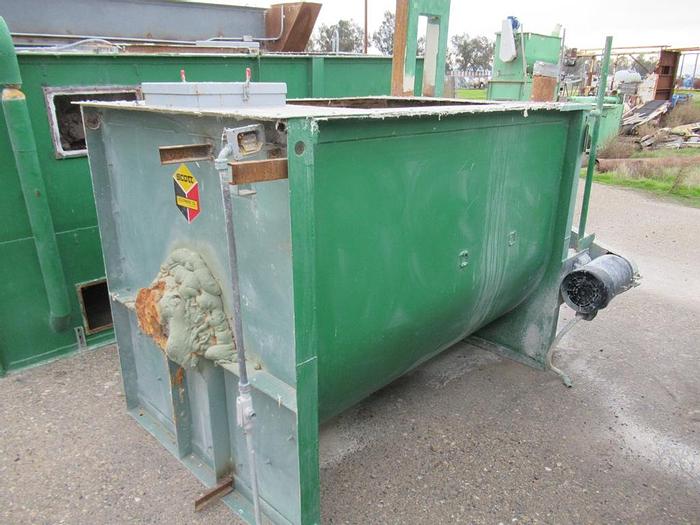

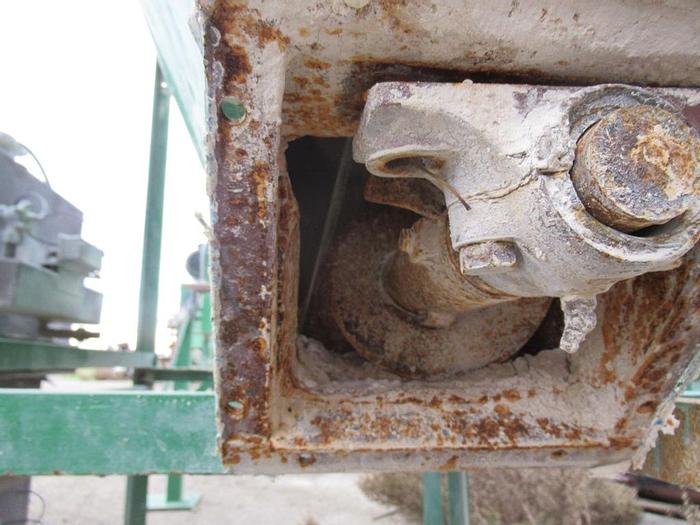

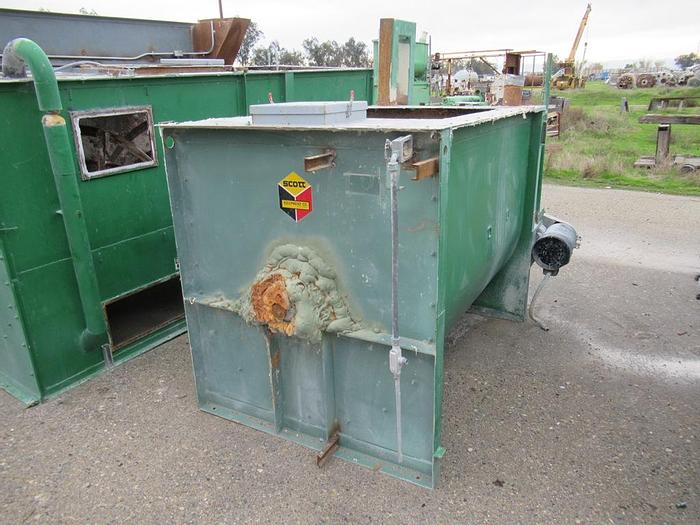

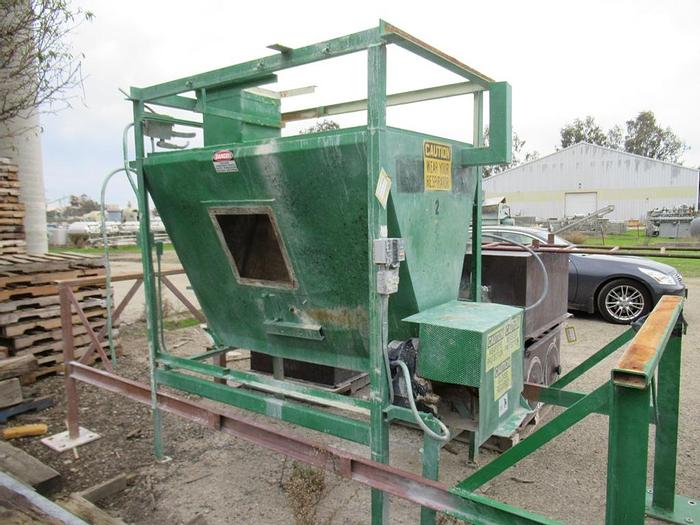

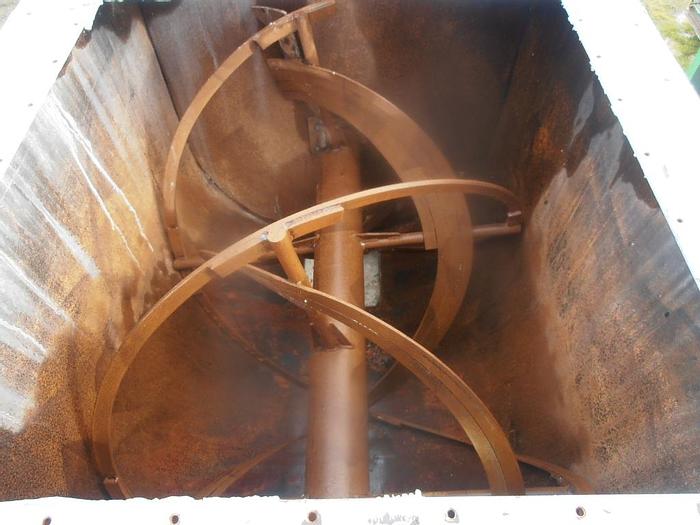

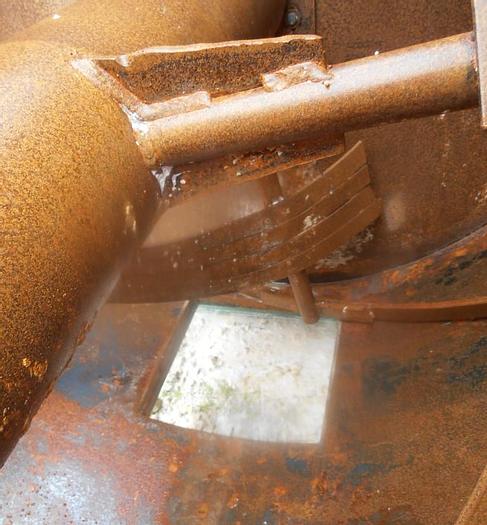

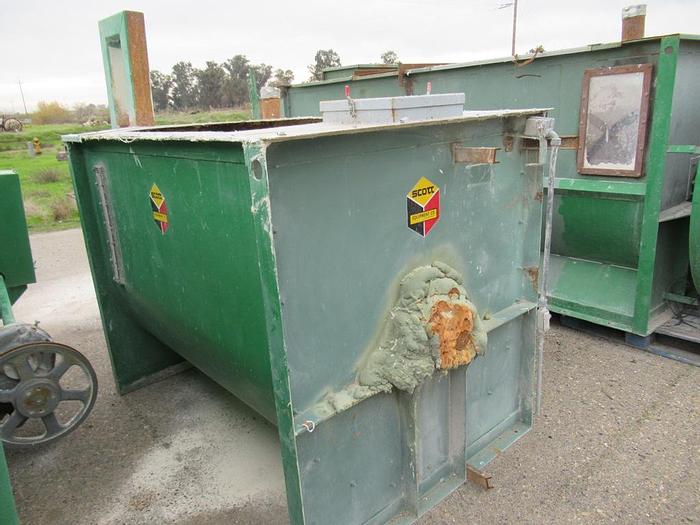

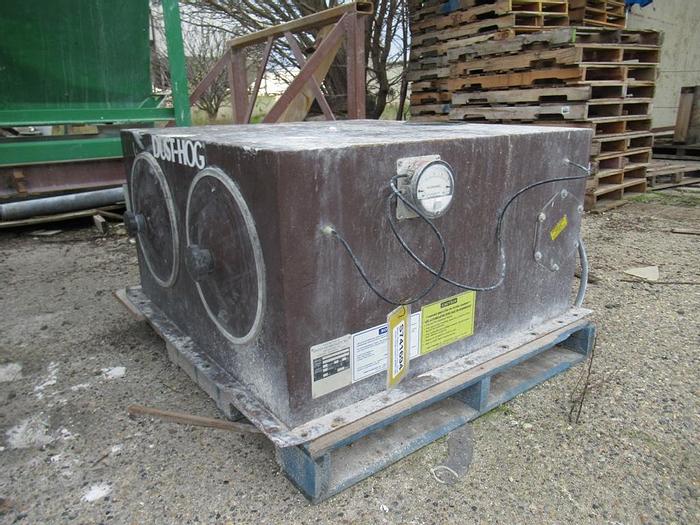

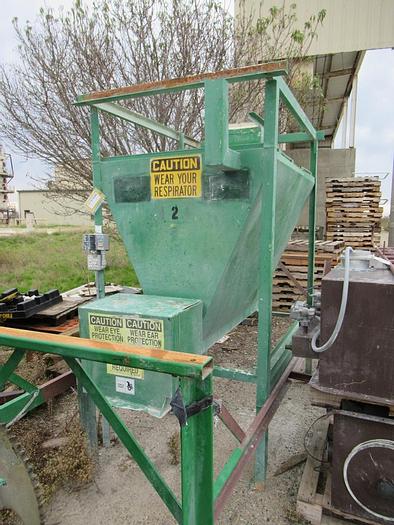

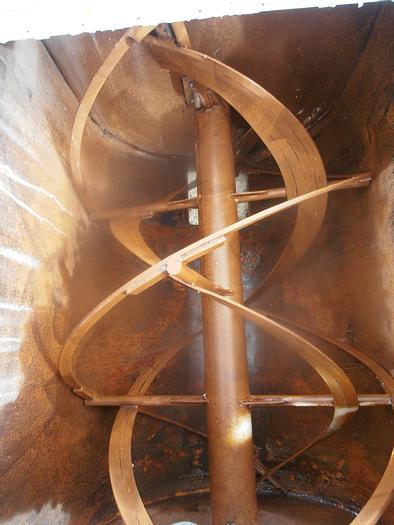

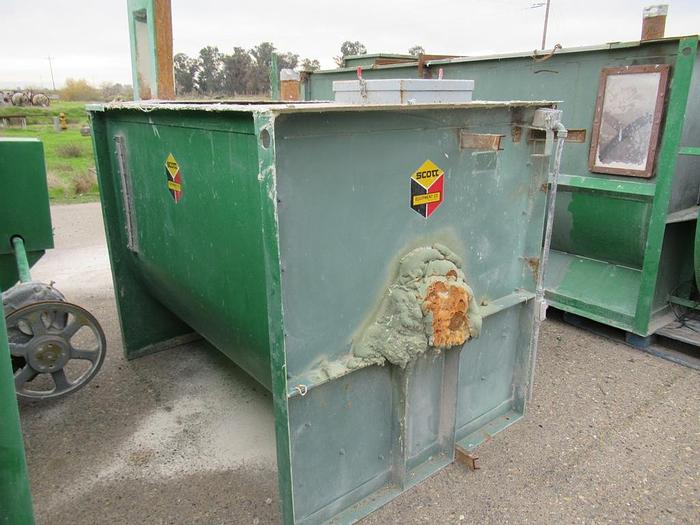

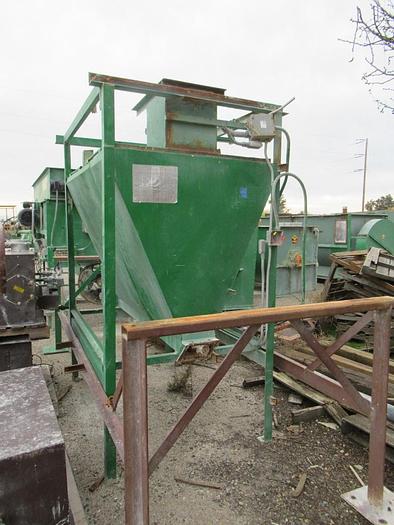

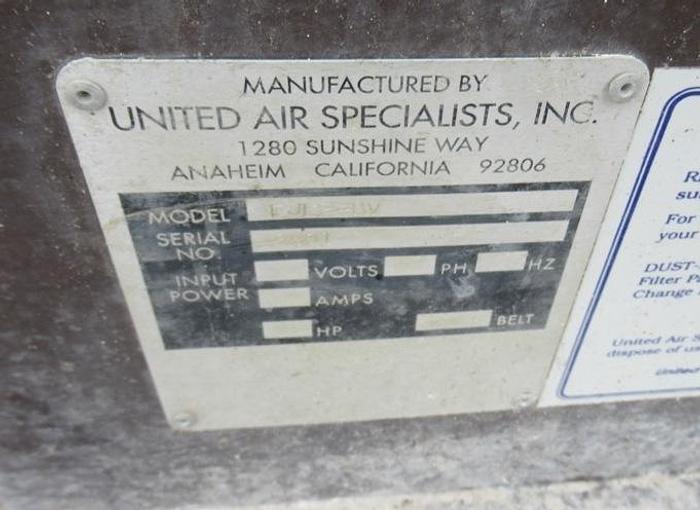

Scott double ribbon mixer with surge hopper and dust collector, carbon steel construction. Mixing trough measures 48" wide X 6' long, approximately 75 cubic feet capacity. Outer ribbon measures 1-1/2" wide x 1/2" thick, inner ribbon measures 3" to 4.5" wide x 1/4" thick, ribbon assembly driven by 10 HP, 208-230/460V, 1740 RPM motor thru gear reducer. Top includes covers and opening for Dust Hog bin vent dust collector, bottom includes 14" x 14" flanged end bottom discharge. Mixer sits on top of surge hopper measuring 72" long x 44" wide x 60" deep with 6" diameter bottom mounted screw, and 8" x 8" flange discharge, screw driven by 1 HP motor. Dust Hog is a model FJL-BV, 2-cartridge dust collector. Last used in seed coating operation. Good condition.

Specifications

Stock NumberS741694
ManufacturerScott
ModelFJL-BV
Cubic Feet75
HP10
Materials of ConstructionCarbon Steel
BasisFOB

General Information

Scott ribbon mixer with a surge hopper and dust collection system, crafted for precision mixing in seed coating or bulk material processing. The carbon steel construction, efficient discharge options, and integrated Dust Hog system make it a go-to solution for demanding applications.
