Bin, Bin Bottom, 2 Screw, 12" X 10' Screws, (2), 3 HP, #C104635

Sold

Bin, Bin Bottom, 2 Screw, 12" X 10' Screws, (2), 3 HP, #C104635

Available quantity: 1

Brisbane, CA

Description

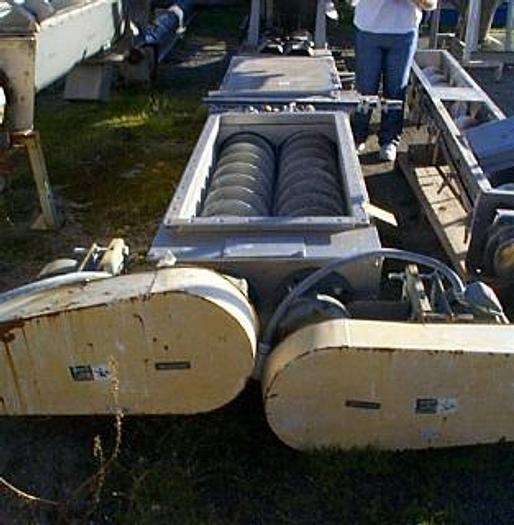

Stainless steel bin bottom, with (2) 12" diameter x 10' long stainless steel screws. Screws are each driven by independent 3 HP, 1730 RPM, 230/460V, 3/60Hz motor thru Dodge shaft mounted gear reducer with 24.71:1 ratio through v-belt assembly (13" sheave & 4" sheave). Includes 24" x 50" long flange opening and stainless steel cover along the rest of screws. Product discharges out 12" x 36" end bottom flanged opening.

Specifications

Stock NumberC104635
Screw Dimensions12" x 10' Long (x2)
Materials of ConstructionStainless Steel
BasisFOB
Previous UseTitanium Dioxide
