Oven, Belt, 32" X 16', EFS, Mdl FTO-3216, Gas-Fired, S742510 #S742510

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS742510
ManufacturerEFS Inc.
ModelFTO-3216
ConditionUsed
Serial Number2010-08-1
Inlet and Outlet4-.75" inlet and 2.75" outlet
HP2
BasisFOB

Description

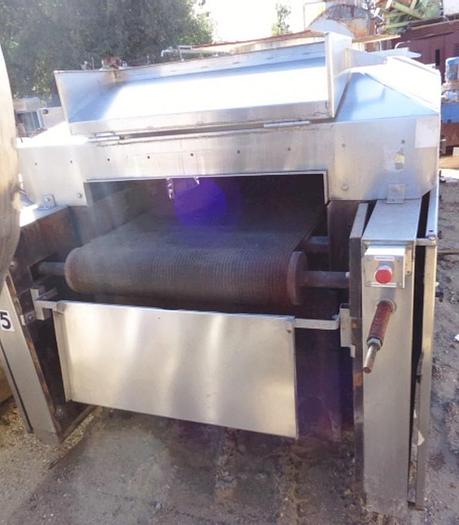

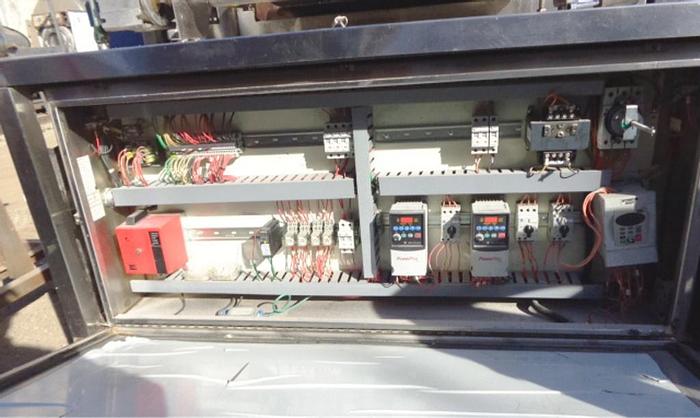

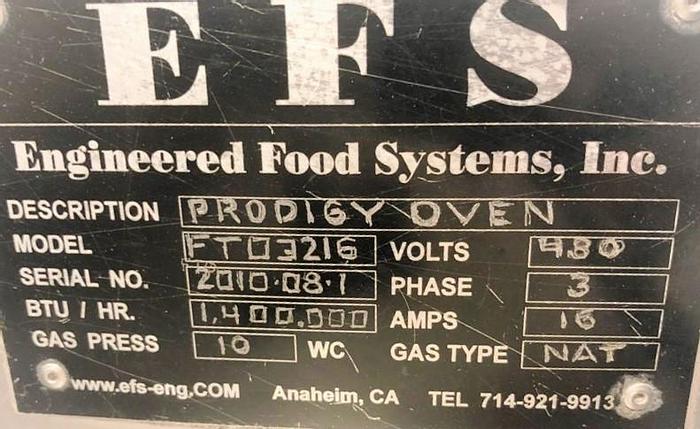

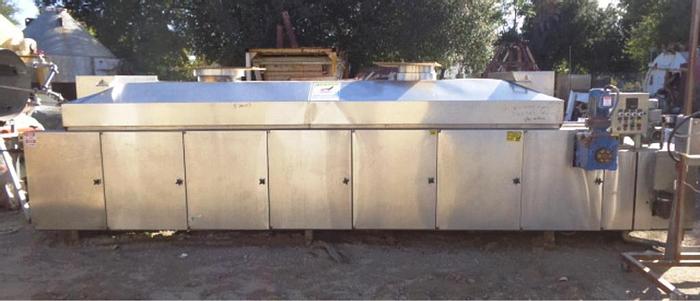

EFS Inc Prodigy, Model FTO-3216, serial number 2010-08-1, direct fired natural gas single pass oven, 1,400,000 BTU per hour, 32" wide x 16' long compound weave wire mesh oven conveyor, includes (5) top and (11) bottom infrared burners, Gas pressure 10 WC (water column), 480 Volts, 3-phase, 60 Hz, 16 AMPS with Sumitomo drive at 179:1 ratio, 2 HP, 9.78 RPM output, 30" wide x 28" long, balanced weave wire mesh transfer conveyor with 1/2 HP gear drive, drive control/flame sensor/temperature panel, LH operator switch control panel, 3 HP blower to burner proportioning system, insulated hood, doors and cladding/tunnel enclosure, hood lift drive assembly, HD frame construction. Set up for 2-3/4" inlet & outlet clearance, Max clearance: 4-3/4" inlet & 2-3/4" outlet. Previously used in flatbread operation.
