Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI

Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-1 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-2 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-3 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-4 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-5 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-6 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-7 Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI-8

Heat Exchanger, Shell & Tube, 88 SF, 316 S/st, FV, 150 PSI

Stock Number :
S742982
Location:
San Dimas, CA
4 4
,
1/ 5stars
Description:

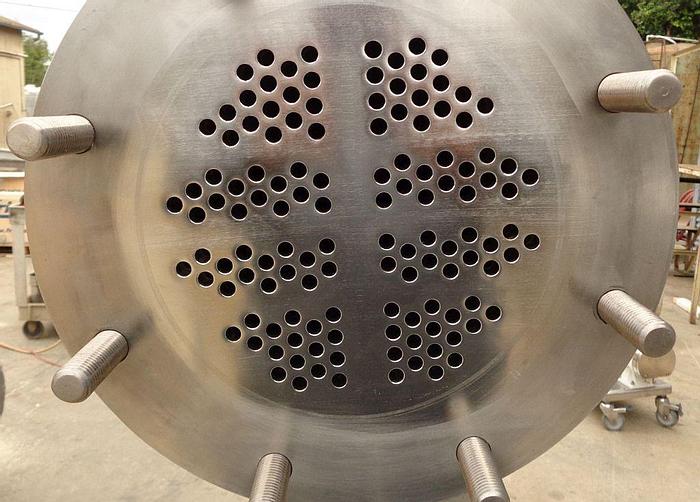

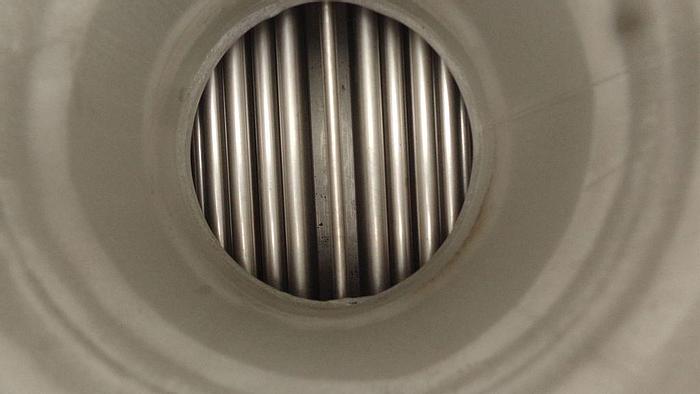

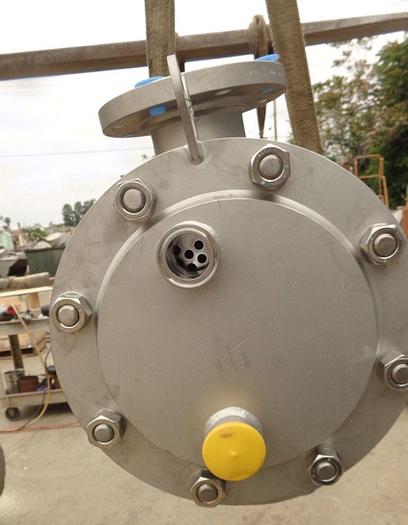

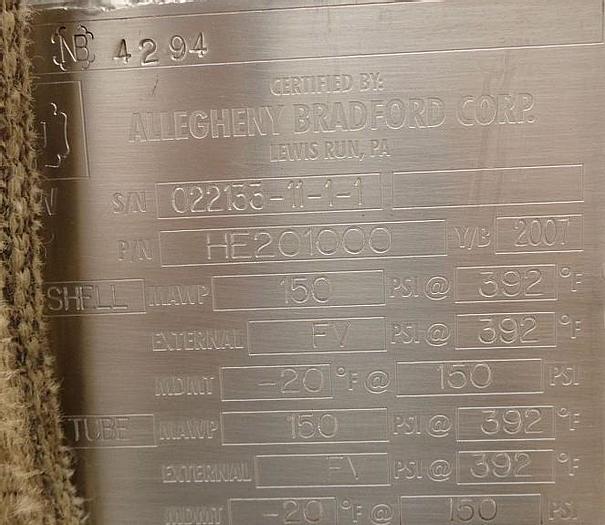

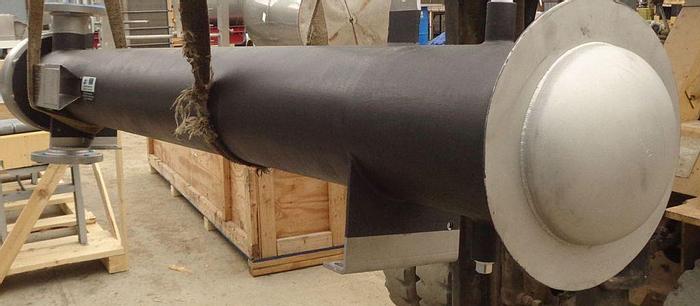

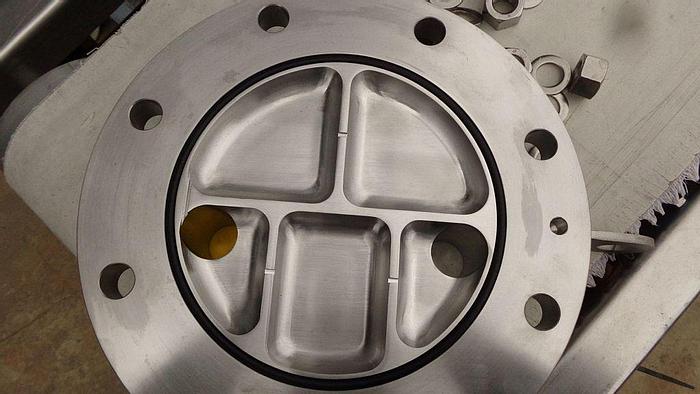

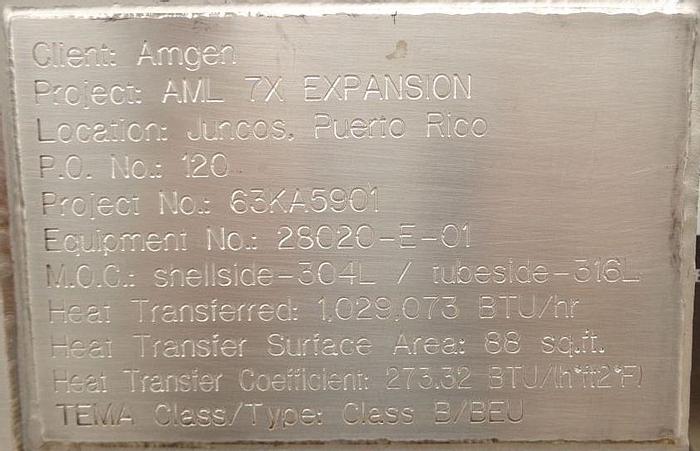

Unused Allegheny Bradford Model number HE201000, 8-Pass, Stainless Steel Shell and U-Tube Heat Exchanger, Heat transfer surface area 88 square feet. Vacuum Rated Sanitary Construction. 316 Stainless steel Tubes rated for 150 PSI / Full Vac at 392 degrees Fahrenheit to minus 20 degrees Fahrenheit. Includes 304 Stainless steel shell, rated for 150 PSI / Full Vac at 392 degrees Fahrenheit to minus 20 degrees Fahrenheit. Shell is insulated measuring 8" outside diameter, 6" diameter Shell x 7'6" Length. Shell has (2) 4-1/2" Flange openings. Includes (128) Tubes measuring approximately 5/16" outside diameter, with (2) 1-1/2" Tri-Clover fittings. National Board number 4294, serial number 022133-11-1-1, New in 2007. Received from pharmaceutical operation.
