Tank, 500 Gallon, S/st, Agit, Admix Rotomixx, 1 HP #S744587

Available quantity

1

Location

Chowchilla, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberS744587
Gallons500
Measurements48" diameter X 60" straight side
HP1
Materials of ConstructionStainless Steel

Description

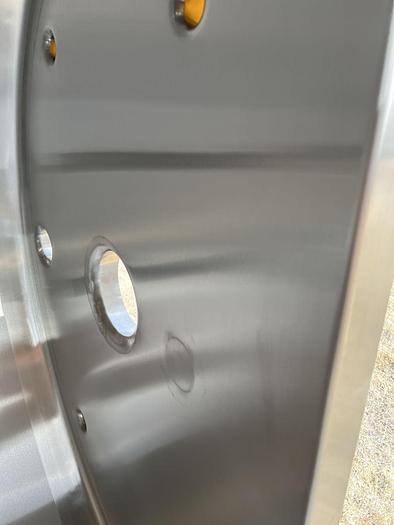

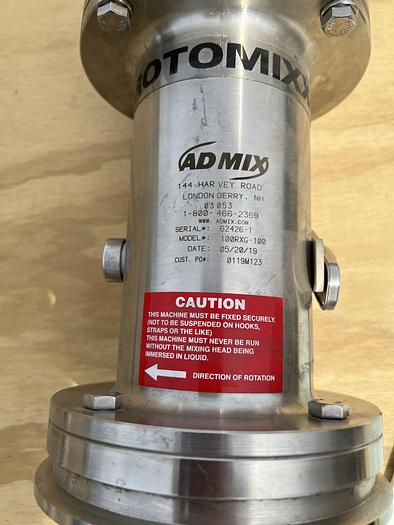

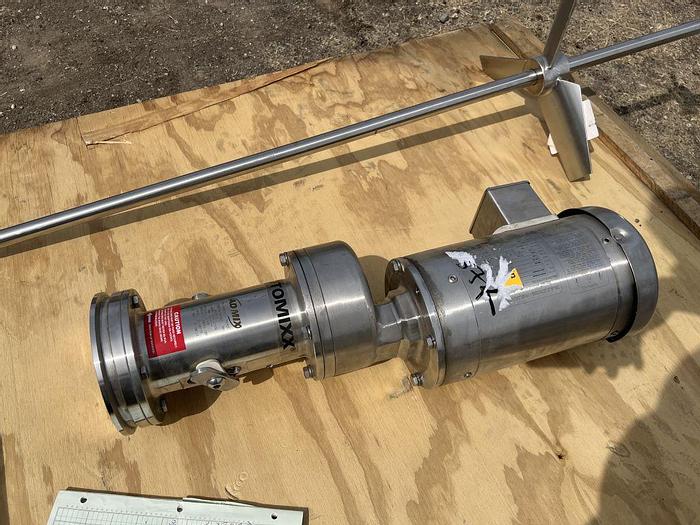

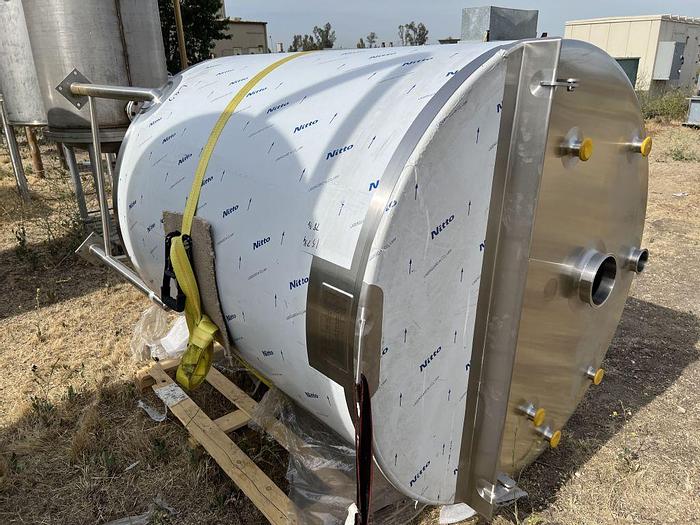

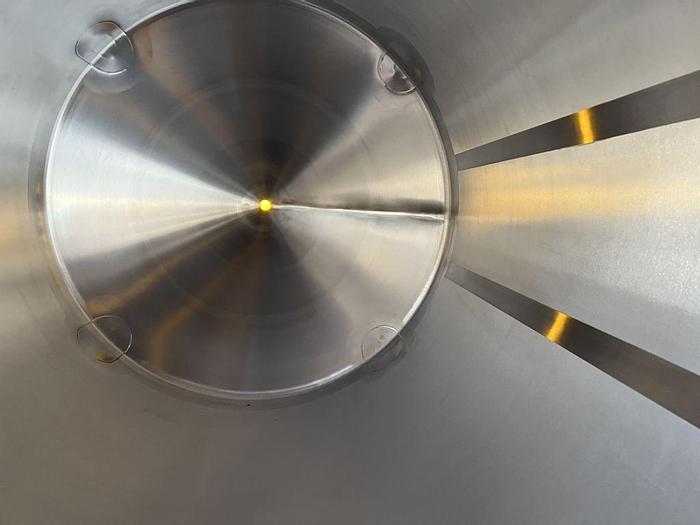

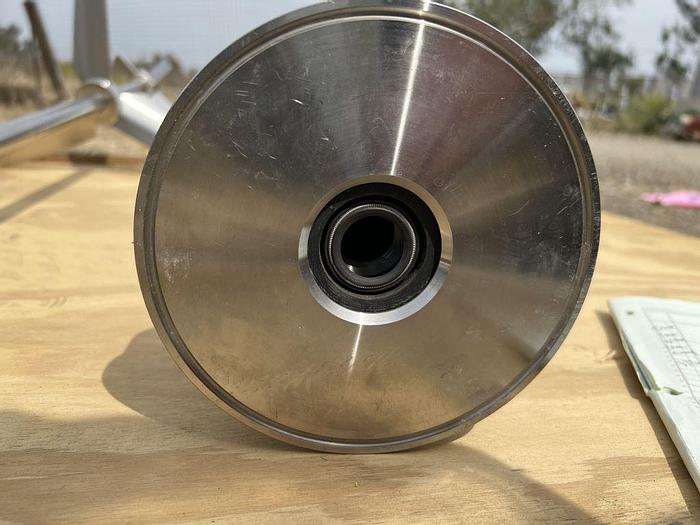

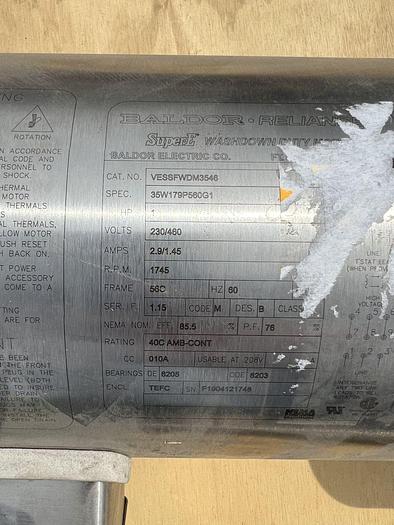

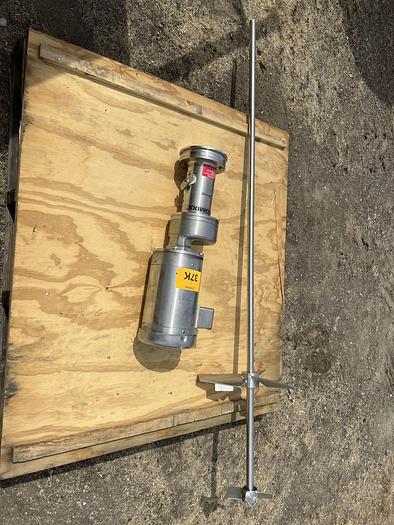

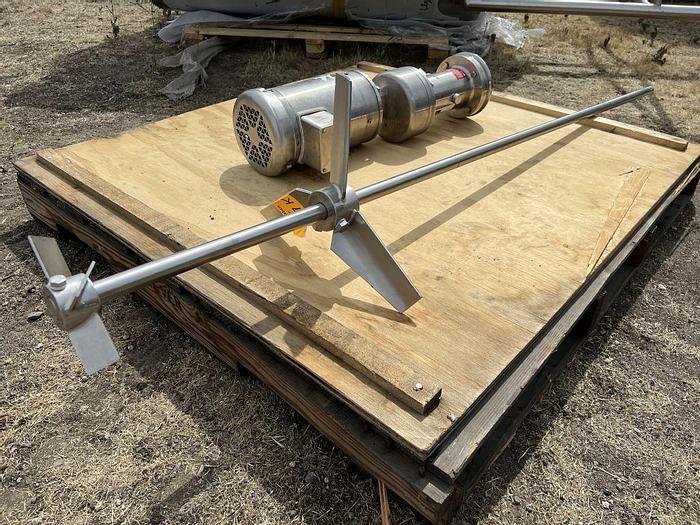

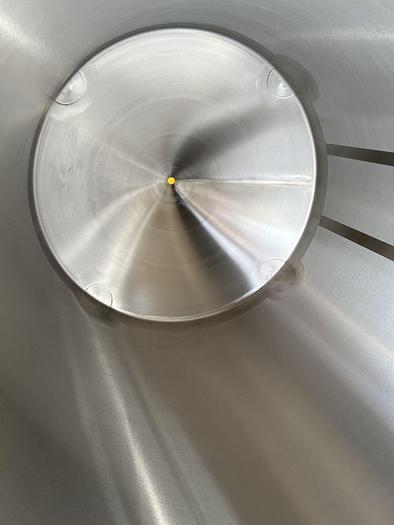

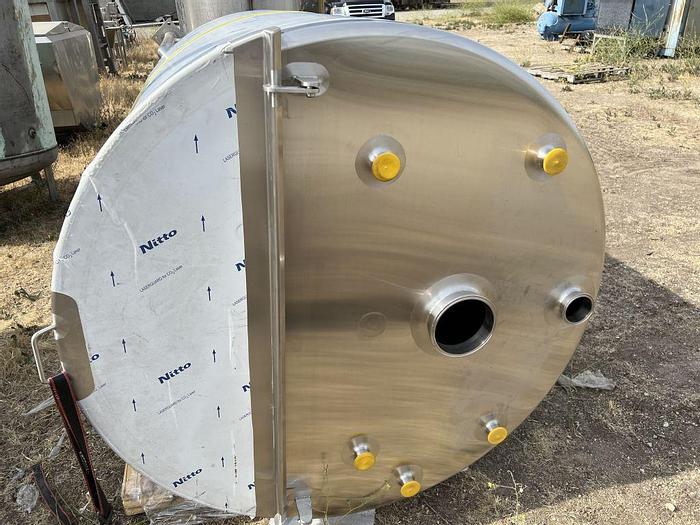

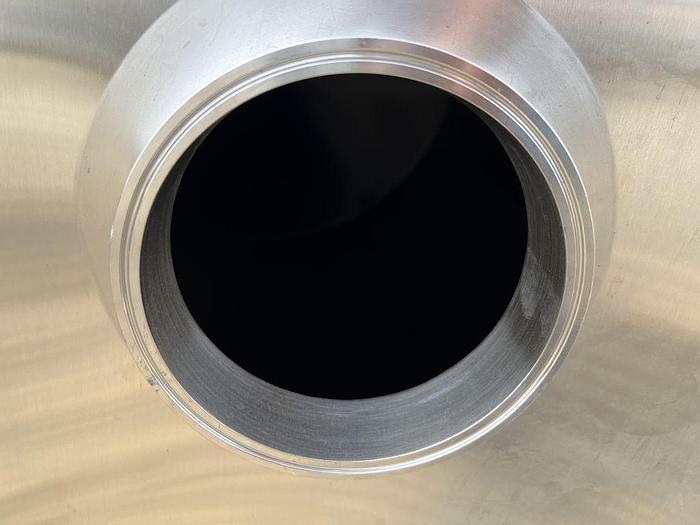

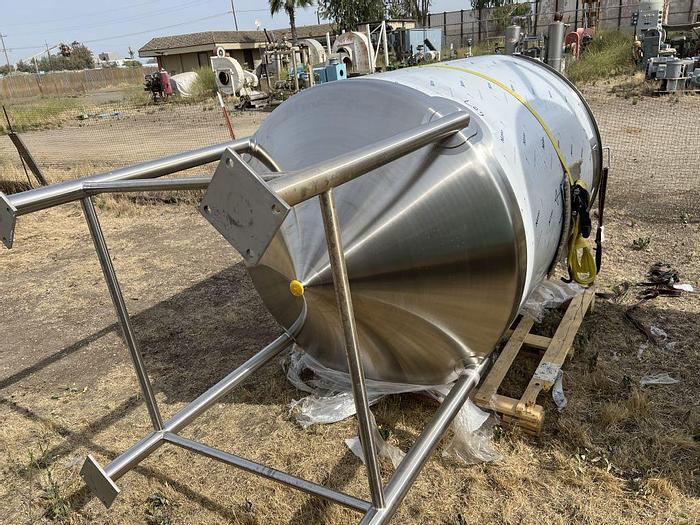

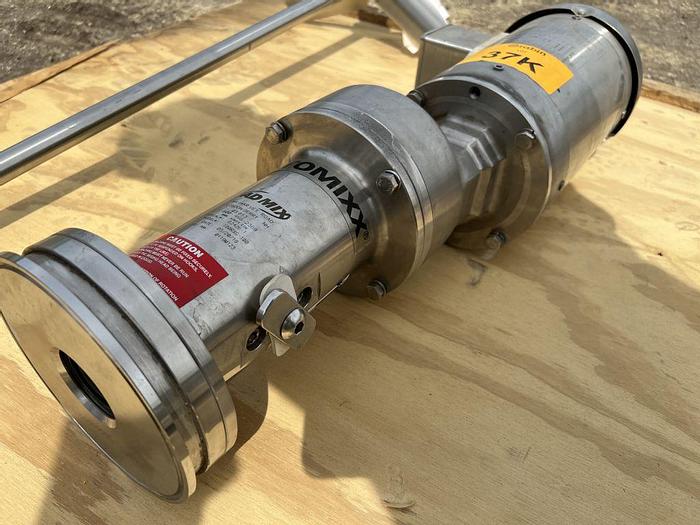

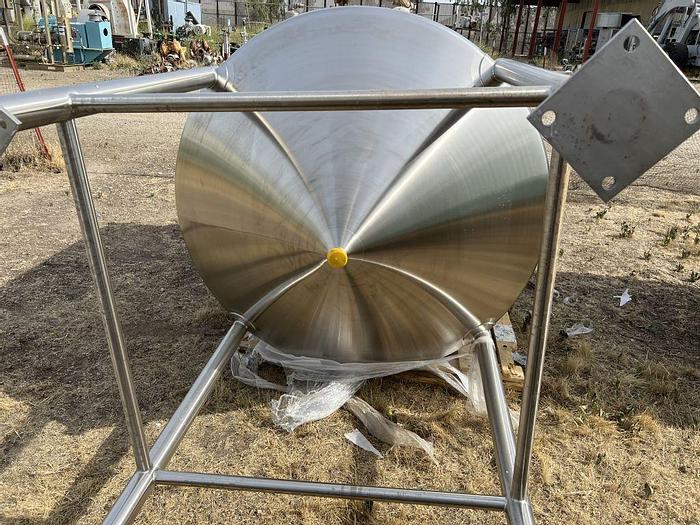

Stainless Steel 500-Gallon Agitated Tank with Admix Rotomixx low shear batch mixer. Vessel measures 48" diameter X 60" straight side, plus cone bottom, leading to 1-1/2" diameter center bottom outlet with tri-clamp connection. Offered with Admix Model 100RXG-100 agitator with clamp connection to 6" diameter top opening. Agitation driven by 1 HP, 230/460V, 1745 RPM, 3/60 motor thru gear reducer, leading to 1" diameter X 72" long stainless-steel shaft with 4-blade paddles at bottom with 6" diameter swing, and 3-blade pitched turbine blades along shaft with 14" diameter swing. Mounted on (4) stainless steel pipe legs, approximately 24" clearance from discharge to floor. Top head includes partial hinged lid, 6", 3" and (5) 1-1/2 diameter inlets. Appears unused.


Admix Manufacturer specifications:

  • Drive type - Helical gear reduction
  • Output speed - 235 to 851 RPM
