Tank, 158.50 Gallon, 304L S/st, 36" X 36", 90 PSI

Available quantity

1

Location

San Dimas, CA

orCall +1 (415) 467-3400

Specifications

Stock NumberC743751
ManufacturerPrecision Stainless
ModelMB610P55
Year1988
Serial Number8596-2
Gallons158.5
Materials of Construction304L Stainless Steel
BasisFOB

Description

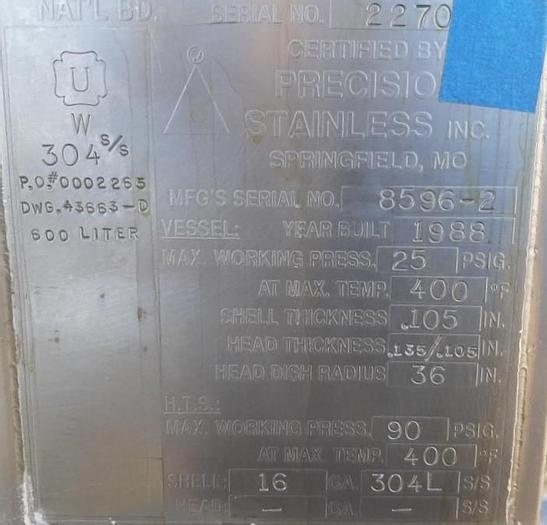

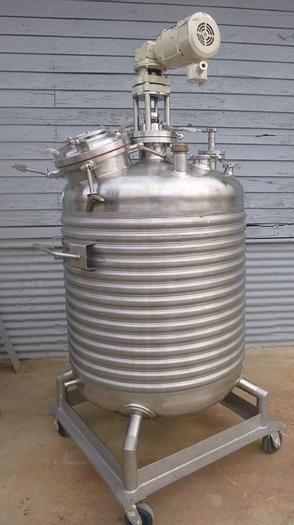

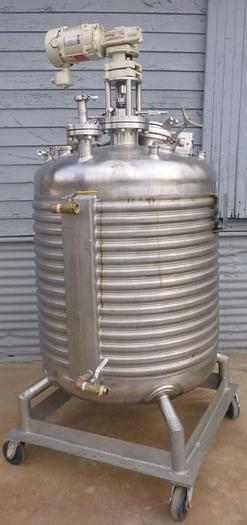

Precision Stainless Pressure Tank, 600 Liters (158.50 Gallons), 304L Stainless Steel, vertical, 36" diameter x 36" straight side, dished top and bottom heads. Vessel maximum working press 25 PSIG at 400 degrees Fahrenheit, Jacket maximum working press 90 PSIG at 400 degrees Fahrenheit. Top entering Lightnin agitator, Model MB610P55, shaft size 1" X 48" long with 10"dimeter propeller, 3/4 HP, 230/460 Volts, 1725 RPM, 60 Hz, 3-Phase, Openings: top 12", (3) 1-1/2" tri-clamp, (2) npt female, (1) 3" Tri-clamp; 1-1/2" center bottom outlet, Mounted on 4 stainless steel legs with casters. Serial number 8596-2. National Board Number 2270. Built in 1988.
