Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP

Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-1 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-2 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-3 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-4 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-5 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-6 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-7 Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP-8

Press, Screw, Vincent, Mdl KP-10, S/st, 5 HP

Stock Number :
S743423
Location:
San Dimas, CA
4 4
,
1/ 5stars
Description:

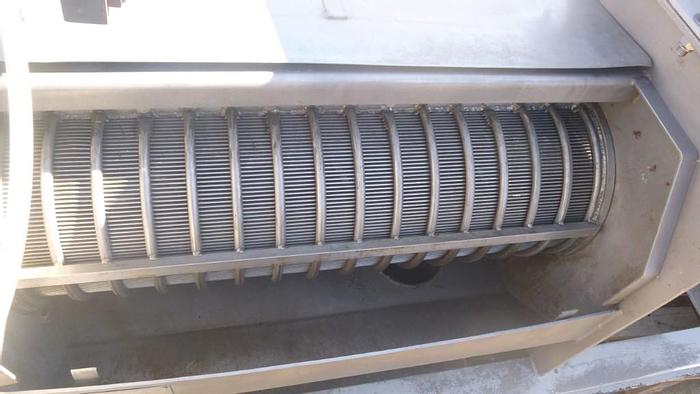

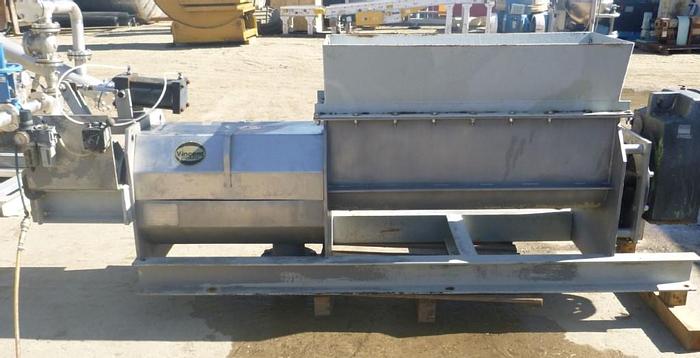

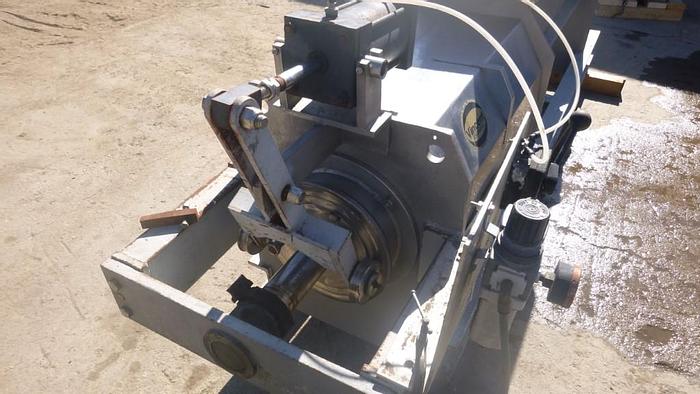

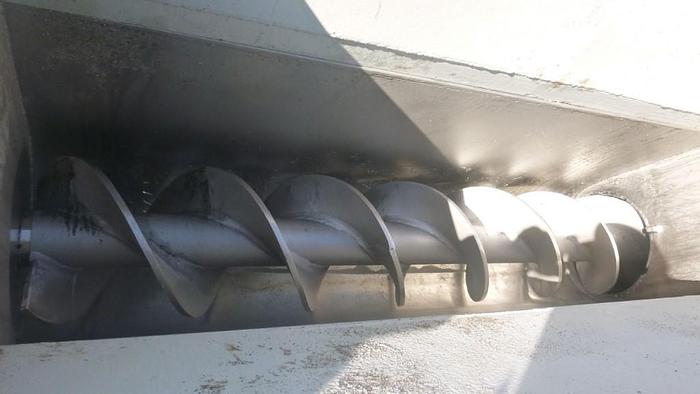

Vincent Model KP10 stainless steel continuous screw press, includes 10" diameter X 74" long auger, driven by 5 HP main motor, 230/460 Volt, 1740 RPM, 3-phase, 60 Hz. Manufacturer Specs: Rated for capacity of 1,500 to 5,000 pounds per hour. Screw speed 17-28 RPM. Includes 3-inch high flights, 12" x 48" top infeed to auger, conveys product to the 30-inch long screen section, which drains to a stainless steel bottom juice collection pan with a 5-1/2" diameter center bottom outlet, Pomace/solids end discharge with pneumatic pressure plate gate adjustable to regulate pressure in the pressing chamber. Serial number 04049-D.
Product Downloads
Blue Prints and Other Information:
