Mixer, Vacuum, Myers, Model V550A-20-40, Dual Shaft Vacuum Mixer, 20 HP & 40 HP XP, Stainless Steel, Jacketed Tank, #5992014
Mixer, Vacuum, Myers, Model V550A-20-40, Dual Shaft Vacuum Mixer, 20 HP & 40 HP XP, Stainless Steel, Jacketed Tank, #5992014
Location:United States
Available quantity:1
Description

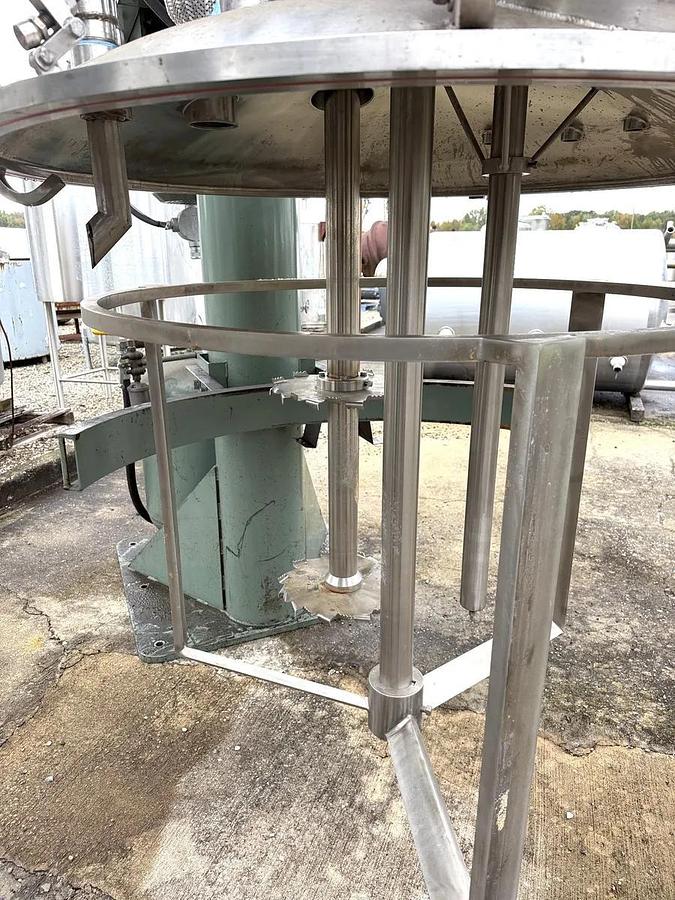

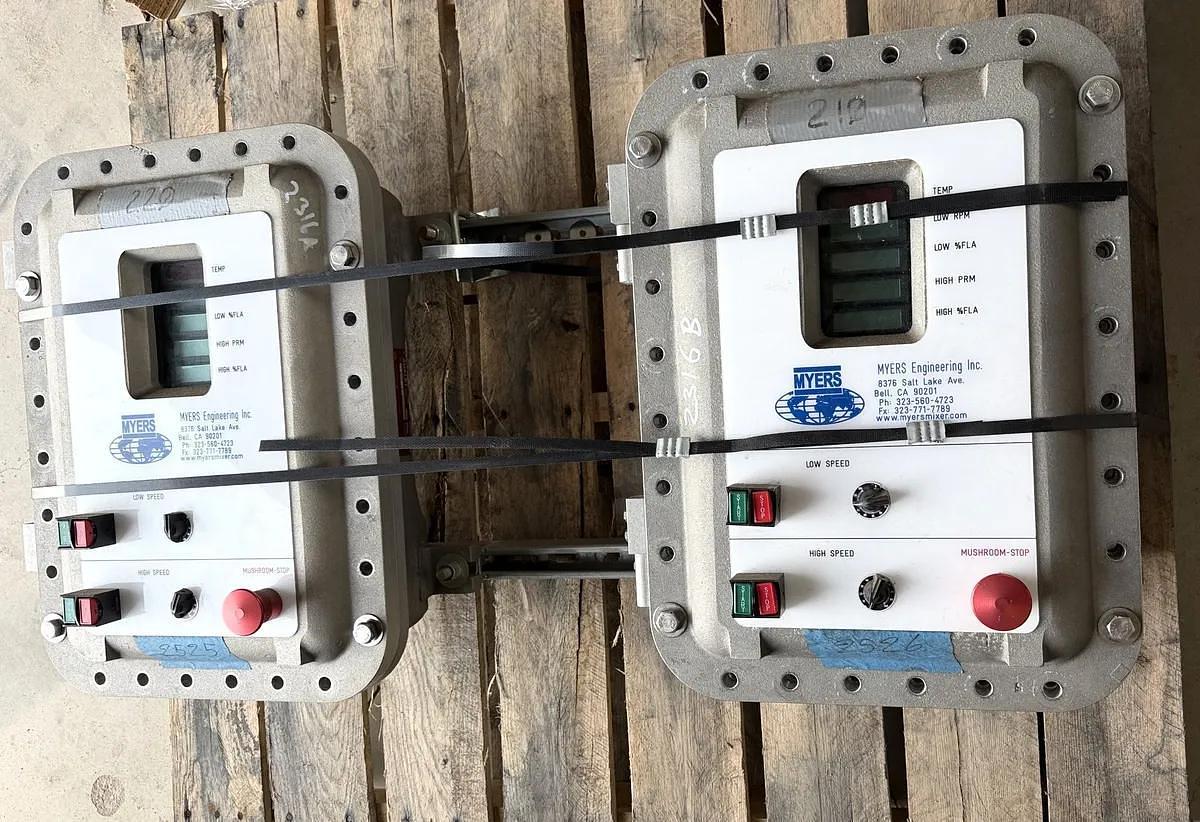

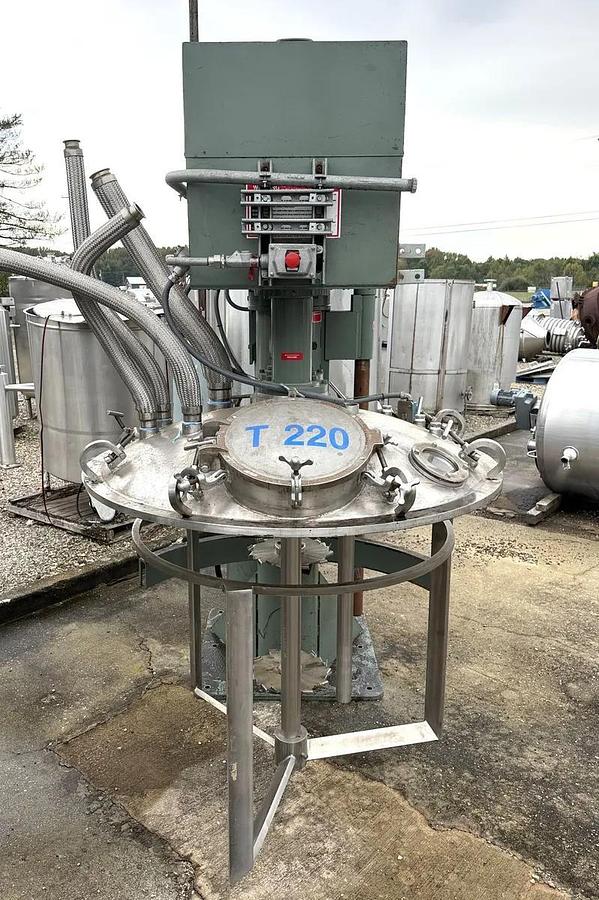

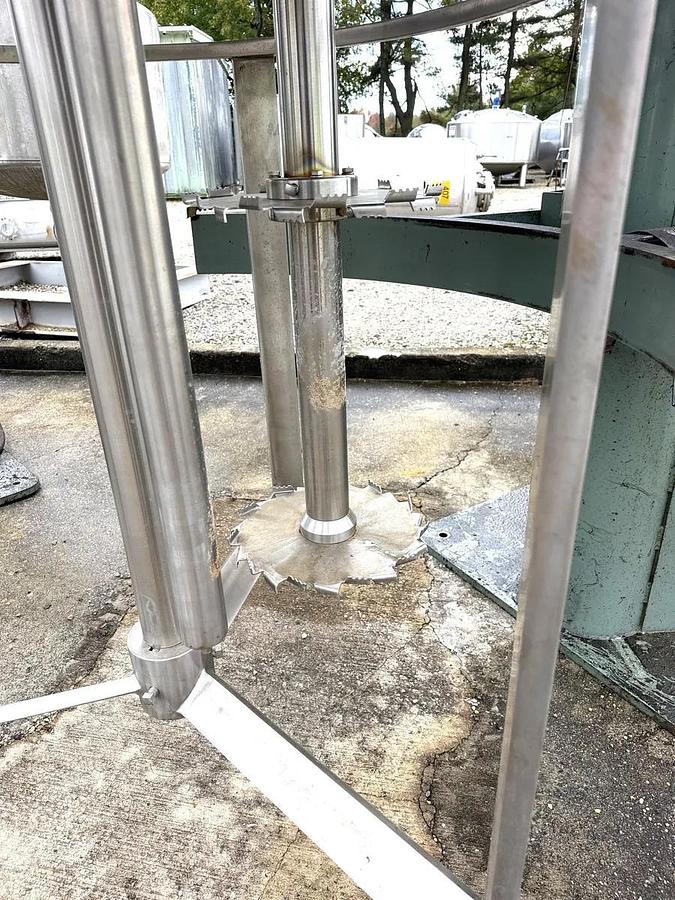

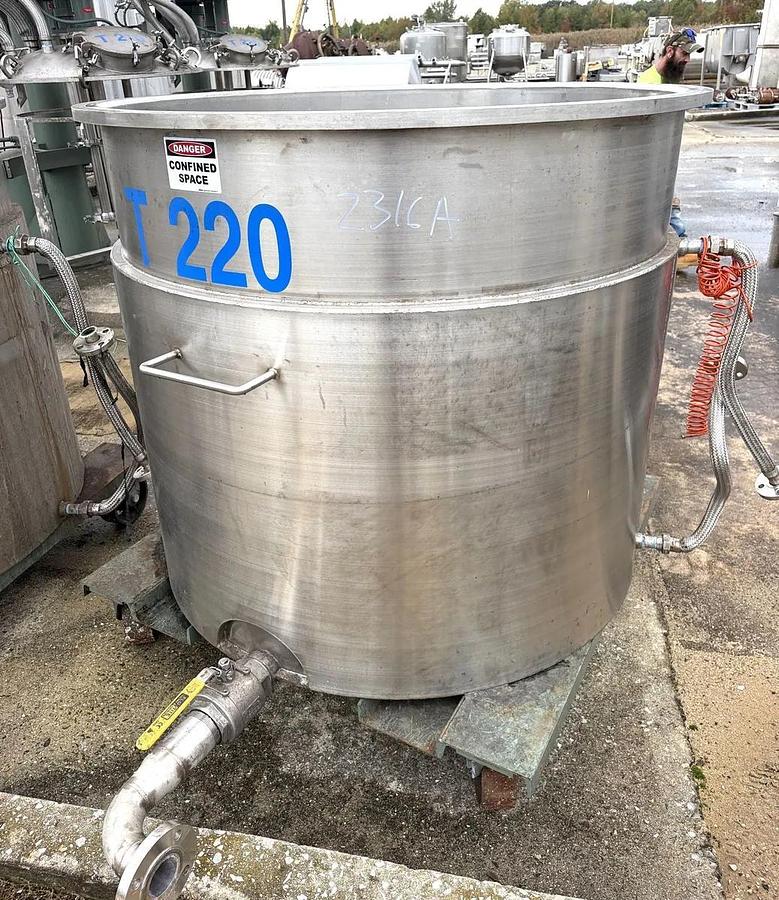

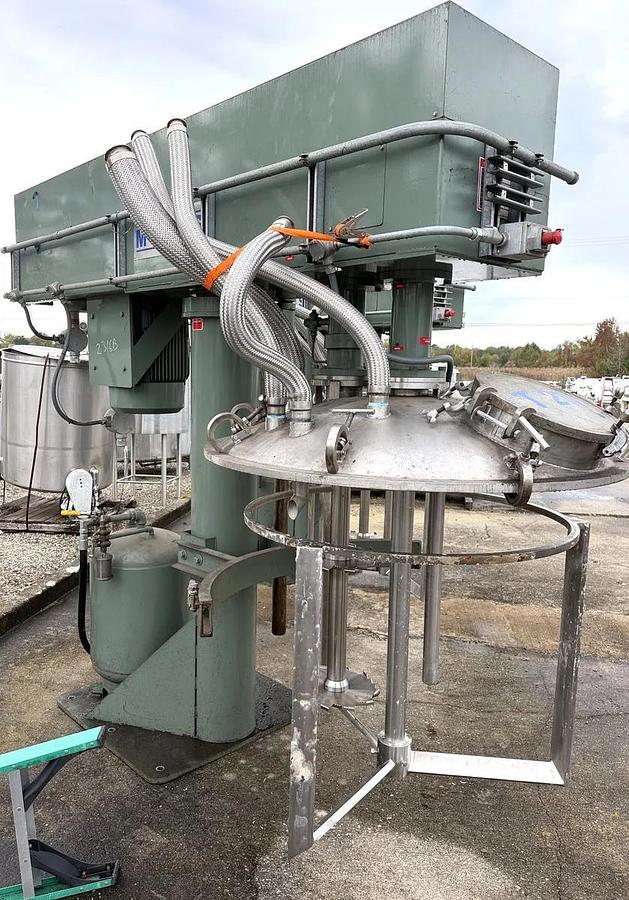

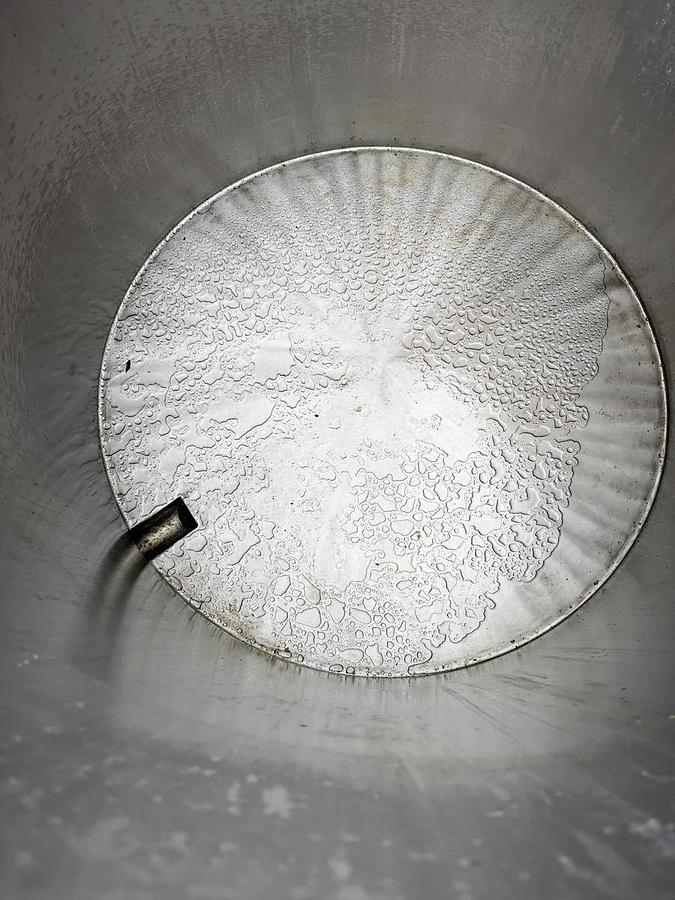

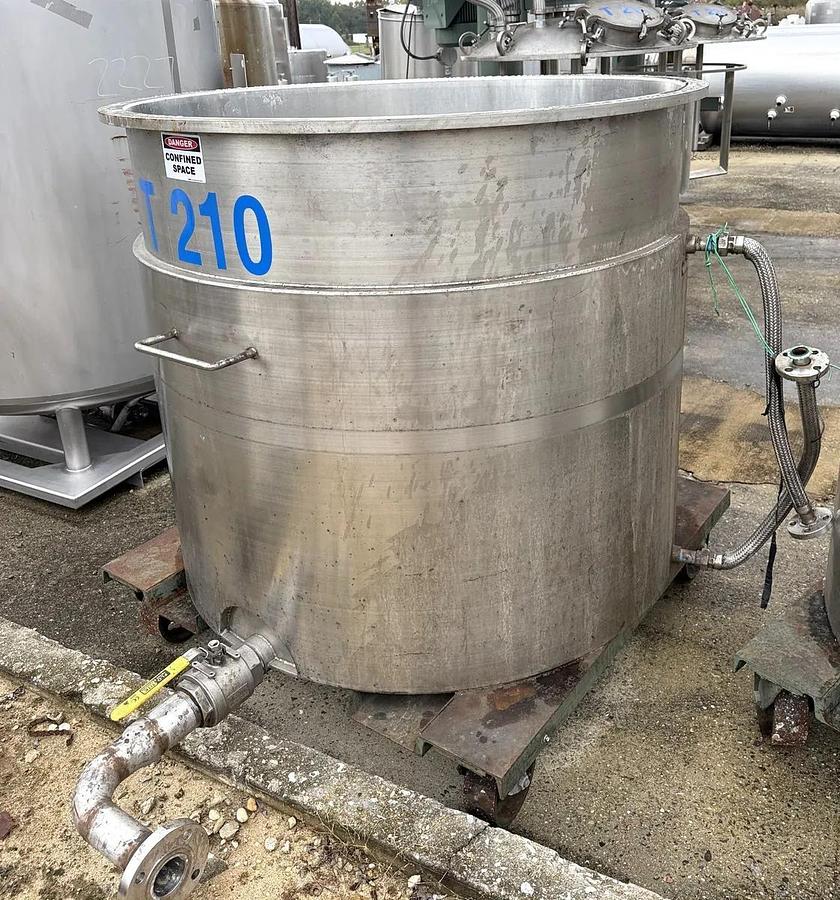

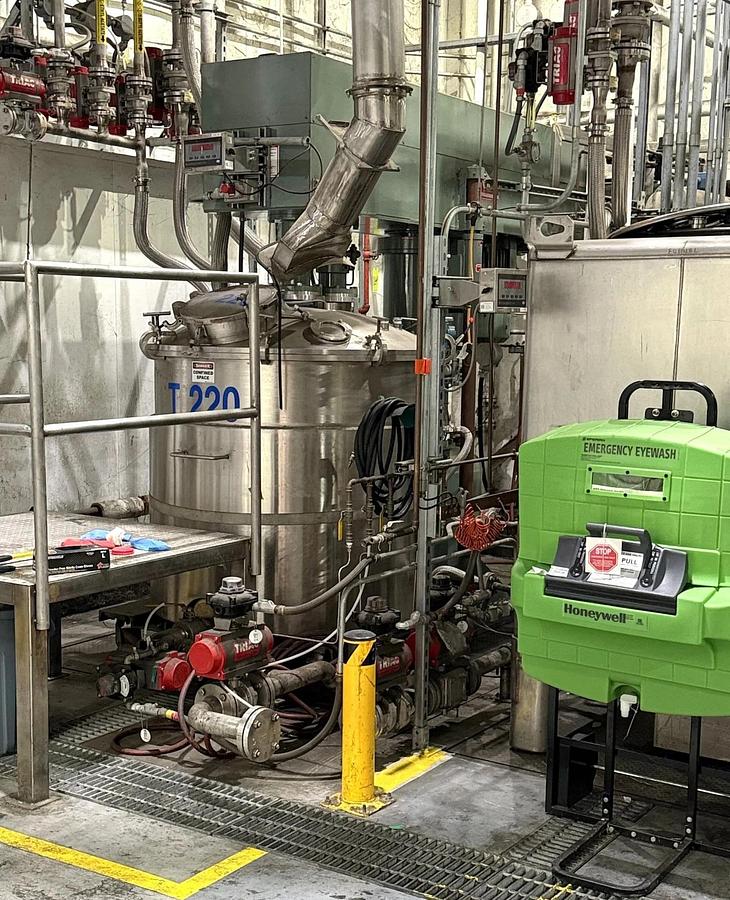

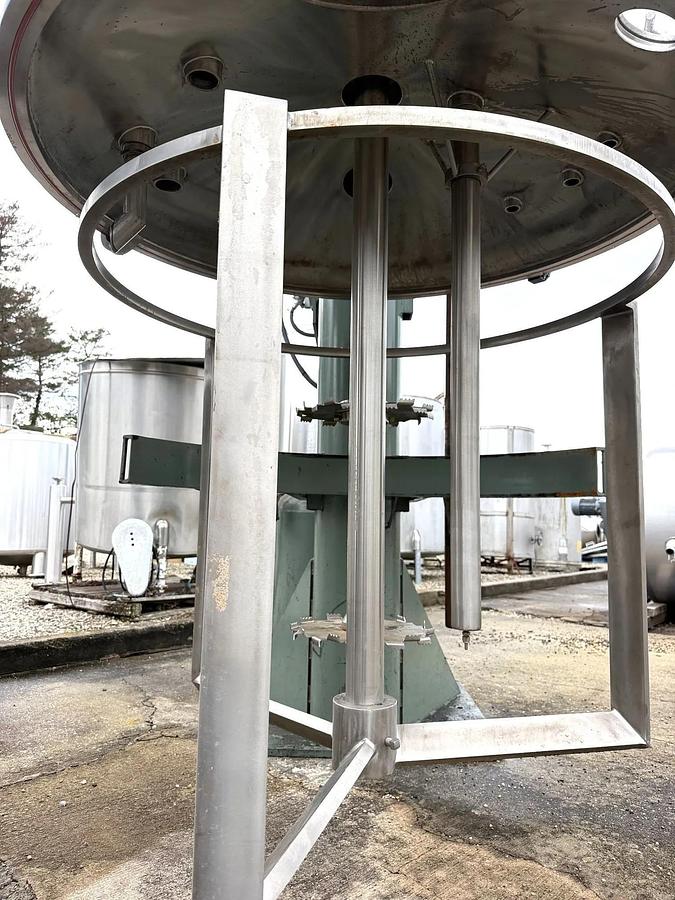

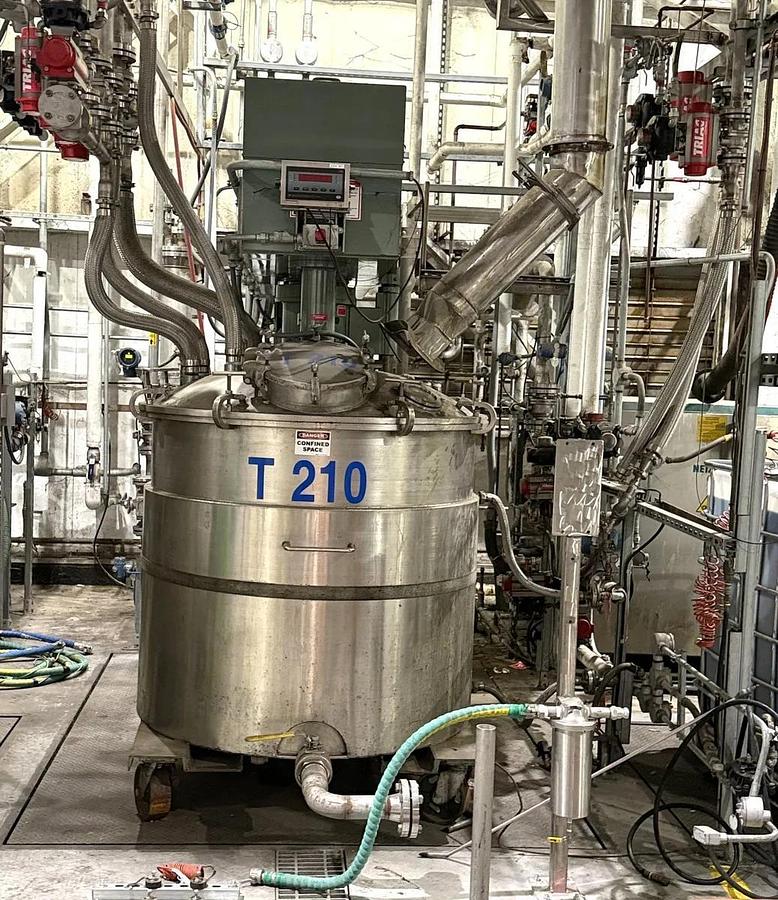

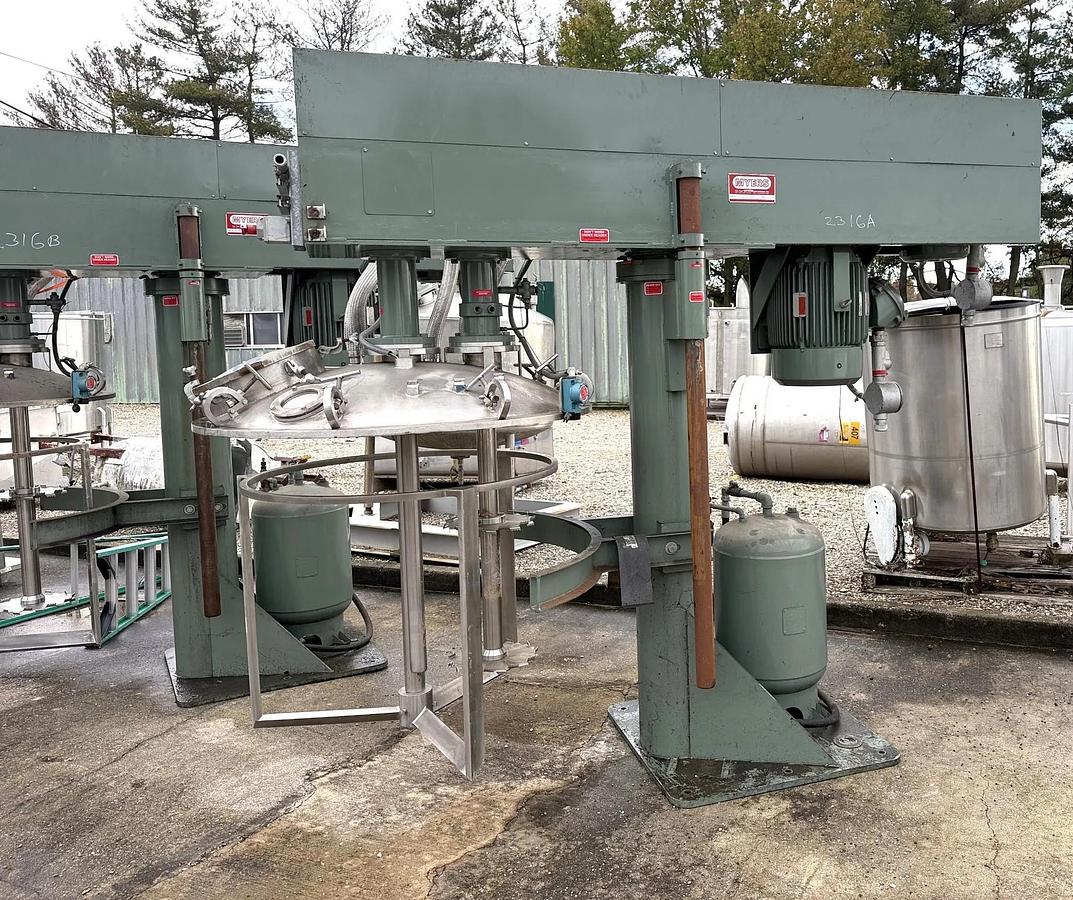

375 Gallon Myers Model V550A-20-40 dual shaft vacuum mixer with approximately 440 gallon total capacity and 375 gallon working capacity. Features 316 stainless steel jacketed mixing tank, high-speed disperser and low-speed sweep agitation. Equipped with 20 HP and 40 HP explosion-proof motors, variable-speed mixing drives, stainless steel disperser blades, sweep agitator with wall scrapers, and hydraulic lift assembly. Tank includes removable dished top cover with gasket, clamp-style manways, sight glass, stainless steel flexible process connections, and 3 in bottom discharge outlet with valve. Includes explosion-proof operator control panels with separate low-speed and high-speed controls, RPM indication, temperature monitoring, and emergency stop. Heavy-duty Myers floor-mounted mixing assembly with overhead drive housing, hydraulic lift system, and stainless steel product-contact components.
Specifications
| Stock Number | 5992014 |
| Manufacturer | C.K. Bud Myers Engineering, Inc. |
| Model | V550A-20-40 |
| Year | 2013 |

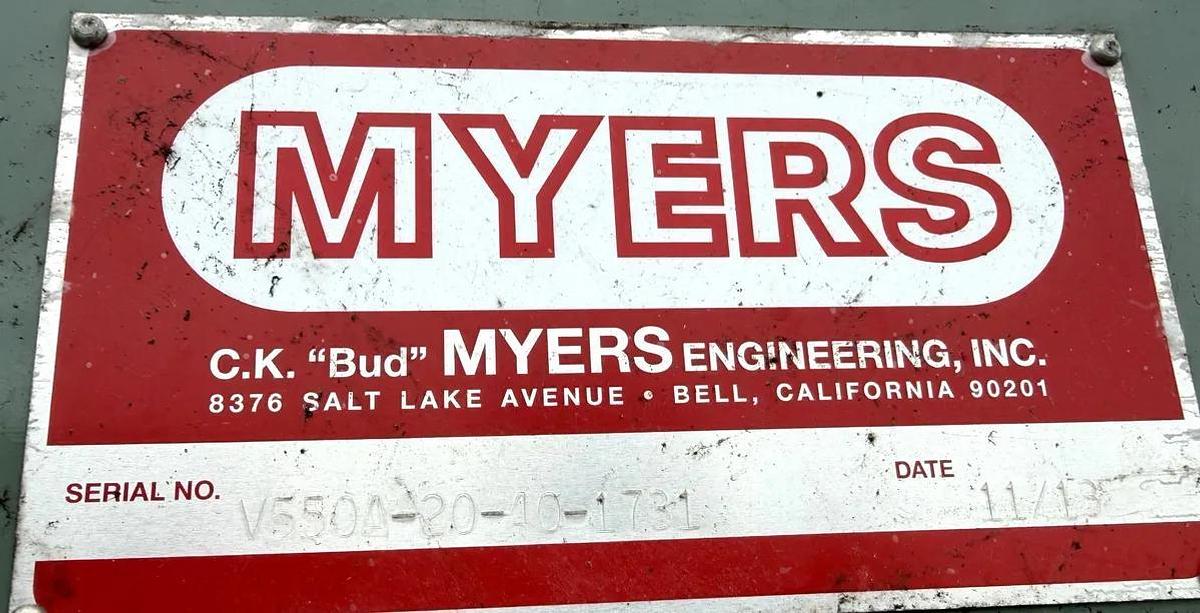

| Serial Number | V550A-20-40-1731 |
| Controls | Explosion-Proof Controls |
| Discharge | 3 in Bottom Outlet |
| Vacuum Features | Vacuum Seals and Covered Mixing Vessel |
| Mixing System | Dual Shaft, High-Speed Disperser and Sweep |
| Tank | Stainless Steel Jacketed |
| Motor Electrical | 3 Phase, 60 Hz |
| Motor Speed | 1,800 RPM |
| Motor Configuration | 20 HP and 40 HP |
| Basis | As Is, Where Is |
General Information
C.K. “Bud” Myers Engineering, Inc., operating as MYERS, is a U.S. manufacturer of industrial mixing, blending, and dispersing equipment. The company specializes in high-speed dispersers, dual-shaft and multi-shaft mixers, vacuum mixers, and mixing systems for processing viscous materials. MYERS equipment is used in chemical, coatings, adhesives, sealants, cosmetics, pharmaceutical, and specialty manufacturing applications.
