Boiler, Hot Oil, 2.5M BTU/hr, 60HP, Cleaver-Brooks Model M4S-2500, #5991996
Boiler, Hot Oil, 2.5M BTU/hr, 60HP, Cleaver-Brooks Model M4S-2500, #5991996
Location:Chowchilla, CA
Available quantity:1
Description

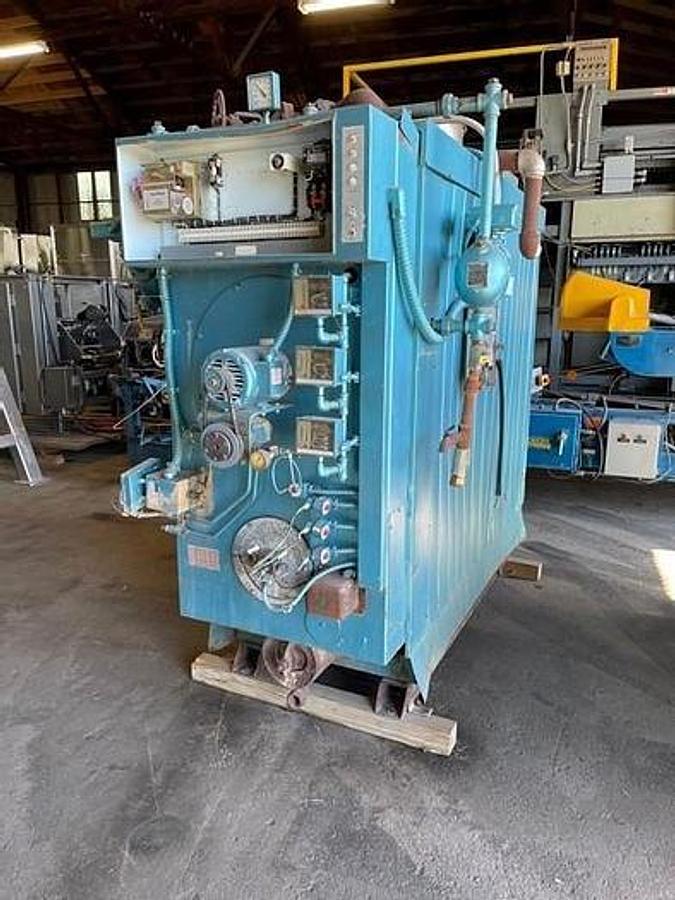

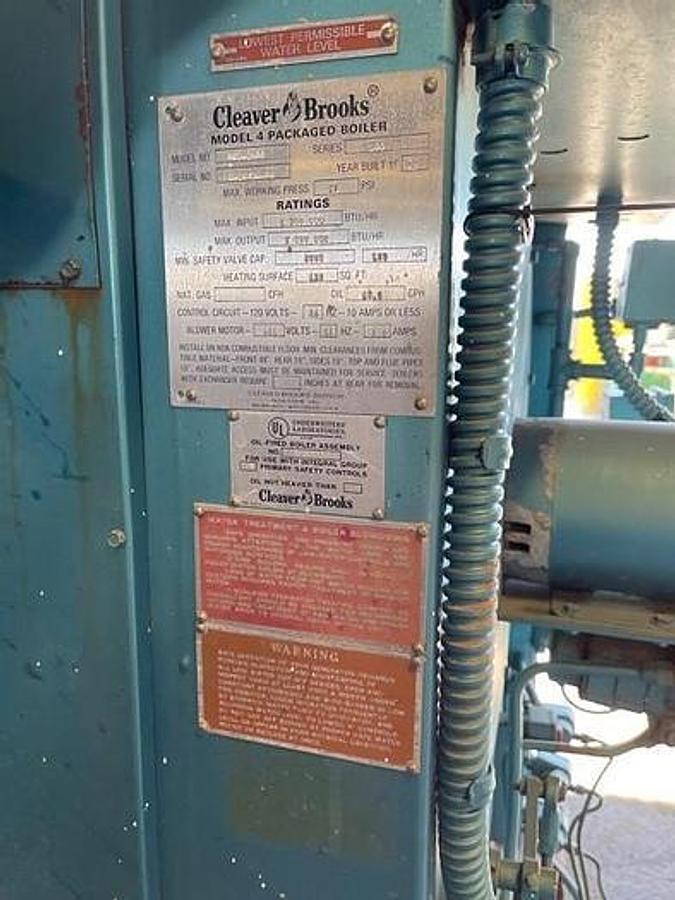

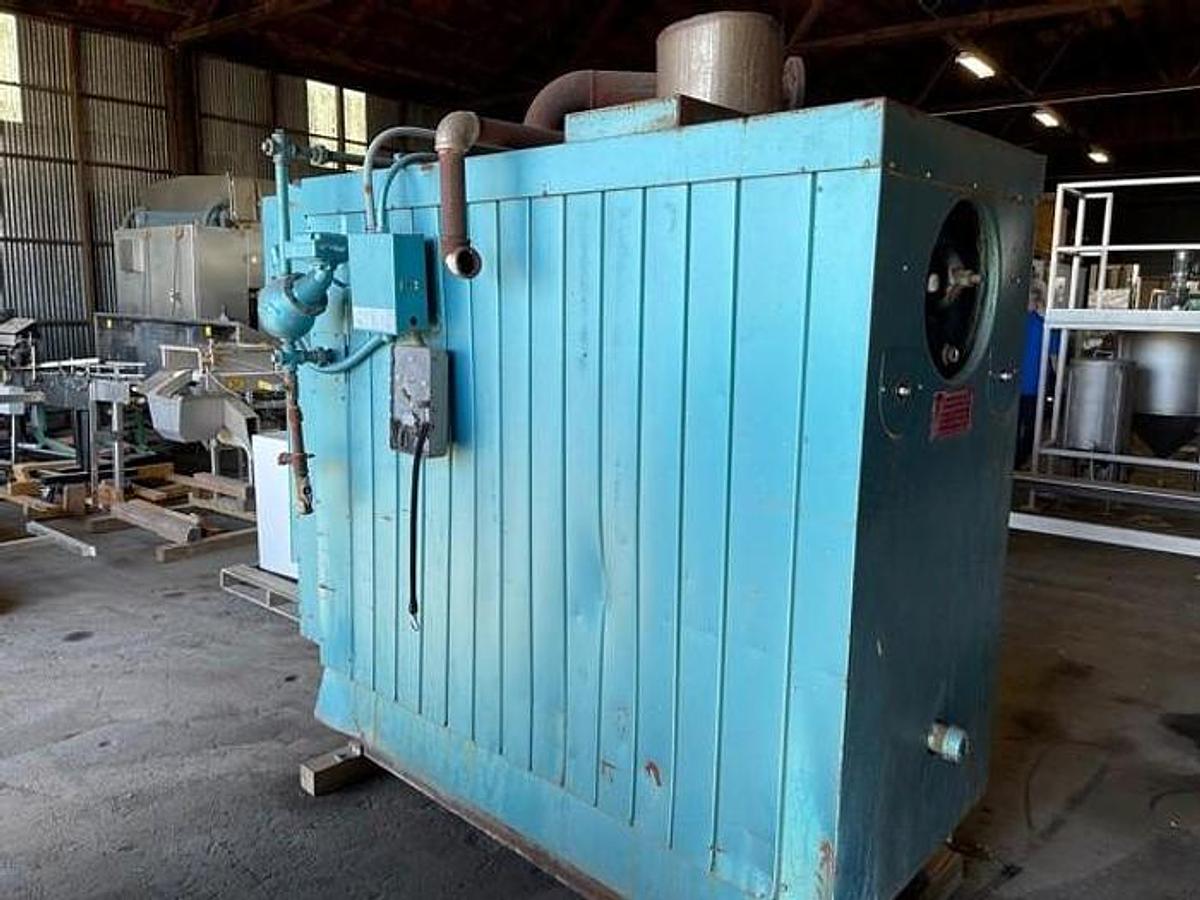

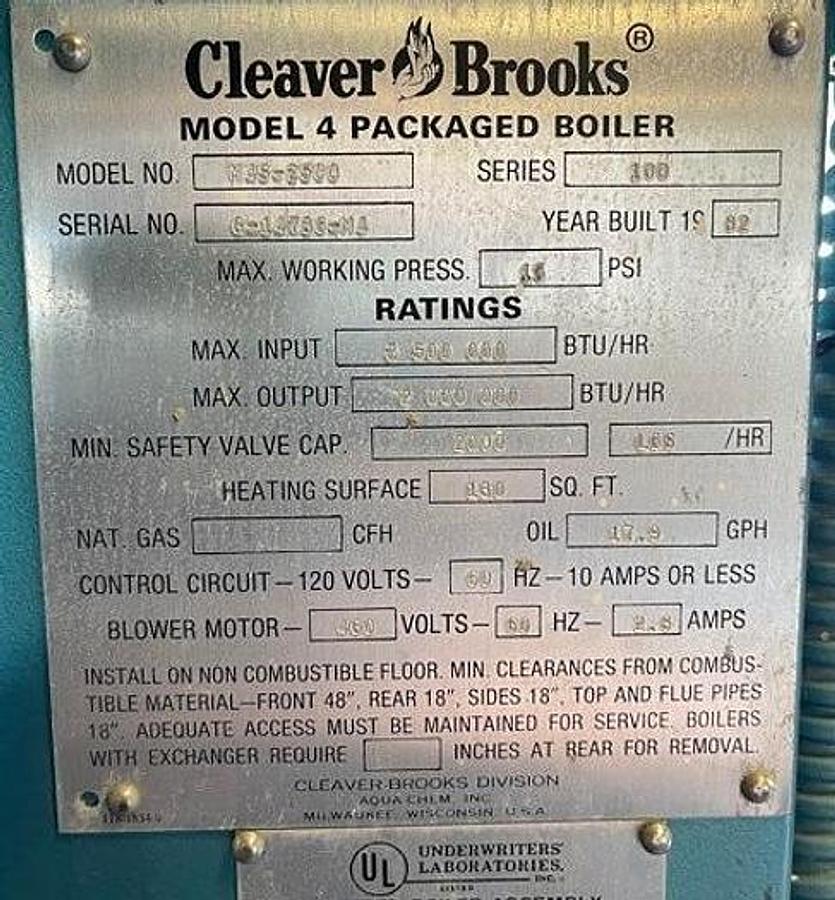

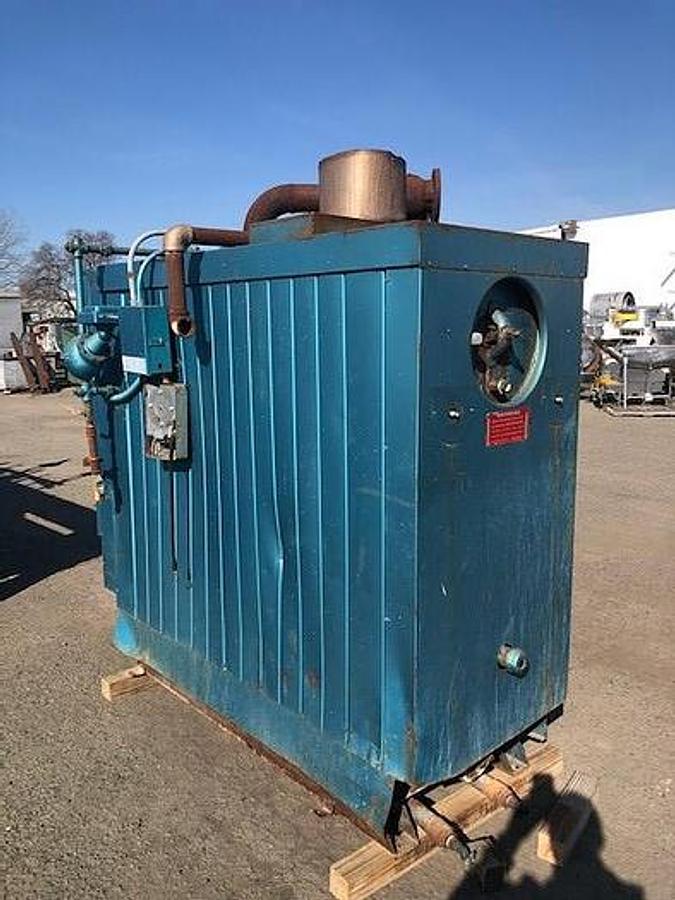

Cleaver-Brooks 1982 Model M4S-2500, Series 100, 60 HP packaged boiler, serial number G-14736-M4. Oil-fired unit rated for maximum input of 2,500,000 BTU/hr and maximum output of 2,000,000 BTU/hr. Boiler has 130 sq. ft. heating surface and a maximum working pressure of 15 PSI. Oil consumption rating is approximately 17.9 GPH. Equipped with integral burner/blower assembly, electrical controls, gauges, safety controls, and enclosed Cleaver-Brooks packaged cabinet. Electrical requirements include 480-volt, 60 Hz blower motor power and 120-volt, 60 Hz control circuit.
Specifications
| Stock Number | 5991996 |
| Manufacturer | Cleaver-Brooks |
| Model | M4S-2500 |
| Year | 1982 |
| Serial Number | G-14736-M4 |
| Control Circuit | 120 V, 60 Hz, 10 amps or less |
| Oil Consumption | 17.9 GPH |
| Heating Surface | 130 sq. ft. |
| Maximum Working Pressure | 15 PSI |
| Maximum Output | 2,000,000 BTU/hr |
| Maximum Input | 2,500,000 BTU/hr |
| Fuel | Oil Fired |
| Type | Packaged Boiler |
| HP | 60 |
| Basis | FOB |
General Information
Cleaver-Brooks is a manufacturer of packaged boiler systems used for industrial and commercial steam and hot-water applications. The Model 4 packaged boiler is a self-contained boiler design incorporating the burner, combustion system, controls, pressure vessel, and related components into a single packaged unit.
