Mill, Grinding, Szegvari Attritor Grinding Mil, Union Process QL-25, Recirculation Tank, #
Mill, Grinding, Szegvari Attritor Grinding Mil, Union Process QL-25, Recirculation Tank, #
Location:Chowchilla, CA
Available quantity:1
Description

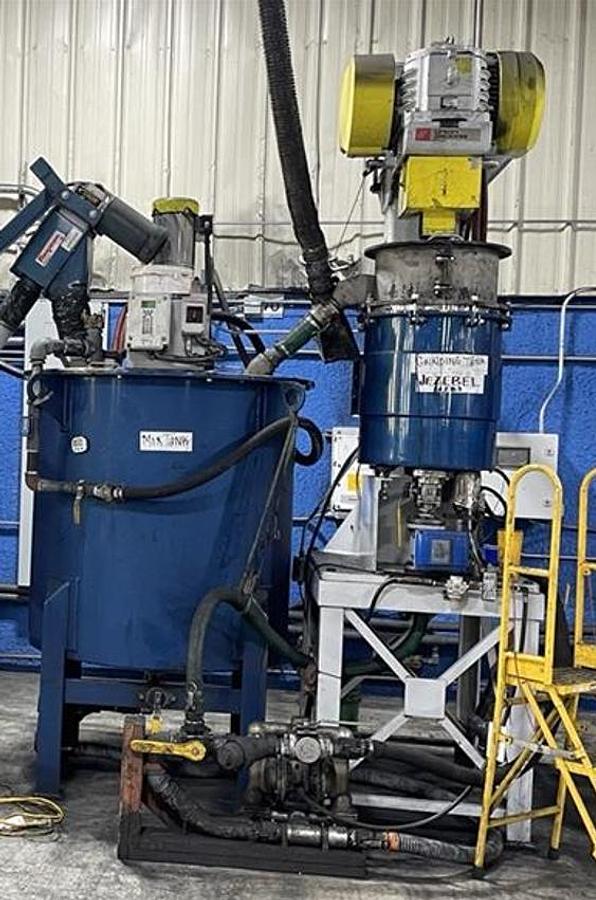

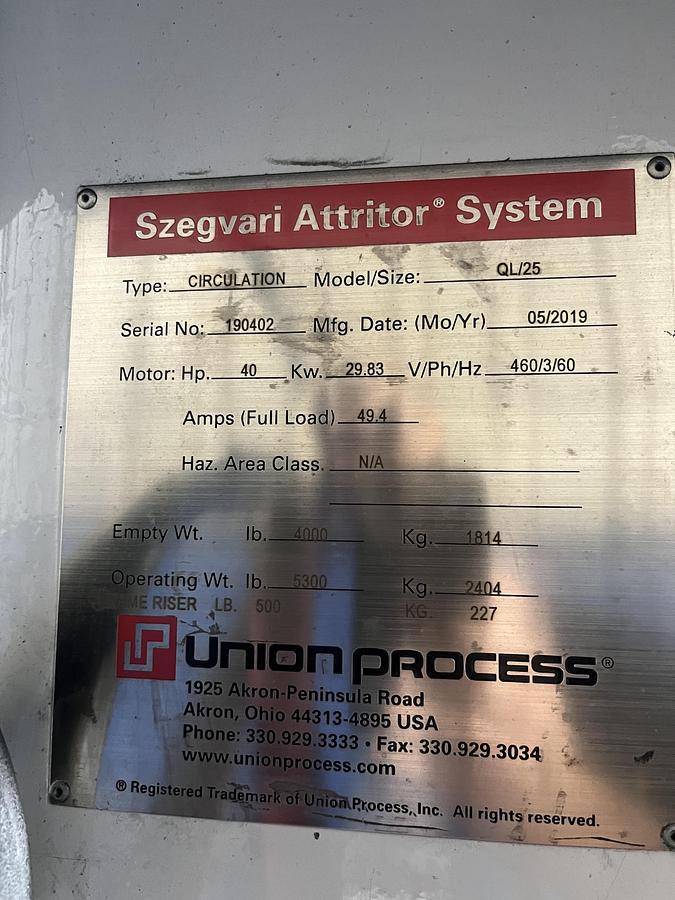

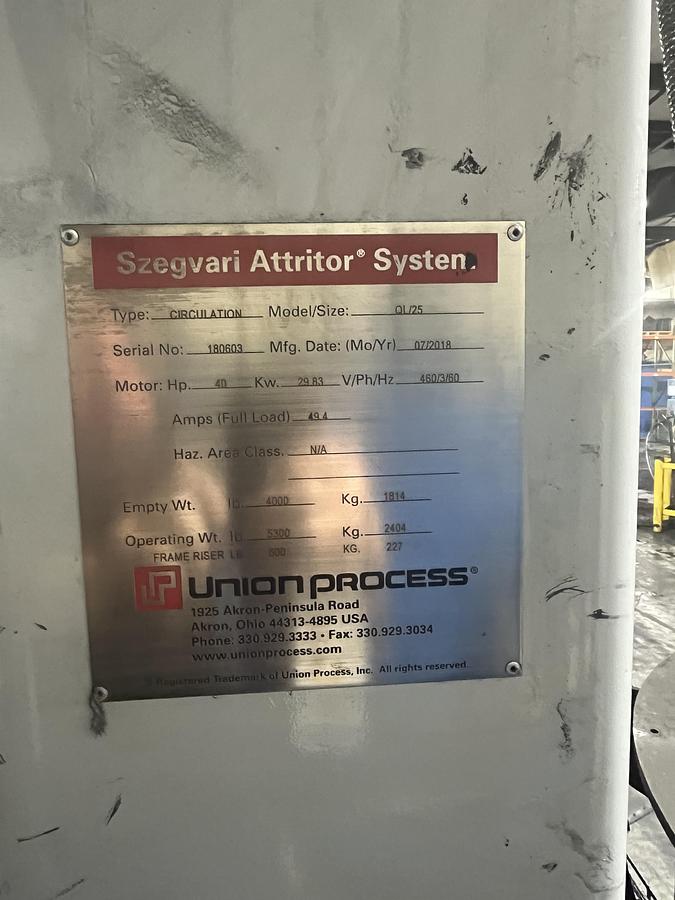

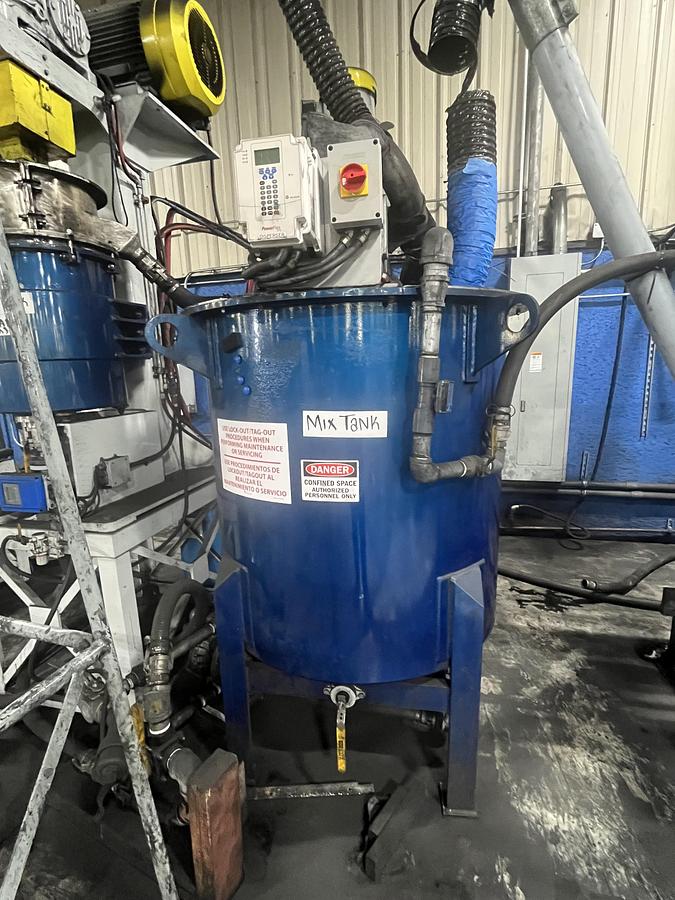

Union Process Szegvari Attritor circulation grinding system, Model QL-25, with grinding tank and recirculation/holding tank. System has been in service since approximately 2018/2019 and is reported in good working condition. The grinding arm and several additional wear components were recently replaced. QL-25 grinding tank has approximately 27.5 gal capacity with 25 gal media volume and is powered by a 40 HP, 460V, 3-phase, 60 Hz motor. System includes a recirculation tank equipped with mixer and anchor-style stirrer, circulation pump, controls, piping, hoses, and support framework. Two Union Process equipment nameplates are dated 07/2018 and 05/2019
Specifications
| Stock Number | 5991987 |
| Manufacturer | Union Process, Inc. |
| Model | QL-25 |
| Year | 2018 |
| Serial Number | 180603 |
| Grinding System: | Szegvari Attritor |
| Attritor Type | Circulation |
| Pumping Rate 35 GPM | 35 GPM |
| Full Load Amps | 49.4 |
| Power | 460V / 3 Phase / 60 Hz |
| Motor | 40 HP / 29.83 kW |
| Holding Tank Capacity | 250 gal |
| Media Volume | 25 gal |
| Tank Capacity | 27.5 gal |
| Basis | FOB |
General Information

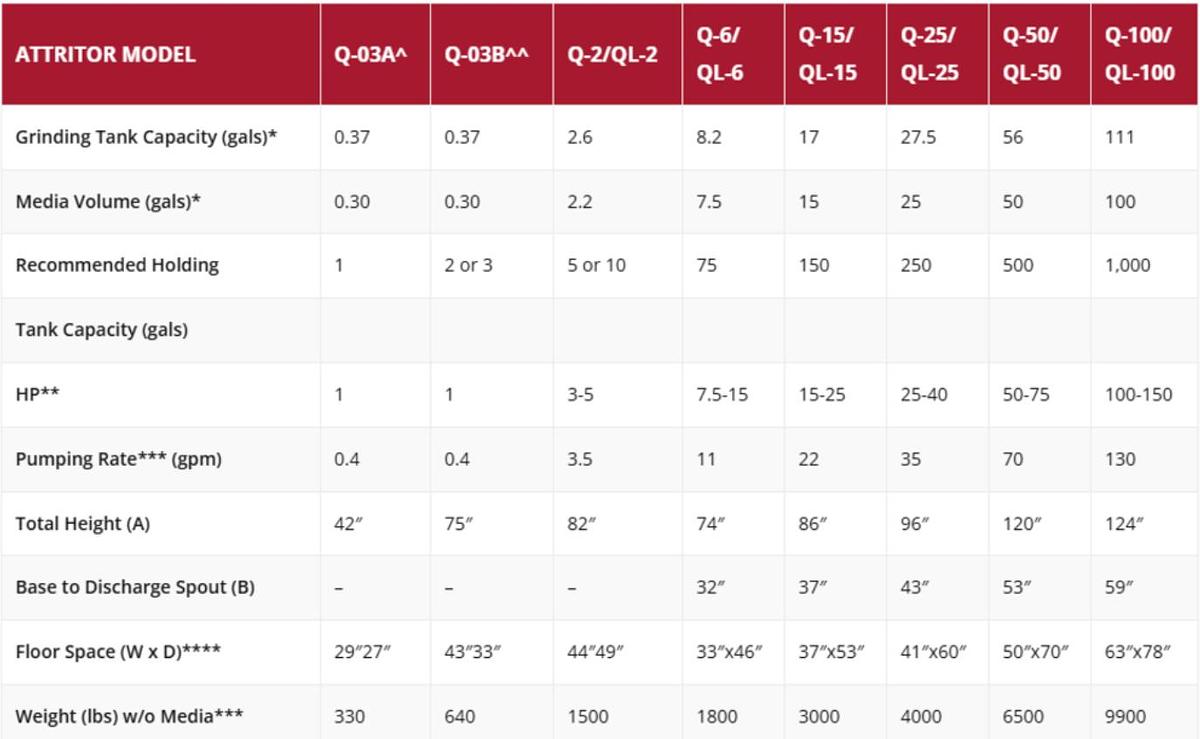

The supplied Union Process specification chart lists the Q-25/QL-25 with a 27.5 gal grinding tank, 25 gal media volume, recommended 250 gal holding tank, 25–40 HP drive range, approximately 35 GPM pumping rate, 96 in. overall height, 43 in. base-to-discharge height, 41 in. x 60 in. floor space, and approximately 4,000 lb weight without media.
