Tank, 100 Gallon, Stainless Steel, Dimple Jacketed, CIP Spray, #5991982
Tank, 100 Gallon, Stainless Steel, Dimple Jacketed, CIP Spray, #5991982
Location:Chowchilla, CA
Available quantity:1
Description

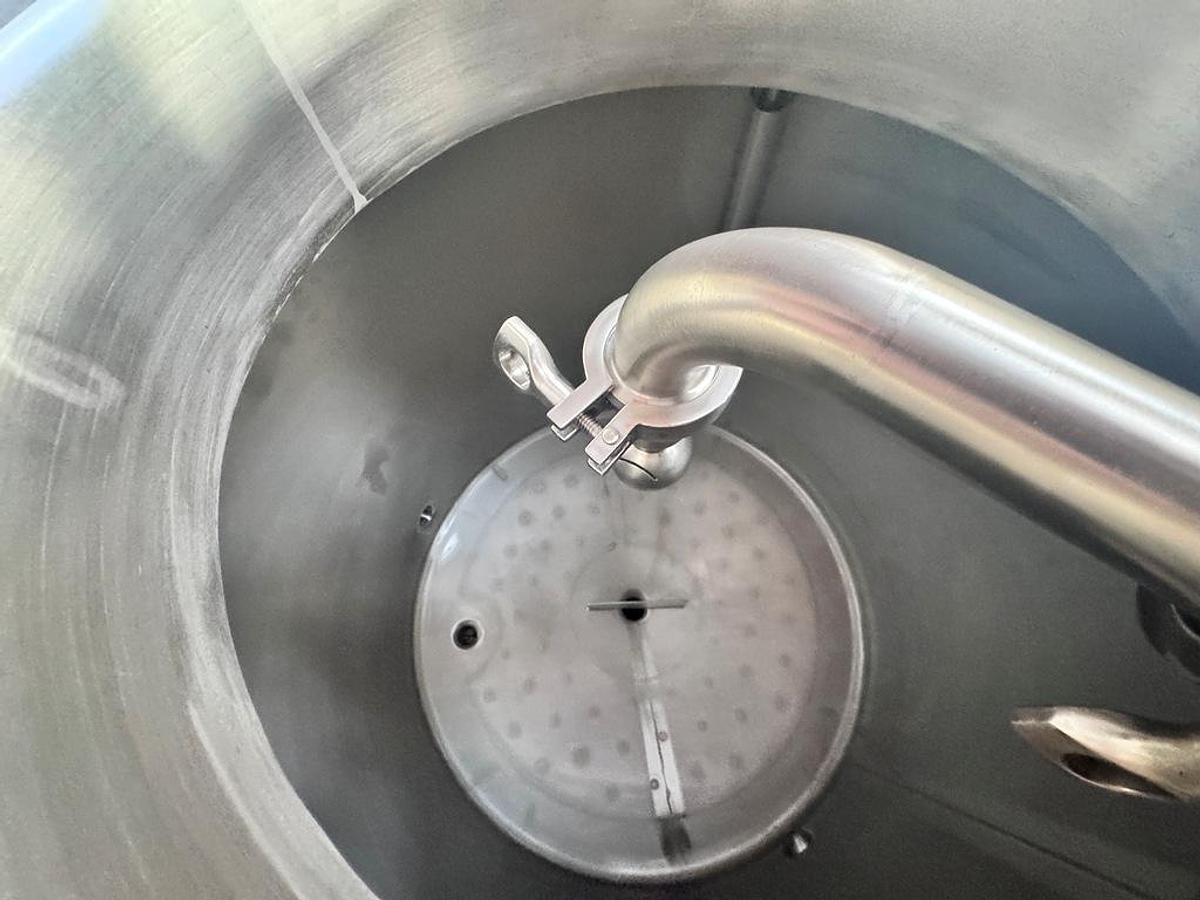

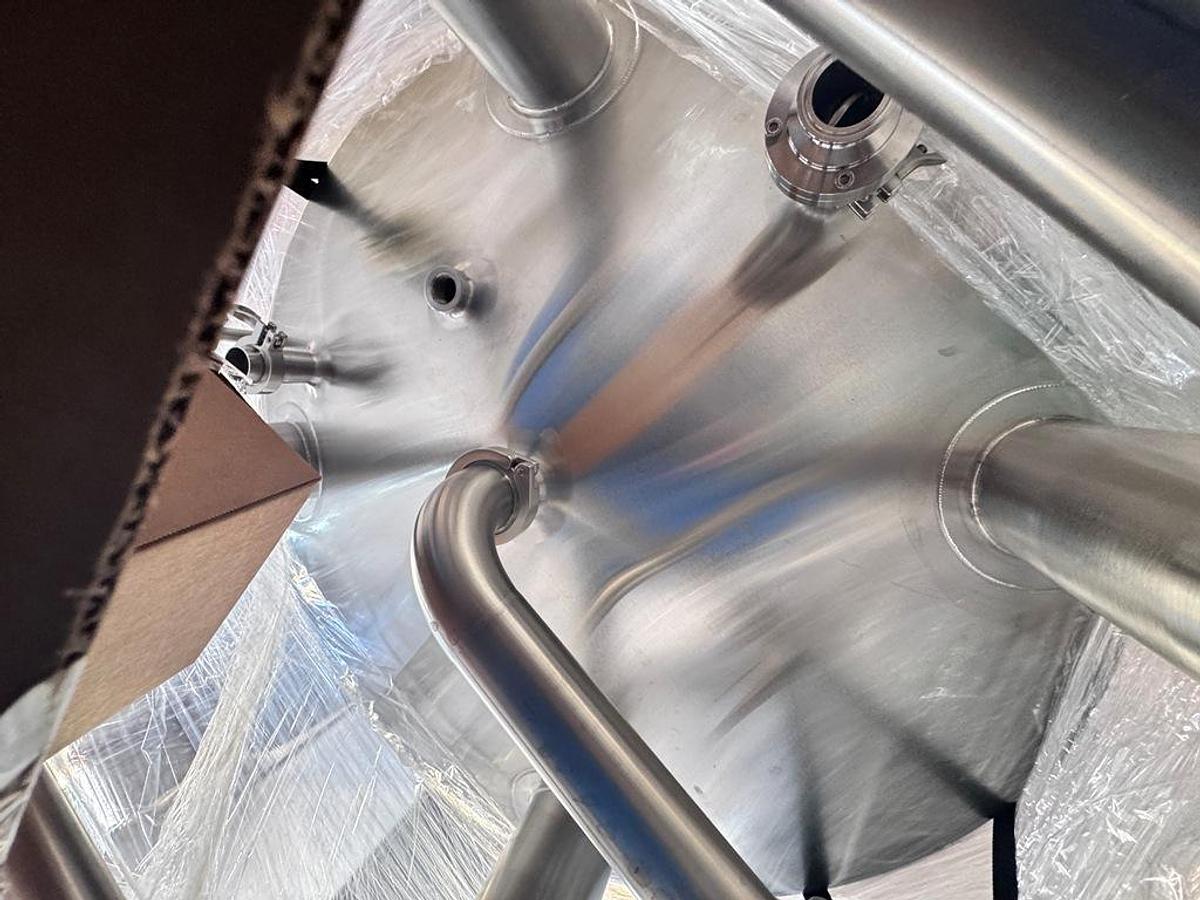

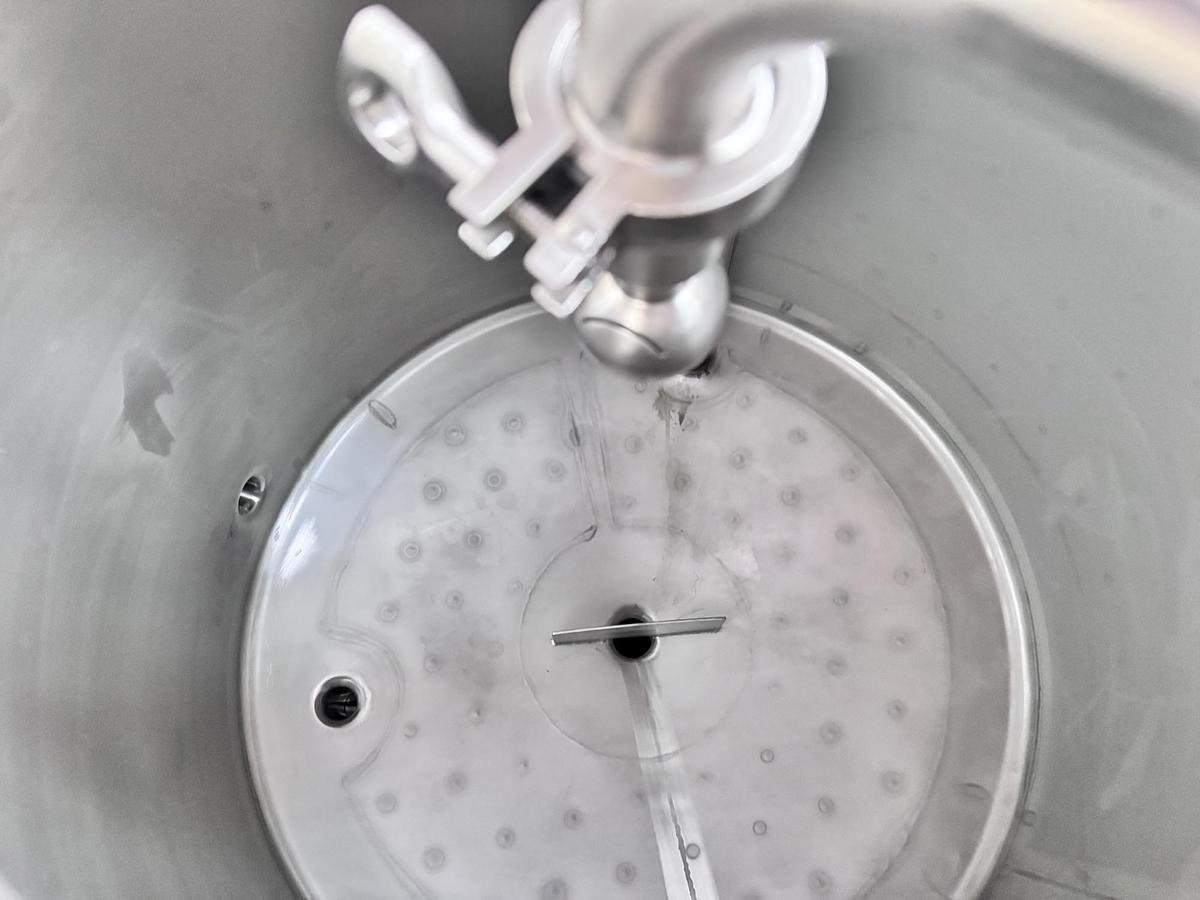

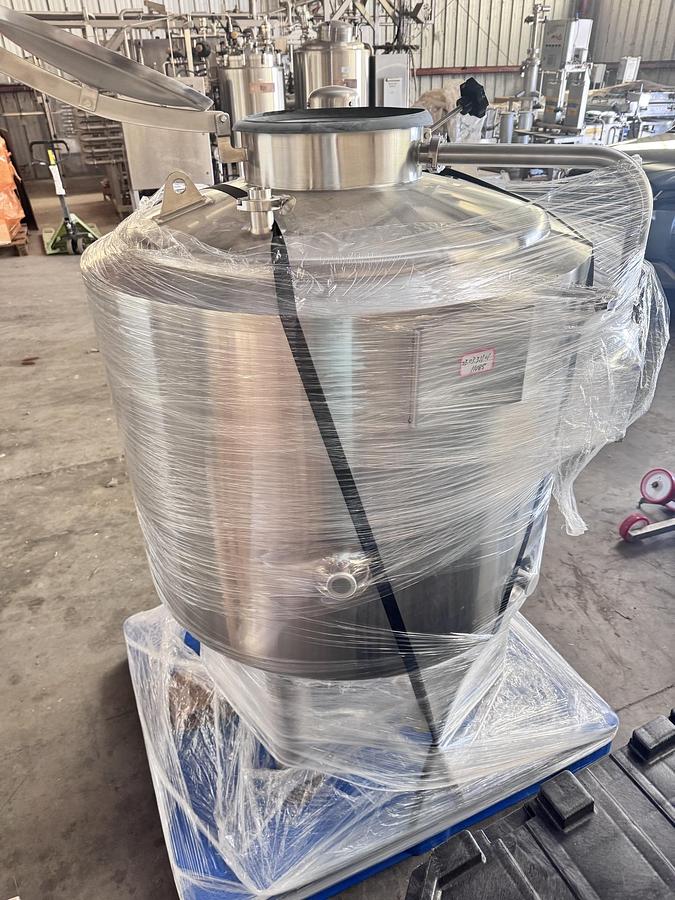

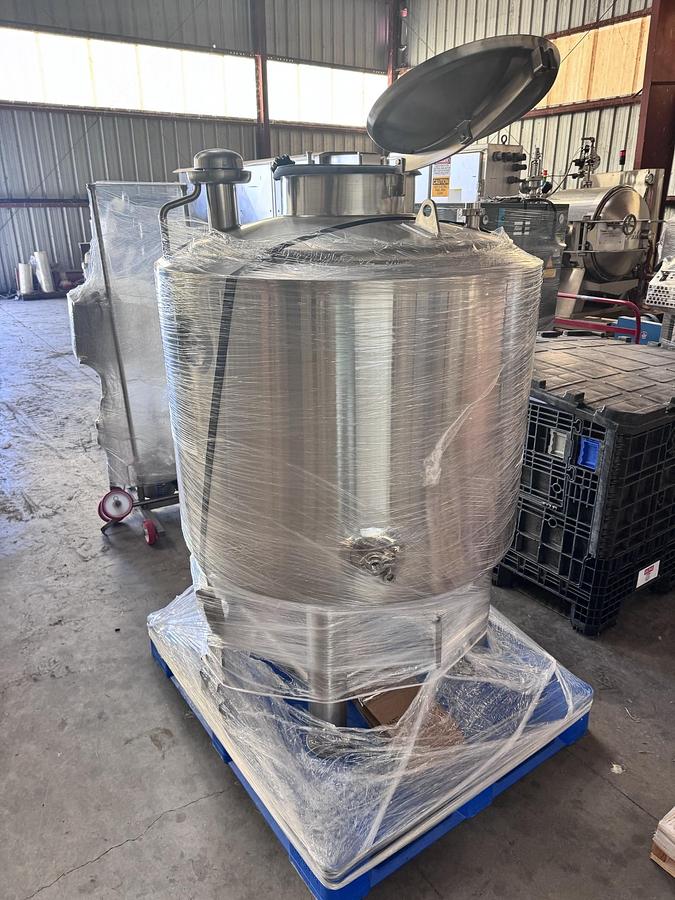

Approximately 100-gallon stainless steel jacketed process tank measuring approximately 36” diameter x 30” deep. Features dimple-style heat transfer surface, dished top and bottom, large top manway with hinged cover, internal CIP spray assembly, multiple sanitary process connections and 3" diameter bottom-center discharge. Tank is supported on stainless steel legs and frame.
Specifications
| Stock Number | 5991982 |
| Mounting | Stainless Steel Legs and Support Frame |
| Outlet | 3" Bottom-Center Discharge |
| Cleaning | Internal CIP Spray Assembly |
| Manaway | Top Manway with Hinged Cover |
| Bottom | Dished Bottom |
| Top | Dished Top |
| Jacket | Dimple Jacketed |
| Construction | Stainless Steel |
| Dimensions | 36” Diameter x 30” Deep |
| Gallons | 100 |
| Basis | FOB |
General Information
Stainless steel jacketed process tanks are commonly used for holding, batching, heating, cooling and temperature-controlled processing of liquid and semi-liquid materials. Dimple-style jackets provide a heat-transfer surface for circulating heating or cooling media, while CIP spray devices facilitate internal cleaning as part of sanitary processing systems. Typical applications include food, beverage, dairy, pharmaceutical, chemical and specialty manufacturing processes involving water, solutions, syrups and other liquid products.
