Tank, 200 Gallon, Stainless Steel, Half-Pipe Jacket, Agitator Mount, Cherry-Burrell, #5991981
Tank, 200 Gallon, Stainless Steel, Half-Pipe Jacket, Agitator Mount, Cherry-Burrell, #5991981
Location:Chowchilla, CA
Available quantity:1
Description

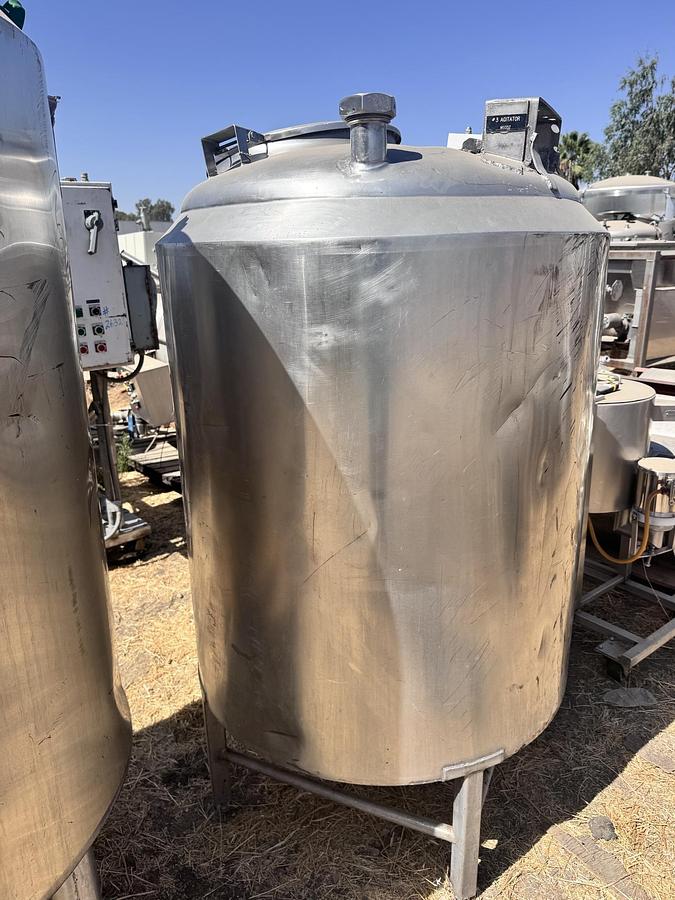

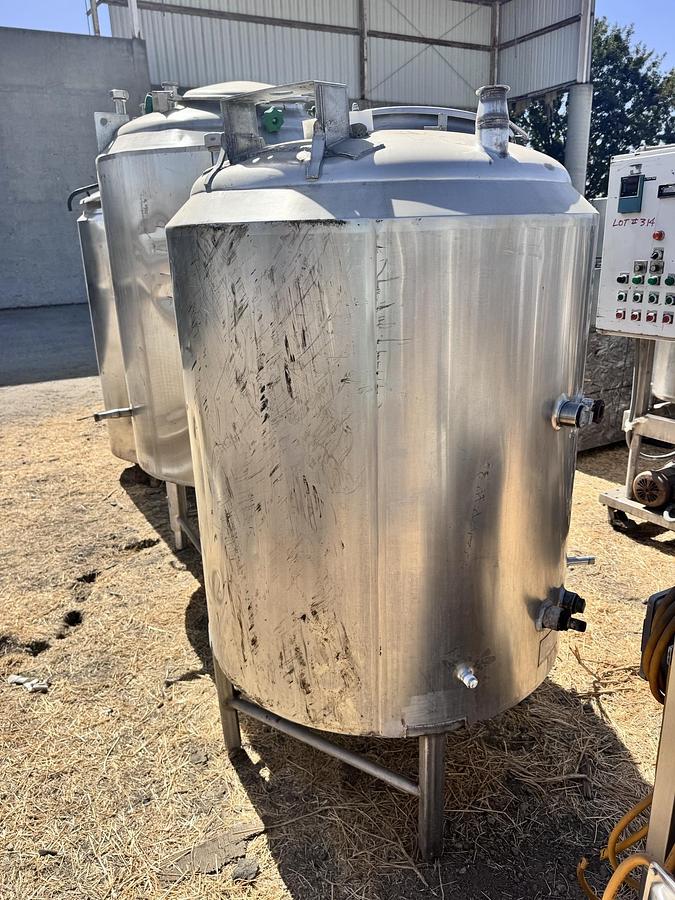

Cherry-Burrell approximately 200-gallon stainless steel jacketed process tank measuring approximately 36” diameter x 48” deep. Features half-pipe heating section rated for 100 PSI MAWP at 400°F, hinged top manway with cover, top-mounted agitator provision less agitator and drive, multiple process connections and stainless steel leg supports. National Board No. 1526. Previously used in the manufacture of cold ice packs.
Specifications
| Stock Number | 5991981 |
| Manufacturer | Cherry-Burrell |

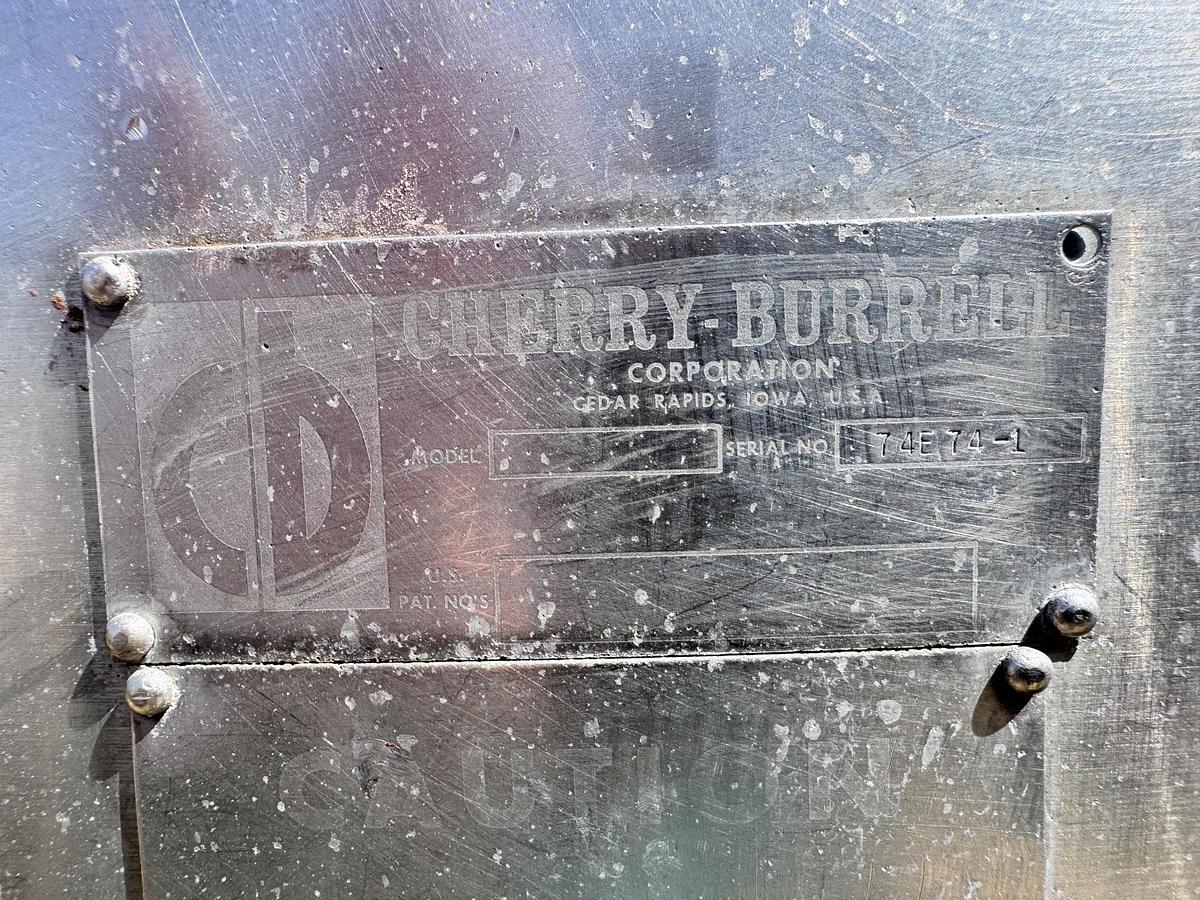

| Serial Number | 74E74-1 |
| Previous Use | Cold Ice Pack Manufacturing |

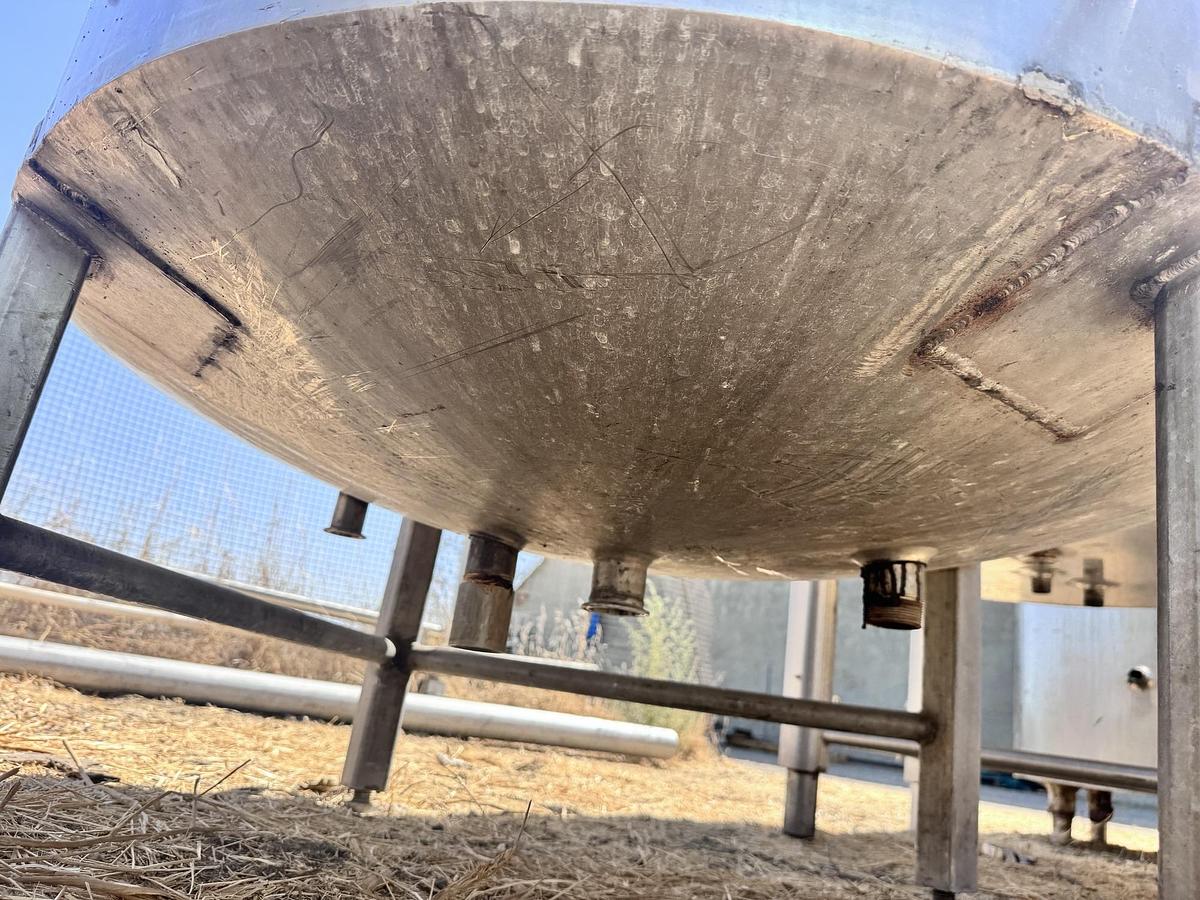

| Mounting | Stainless Steel Legs |
| Top | Hinged Manway with Cover |
| Agitation | Top-Mounted Agitator Provision, Less Agitator and Drive |

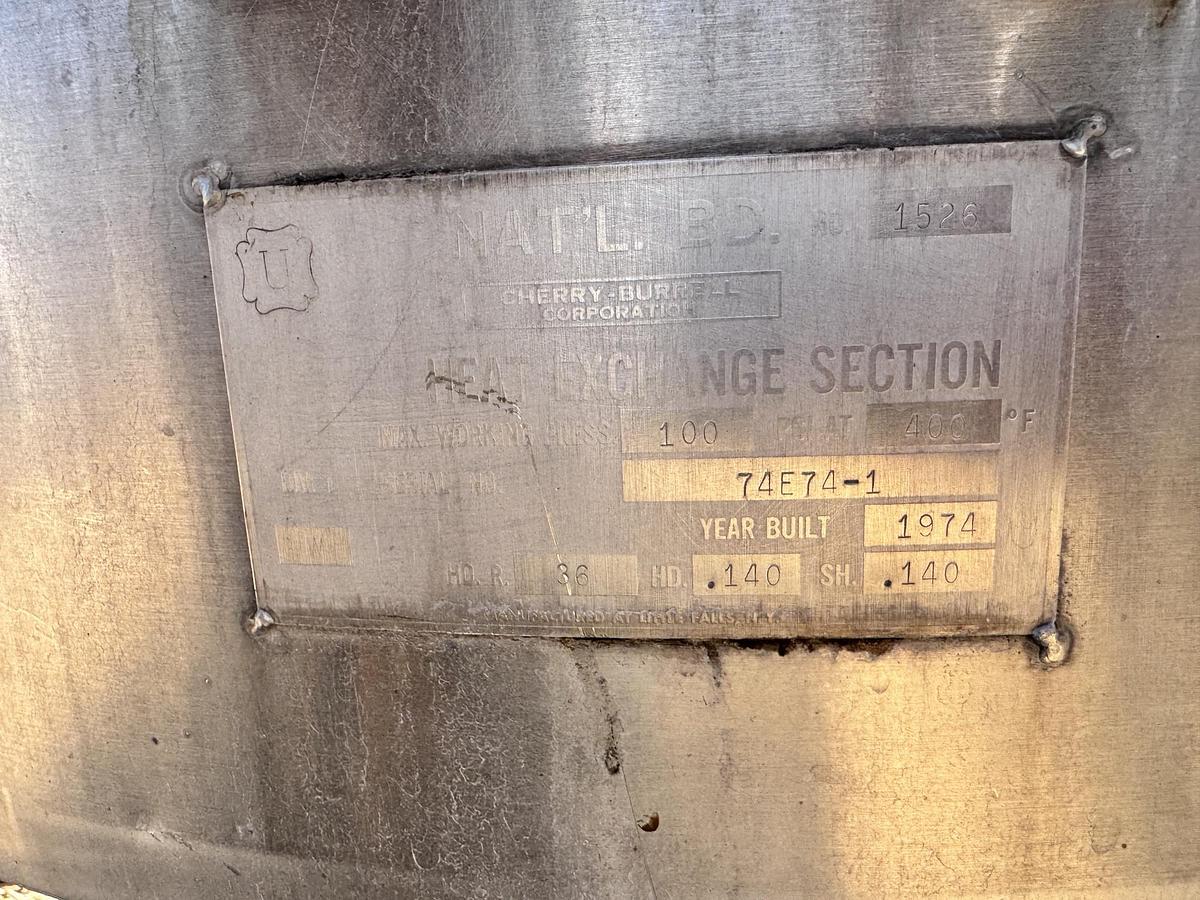

| National Board Number | 1526 |
| Shell Thickness | 0.140” |
| Jacket MAWP | 100 PSI @ 400°F |
| Jacket | Half-Pipe Heating Section |
| Construction | Stainless Steel |
| Dimensions | 36” Diameter x 48” Deep |
| Gallons | 200 Gallons, Approximately |
| Basis | FOB |
General Information
Cherry-Burrell is a well-known manufacturer of sanitary processing equipment historically used throughout the dairy, food, beverage and related process industries. Jacketed stainless steel process tanks provide holding, batching and temperature-controlled processing of liquid and semi-liquid materials, with half-pipe heating sections allowing circulation of heating or cooling media around the vessel. Tanks configured for mechanical agitation can support mixing, blending and product circulation for applications involving beverages, dairy products, sauces, chemicals, cosmetics and other process materials.
