Tank, 200 Gallon, Stainless Steel, Jacketed, Agitated, Cherry-Burrell EPDA, #5991977
Tank, 200 Gallon, Stainless Steel, Jacketed, Agitated, Cherry-Burrell EPDA, #5991977
Location:Chowchilla, CA
Available quantity:1
Description

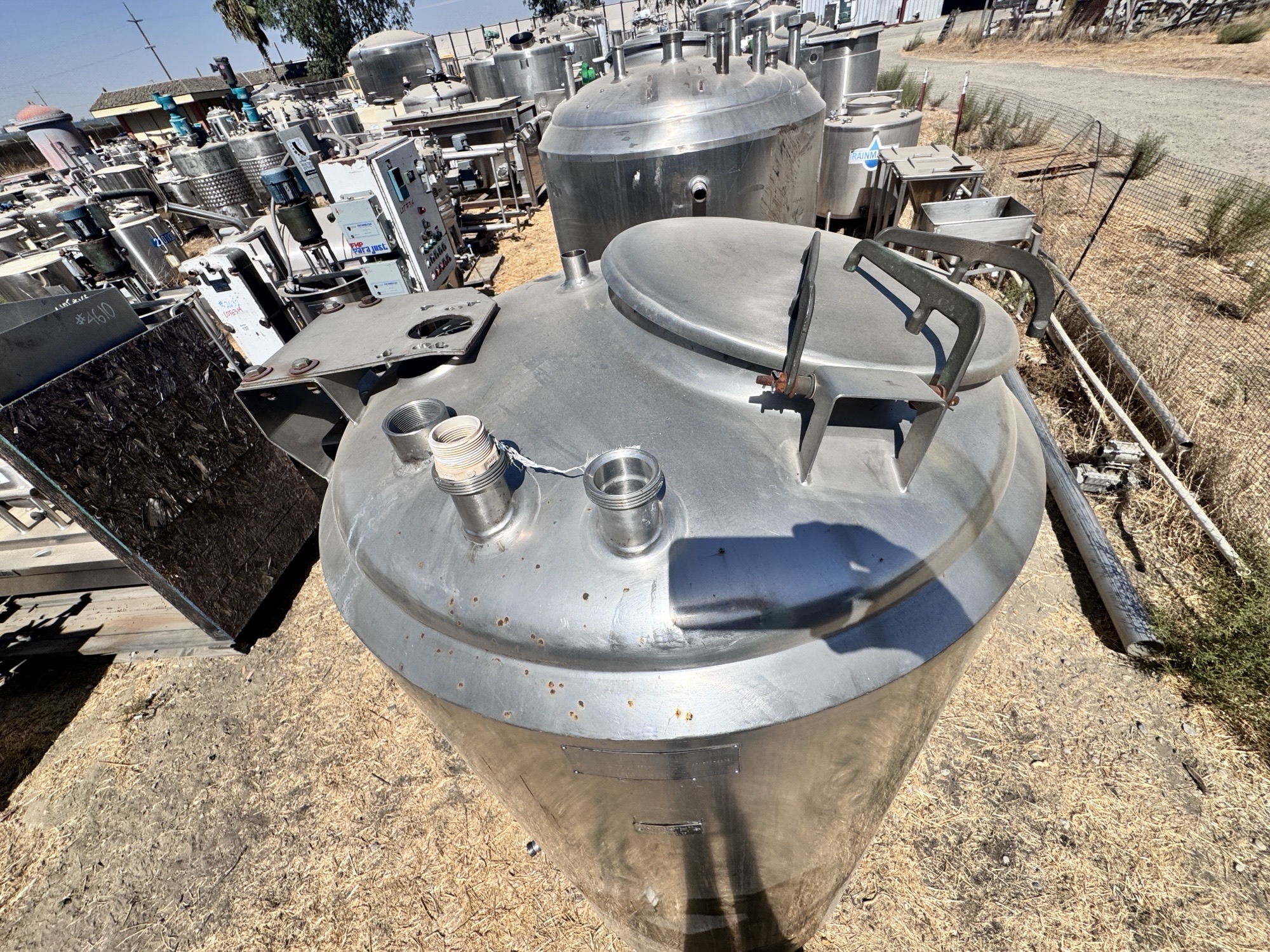

Cherry-Burrell Model EPDA stainless steel jacketed batch processor / process tank with 200-gallon capacity. Measures approximately 36" diameter x 60" deep and features a domed top, top manway with hinged cover, multiple top and side process connections and side bottom outlet. Equipped with agitator mounting bracket, stainless steel agitator shaft and (2) 3-blade propeller-type impellers, less drive. Tank is mounted on stainless steel legs. Previously used in the manufacture of cold ice packs.
Specifications
| Stock Number | 5991977 |
| Manufacturer | Cherry-Burrell |
| Model | EPDA |

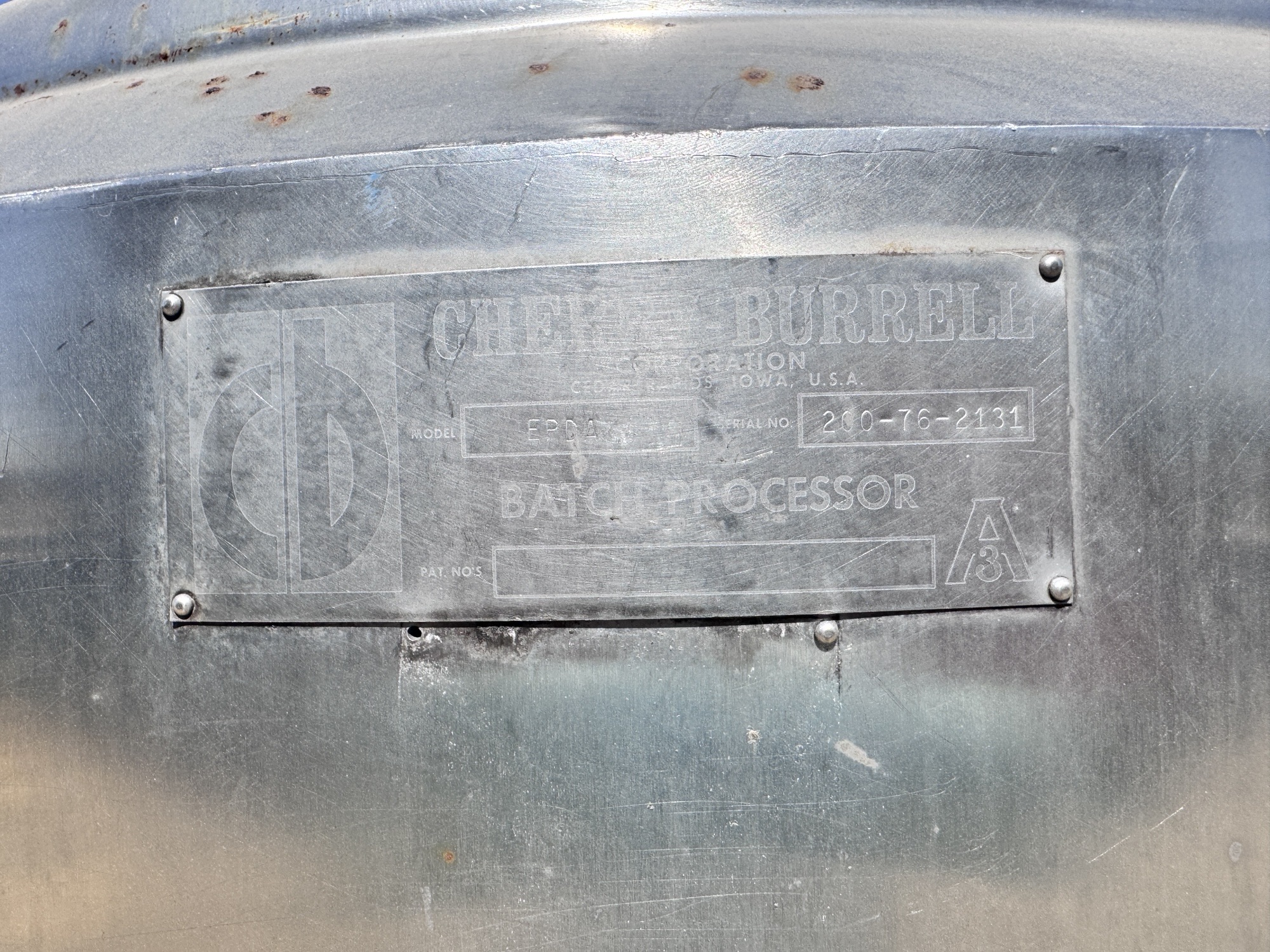

| Serial Number | 200-76-2131 |
| Previous Use | Cold Ice Pack Manufacturing |
| Mounting | Stainless Steel Legs |
| Outlet | Side Bottom Outlet |
| impellers | (2) 3-Blade Propeller-Type |
| Agitation | Stainless Steel Shaft, Less Drive |
| Manaway | Top Manway with Hinged Cover |
| Top | Domed |
| Jacket | Jacketed |
| Vessel Type | Batch Processor |
| Construction | Stainless Steel |
| Diameter | 36" Diameter x 60" Deep |
| Gallons | 200 |
| Basis | FOB |
General Information
Cherry-Burrell is a well-known manufacturer of sanitary processing equipment historically used throughout the dairy, food, beverage and related process industries. Its batch processors and jacketed stainless steel tanks are designed for batch holding, blending, mixing and temperature-controlled processing of liquid and semi-liquid materials. Jacketed construction permits the use of heating or cooling media, while mechanical agitation promotes product circulation, blending and more uniform processing.
