Tank, 15 Gallon, Stainless Steel, Warrick Level Control, Pneumatic Outlet Valve, #5991976
Tank, 15 Gallon, Stainless Steel, Warrick Level Control, Pneumatic Outlet Valve, #5991976
Location:Chowchilla, CA
Available quantity:1
Description

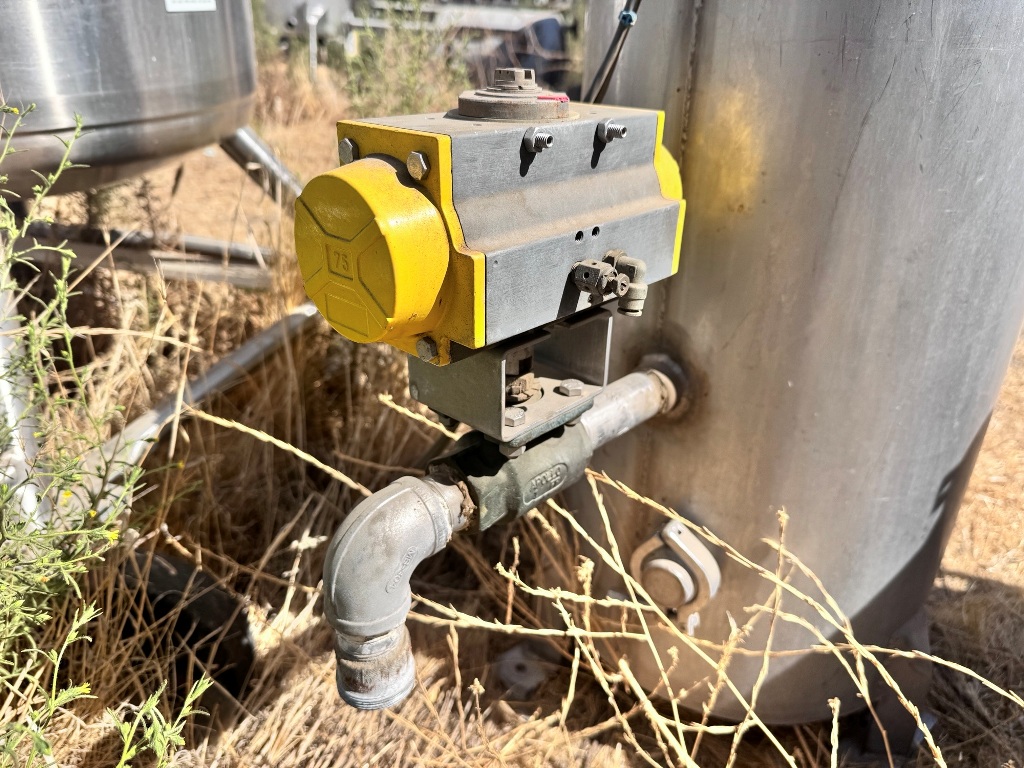

Approximately 15-gallon stainless steel vertical process tank measuring approximately 14" diameter x 26" deep. Tank is mounted on stainless steel legs and features a removable clamp-style top access assembly equipped with Warrick Controls Type 3E4C electrode fitting and three-probe liquid level sensing assembly, rated 250 PSI maximum. Includes side discharge with Apollo/Conbraco pneumatically actuated ball valve and additional top and side connections. Previously used in the manufacture of cold ice packs.
Specifications
| Stock Number | 5991976 |
| Previous Use | Cold Ice Pack Manufacturing |

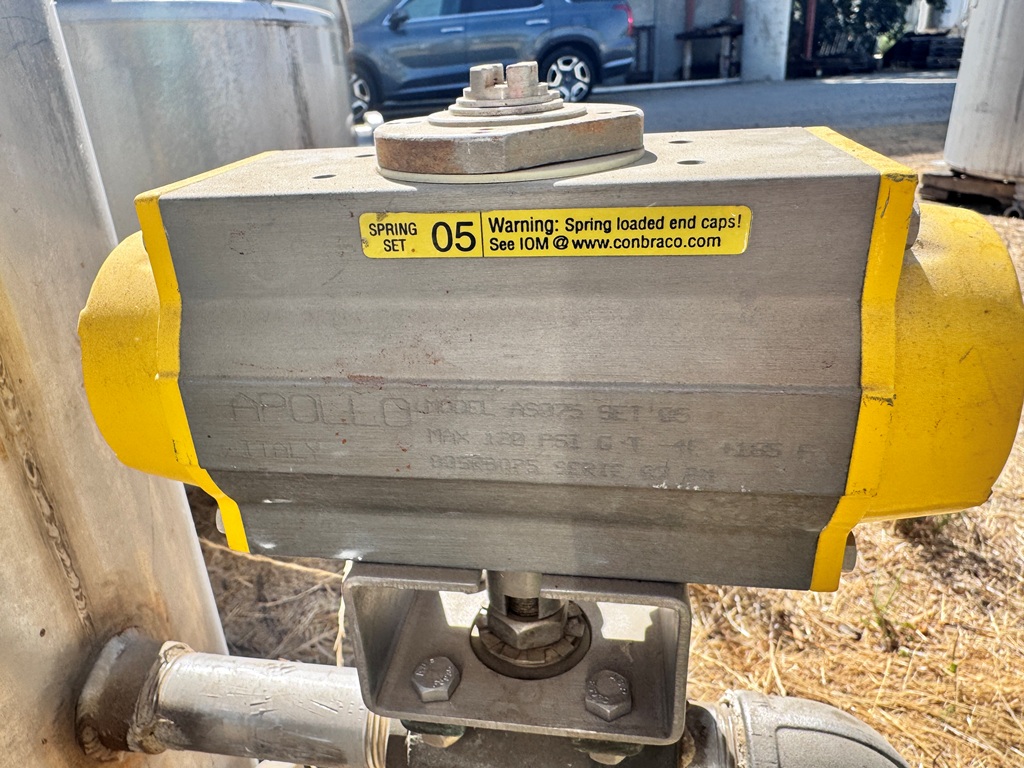

| Outlet Valve | Apollo/Conbraco Pneumatically Actuated Ball Valve |
| Top Access | Removable Clamp-Type Assembly |
| Level Control Rating | 250 PSI Maximum |
| Level Sensing | 3-Probe Electrode Assembly |

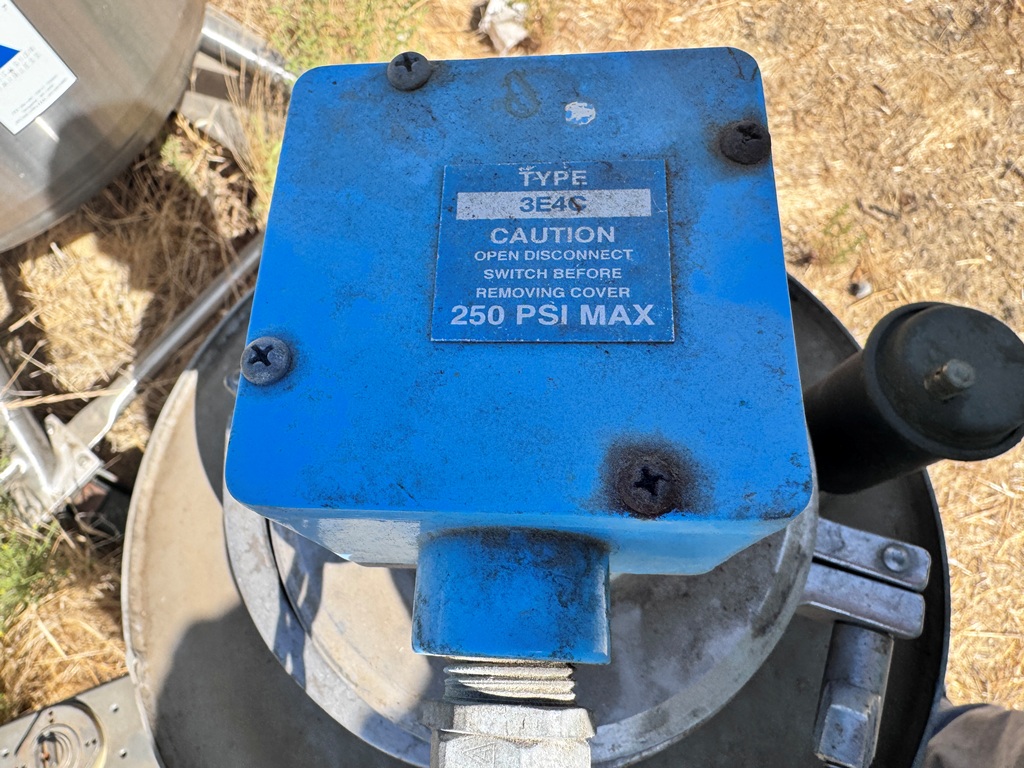

| Level Control | Warrick Controls Type 3E4C |
| Mounting | Stainless Steel Legs |

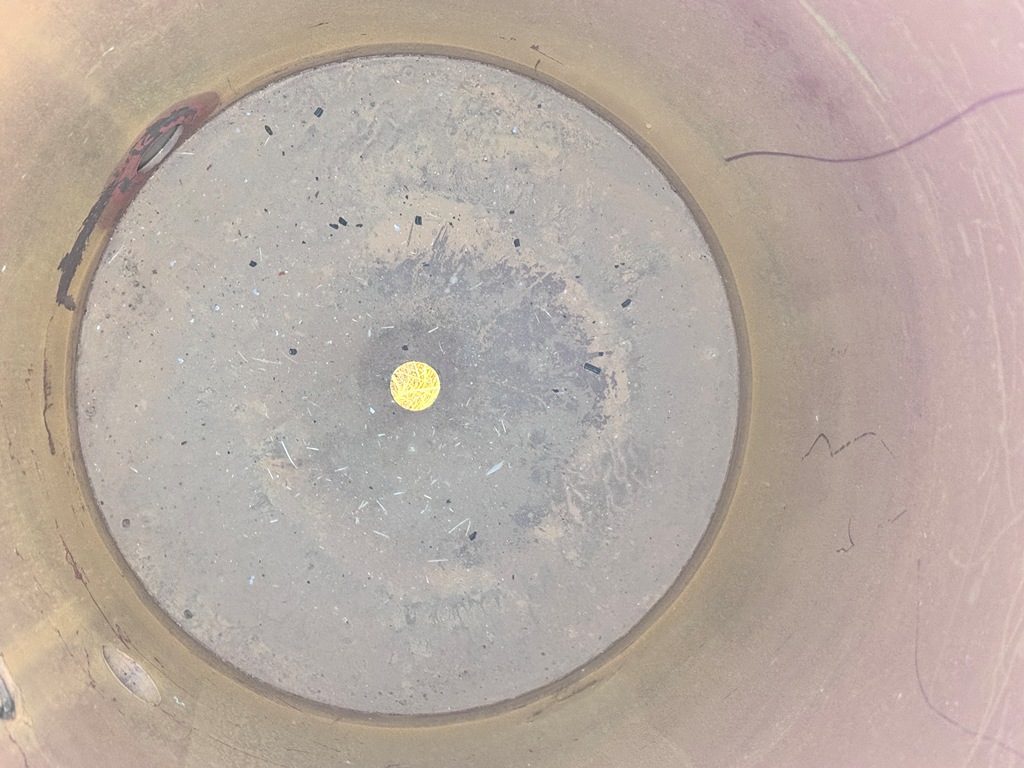

| Bottom | Flat |
| Tank Orientation | Vertical |
| Construction | Stainless Steel |
| Dimensions | 14" Diameter x 26" Deep |
| Gallons | 15 |
| Basis | FOB |
General Information
Stainless steel process tanks are commonly used for holding, batching, transfer and intermediate storage of liquid process materials. Level sensing electrodes can provide automatic liquid-level detection for filling, transfer and process control, while pneumatically actuated valves allow automated product discharge and flow control. These systems are commonly found in chemical, specialty manufacturing, water treatment and other liquid processing applications.
