Mixer, High Shear, Enoitalia, Universal, 1.5 HP, #5991964
Mixer, High Shear, Enoitalia, Universal, 1.5 HP, #5991964
Location:San Dimas, CA
Available quantity:1
Description

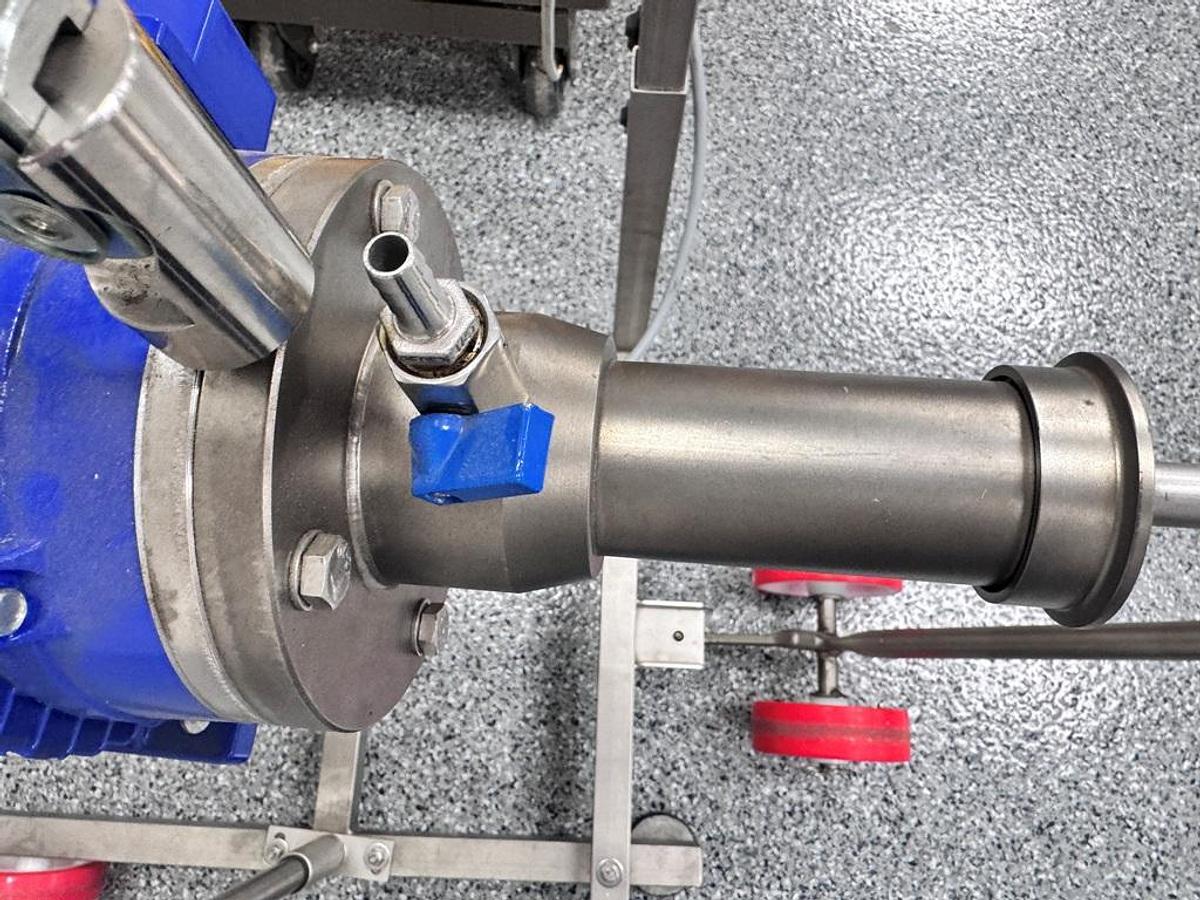

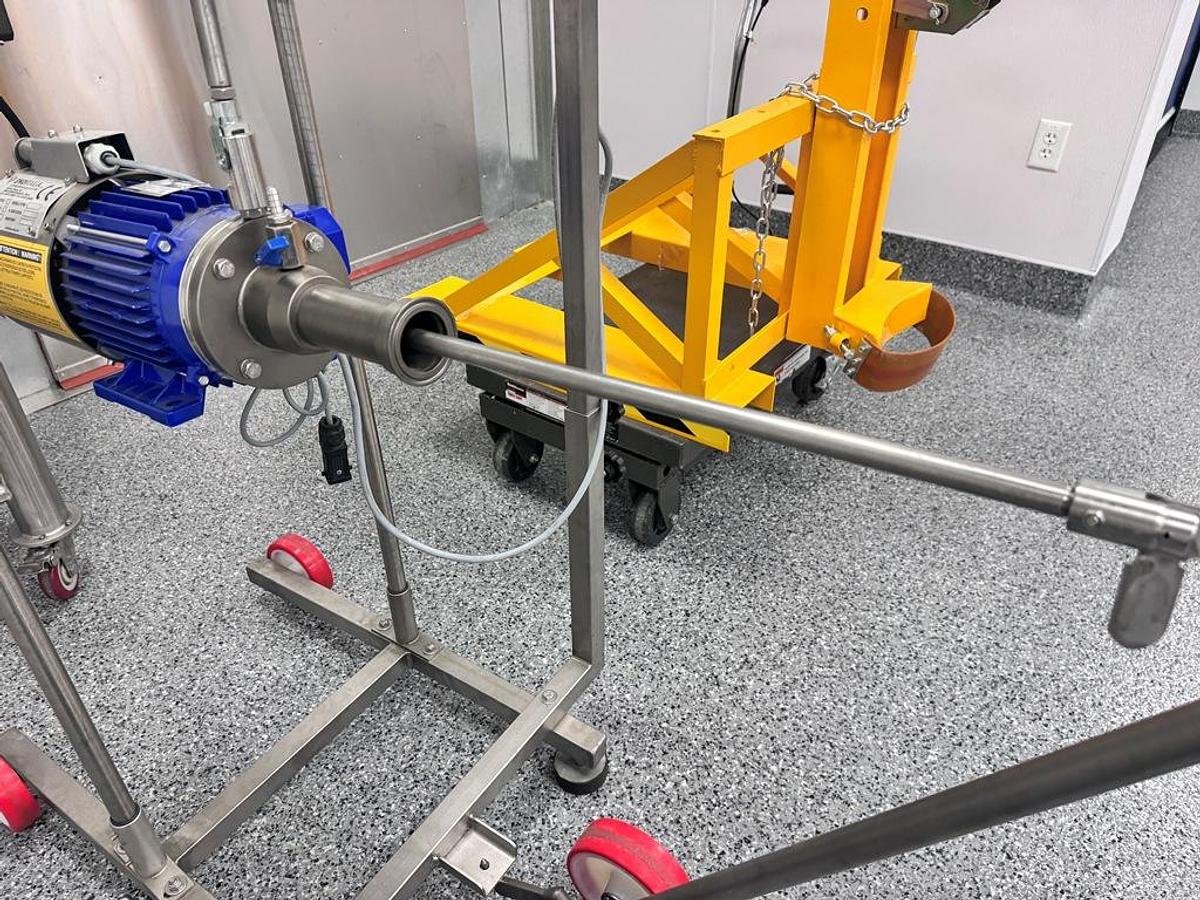

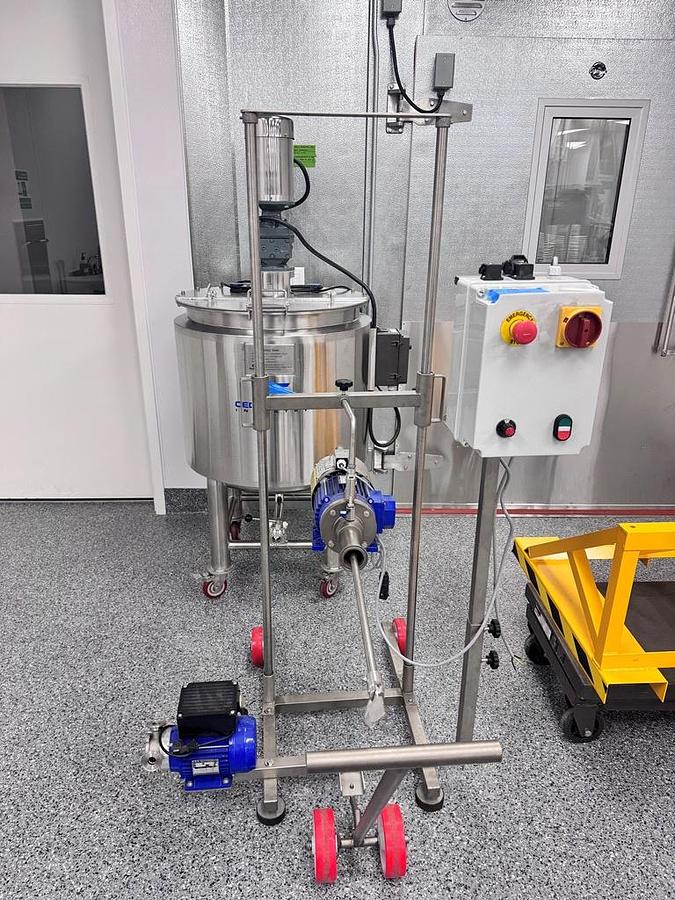

Enoitalia Universal high-shear mixer featuring a 1.5 HP drive, stainless steel product-contact components and extended mixing shaft mounted on an adjustable-height stainless steel mobile frame. Designed for direct insertion into tanks and vessels for batch mixing, blending and product circulation. Includes adjustable mixer positioning, separate control enclosure with emergency stop and main disconnect, and portable stainless steel support frame. Rated for products up to 100 mPas viscosity, 2 bar maximum pressure and temperatures up to 176°F.
Specifications
| Stock Number | 5991964 |
| Manufacturer | Enoitalia |
| Model | Universal Mixer |
| Mixer Weight | Approx. 66 lbs (30 kg) |
| Connections | DIN 11851 / Garolla / Macon / Tri-Clover |
| Product Contact Gaskets | Viton |
| Product Contact Material | AISI 304 Stainless Steel |
| Maximum Temperature | 176°F (80°C) |
| Maximum Pressure | 2 Bar |
| Maximum Viscosity | 100 mPas |
| Frequency | 50 / 60 Hz |
| Electrical | 220 / 400 Volt |
| HP | 1.5 HP (1.1 kW) |
| Basis | FOB |
General Information
Enoitalia manufactures processing equipment for wine, beverage and related liquid-processing applications. The Universal Mixer is designed for installation through a tank connection and utilizes an extended mixing shaft for in-vessel agitation, blending and product circulation. Its stainless steel product-contact construction and adjustable mobile support arrangement allow the mixer to be positioned for use with different tanks and vessels.
