Dryer, Spray, VetterTec 500 kg/hr, 304L Stainless Steel Spray Dryer, #5991956
Dryer, Spray, VetterTec 500 kg/hr, 304L Stainless Steel Spray Dryer, #5991956
Location:Canada
Available quantity:1
Description

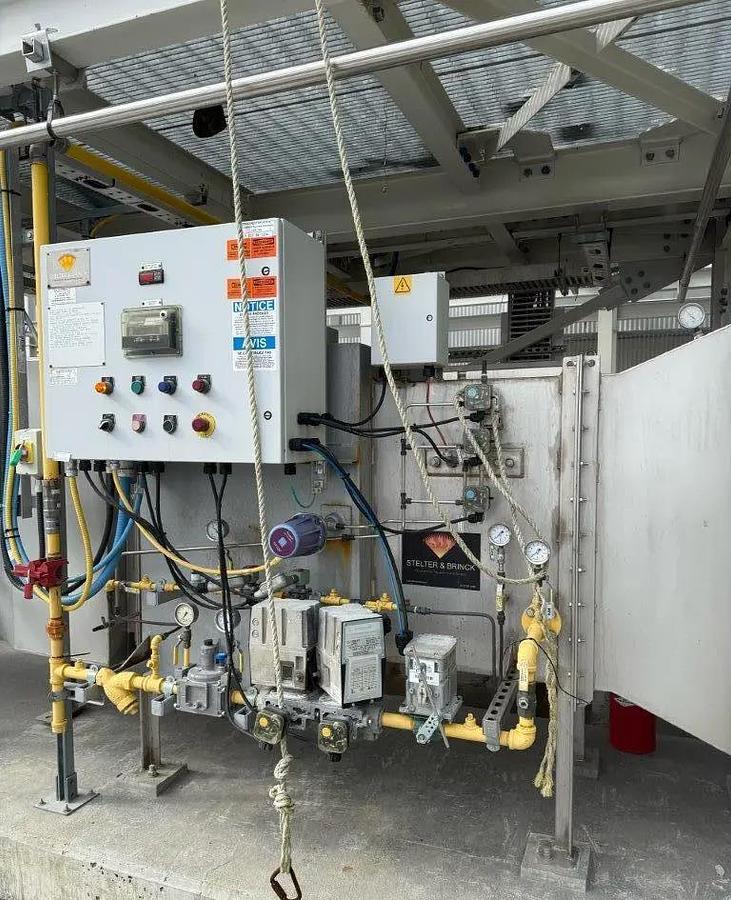

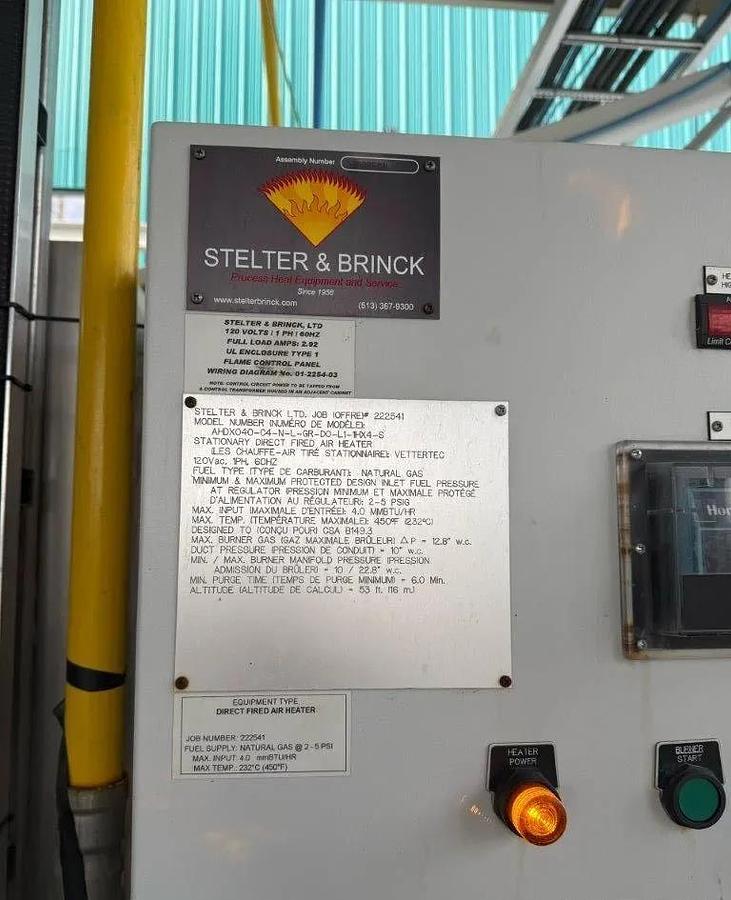

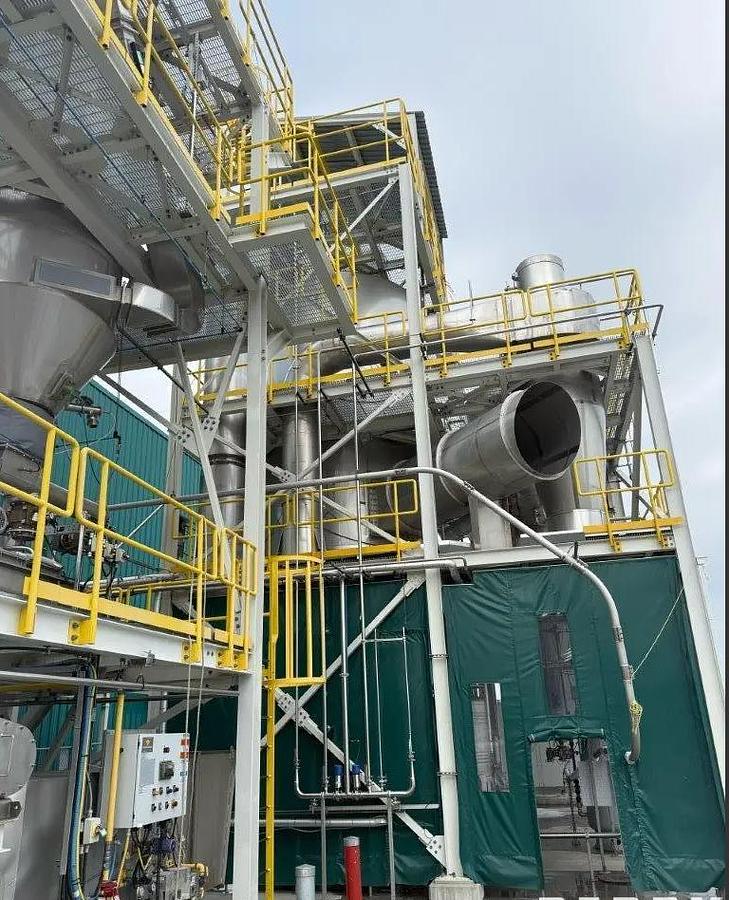

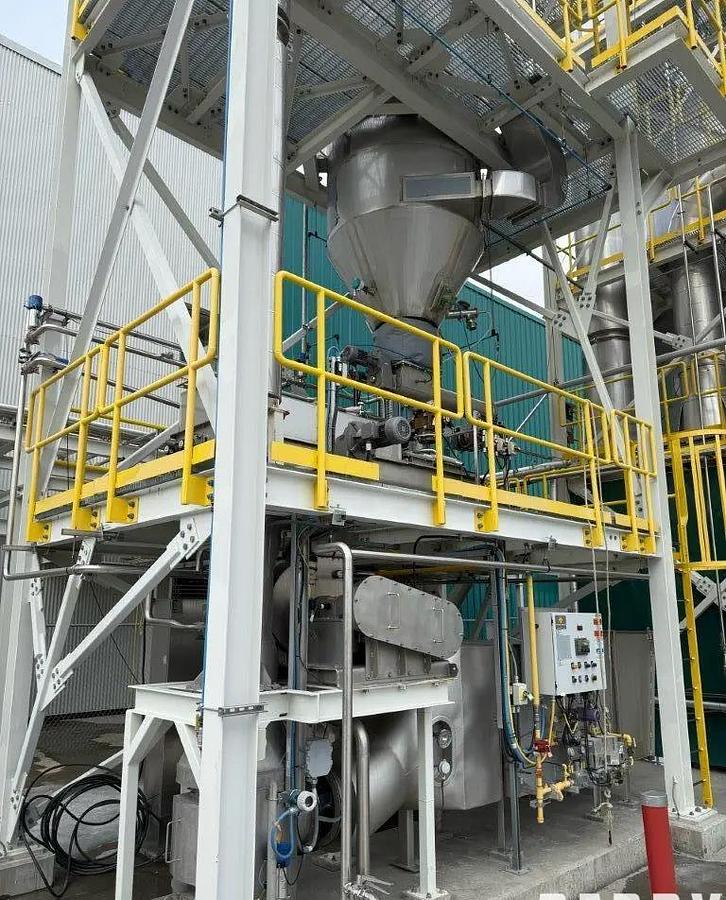

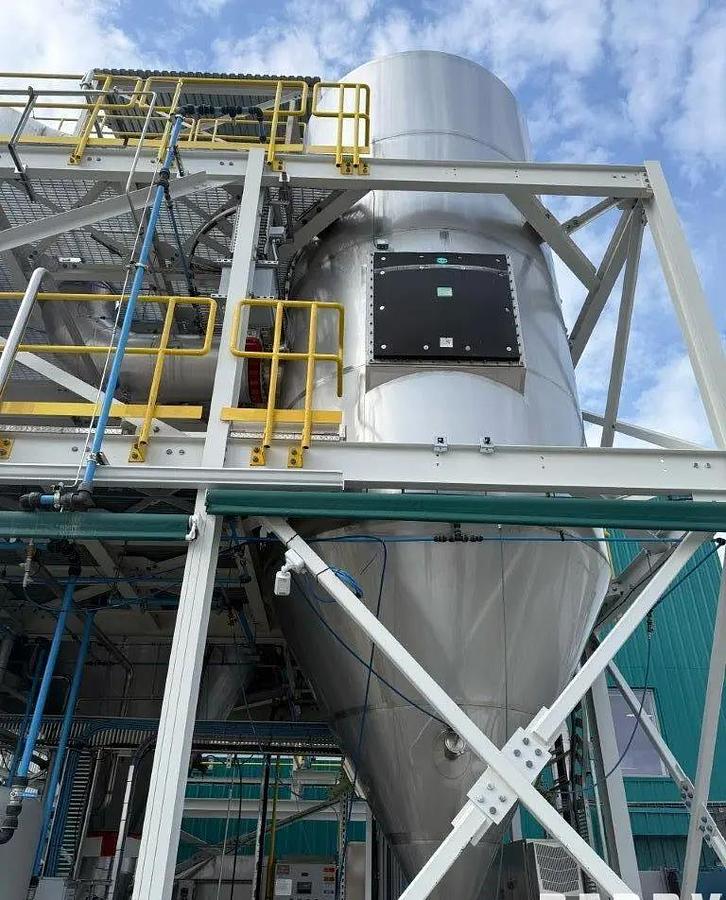

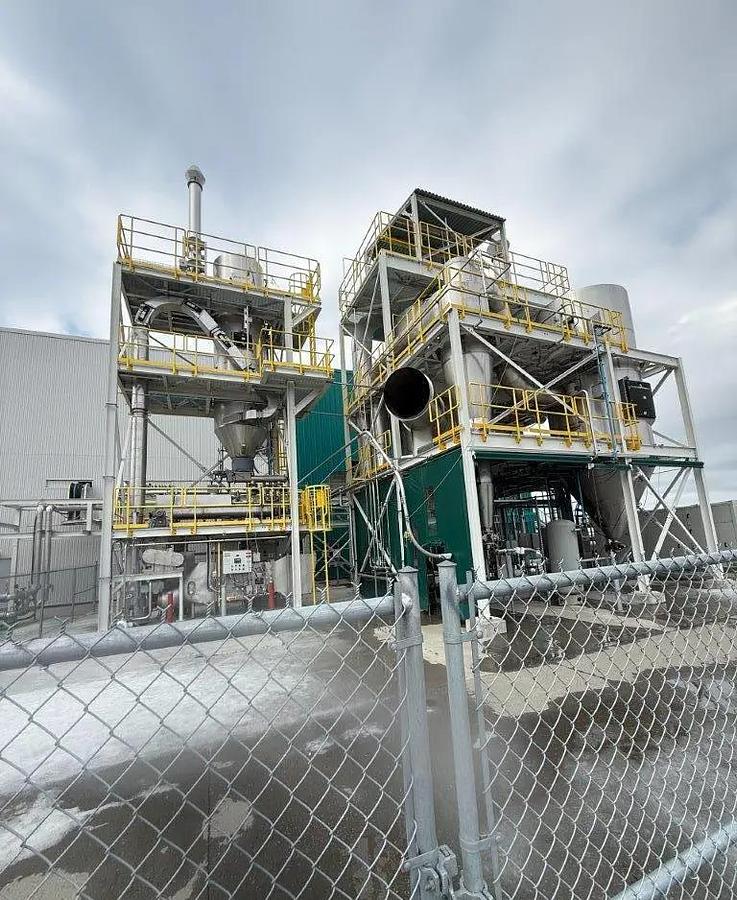

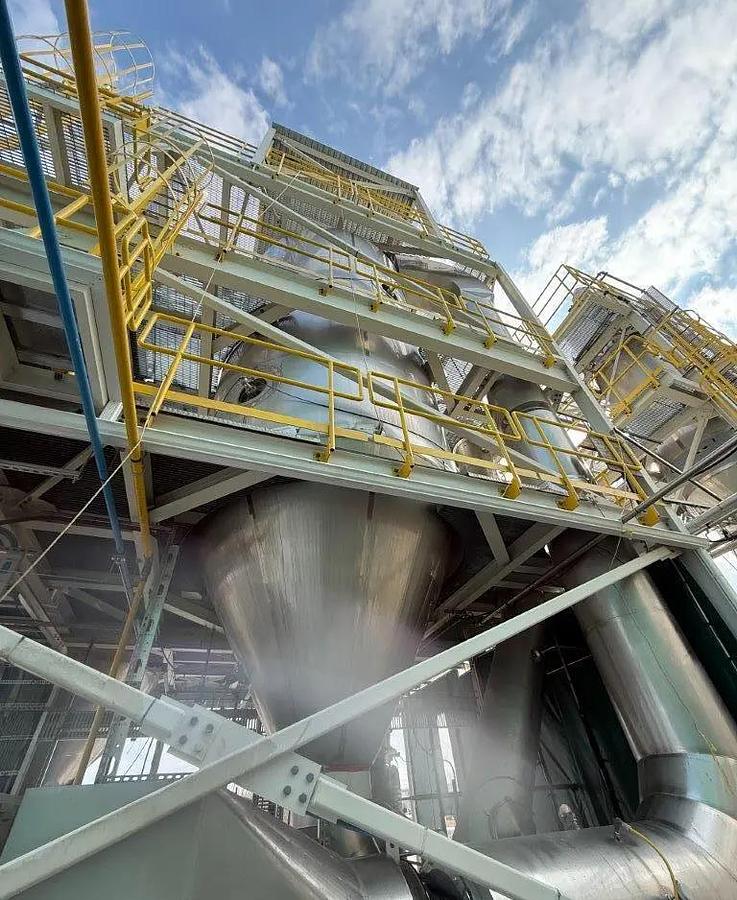

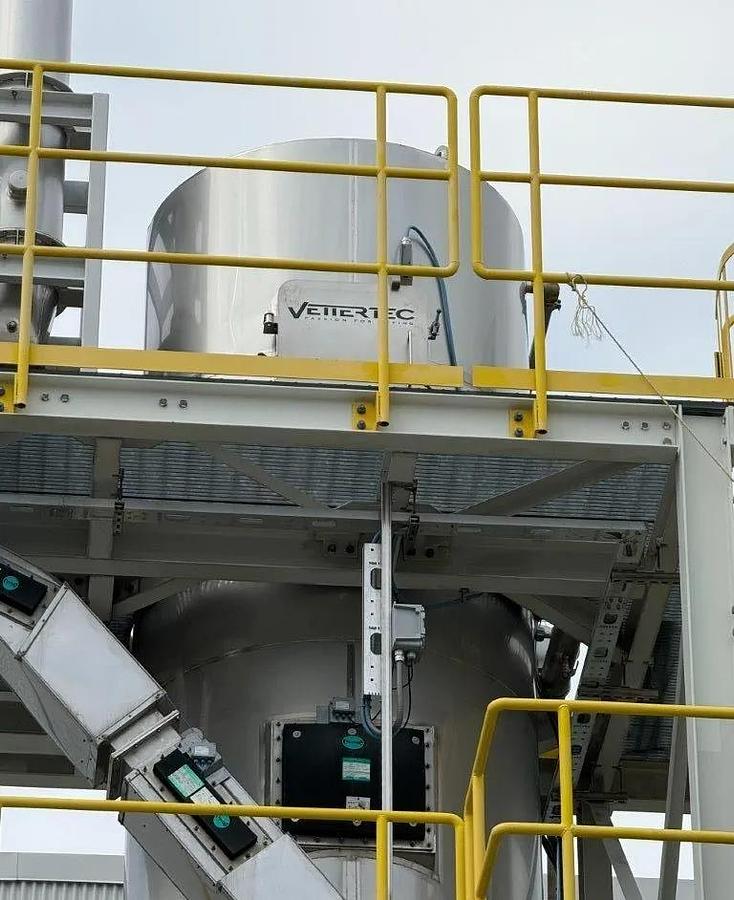

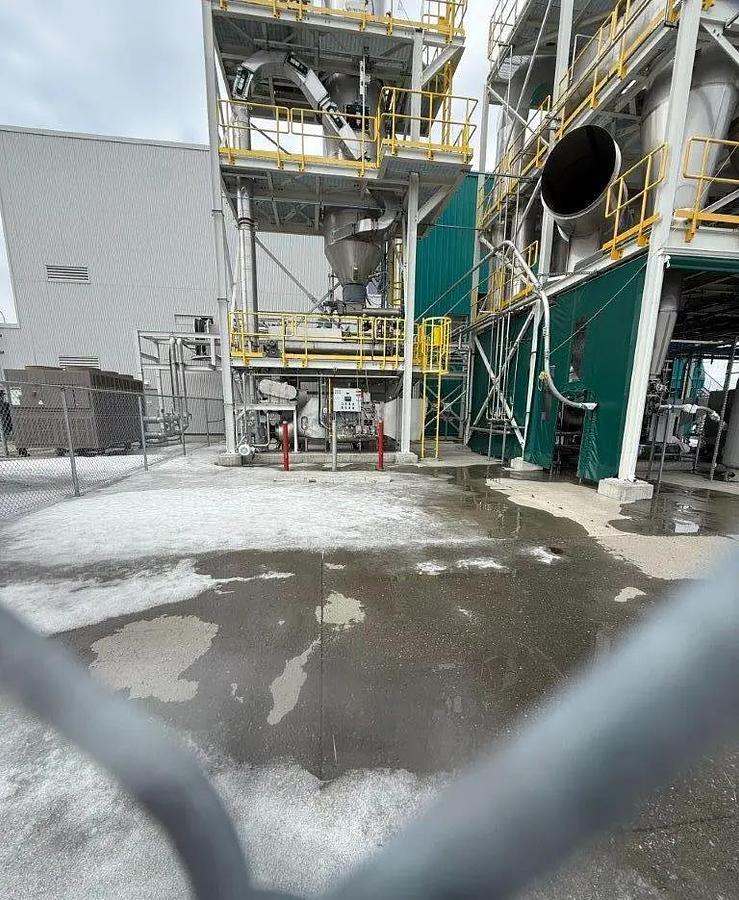

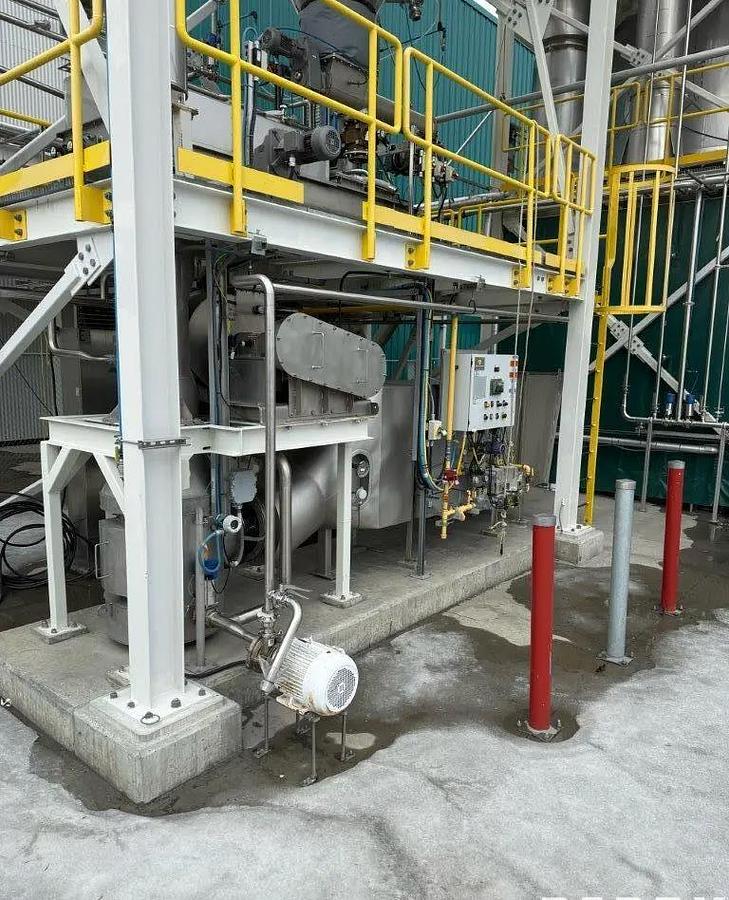

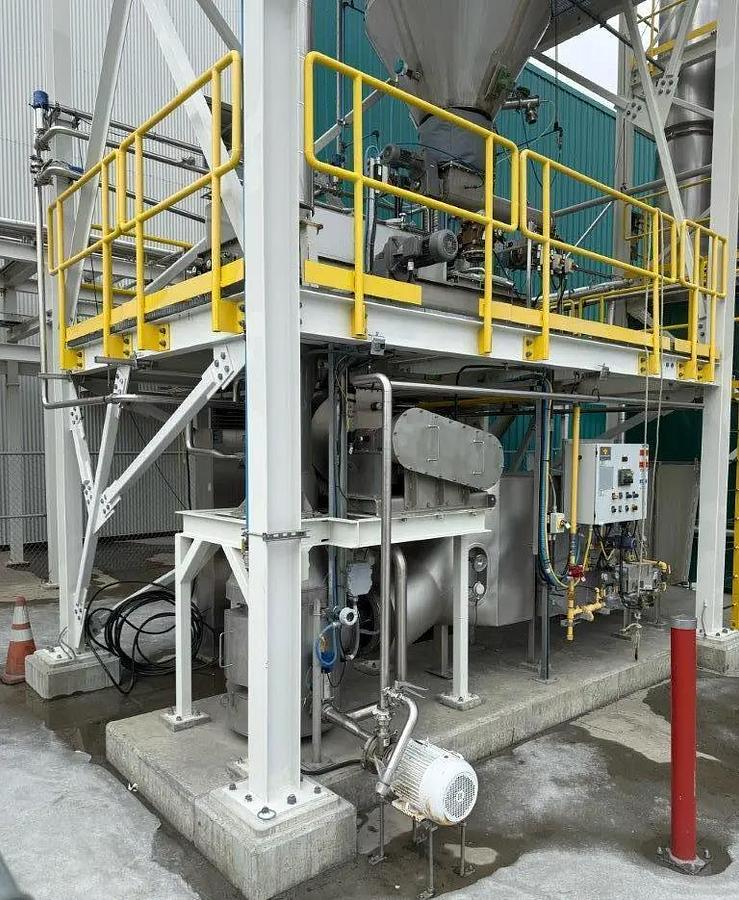

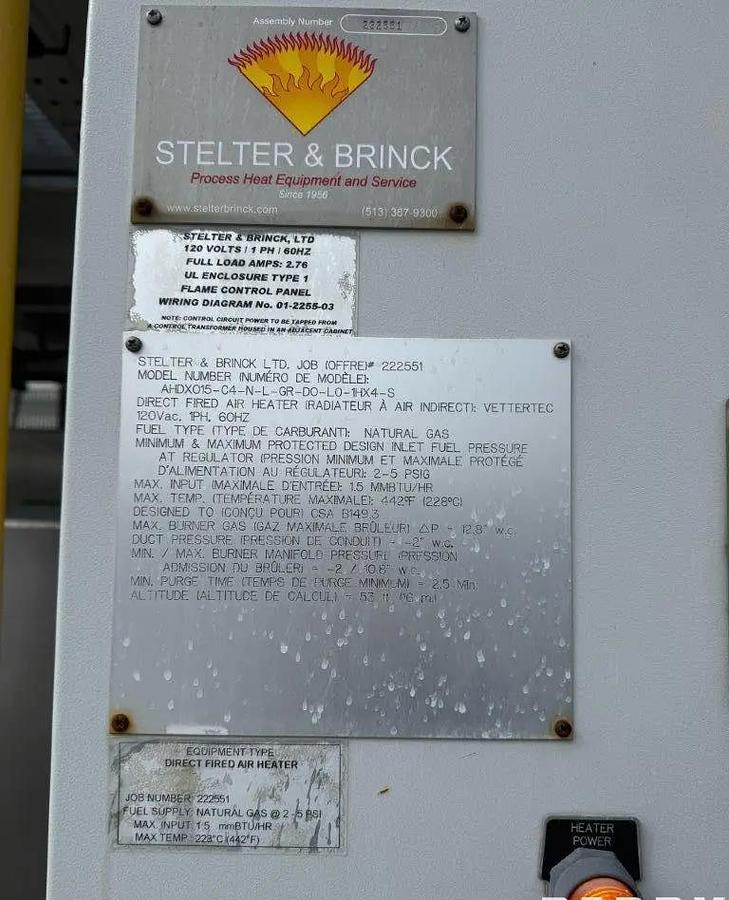

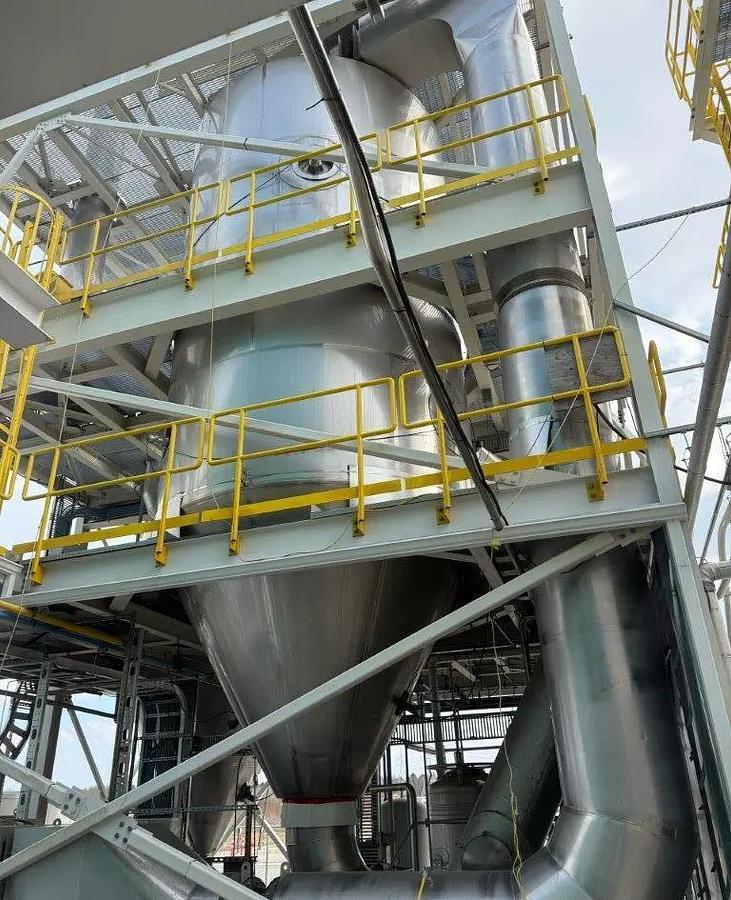

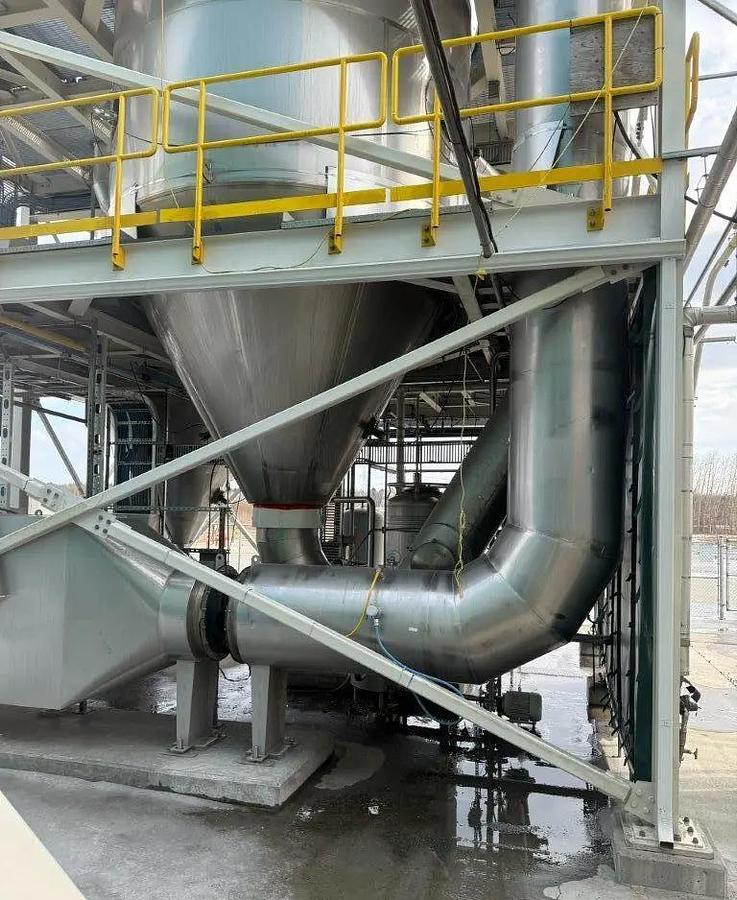

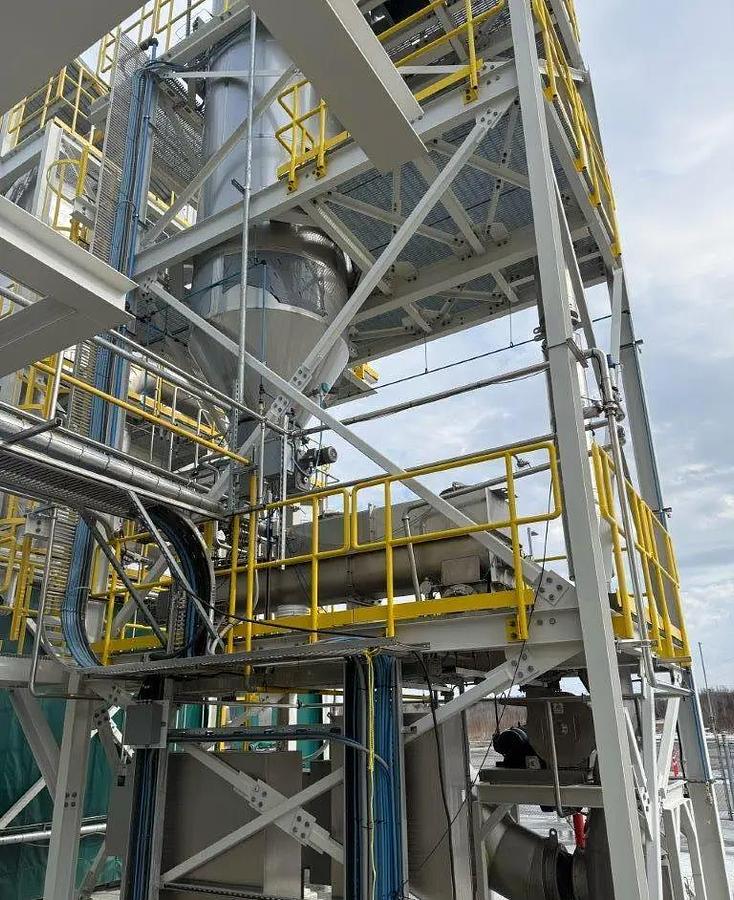

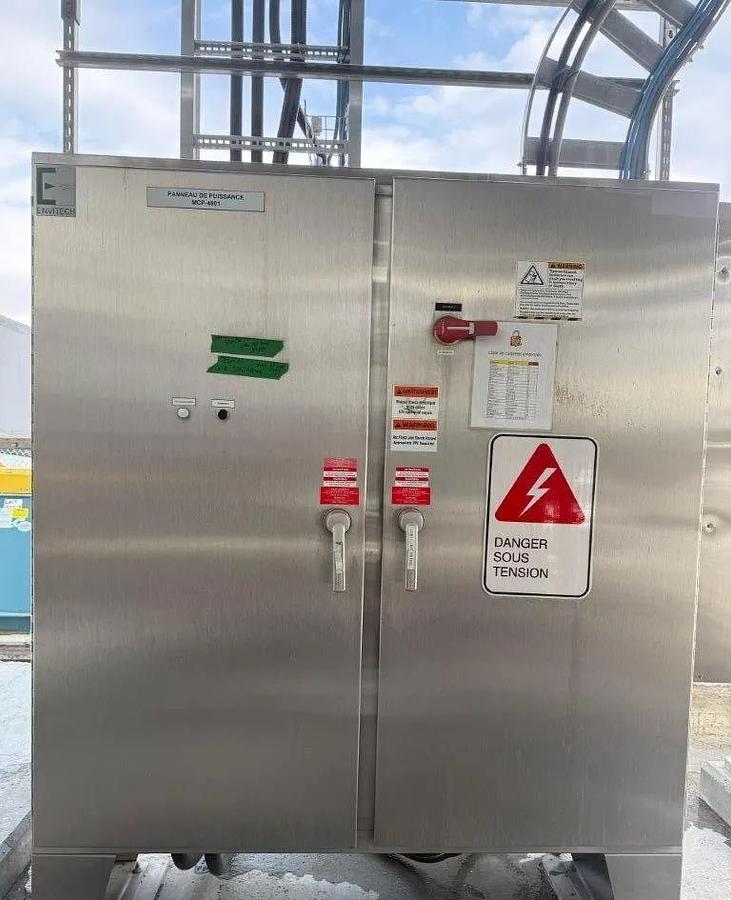

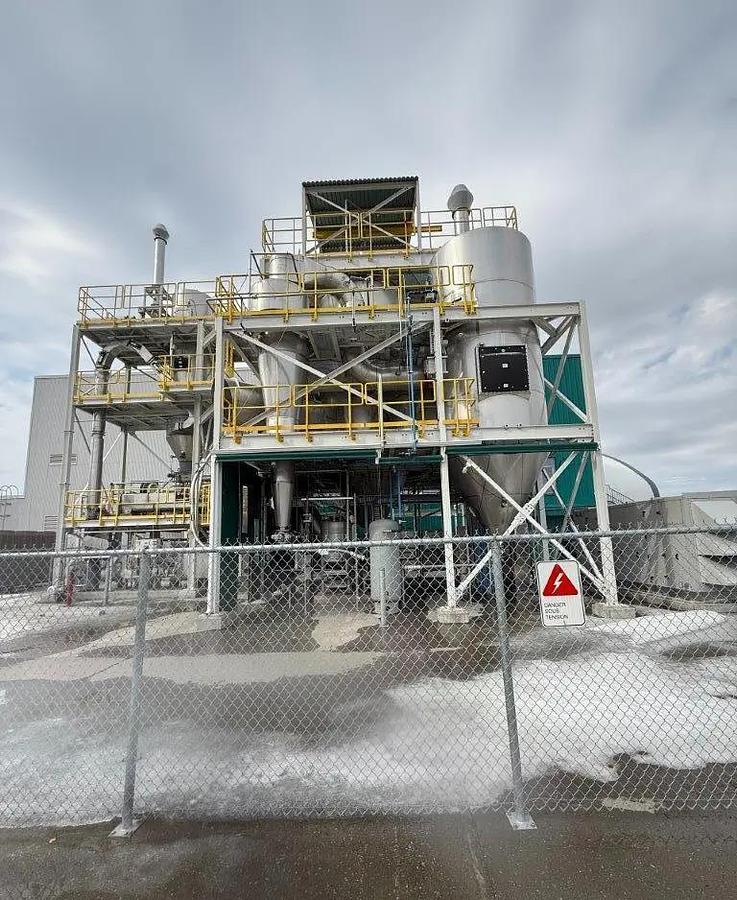

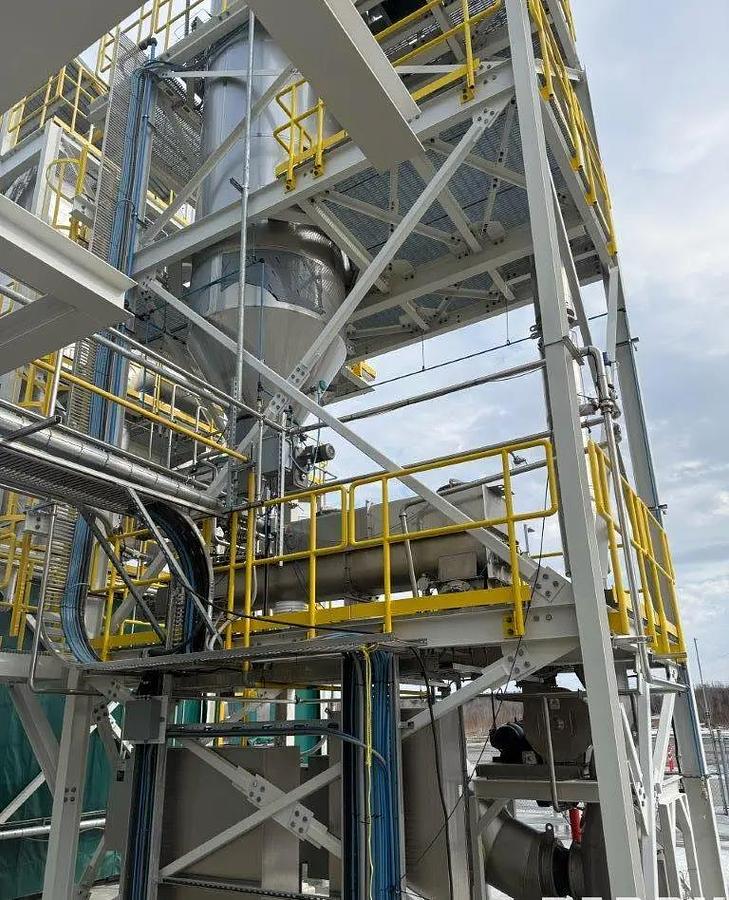

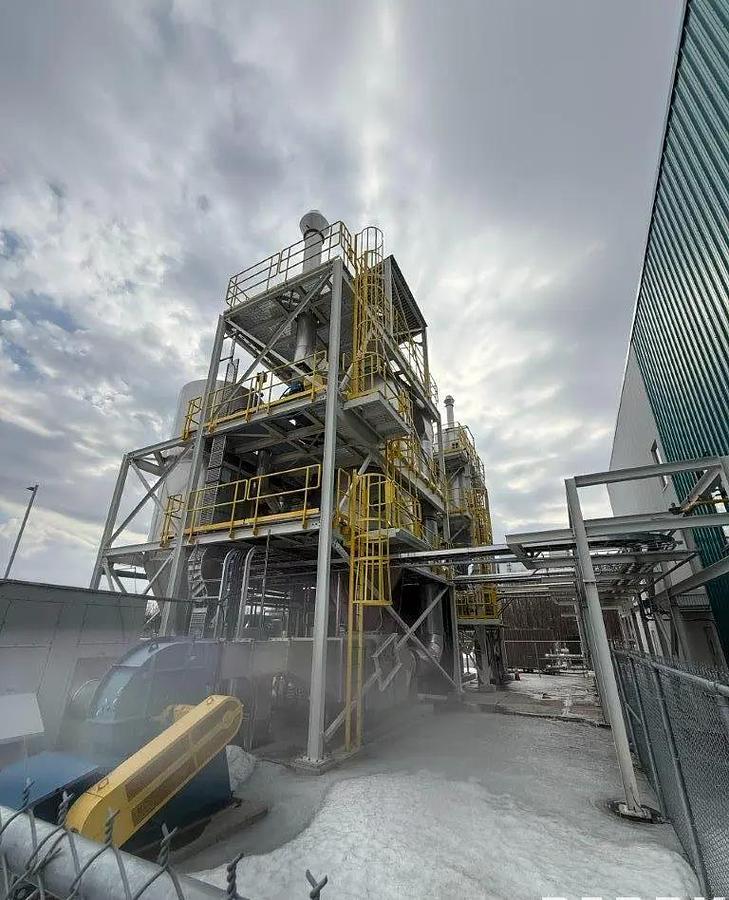

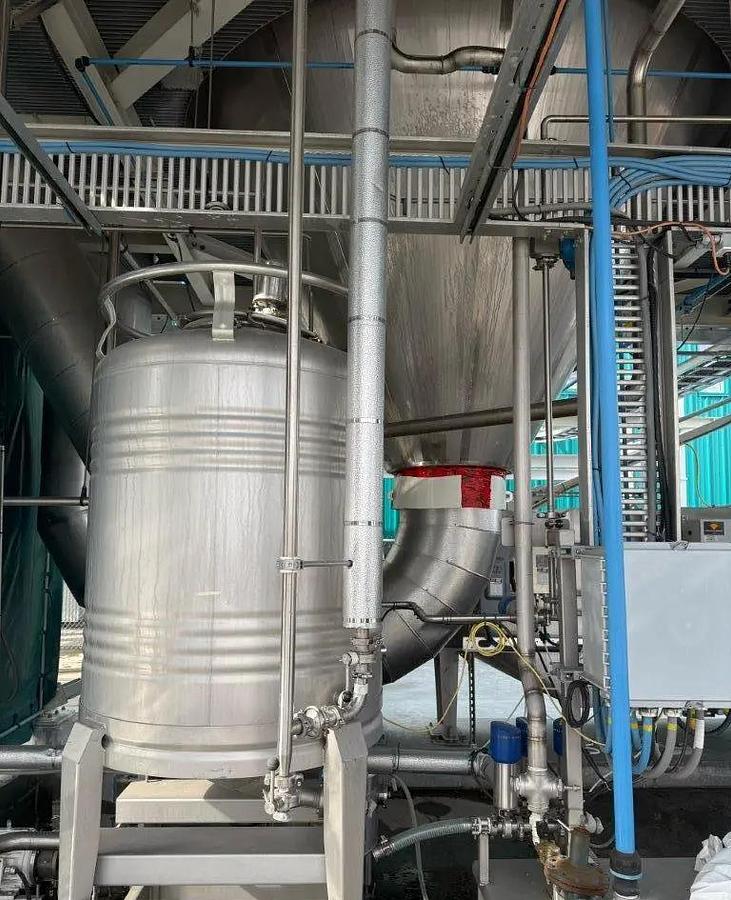

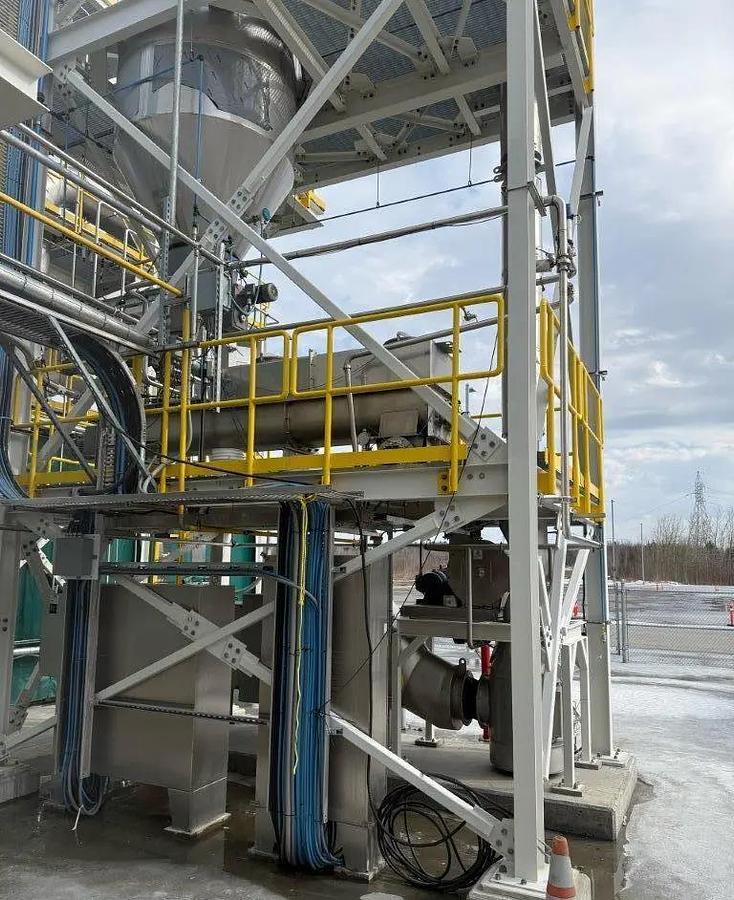

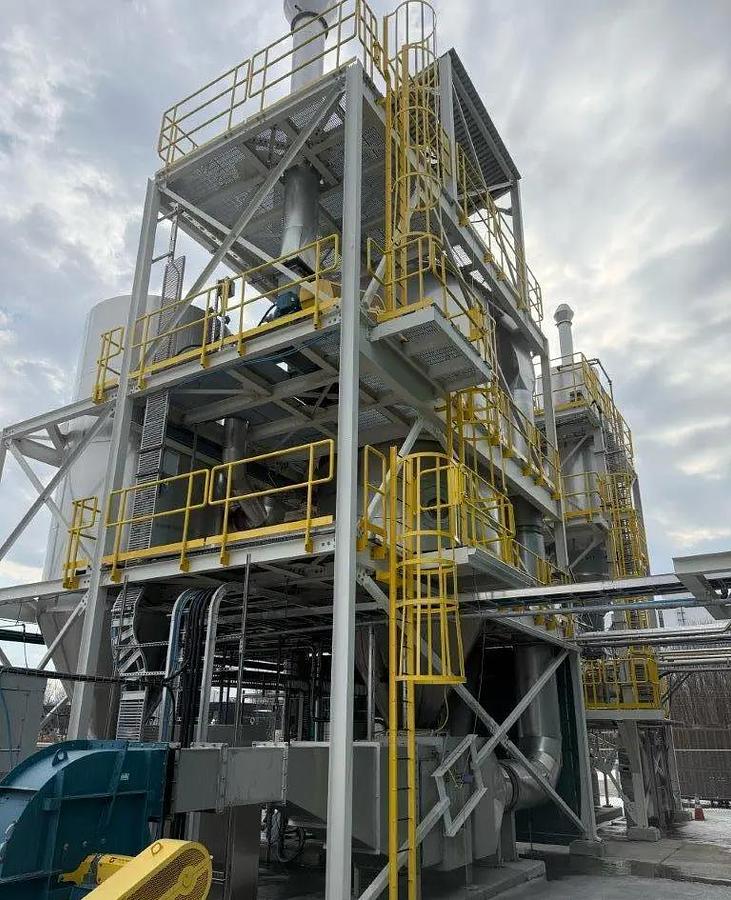

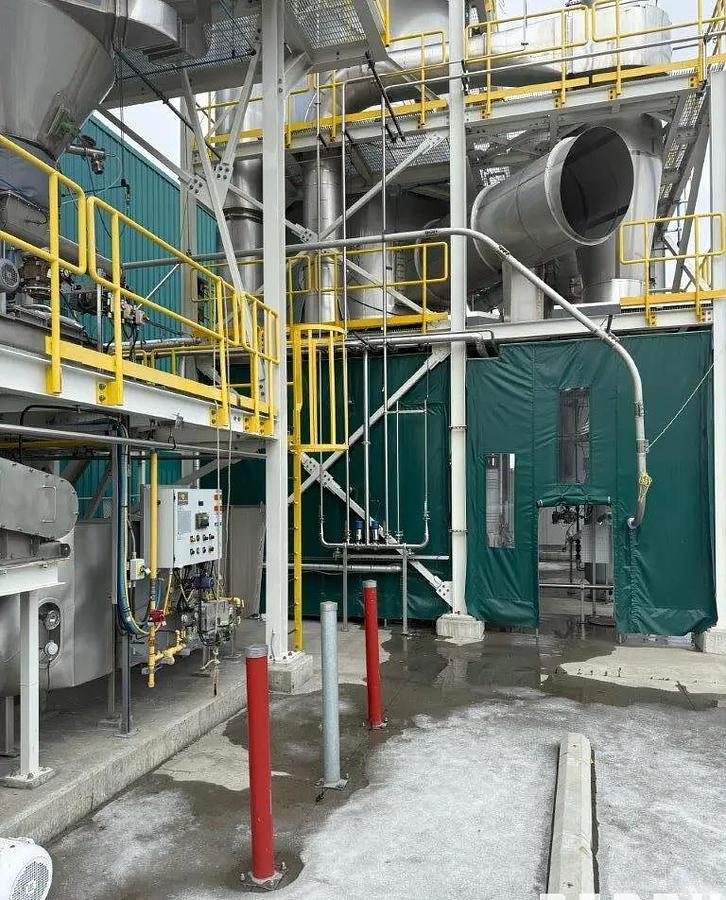

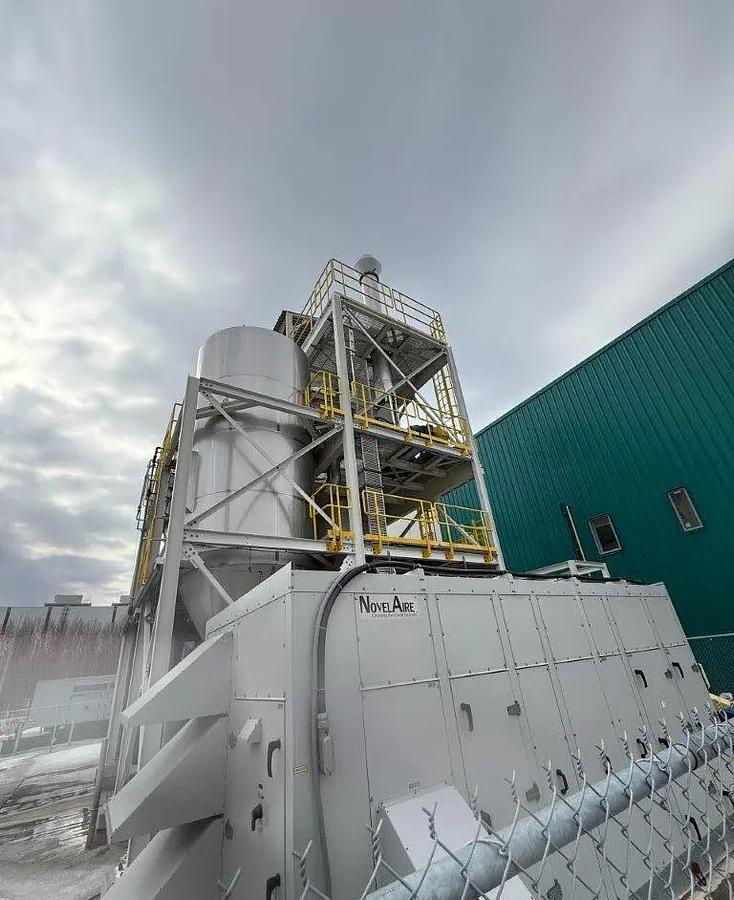

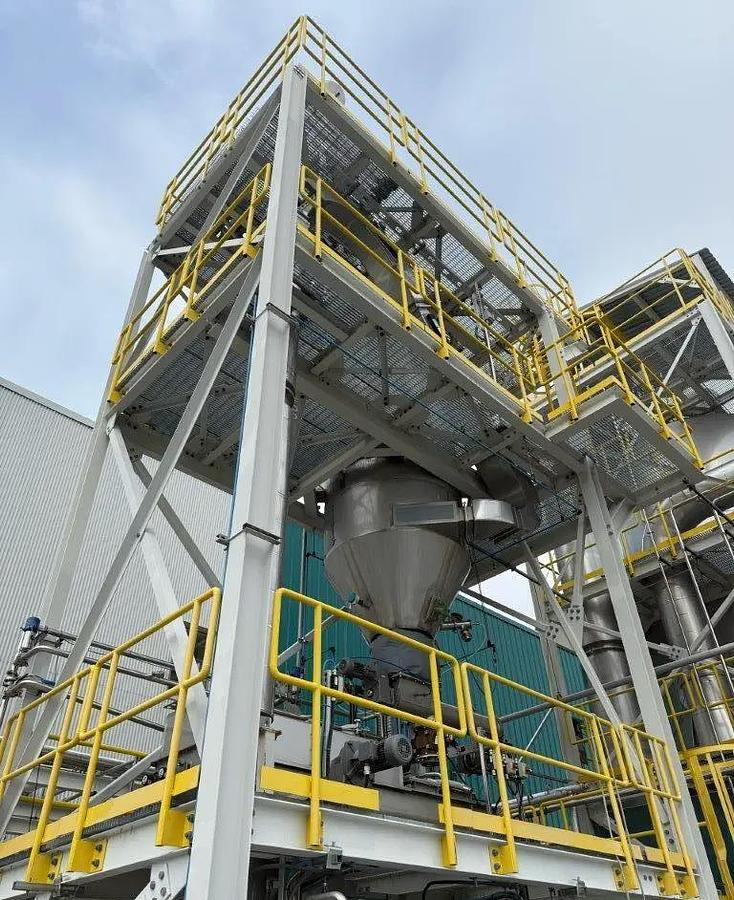

2021 VetterTec stainless steel spray drying and flash drying system designed for combustible powder processing. Primary dryer is a 138 in diameter pressure-nozzle spray dryer with approximately 450–600 kg/hr estimated evaporation capacity, 316L stainless steel pressure nozzle atomizer, dehumidified inlet air, cyclone product recovery, pulse-jet bag filter, and exhaust fan. Spray chamber is approximately 138 in ID with approximately 47 m³ volume and is constructed of AISI 304L stainless steel. System includes a 12 in flash dryer polishing section designed for approximately 75–150 kg/hr additional water removal and 150–500 kg/hr dry-solids handling depending on product. Includes VetterTec process equipment, cyclone, baghouse, rotary valves, sanitary components, structural support steel, platforms, ladders, access walkways, ductwork, controls, and associated process equipment. Direct-fired process air heating equipment includes Stelter & Brinck natural-gas-fired air heaters rated up to approximately 15 MMBTU/hr
Specifications
| Stock Number | 5991956 |
| Manufacturer | VetterTec |
| Year | 2021 |
| Spray Dryer Evaporation | 500 kg/hr Approximately |
| Evaporation Range | 450–600 kg/hr |
| Flash Dryer Water Removal | 75–150 kg/hr Approximately |
| Dry Solids Handling | 150–500 kg/hr, depending on product density and moisture |

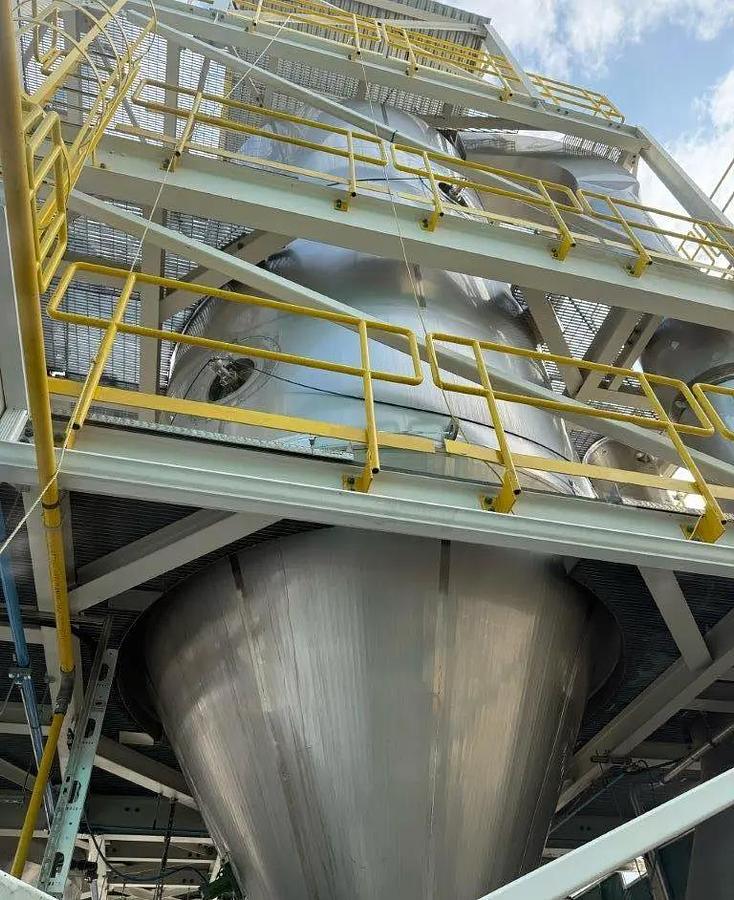

| Spray Chamber Diameter | 3505 mm / 138 in ID / approximately 11 ft 6 in |
| Spray Chamber Cylindrical Section | 3968 mm / 156 in Approximately |
| Spray Chamber Cone Section | 2679 mm / 105 in |
| Basis | As Is, Where Is |
General Information
VetterTec manufactures industrial drying systems used for powder, food, chemical, starch, protein, fermentation, and other process applications. This system combines pressure-nozzle spray drying with a separate flash-drying polishing stage, allowing primary moisture evaporation followed by additional moisture removal and product conditioning. The cyclone and pulse-jet bag filter provide downstream powder recovery, while the system's combustible-powder design incorporates explosion venting and associated process controls.
