CIP Skid, 2-Tank System, 160 GPM, Walker Stainless, Allen-Bradley Controls, #5991954
CIP Skid, 2-Tank System, 160 GPM, Walker Stainless, Allen-Bradley Controls, #5991954
Location:Chowchilla, CA
Available quantity:1
Description

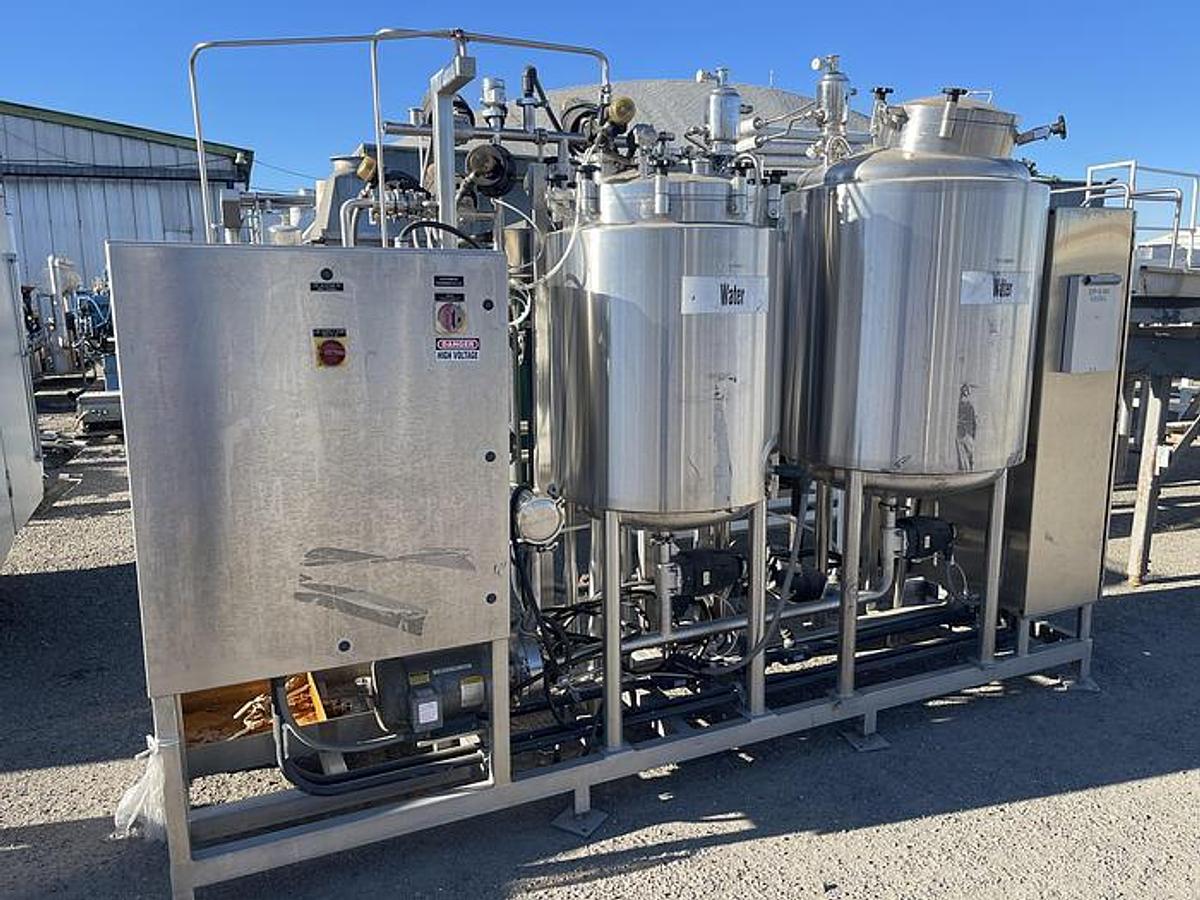

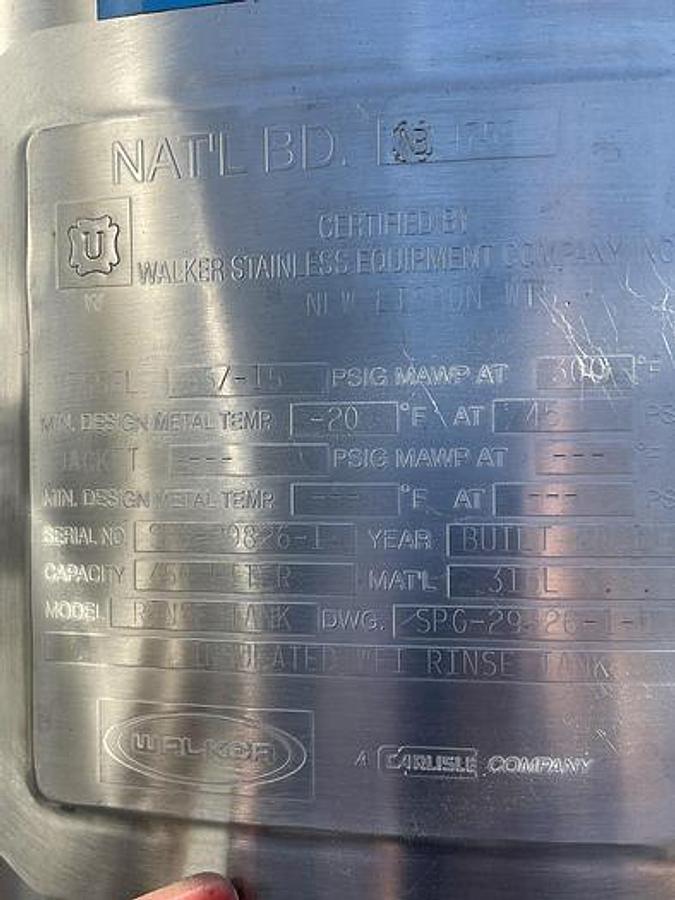

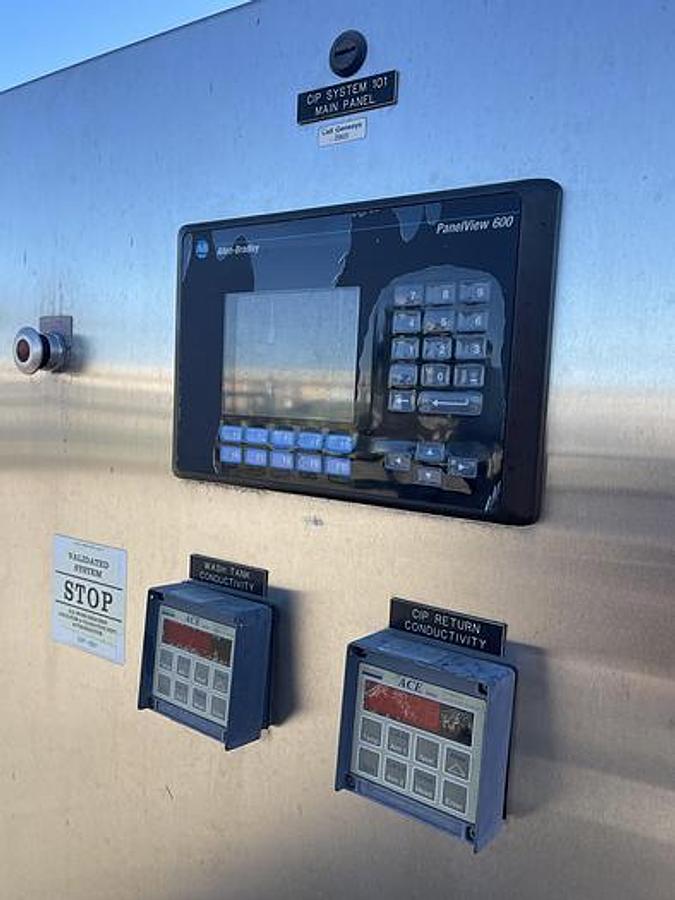

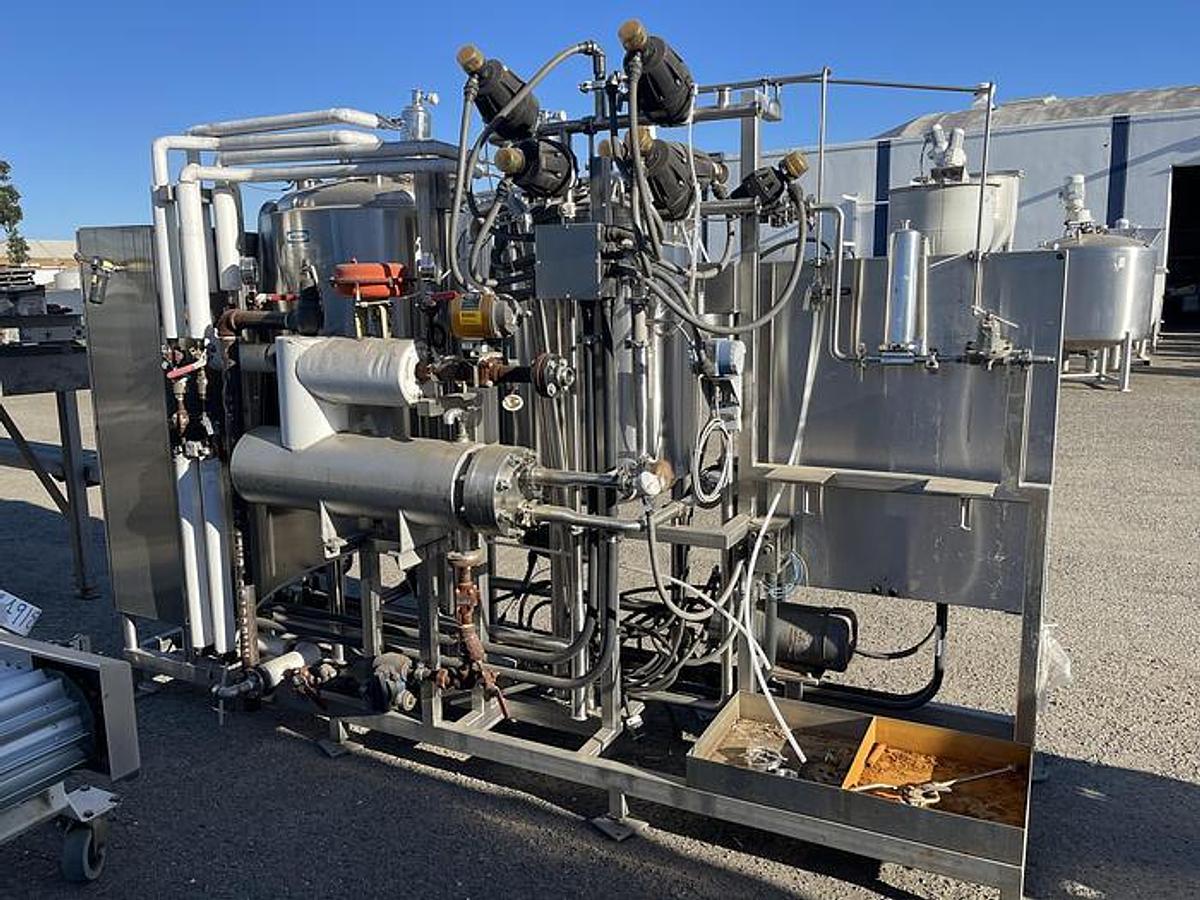

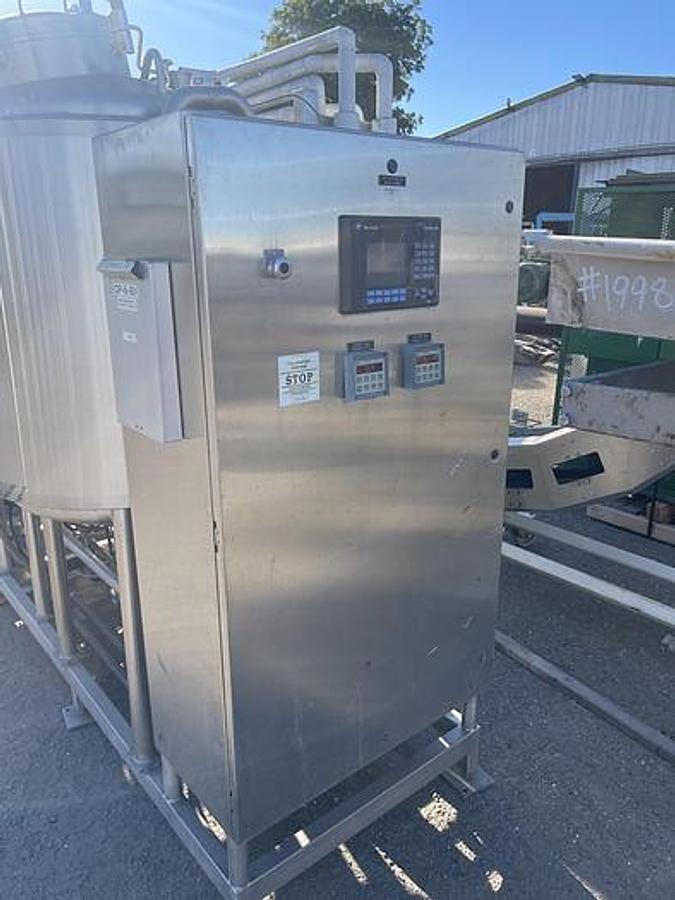

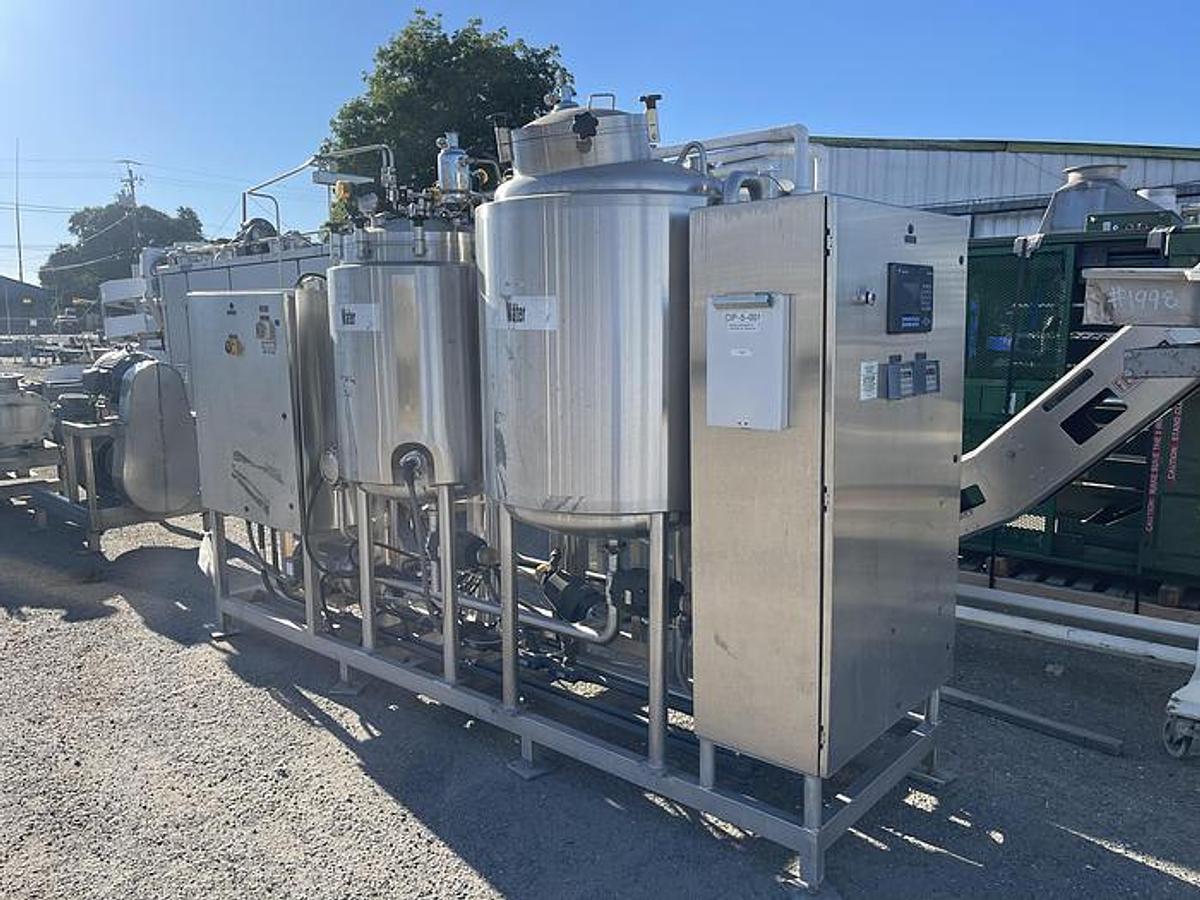

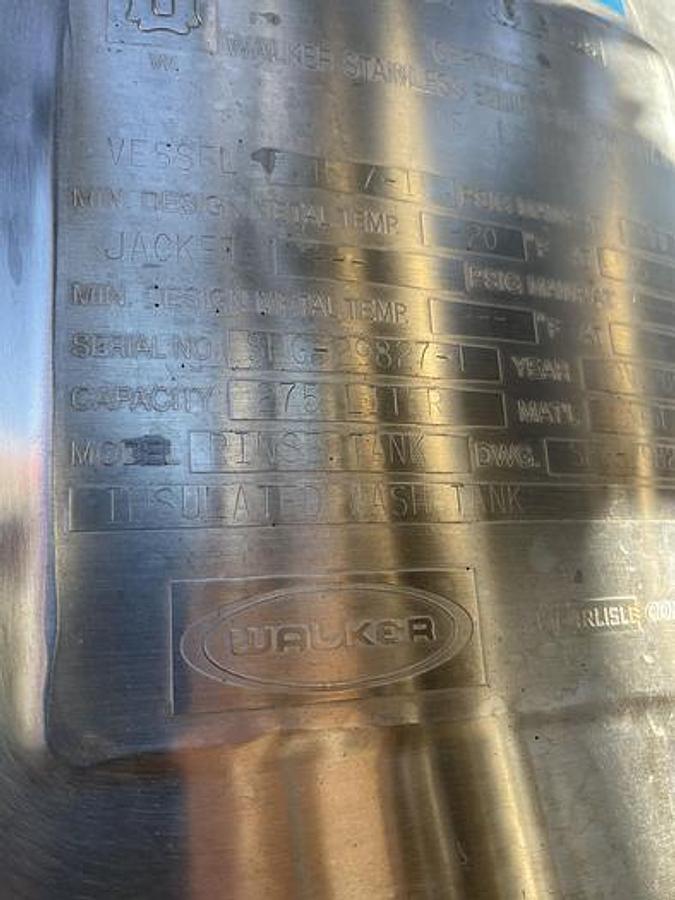

Pharmaceutical-grade, skid-mounted two-tank Clean-In-Place (CIP) system with approximately 160 GPM capacity. System features Walker Type 316 stainless steel insulated tanks, stainless steel shell-and-tube heater, sanitary piping, and Advantage Smart valves throughout. Controls include Allen-Bradley SLC 5/05 PLC, Allen-Bradley VFD, and PanelView 600 touchscreen operator interface. System is skid mounted and pre-piped with filters, flow meters, RTDs, pressure transmitters, conductivity instrumentation, pumps, valves, piping, and associated controls. Photographs show separate wash and rinse tanks along with a centralized stainless steel electrical control cabinet. Tank nameplates identify Walker Stainless Equipment Company construction and Type 316 stainless steel material.
Specifications
| Stock Number | 5991954 |
| Manufacturer | Walker |
| Type | 2-Tank CIP System |
| Capacity | 160 GPM |
| Tank Construction | 316 Stainless Steel |
| Tank Configuration | Insulated |
| Instrumentation | Flow Meters, RTDs, Pressure Transmitters and Conductivity Instrumentation |
| Basis | FOB |
General Information
This skid-mounted CIP system is configured for automated cleaning of sanitary process equipment and piping. The combination of Type 316 stainless steel tanks, sanitary circulation components, heating, conductivity monitoring, temperature and pressure instrumentation, and automated valves makes this type of system applicable to pharmaceutical, biotechnology, food, beverage, dairy, and other sanitary processing operations.
